04 Sport trac stereo installation

04sporttrac.

New Member
Joined
January 13, 2013
Messages
6
Reaction score
0
Year, Model & Trim Level
2004 ford explorer sport
I've installed a new stereo in my sport trac but I can't seem to get the sub in the back seat to work. I have the correct wiring harnesses and the voltage regulator. I think I have my wiring wrong? And I'm not sure how to post pictures on here either. Please help!

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Rwolfe

Well-Known Member
Joined
April 15, 2012
Messages
114
Reaction score
0
City, State
Hanover PA
Year, Model & Trim Level
01 Explorer Sport trac
Your image is not showing up

<



Cobra5O1

Well-Known Member
Joined
May 31, 2012
Messages
105
Reaction score
0
City, State
Cabot, Ar
Year, Model & Trim Level
2002 Sport Trac
I had the picture problem. Use photobucket.




The bottom code will be the one that you'll use.

Why do you need a voltage regulator?

USArmy Active Duty. Nathan, 2002 Sport Trac 4x4. -TT, K&N intake, Poweraid throttle body spacer, Flowmaster 40 with turn down, 30k Kensun HID headlights and fog lights, high beam relay mod, Grille delete, LED grille lights, Recon light bar w/ reverse lights, tinted 3rd brake light, 5% tinted windows.

<



Rwolfe

Well-Known Member
Joined
April 15, 2012
Messages
114
Reaction score
0
City, State
Hanover PA
Year, Model & Trim Level
01 Explorer Sport trac
you could use a in line resistor to, it is for the factory amp to go from 12v to 6v

<



Cobra5O1

Well-Known Member
Joined
May 31, 2012
Messages
105
Reaction score
0
City, State
Cabot, Ar
Year, Model & Trim Level
2002 Sport Trac
I've never needed to use one. it doesn't seem necessary

USArmy Active Duty. Nathan, 2002 Sport Trac 4x4. -TT, K&N intake, Poweraid throttle body spacer, Flowmaster 40 with turn down, 30k Kensun HID headlights and fog lights, high beam relay mod, Grille delete, LED grille lights, Recon light bar w/ reverse lights, tinted 3rd brake light, 5% tinted windows.

<



Rwolfe

Well-Known Member
Joined
April 15, 2012
Messages
114
Reaction score
0
City, State
Hanover PA
Year, Model & Trim Level
01 Explorer Sport trac
I think it is to eliminate the "pop" sound when it turns on

<



Cobra5O1

Well-Known Member
Joined
May 31, 2012
Messages
105
Reaction score
0
City, State
Cabot, Ar
Year, Model & Trim Level
2002 Sport Trac
Hmm...I've never had that problem.

USArmy Active Duty. Nathan, 2002 Sport Trac 4x4. -TT, K&N intake, Poweraid throttle body spacer, Flowmaster 40 with turn down, 30k Kensun HID headlights and fog lights, high beam relay mod, Grille delete, LED grille lights, Recon light bar w/ reverse lights, tinted 3rd brake light, 5% tinted windows.

<



LONO100

Explorer Addict
Joined
March 23, 2011
Messages
2,916
Reaction score
24
City, State
Bay Area CA
Year, Model & Trim Level
03 sport trac XLT
start with the simplest stuff first. test for continuity on the wires that goes to the sub. double check your wiring for the amp to the harness. the sub may not work right if the amp is hooked up wrong. check applicable fuses.

<



04sporttrac.

New Member
Joined
January 13, 2013
Messages
6
Reaction score
0
Year, Model & Trim Level
2004 ford explorer sport
The sub works when I hook up the factory stereo so I know nothings wrong with the amp or anything like that. It's got to be something with the wiring that I did.
I'll post pictures soon. And thank you for the photobucket tip

<



<



Cobra5O1

Well-Known Member
Joined
May 31, 2012
Messages
105
Reaction score
0
City, State
Cabot, Ar
Year, Model & Trim Level
2002 Sport Trac
What is the small one for?

USArmy Active Duty. Nathan, 2002 Sport Trac 4x4. -TT, K&N intake, Poweraid throttle body spacer, Flowmaster 40 with turn down, 30k Kensun HID headlights and fog lights, high beam relay mod, Grille delete, LED grille lights, Recon light bar w/ reverse lights, tinted 3rd brake light, 5% tinted windows.

<



<



Cobra5O1

Well-Known Member
Joined
May 31, 2012
Messages
105
Reaction score
0
City, State
Cabot, Ar
Year, Model & Trim Level
2002 Sport Trac
In the first pic. The small harness

USArmy Active Duty. Nathan, 2002 Sport Trac 4x4. -TT, K&N intake, Poweraid throttle body spacer, Flowmaster 40 with turn down, 30k Kensun HID headlights and fog lights, high beam relay mod, Grille delete, LED grille lights, Recon light bar w/ reverse lights, tinted 3rd brake light, 5% tinted windows.

<



Cobra5O1

Well-Known Member
Joined
May 31, 2012
Messages
105
Reaction score
0
City, State
Cabot, Ar
Year, Model & Trim Level
2002 Sport Trac
I think I may have found your problem!

The blue/white coming off of the harness, run that wire to your amp. That's the one that will turn it on.

USArmy Active Duty. Nathan, 2002 Sport Trac 4x4. -TT, K&N intake, Poweraid throttle body spacer, Flowmaster 40 with turn down, 30k Kensun HID headlights and fog lights, high beam relay mod, Grille delete, LED grille lights, Recon light bar w/ reverse lights, tinted 3rd brake light, 5% tinted windows.

<



04sporttrac.

New Member
Joined
January 13, 2013
Messages
6
Reaction score
0
Year, Model & Trim Level
2004 ford explorer sport
That's for the sub. But I figured it out. I had to solder the blue/white remote wire to the regulator. Sub works now, woo!

<



Cobra5O1

Well-Known Member
Joined
May 31, 2012
Messages
105
Reaction score
0
City, State
Cabot, Ar
Year, Model & Trim Level
2002 Sport Trac

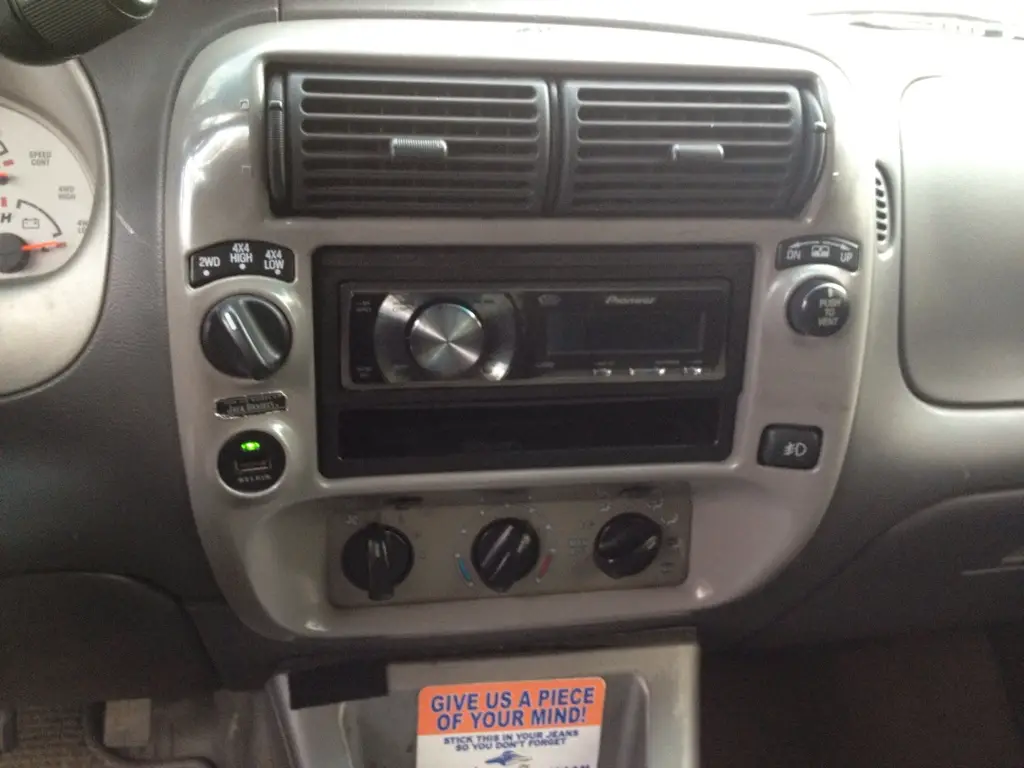

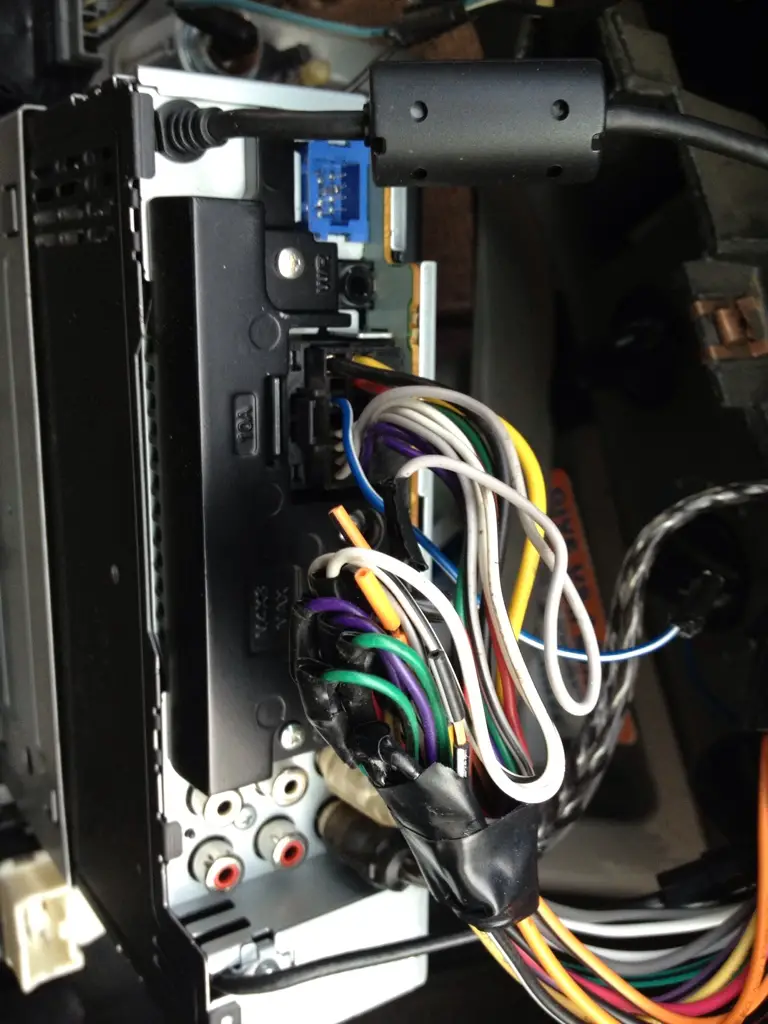

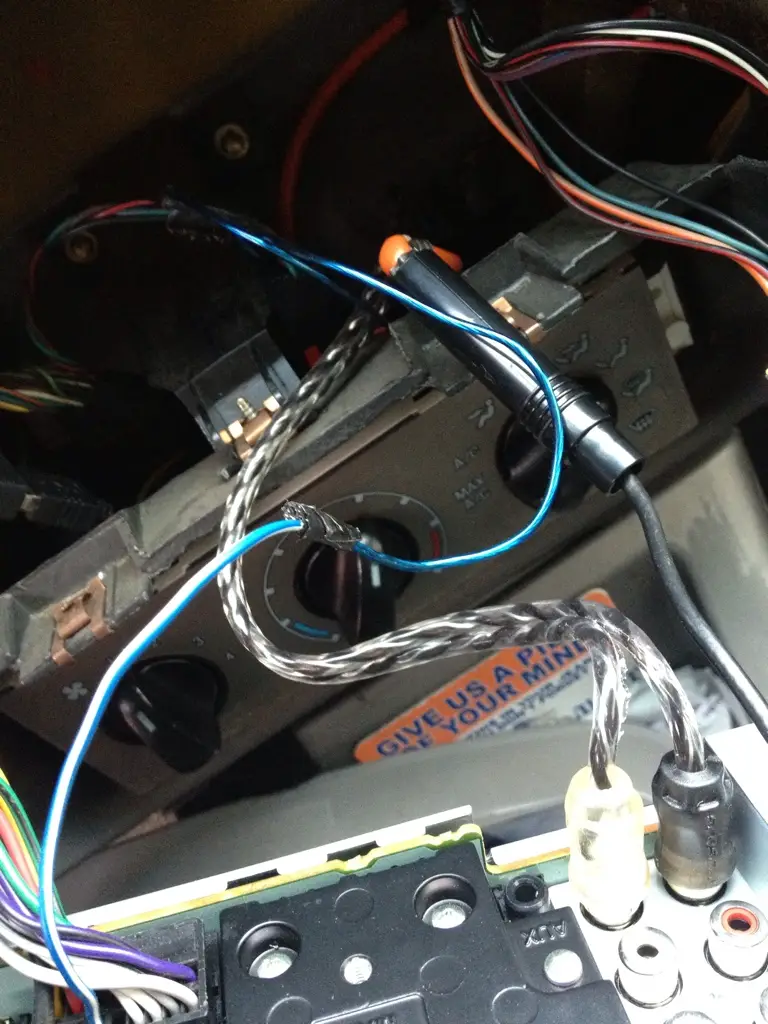

Here's some pics I just took of the back of my unit.
