104 pin PCM Pin layout

philorourke

New Member
Joined
July 9, 2006
Messages
3
Reaction score
0
City, State
St. austell, Cornwall, England
Year, Model & Trim Level
97 4.0L V6
Got a problem on the gearbox in '97 4.0L V6. o/d light flashing, code read using scanner gave code P01746. PCM has been checked as okay as has the gearbox (which has been rebuilt then re-checked to disount as problem). Reckon I've got a wire broken between PCM and gearbox.

Can anybody provide me with a pin layout of this PCM? That way I can check for continuity etc. without stabbing in the dark



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,155
Reaction score
9
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
P1746 Electronic Pressure Control Solenoid - Open circuit

more than likely your right - a broken/cut wire. Just check down your whole harness. Also, I would get a pin out from someone over there with you, cause the computer layouts may be different than over here.

-Drew





philorourke

New Member
Joined
July 9, 2006
Messages
3
Reaction score
0
City, State
St. austell, Cornwall, England
Year, Model & Trim Level
97 4.0L V6
Thank you Drew - I wqs afraid you might say that, course you know how thick the loom is that runs from the PCM and where it goes :-( nightmare of a job to check the whole thing from PCM to gearbox.
Is there anybody reading this that lives in the UK that could provide me with a pin layout? F77F .... BGB or TZP1





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,226
Reaction score
714
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
Welcome to this forum! Check the plugs on the wiring harness going to the transmission. It might be possible that there is a bad connection from a dirt build up, or from corrosion. WWW.AutoZone.Com has wiring diagrams on their website. You could also download a Ford CD from WWW.FordCDs.Com.





dogfriend

Human-Animal Hybrid
Joined
July 22, 2002
Messages
7,561
Reaction score
7
City, State
Carmichael, CA
Year, Model & Trim Level
'97 Sport 4x4

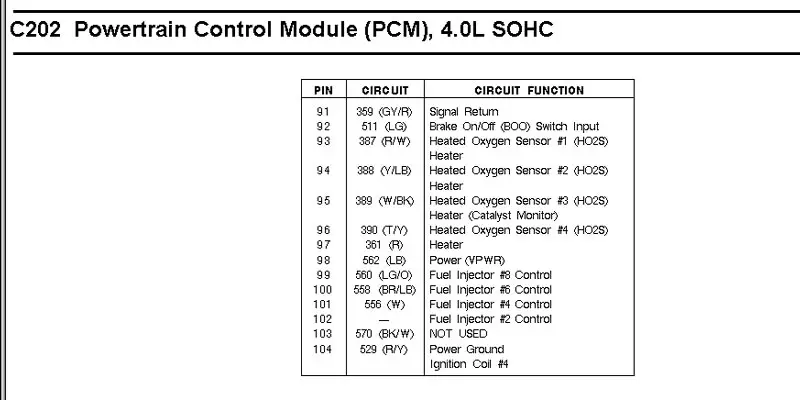

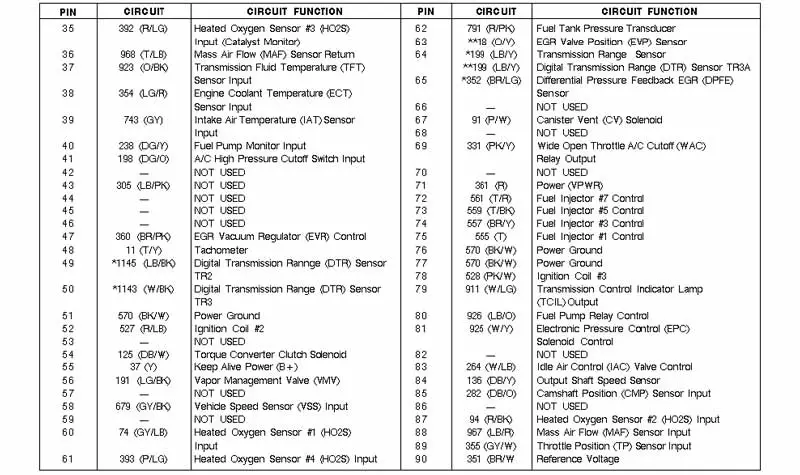

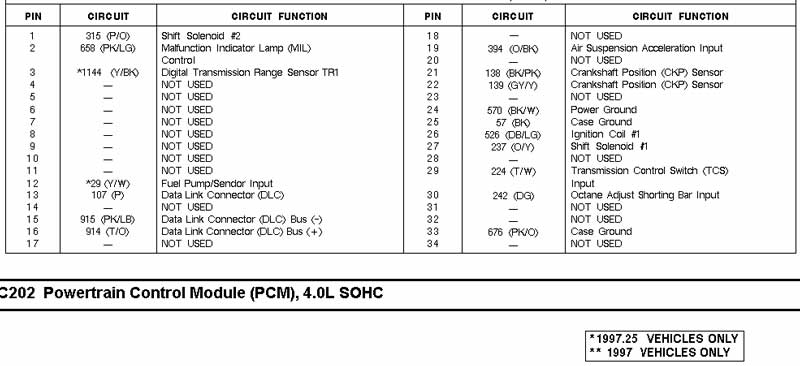

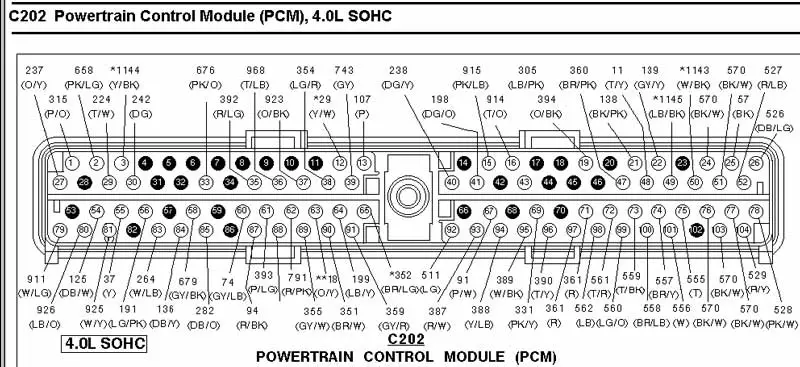

This is for SOHC engine. If you have OHV, let me know and I will post that one also.


Attachments

  • pcm1.jpg
    70.5 KB · Views: 78,871
  • pcm2.jpg
    42 KB · Views: 29,888
  • pcm3.jpg
    70.3 KB · Views: 31,211
  • pcm4.jpg
    47 KB · Views: 25,292




philorourke

New Member
Joined
July 9, 2006
Messages
3
Reaction score
0
City, State
St. austell, Cornwall, England
Year, Model & Trim Level
97 4.0L V6
You guys are amazing!! I've been trawling sites under every possible Ford and/or Explorer search for days - and there's the answer in no time at all. Glad I joined the forum - thanks very much indeed :)))





convertable91

New Member
Joined
August 6, 2008
Messages
1
Reaction score
0
City, State
nova scotia
Year, Model & Trim Level
91eddie bauer explorer
does anyone have a diadram like that for a 91 explorer shift module???









b_train_98

Active Member
Joined
June 9, 2007
Messages
67
Reaction score
0
City, State
B.C. Canada
Year, Model & Trim Level
93 Explorer Eddie B.
60-pin

dogfriend: would you happen to have a pin diagram for the 60-pin ECM/PCM? Having trouble finding one, would really appreciate it! 93 Ex EB.
Thanks





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,226
Reaction score
714
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




inh

Explorer Addict
Joined
June 30, 2005
Messages
1,302
Reaction score
1
City, State
Springfield(ish), MO
Year, Model & Trim Level
'00 XLS

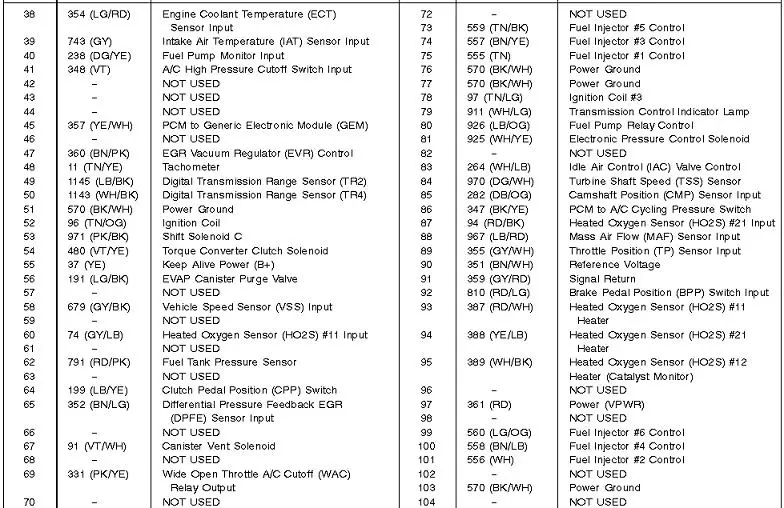

Here is the 4.0 OHV Pinout for a 2000 model year


Attachments

  • ScreenShot084.JPG
    98.3 KB · Views: 24,947
  • ScreenShot085.JPG
    106.9 KB · Views: 22,437




inh

Explorer Addict
Joined
June 30, 2005
Messages
1,302
Reaction score
1
City, State
Springfield(ish), MO
Year, Model & Trim Level
'00 XLS

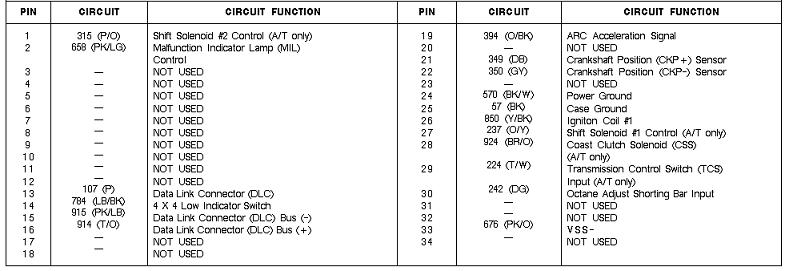

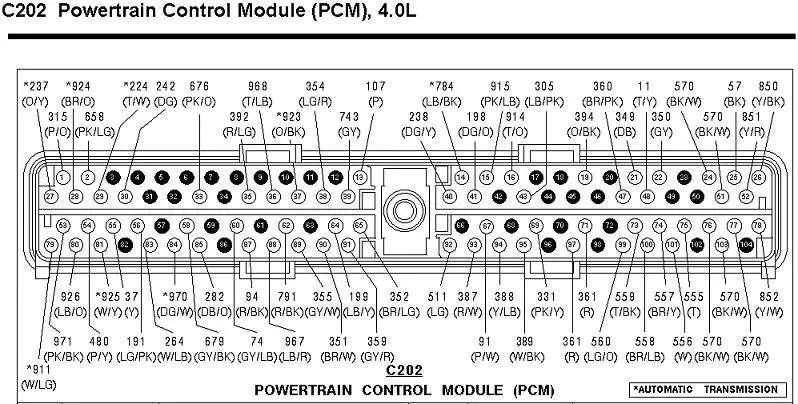

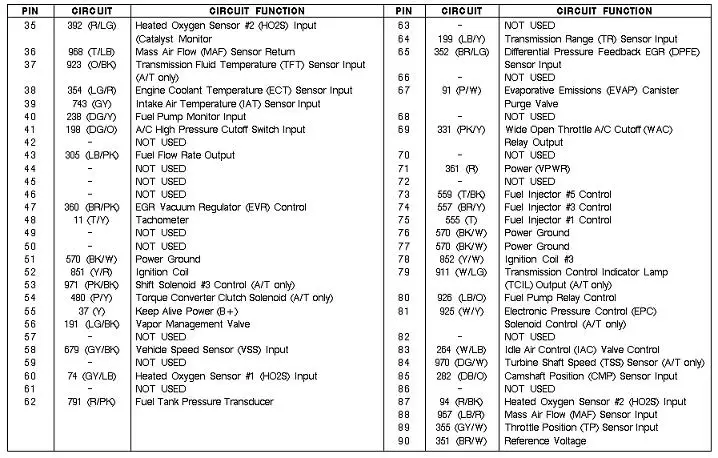

Here is the pinout for a 1996 4.0 OHV

Between this and the 2000, you should be good, I dont think there was many changes besides the 96-97 and 98-01


Attachments

  • ScreenShot022.JPG
    87.1 KB · Views: 23,937
  • ScreenShot021.JPG
    43.4 KB · Views: 23,205
  • ScreenShot020.JPG
    96.6 KB · Views: 57,131




dogfriend

Human-Animal Hybrid
Joined
July 22, 2002
Messages
7,561
Reaction score
7
City, State
Carmichael, CA
Year, Model & Trim Level
'97 Sport 4x4
dogfriend: would you happen to have a pin diagram for the 60-pin ECM/PCM? Having trouble finding one, would really appreciate it! 93 Ex EB.
Thanks

Sorry I only have the manuals for 97 (Explorer) and 99 (GF's motorhome).





b_train_98

Active Member
Joined
June 9, 2007
Messages
67
Reaction score
0
City, State
B.C. Canada
Year, Model & Trim Level
93 Explorer Eddie B.
Holy crap. Ask and thou shall receive! The one that BrooklynBay posted was closet to mine. I was looking for the oxygen sensor wire's at the PCM. Turns out that mine are #29 and #39 pin. Same color wire as BrooklynBay diagram. Saved allot of time, thanks for the help guys.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,226
Reaction score
714
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




inh

Explorer Addict
Joined
June 30, 2005
Messages
1,302
Reaction score
1
City, State
Springfield(ish), MO
Year, Model & Trim Level
'00 XLS

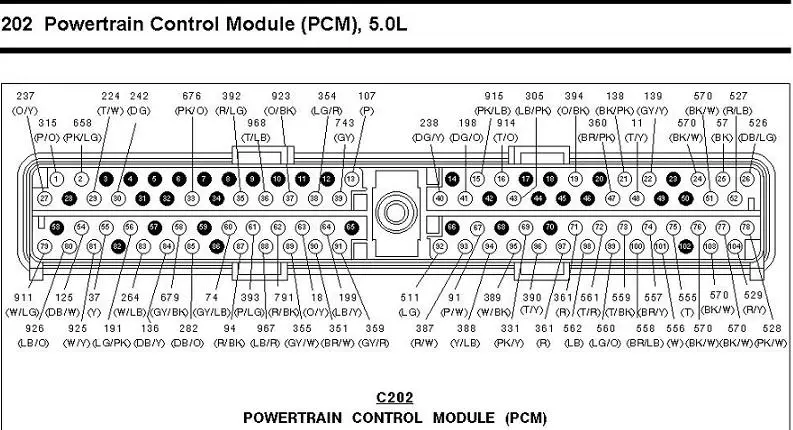

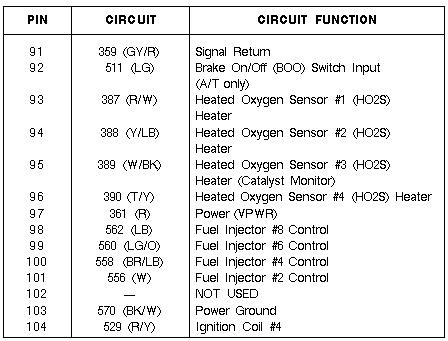

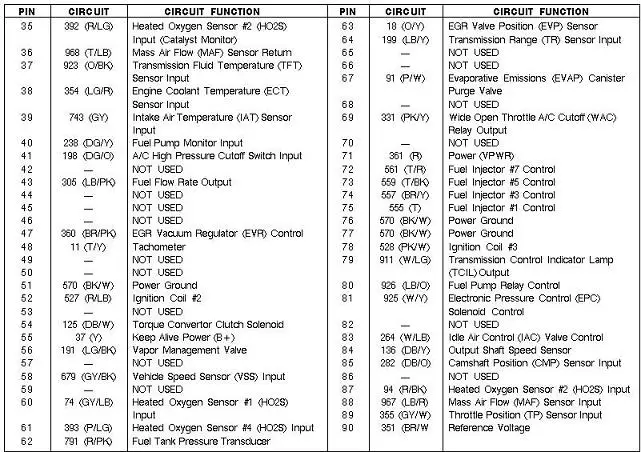

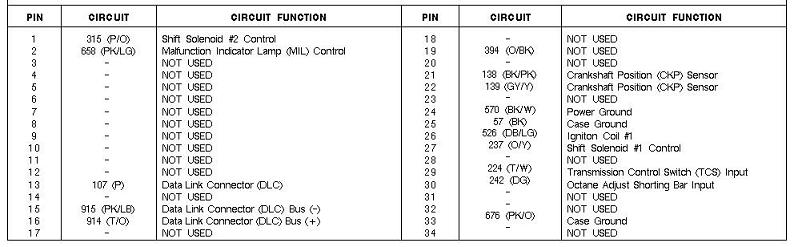

1996 5.0 PCM pinout


Attachments

  • ScreenShot023.JPG
    90.1 KB · Views: 60,800
  • ScreenShot024.JPG
    42.2 KB · Views: 22,297
  • ScreenShot025.JPG
    84.6 KB · Views: 22,476
  • ScreenShot026.JPG
    38.2 KB · Views: 22,406




lg700

New Member
Joined
September 25, 2009
Messages
1
Reaction score
0
City, State
south louisiana
Year, Model & Trim Level
99 Explorer
Thank you!

Hey INH, Thanks for posting those pinouts.

I'm using the one for the 2000 model year, 4.0 L, OHV. My explorer is actually a 1999. What do you think.

I used to work at a ford dealer, god sometimes i wish i still did... I used to post stuff like this over at thedieselstop.com myself...

I'm a pretty good troubleshooter, Just cant afford alldata or ford online access right now, for the right info.

Again, Thanks much for posting those.









dogfriend

Human-Animal Hybrid
Joined
July 22, 2002
Messages
7,561
Reaction score
7
City, State
Carmichael, CA
Year, Model & Trim Level
'97 Sport 4x4
Does anyone have a copy of the 97 or 98 SOHC PCM pinout? I'm trying to find out what pin controlled the variable induction system (variable length intake runner).

The one I posted above (the first one in this thread) is 97 SOHC.



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




2000StreetRod

Staff member
Moderator
Joined
May 26, 2009
Messages
10,599
Reaction score
273
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
97 PCM diagram

The one I posted above (the first one in this thread) is 97 SOHC.

Thanks dogfriend. That one doesn't show the pin for the connection to the vacuum solenoid that actuates the variable length intake runners. I found a 1997 SOHC engine wiring diagram on AutoZone that shows pin 46 going to an "Inlet Air Control Valve" in addition to pin 83 that goes to an "IAC Valve". Pin 46 on your diagram is listed as not used. I guess I'll connect a voltmeter to the brown wire going to Pin 46 (if I have one on my 2000) and see if the voltage changes when engine speed is less than 3,000 rpm vs greater than 3,600 rpm. That way I'll know if my PCM software still contains the variable induction capability.
