Solved 1993 Ford Explorer XLT Temperature Gauge Dead

Prefix for threads that contain problems that have been resolved, and there is an answer within the thread.

jasonexplorer

Member
Joined
May 16, 2011
Messages
20
Reaction score
0
City, State
Montclair NJ
Year, Model & Trim Level
93 Explorer 4dr
Hello all,

My temperature gauge is dead. I got the car like 8 months ago and it hasn't worked from the start. She runs fine, no problems and the heat works good too, just the temp gauge is dead.

Do I just need a new coolant temperature sensor?

Any thoughts.

Jason




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





yes, but you need to replace the coolant "sender" on the right side of engine. There is also a coolant temp sensor, so do not confuse the two.







The single wire one is for the gauge. The 2 wire temp sensor is for the computer.

~Mark















Yes, the one that looks like this







The single wire on is for the gauge. The 2 wire temp sensor is for the computer.

~Mark

Thanks, I'm still new to mechanics, so I don't understand, I'm gonna check my Haynes Repair Manual to see if I can figure it out and do some homework.













Ordered, 16 bucks with shipping, not bad.



















ok on My 93 the temp sender looks like the one pictured abaove, with a small threaded type stud for a wire connector to slide onto

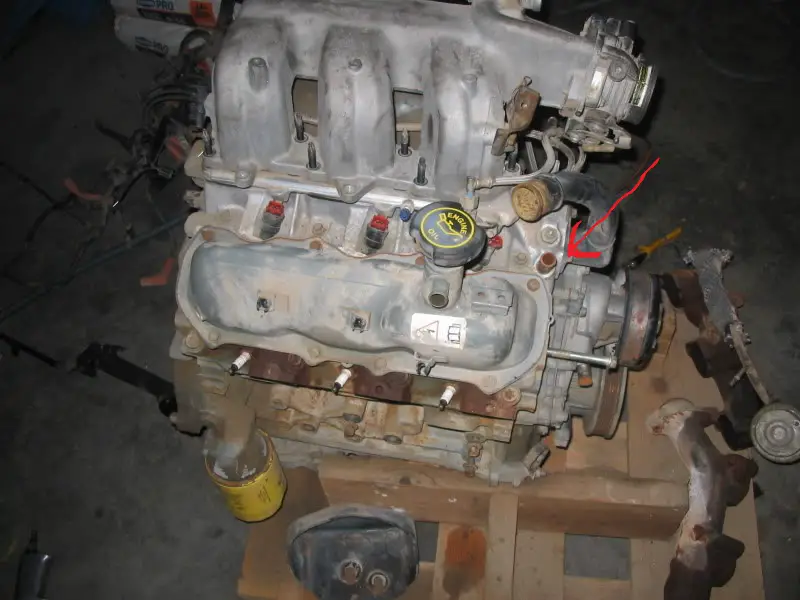

Here is one from a later model. Although the connector is different, yours is still in the same location


Attachments

  • Temp sender.jpg
    Temp sender.jpg
    124.2 KB · Views: 2,060






ok on My 93 the temp sender looks like the one pictured abaove, with a small threaded type stud for a wire connector to slide onto

Here is one from a later model. Although the connector is different, yours is still in the same location

Thanks Turdle for the picture, big help. Using my original picture, I put a new arrow of where I think your pointing too. I think this location is it, or somewhere around this area. I'll get a better picture tonight.



Uploaded with ImageShack.us

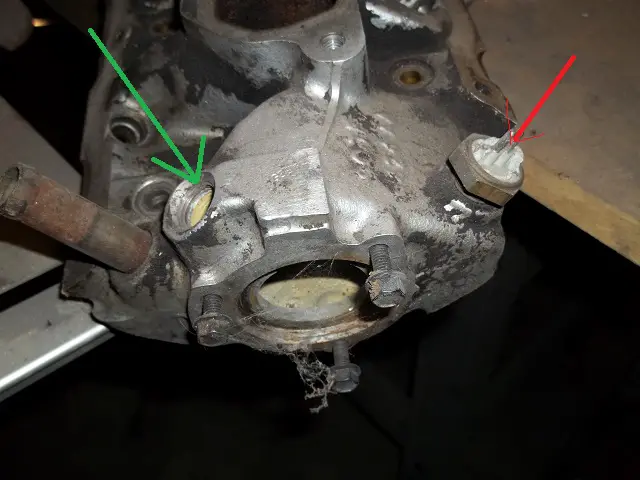

Here is a bare manifold. I have too much junk

Red arrow is ECT sensor. It helps the pcm calculate fuel ratio. This is not the problem sensor.



Green is Coolant sender, which is the gauge sender. This is the one you want


Attachments

  • 004.jpg
    166.4 KB · Views: 3,129

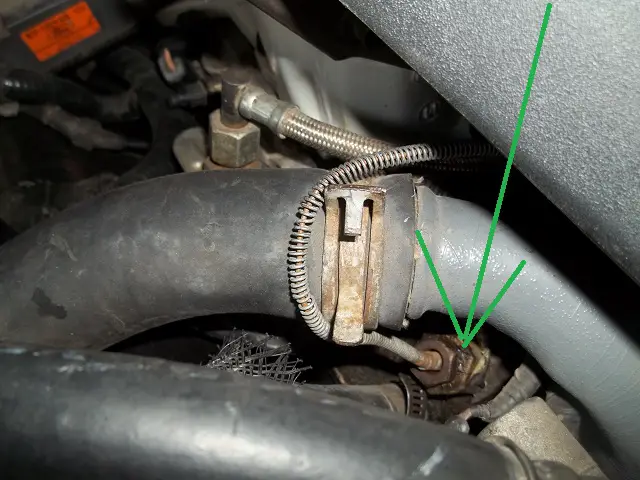

Here is my engine. I have a different looking cable to the sender, as I am using an aftermarket gauge. These will show you where your sender is though.
