my 1994 Explorer has 150,000 miles on it and when I was changing my u joints I noticed there was a lot of end play on my transfer case output shaft so I think I need a new rear bearing and seal or should I just rebuild it and I need to no what type of T case I got what numbers on the tag tell me ill list them top to bottom its a Borg Warner IF some one could help me that would be awesome autozone guys have no idea and I also have no clue I got a 5,000 mile road trip in July and need to see if it is safe the way it is or fix it


K2533 1354-13

729877 F27A-J




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





The transfer case is a Borg Warner 13-54. The T-cases on these models are very strong and last for a long time. Bearing problems at 150k miles would be unlikely, unless there was a defect or the unit had problems internally, or fluid maintenance was not done.

Both t-case output yokes are splined if I recall correctly. Check that the retaining nut is tight on each. This will require a 30mm thin-wall socket. I bought a 30mm impact socket and had a machine shop lathe it down to fit.

The T-case is real easy to tear apart if you want to check out the inside.

It is pretty easy to remove the transfer case. I have done it several times by myself and it is about a 30 minute job once you get good at it. Drain the fluid by removing the vibration damper and then drain plug. Remove the skid plate, four bolts. Undo the driveshafts at the t-case yokes. You can just let them dangle. Remove the electrical connectors if you have an electronic shift t-case, and the t-case speed sensor. Remove the vehicle speed sensor. Disconnect the breather tube, which is just rubber tubing. Five bolts hold the t-case to the transmission. Three are accessible from underneath easily. The top two can be removed from underneath (very hard) but it is far easier to pull back the carpet, remove the transmission access panel in the floor, and remove the bolts through there. Not necessary to remove seats or console to get at the panel. Pull the transfer case backwards off the locating dowels and trans output shaft (splined) and lower it down. I believe the weight is about 72lbs so you can remove it by hand yourself if you have a little bit of muscle. I am a skinny 25 year old and can lift the t-case in and out by myself. Using a jack is just awkward and you risk dropping the case. If the factory gasket is present between t-case and transmission, try to preserve it, but RTV will work if the stock gasket is destroyed. I could not easily find a replacement gasket.

Once you remove the t-case, fluid will dribble out the back of the transmission if you have an automatic. There is a small hole that it dribbles out of in the extension housing. I jammed a coarse thread self tapping screw into the hole to plug it temporarily. The aluminum is soft enough to accept the screw and you won't hurt anything. Just remember to remove it before re-assembly.

Once the case is out you can split it; remove the yokes (30mm thinwall socket) and shift motor (e-shift) with t-case speed sensor if you haven't already done so. 9 bolts hold the front and rear halves together. Use a prybar (Ford says so!) on the bosses provided to split the case. Inside is the guts of your case and it's really not too hard to tear apart and re-assemble. Before re-assembly, clean the case halves and apply new RTV to the mating surfaces.

Common failure and wear items are the low range shift fork wear pads. These plastic pads wear out over time and can allow the low range gear to walk balk and forth and try to engage at cruising speeds. The pads themselves, when completely worn out, often disintegrate and plug the t-case oil pump's screen. Stock wear pads are white opaque plastic so they're easy to find. Replacement pads are available with some searching. They were used on several t-cases and some transmissions.

While you're in there, replacing output yoke bearings and seals are relatively easy. The seals are not too hard to find and I know RockAuto sells a complete new bearing kit.

If you start on this process and want more info on it, or scans from the Ford Service Manual which will make it easier, let me know.







The transfer case is a Borg Warner 13-54. The T-cases on these models are very strong and last for a long time. Bearing problems at 150k miles would be unlikely, unless there was a defect or the unit had problems internally, or fluid maintenance was not done.

Both t-case output yokes are splined if I recall correctly. Check that the retaining nut is tight on each. This will require a 30mm thin-wall socket. I bought a 30mm impact socket and had a machine shop lathe it down to fit.

The T-case is real easy to tear apart if you want to check out the inside.

It is pretty easy to remove the transfer case. I have done it several times by myself and it is about a 30 minute job once you get good at it. Drain the fluid by removing the vibration damper and then drain plug. Remove the skid plate, four bolts. Undo the driveshafts at the t-case yokes. You can just let them dangle. Remove the electrical connectors if you have an electronic shift t-case, and the t-case speed sensor. Remove the vehicle speed sensor. Disconnect the breather tube, which is just rubber tubing. Five bolts hold the t-case to the transmission. Three are accessible from underneath easily. The top two can be removed from underneath (very hard) but it is far easier to pull back the carpet, remove the transmission access panel in the floor, and remove the bolts through there. Not necessary to remove seats or console to get at the panel. Pull the transfer case backwards off the locating dowels and trans output shaft (splined) and lower it down. I believe the weight is about 72lbs so you can remove it by hand yourself if you have a little bit of muscle. I am a skinny 25 year old and can lift the t-case in and out by myself. Using a jack is just awkward and you risk dropping the case. If the factory gasket is present between t-case and transmission, try to preserve it, but RTV will work if the stock gasket is destroyed. I could not easily find a replacement gasket.

Once you remove the t-case, fluid will dribble out the back of the transmission if you have an automatic. There is a small hole that it dribbles out of in the extension housing. I jammed a coarse thread self tapping screw into the hole to plug it temporarily. The aluminum is soft enough to accept the screw and you won't hurt anything. Just remember to remove it before re-assembly.

Once the case is out you can split it; remove the yokes (30mm thinwall socket) and shift motor (e-shift) with t-case speed sensor if you haven't already done so. 9 bolts hold the front and rear halves together. Use a prybar (Ford says so!) on the bosses provided to split the case. Inside is the guts of your case and it's really not too hard to tear apart and re-assemble. Before re-assembly, clean the case halves and apply new RTV to the mating surfaces.

Common failure and wear items are the low range shift fork wear pads. These plastic pads wear out over time and can allow the low range gear to walk balk and forth and try to engage at cruising speeds. The pads themselves, when completely worn out, often disintegrate and plug the t-case oil pump's screen. Stock wear pads are white opaque plastic so they're easy to find. Replacement pads are available with some searching. They were used on several t-cases and some transmissions.

While you're in there, replacing output yoke bearings and seals are relatively easy. The seals are not too hard to find and I know RockAuto sells a complete new bearing kit.

If you start on this process and want more info on it, or scans from the Ford Service Manual which will make it easier, let me know.



Thank you so much, I ordered a over haul kit online for 80 bucks the original owner I bought it from was older and he never ever used the 4X4 the shift motor sized up from not being used and he never serviced the T case that was the first thing I did was change the fluid and ya could you send some scans from the book the only thing I got is an exploded view of it and my regular manual shows nothing on it







Removal

Removal

Step 12 tip: Remove bottom three bolts from below. Remove top two bolts through the access panel in the transmission tunnel. Pull back the carpet up front, remove the four bolts holding the access panel down, and reach through to easily access the bolts.


Attachments

  • ScreenHunter_01 May. 24 18.52.jpg
    ScreenHunter_01 May. 24 18.52.jpg
    43.4 KB · Views: 852
  • ScreenHunter_02 May. 24 18.52.jpg
    ScreenHunter_02 May. 24 18.52.jpg
    51.2 KB · Views: 828
  • ScreenHunter_03 May. 24 18.52.jpg
    ScreenHunter_03 May. 24 18.52.jpg
    68.4 KB · Views: 797






Installation

Installation

There is no step 1 for some reason.

Step 2 tip: Install bottom three bolts from below. Install top two bolts through the access panel in the transmission tunnel. Pull back the carpet up front, remove the four bolts holding the access panel down, and reach through to easily access the bolts.


Attachments

  • ScreenHunter_04 May. 24 18.54.jpg
    ScreenHunter_04 May. 24 18.54.jpg
    58 KB · Views: 983
  • ScreenHunter_05 May. 24 18.55.jpg
    ScreenHunter_05 May. 24 18.55.jpg
    59.9 KB · Views: 673






Dissassembly pt1

Dissassembly pt1

Step 2 tip: A 30mm thin wall socket can be hard to find. I ordered a 30mm deep impact socket on Amazon for about $15. Then I had a machine shop lathe down the outside of the socket to fit inside the yoke.


Attachments

  • ScreenHunter_11 May. 24 18.57.jpg
    ScreenHunter_11 May. 24 18.57.jpg
    53.9 KB · Views: 679
  • ScreenHunter_10 May. 24 18.57.jpg
    ScreenHunter_10 May. 24 18.57.jpg
    51.1 KB · Views: 677
  • ScreenHunter_09 May. 24 18.57.jpg
    ScreenHunter_09 May. 24 18.57.jpg
    51.4 KB · Views: 637
  • ScreenHunter_08 May. 24 18.57.jpg
    ScreenHunter_08 May. 24 18.57.jpg
    50.2 KB · Views: 678
  • ScreenHunter_07 May. 24 18.56.jpg
    ScreenHunter_07 May. 24 18.56.jpg
    57.5 KB · Views: 1,241
  • ScreenHunter_06 May. 24 18.56.jpg
    ScreenHunter_06 May. 24 18.56.jpg
    77.9 KB · Views: 824






Disassembly Part 2

Disassembly Part 2

Step 3 tip: A 30mm thin wall socket can be hard to find. I ordered a 30mm deep impact socket on Amazon for about $15. Then I had a machine shop lathe down the outside of the socket to fit inside the yoke.


Attachments

  • ScreenHunter_17 May. 24 18.59.jpg
    ScreenHunter_17 May. 24 18.59.jpg
    43.6 KB · Views: 656
  • ScreenHunter_16 May. 24 18.59.jpg
    ScreenHunter_16 May. 24 18.59.jpg
    42.7 KB · Views: 673
  • ScreenHunter_15 May. 24 18.59.jpg
    ScreenHunter_15 May. 24 18.59.jpg
    60.2 KB · Views: 670
  • ScreenHunter_14 May. 24 18.59.jpg
    ScreenHunter_14 May. 24 18.59.jpg
    56.1 KB · Views: 673
  • ScreenHunter_13 May. 24 18.58.jpg
    ScreenHunter_13 May. 24 18.58.jpg
    57.8 KB · Views: 694
  • ScreenHunter_12 May. 24 18.57.gif
    ScreenHunter_12 May. 24 18.57.gif
    8.5 KB · Views: 669






Disassembly part 3

Disassembly part 3

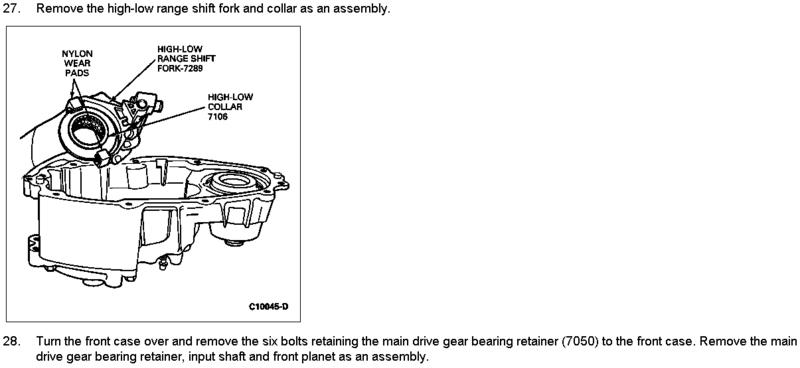

Step 27 tip: Check the nylon wear pads for damage. If they need to be replaced, you can find replacements for not too much money. They are used in several transfer cases and some transmissions. The part numbers vary a little as there have been some revisions. The factory wear pads are usually opaque white. The replacements I installed on mine are somewhat milky colored. If your wear pads are missing (this is bad), you will likely find them in pieces clogging up the screen of the oil pump pick-up.


Attachments

  • ScreenHunter_23 May. 24 19.00.jpg
    ScreenHunter_23 May. 24 19.00.jpg
    30.5 KB · Views: 715
  • ScreenHunter_22 May. 24 19.00.jpg
    ScreenHunter_22 May. 24 19.00.jpg
    47 KB · Views: 662
  • ScreenHunter_21 May. 24 19.00.jpg
    ScreenHunter_21 May. 24 19.00.jpg
    58.3 KB · Views: 679
  • ScreenHunter_20 May. 24 19.00.jpg
    ScreenHunter_20 May. 24 19.00.jpg
    47.5 KB · Views: 649
  • ScreenHunter_19 May. 24 18.59.gif
    ScreenHunter_19 May. 24 18.59.gif
    11.1 KB · Views: 695
  • ScreenHunter_18 May. 24 18.59.gif
    ScreenHunter_18 May. 24 18.59.gif
    11.7 KB · Views: 839

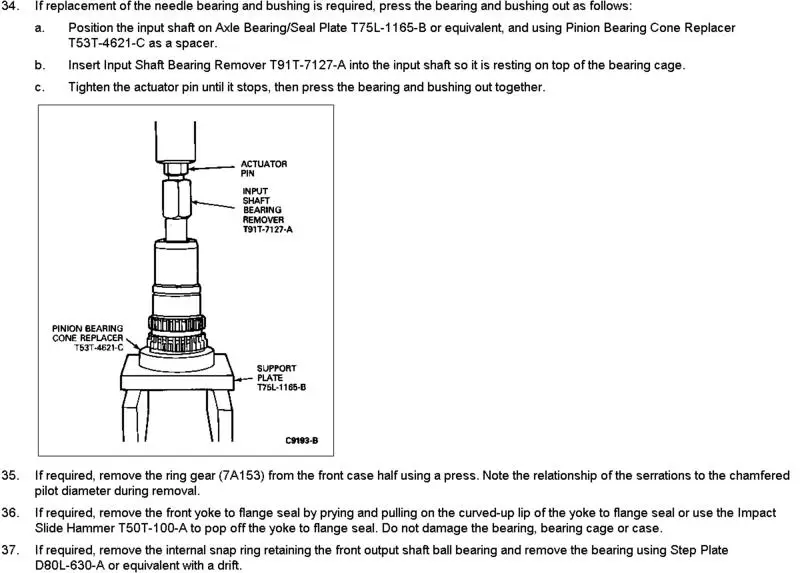

Disassembly part 4 (final)

Disassembly part 4 (final)

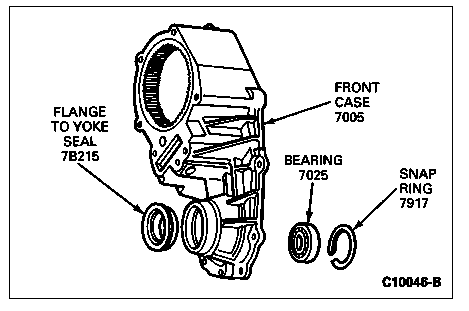

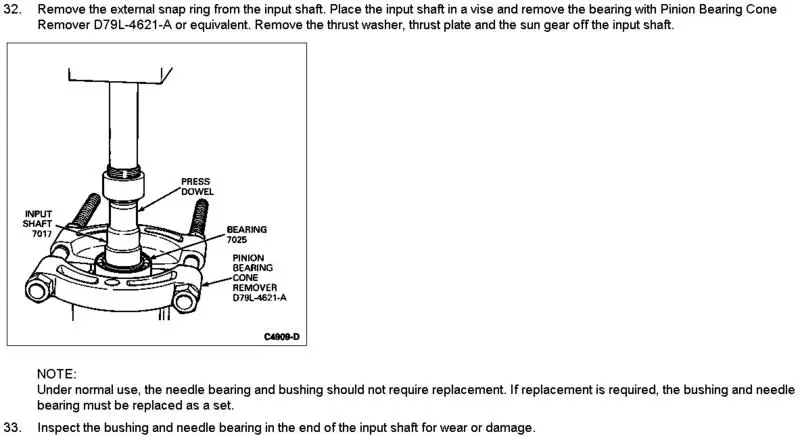

Attachments

  • ScreenHunter_27 May. 24 19.01.gif
    ScreenHunter_27 May. 24 19.01.gif
    6.9 KB · Views: 669
  • ScreenHunter_26 May. 24 19.01.jpg
    ScreenHunter_26 May. 24 19.01.jpg
    56.4 KB · Views: 647
  • ScreenHunter_25 May. 24 19.01.jpg
    ScreenHunter_25 May. 24 19.01.jpg
    37.2 KB · Views: 641
  • ScreenHunter_24 May. 24 19.01.jpg
    ScreenHunter_24 May. 24 19.01.jpg
    48.8 KB · Views: 650

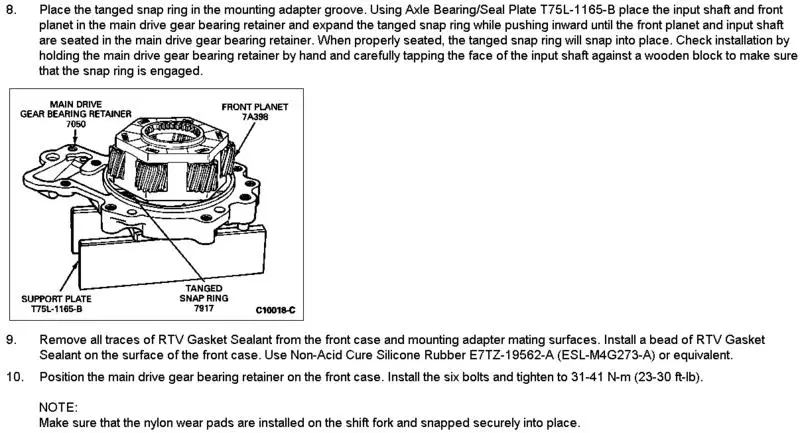

Re-Assembly Part 1

Re-Assembly Part 1

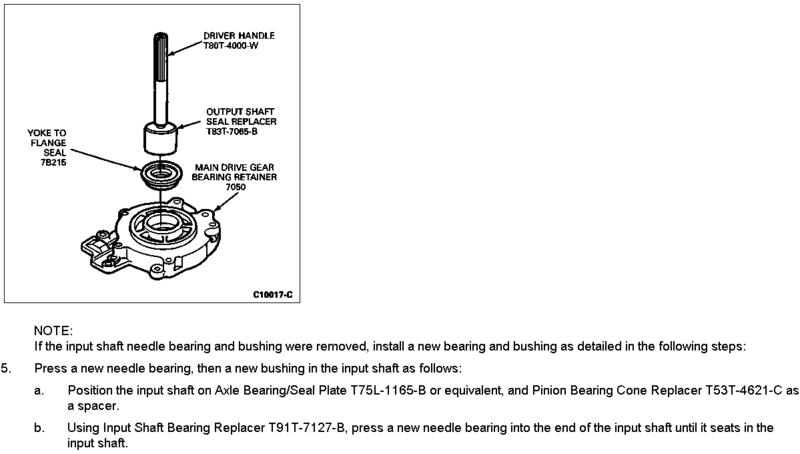

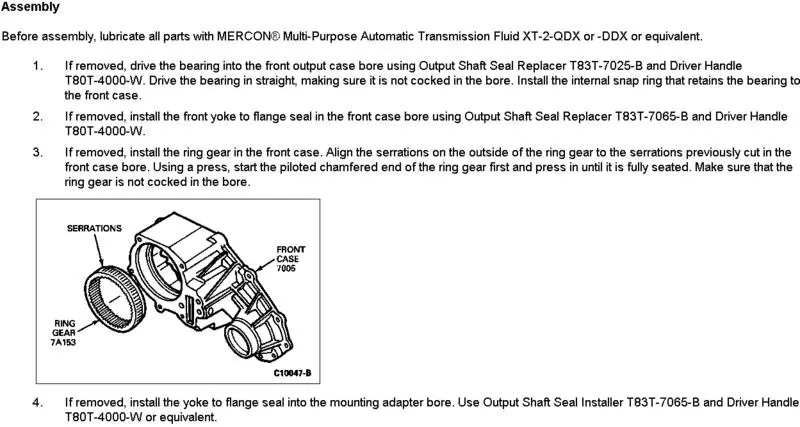

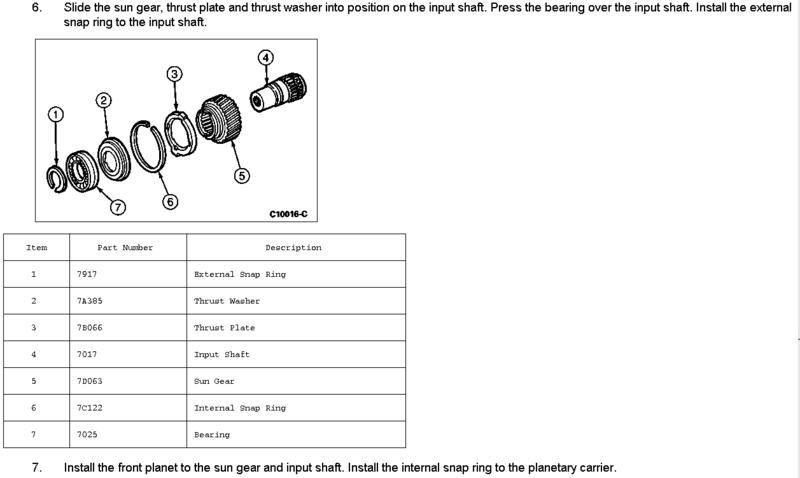

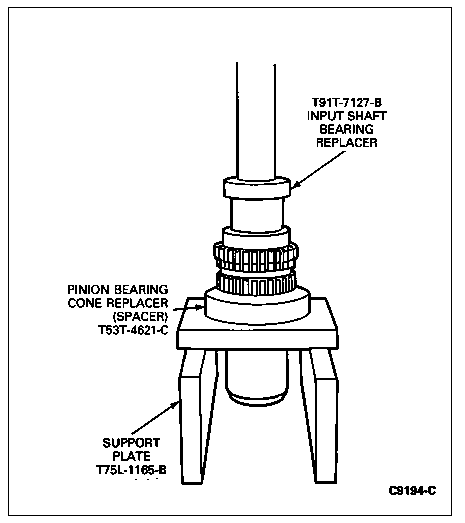

Attachments

  • ScreenHunter_33 May. 24 19.09.jpg
    ScreenHunter_33 May. 24 19.09.jpg
    61.3 KB · Views: 652
  • ScreenHunter_32 May. 24 19.09.jpg
    ScreenHunter_32 May. 24 19.09.jpg
    34 KB · Views: 656
  • ScreenHunter_31 May. 24 19.08.jpg
    ScreenHunter_31 May. 24 19.08.jpg
    26.7 KB · Views: 648
  • ScreenHunter_30 May. 24 19.08.gif
    ScreenHunter_30 May. 24 19.08.gif
    7.3 KB · Views: 709
  • ScreenHunter_29 May. 24 19.08.jpg
    ScreenHunter_29 May. 24 19.08.jpg
    34.7 KB · Views: 656
  • ScreenHunter_28 May. 24 19.08.jpg
    ScreenHunter_28 May. 24 19.08.jpg
    55.9 KB · Views: 687






Re-Assembly Part 2

Re-Assembly Part 2


Attachments

  • ScreenHunter_39 May. 24 19.10.jpg
    ScreenHunter_39 May. 24 19.10.jpg
    49.5 KB · Views: 658
  • ScreenHunter_38 May. 24 19.10.jpg
    ScreenHunter_38 May. 24 19.10.jpg
    42.1 KB · Views: 623
  • ScreenHunter_37 May. 24 19.10.jpg
    ScreenHunter_37 May. 24 19.10.jpg
    44 KB · Views: 664
  • ScreenHunter_36 May. 24 19.09.jpg
    ScreenHunter_36 May. 24 19.09.jpg
    35.2 KB · Views: 646
  • ScreenHunter_35 May. 24 19.09.jpg
    ScreenHunter_35 May. 24 19.09.jpg
    8.4 KB · Views: 588
  • ScreenHunter_34 May. 24 19.09.jpg
    ScreenHunter_34 May. 24 19.09.jpg
    56.7 KB · Views: 631






Re-Assembly Part 3

Re-Assembly Part 3

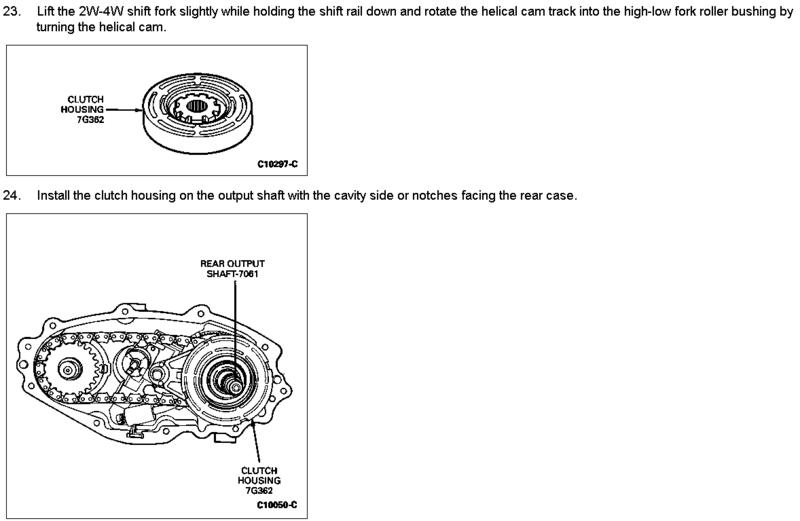

Attachments

  • ScreenHunter_45 May. 24 19.11.jpg
    ScreenHunter_45 May. 24 19.11.jpg
    53.9 KB · Views: 620
  • ScreenHunter_44 May. 24 19.11.jpg
    ScreenHunter_44 May. 24 19.11.jpg
    32.7 KB · Views: 612
  • ScreenHunter_43 May. 24 19.10.jpg
    ScreenHunter_43 May. 24 19.10.jpg
    25.3 KB · Views: 622
  • ScreenHunter_42 May. 24 19.10.jpg
    ScreenHunter_42 May. 24 19.10.jpg
    37 KB · Views: 666
  • ScreenHunter_41 May. 24 19.10.jpg
    ScreenHunter_41 May. 24 19.10.jpg
    38.4 KB · Views: 597
  • ScreenHunter_40 May. 24 19.10.jpg
    ScreenHunter_40 May. 24 19.10.jpg
    31.1 KB · Views: 676






Re-Assembly Part 4 (final)

Re-Assembly Part 4 (final)

Step 30 tip: The shift rails don't usually want to stand perfectly straight up, so the case won't want to go back together. This is inevitably after you put RTV all over the mating surfaces and you will swear and cuss. Try to avoid hammering on the case in your anger. It can shatter. Patience, wooooo sahhhhh. Keep trying and eventually they will slip into their proper holes. Sometimes shifting the case (4Hi, 4Lo, Neutral, 2Hi) can help.


Attachments

  • ScreenHunter_46 May. 24 19.11.jpg
    ScreenHunter_46 May. 24 19.11.jpg
    62.5 KB · Views: 637
  • ScreenHunter_47 May. 24 19.11.jpg
    ScreenHunter_47 May. 24 19.11.jpg
    55.5 KB · Views: 833
  • ScreenHunter_48 May. 24 19.11.jpg
    ScreenHunter_48 May. 24 19.11.jpg
    54.7 KB · Views: 603
  • ScreenHunter_49 May. 24 19.12.jpg
    ScreenHunter_49 May. 24 19.12.jpg
    62.7 KB · Views: 674






Specifications and Torque Values

Specifications and Torque Values


Attachments

  • ScreenHunter_50 May. 24 19.16.jpg
    ScreenHunter_50 May. 24 19.16.jpg
    54.7 KB · Views: 618
  • ScreenHunter_51 May. 24 19.16.gif
    ScreenHunter_51 May. 24 19.16.gif
    4 KB · Views: 633






Re:

To anyone viewing the above information:

First of all, please consider becoming an Elite Explorer if you have not already done so. Information like this is valuable and costs other people time and money to post and host. This forum has saved me thousands and can save you money too, so please become an Elite Explorer by clicking the "Elite Membership" link at the top of the page.

Second, this information is for a 1994 Ford Explorer with electronic shift Borg Warner 13-54 transfer case. Year to year differences may occur so FYI. Manual shift 13-54 cases use many of the same parts and are a little simpler inside. Contact me if you need assistance with a manual shift version and I may post up the same stuff for it.







thank you still have not rebuilt the t case yet had to go back to ohio for a month or two I just no it got worse the last two weeks i drove it im going to order all the wear parts and redo the hole thing and those scans are really nice and its going to make the job so much easier thank you for them and your help
