1996 Ranger transmission fluid flow diagram 4r55e

Kade831

Member
Joined
September 21, 2022
Messages
13
Reaction score
8
City, State
CA
Year, Model & Trim Level
1996 Ford ranger xlt 4.0
Hi I’m wondering if anyone has the transmission flow diagram for the radiator transmission cooler (4r55e) I’m just trying to find if the output is the bottom line or the top line i’m pretty sure it’s the bottom one just not sure







donalds

Elite Explorer
Joined
July 12, 2015
Messages
5,625
Reaction score
3,426
Location
Stem
City, State
Nc
Year, Model & Trim Level
1999 ford explorer sohc

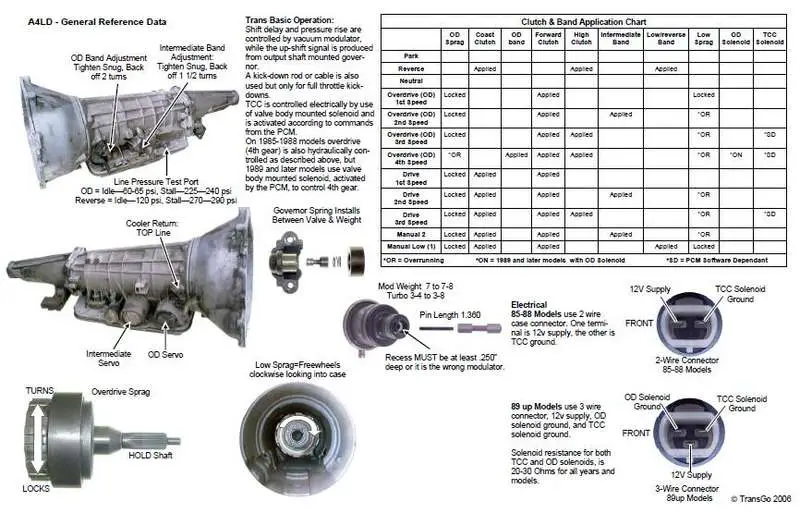

Top port on the trans its labeled Cooler return in the pic
Just follow the line to the rad













Top
