C115 Body to Engine Harness
Does anyone have a complete pinout on this connector?
I'm trying to determine whats involved (wiring wise) in going from a 95 4.0L to a 97 4.0L SOHC VIN E.







dogfriend

Human-Animal Hybrid
Joined
July 22, 2002
Messages
7,561
Reaction score
11
City, State
Carmichael, CA
Year, Model & Trim Level
'97 Sport 4x4

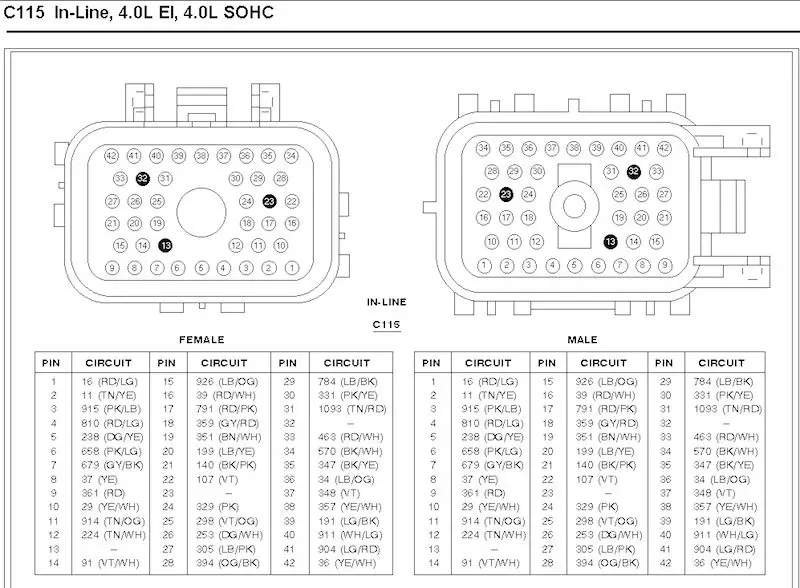

This is from the 97 manual


Attachments

  • Screen shot 2010-08-21 at 9.02.25 PM.jpg
    Screen shot 2010-08-21 at 9.02.25 PM.jpg
    103.9 KB · Views: 1,397
