Ive had the sas project done for over a year now. I finally got a daily driver/tow pig. that means the fun begins on the explorer now that its off the road. I decided to build a firewall buggy. i completely chopped off the body, besides floor pan and firewall. i am using 1 3/4 .120 wall dom and 1 3/4 .188 wall dom for the cage (10 sticks total so far). i built the rear of the cage shorter than the frame on purpose. one day ill 4 or 3 link it so the frame will be cut off back there leaving me with awesome departure angles. didn't want to re do the rear of the cage when that time comes here are some pictures of the build so far.

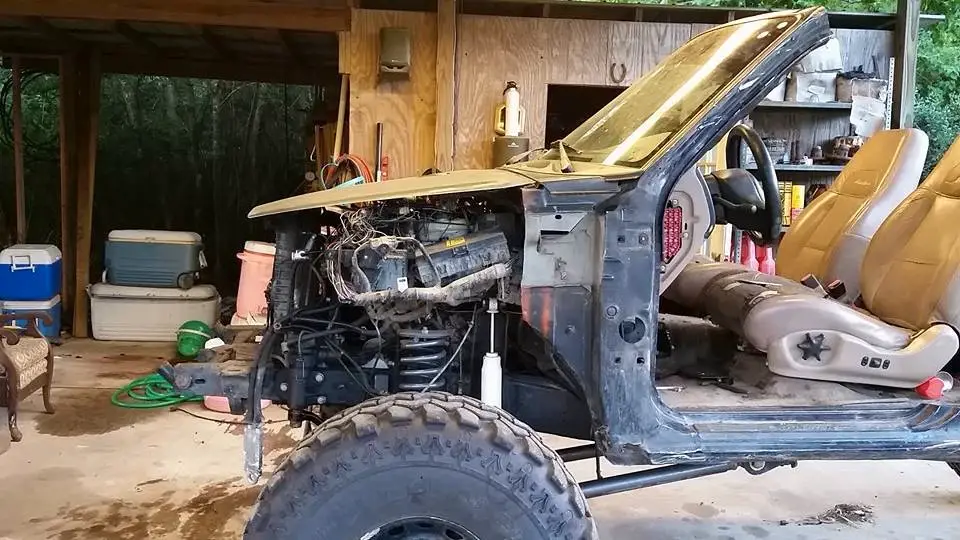

everything gone






Passenger side slider (.188 wall dom)


A pillars and b pillars bent and tacked


starting 1 of 2 rear hoops


Both rear hoops and stringers


door bars. gonna add more haven't decided how yet


rear c pillar done along with some bracing and top windshield bar done


Starting to tie the top together

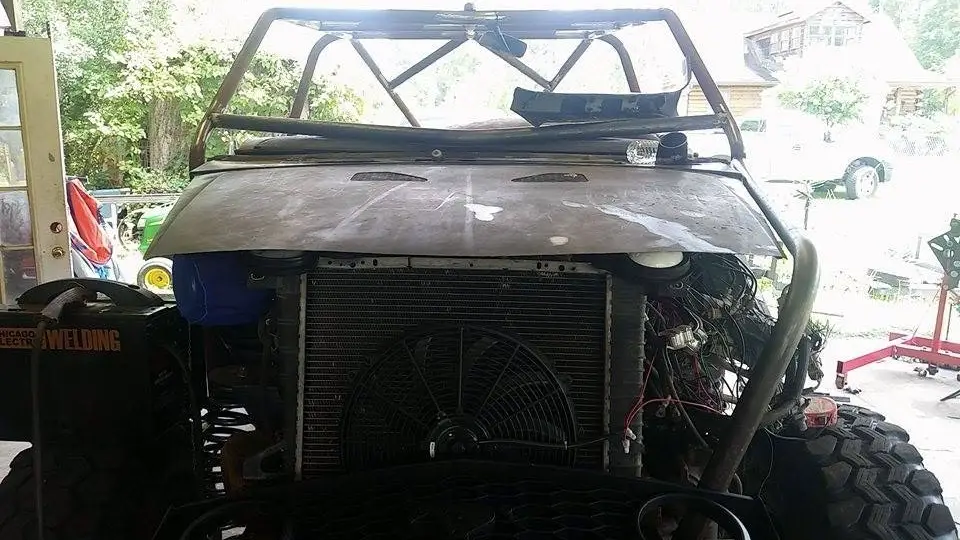

Lower windshield bar. my plans were to leave the windshield but things change lol


Drivers side front clip/tube


both sides front clip/tube done, also center stringer on windshield.


measuring for harness bar. like a kid in a candy shop haha


basically done bending. got some triangulation to complete (b pillar and roof) but we pulled the cage to make the process easier.


cage pulled (ignore the front center tube the bend is off compared to the windshield bar, still gotta fix that)

will post more pictures as i go. rig is still a long way from hitting the trails. gotta mount grille, ditch abs pump, mount the radiator and coolers, front stinger and lights, get my seats installed along with 5 point harnesses, redo transmission cross member, wiring, center console and shifters.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




RangerX

Elite Ranger
Staff member
Moderator
Elite Explorer
Joined
July 14, 1999
Messages
9,963
Reaction score
292
City, State
Omao, Kauai
Year, Model & Trim Level
'93 Ranger XLT 4X4
Awesome, loving it!





95ModdedX

Elite Explorer
Joined
December 24, 2013
Messages
21
Reaction score
0
City, State
Washington State
Year, Model & Trim Level
95 explorer Ltd
Incredible fab work, any one who does any fabrication knows the amount of skill, time and dedication this amount of work takes.
Well done!!!!!!!





EBEX99

New Member
Joined
May 4, 2011
Messages
40
Reaction score
0
City, State
Orlando, Florida
Year, Model & Trim Level
'99 Eddie Bauer 5.0
a few more updates and pictures
finished up the triangulation in the top section and the b pillar section, primered some




Ended up using rustoleum metallic charcoal paint, to match my steering/radius arms and front springs
Laying the cage back on






Getting the front clip/tubes centered and aligned.

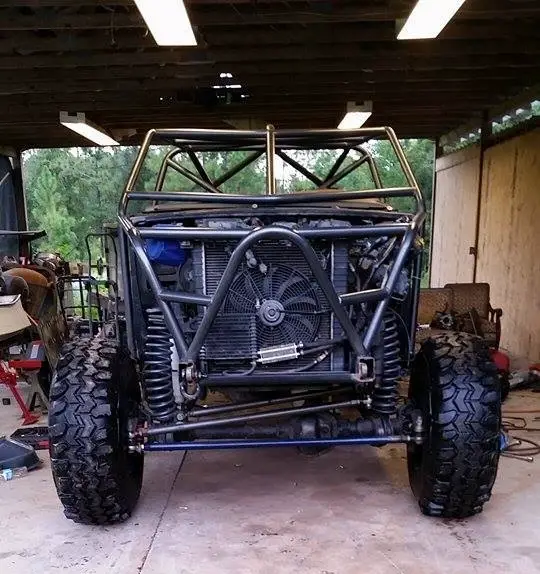

Front end aligned and grille test fitted


good choice on the grille :D

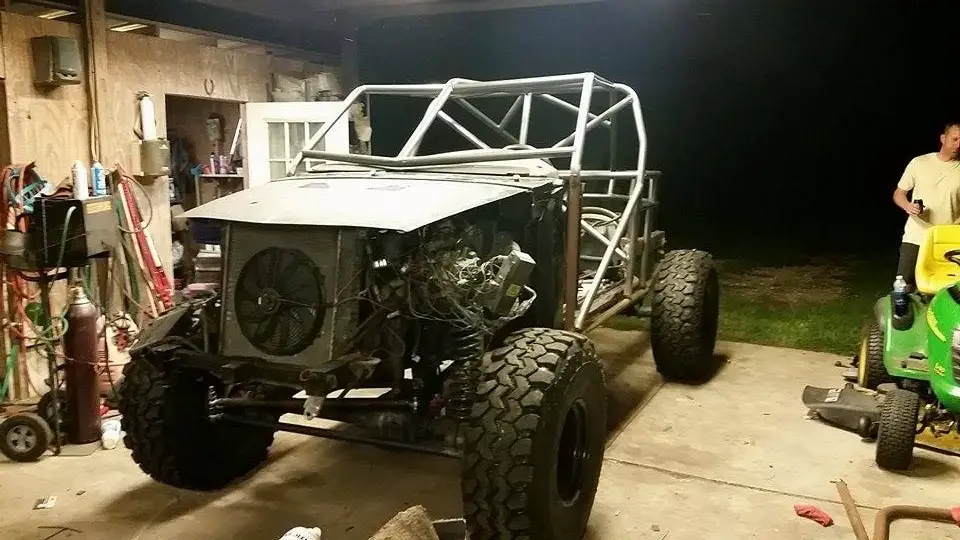

Stinger and winch plate/crossmember done

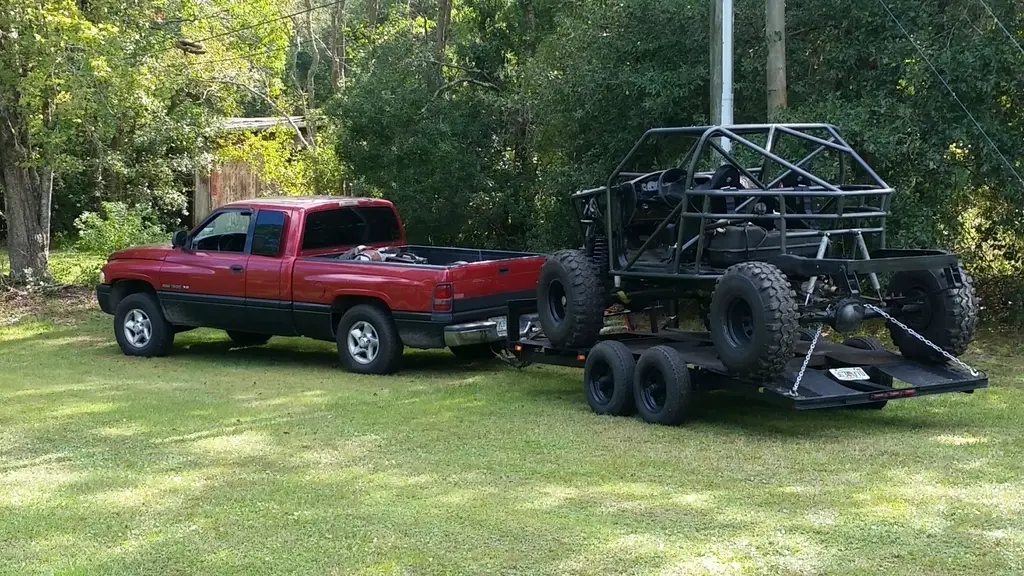

Ran out of welding gas this weekend. so i decided to load the rig up on my "new" trailer and do a test tow. I did some intake work, tuner, and total tune up but the little 5.2 in my ram is still a turd (time for a ford tow pig lol)



still no welding suplies so i started to clean up under the hood. i cut off most of the under hood wiring harness. ditched all the ac, airbags etc. i retained the factory headlight,running lights and blinker part of the harness so i could make the rig street legal one day. and thats like 10 less switches on a switch panel :thumbsup:

got some flux core :roll: wire to finish up the last 6 welds i needed to get done
getting the last of the slider stringers done


got some support tubes in behind the stinger


still need to move rear axle forward, ditch a leaf or so out of the pack to soften up for all the weight i got rid of. fab rear shock cross member/mounts, fab a battery box, tie down fuel tank, mount seats (just ordered cobreau baja ss in black vinyl/cloth yeet yeet) order 5 pt. harnesses, ditch abs module,and order led lighting etc. getting so close to hitting the trails i cant wait!





rabbit91

Active Member
Joined
January 25, 2011
Messages
662
Reaction score
15
City, State
Surrey
Year, Model & Trim Level
2000 V8 lifted 33s
subscribing, looks sweet!

quite the bow on the coils or maybe its the photo





EBEX99

New Member
Joined
May 4, 2011
Messages
40
Reaction score
0
City, State
Orlando, Florida
Year, Model & Trim Level
'99 Eddie Bauer 5.0
Yes they bow pretty good now with the softer springs i put in. easy fix tho just gotta make new lower coil buckets.





1997XLTRollover

Well-Known Member
Joined
February 28, 2007
Messages
1,307
Reaction score
6
Year, Model & Trim Level
1996 AWD 5.0
This thing is beyond cool. Nice work man thing looks amazing.





2TimingTom

Well-Known Member
Joined
October 12, 2010
Messages
2,496
Reaction score
57
Location
Littleton, CO
City, State
Littleton, Colorado
Year, Model & Trim Level
'97 XLT
Wow. While I love my doors/roof/windows... this thing is pretty freaking awesome.





01STrunner

Staff member
Moderator
Elite Explorer
Joined
December 16, 2010
Messages
3,608
Reaction score
23
City, State
Greer, SC
Year, Model & Trim Level
2001 SAS'd Sport Trac
Awesome work!





rabbit91

Active Member
Joined
January 25, 2011
Messages
662
Reaction score
15
City, State
Surrey
Year, Model & Trim Level
2000 V8 lifted 33s
Yes they bow pretty good now with the softer springs i put in. easy fix tho just gotta make new lower coil buckets.


Ahh gotcha, I like the adjustable buckets, did the same for my truck and have bump stops inside there





EBEX99

New Member
Joined
May 4, 2011
Messages
40
Reaction score
0
City, State
Orlando, Florida
Year, Model & Trim Level
'99 Eddie Bauer 5.0
more pictures and proggress. my seats came in and the cage is complete(for now)
:usa:








Got the seats and harnesses installed, retained the factory power seat mechanism and added rails for the cobreau seats.

Luckily i found a good trade for my tires. i wanted to get rid of the ssr radials because i dont drive it on the road anymore. traded for a set of tsl bias in 36x12.5x15. physically only 1/2" smaller than the 37x12.5x15 ssr's. :thumbsup:




measuring for rear shocks





EBEX99

New Member
Joined
May 4, 2011
Messages
40
Reaction score
0
City, State
Orlando, Florida
Year, Model & Trim Level
'99 Eddie Bauer 5.0
got some 5x7 .063 aluminum sheet for $50.20. i decided to start the top first because there is a call for rain the day its making its maiden voyage with the cage. and plus, gotta count on 50% chance of rain at all times here in Florida.


tabs to mount the aluminum
i used thin foam weather stripping to keep the top quiet, and used black silicon on the driver and passenger side to keep it as dry as possible


top all finished up, came out pretty good. need to add a few more tabs in the front to get the bulge out. good for now though

going to hard-rock park in ocala Florida for the maiden voyage, one of the best and only places to craw/climb/wheel other than flat sand trails.

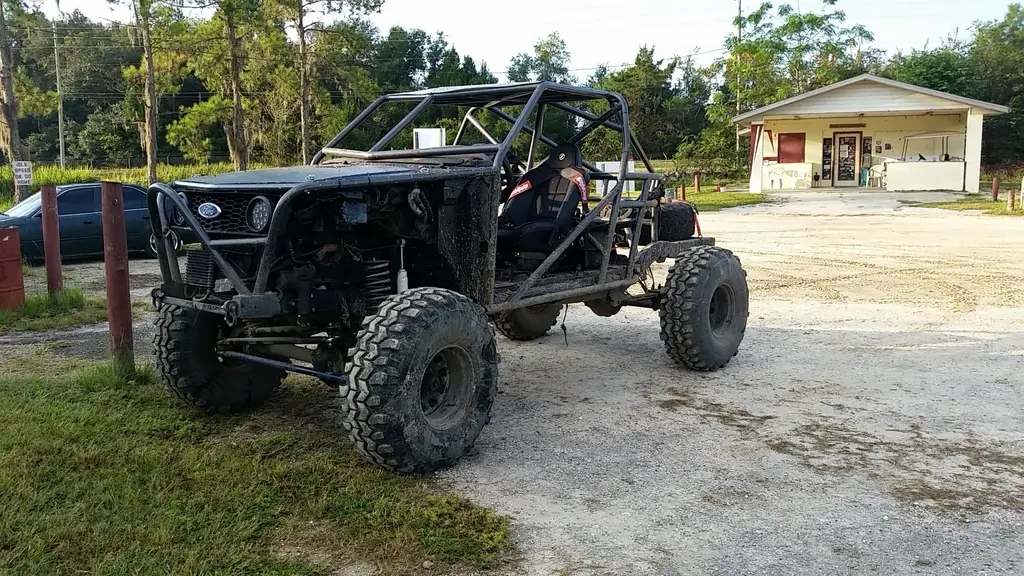

loaded up ready to wheel :D


Flexing on Stuarts rig. his is a 1st gen sport caged out similar to mine, both out for the first time






creepin




breaking some ujoints at the secret spot around the corner



overall a good first outing. first hill, 20 minutes in i broke the drivers u joint and ripped up a stub. same hill my buddy ben destroyed his cardan rear driveshaft. put us both out for a little but we got back out in no time. plenty of carnage with our group all weekend. nick stripped spider gears in his wj, george ripped his pinion out of the front chunk in a dakota, and erik rolled his un-caged yota down roller coaster hill:roll:. (will post pictures later). sunday morning broke another u joint same side and stuart had fuel pickup issues. time to work the bugs out and plan another trip hopefully in november :usa::usa::usa:





crazyflights

Well-Known Member
Joined
August 31, 2008
Messages
2,529
Reaction score
20
City, State
St. Joseph, MO
Year, Model & Trim Level
97 1 ton Jeep
I LOVE IT!! I was going to do something similar but didn't get to it!
I like your design. I will get back to one in the future.
