2001 ST brake controller wiring - Brake Switch

Team Chepsk8

Well-Known Member
Joined
November 7, 2010
Messages
118
Reaction score
1
City, State
Easton PA
Year, Model & Trim Level
2001 Explorer Sport Trak
I'm in the process of replacing an old U-Haul controller with a Tekonsha Prodigy P2. Heard all sords of great things. Also replacing the under-hood circuit breaker, and re-doing the trailer wiring.

Is there any issues or specific wire to use for the brake input to the controller?

My ST does not have the factory package, and I want to make sure the wiring already in the truck is correct.

Many Thanks!



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Team Chepsk8

Well-Known Member
Joined
November 7, 2010
Messages
118
Reaction score
1
City, State
Easton PA
Year, Model & Trim Level
2001 Explorer Sport Trak
The brake switch has a few that put out voltage, but the paperwork on the controller says the green one. Any concurring votes?





ncranchero

Co-moderator
Elite Explorer
Moderator Emeritus
Joined
August 14, 2004
Messages
3,718
Reaction score
10
City, State
Denver,NC
Year, Model & Trim Level
1997 F150 XLT 4x4

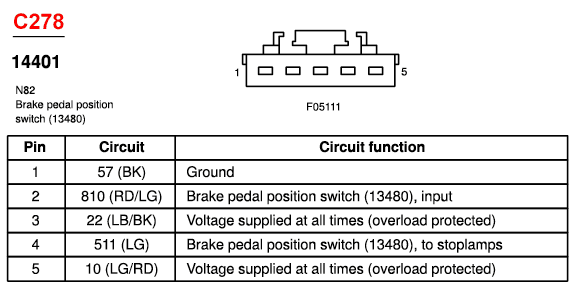

Number 4, light green (BPPS to stoplamps)






Team Chepsk8

Well-Known Member
Joined
November 7, 2010
Messages
118
Reaction score
1
City, State
Easton PA
Year, Model & Trim Level
2001 Explorer Sport Trak
Thanks.

I was going to add a doide for protection. A good idea?





ncranchero

Co-moderator
Elite Explorer
Moderator Emeritus
Joined
August 14, 2004
Messages
3,718
Reaction score
10
City, State
Denver,NC
Year, Model & Trim Level
1997 F150 XLT 4x4
Don't think you need a diode. All that wire does is activate the trailer brake lights. I'll assume the P2 is like all modern controllers and the actual braking is controlled by the swinging internal pendulum.





Team Chepsk8

Well-Known Member
Joined
November 7, 2010
Messages
118
Reaction score
1
City, State
Easton PA
Year, Model & Trim Level
2001 Explorer Sport Trak
All wired up and installed. Did use the green wire. Also fixed some trailer brake wiring issues. I actually have good trailer brakes now!

Thank you for all the help. :salute:





ncranchero

Co-moderator
Elite Explorer
Moderator Emeritus
Joined
August 14, 2004
Messages
3,718
Reaction score
10
City, State
Denver,NC
Year, Model & Trim Level
1997 F150 XLT 4x4
:thumbsup::thumbsup::thumbsup: :D
