2003- replace dash lights

dennisward

New Member
Joined
October 16, 2009
Messages
1
Reaction score
0
City, State
Silver Spring , Maryland
Year, Model & Trim Level
2000 2wd XLT
Can anyone provide guidance on replacing burned out dash lights on FORD Explorer 2003 XLT.
I did this on a 2000 F xlt and there was a lot of screws and plugs to pull, but no real headaches, just time spent.
I was hoping that the 2003 had a better way to get to the back of the dash cluster .

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




BigRondo

USMC 1371
Elite Explorer
Moderator Emeritus
Joined
February 15, 2010
Messages
7,842
Reaction score
14
City, State
Worcester, MA
Year, Model & Trim Level
2002 XLT V6 4x4
Welcome aboard!! :salute:

Use this thread to remove the cluster: http://www.explorerforum.com/forums/showthread.php?t=218636

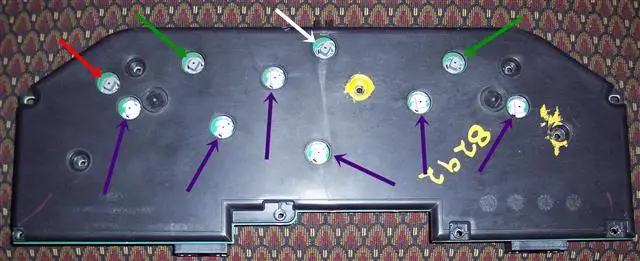

The changeable bulbs are removed from the back of the cluster.

This picture is from my '02 cluster.

The color coding of the arrows is as follows:

White - High Beam Bulb
Red - Cruise Control Bulb
Green - Turn Signal Bulbs
Purple - Gauge Cluster Illumination Bulbs




Hope this helps out! :D:thumbsup:

Please keep us posted as feedback helps others reading this post looking for a fix to the same or similar issue!

<



JamesAtz

New Member
Joined
September 15, 2012
Messages
2
Reaction score
0
City, State
Kelowna BC
Year, Model & Trim Level
2003 Ford Ranger XLT
Dashlight

The dashlight that illuminates the gas gauge and temperature gauge on my 2003 Ford Ranger is out. I just purchased it yesterday. Is it an LED light and do I have to remove the whole dash like BigRondo did? By the way, great posting! Jim

<



extra-medium

Well-Known Member
Joined
September 15, 2012
Messages
408
Reaction score
39
City, State
Charlottesville, VA
Year, Model & Trim Level
2002 Mercury Mountaineer
My message center on the bottom right is very dim, pretty much can't see it during the day. Is that something I could fix by changing one of these bulbs, or is it more complicated than that?

<



Nevea'sExplorer

Well-Known Member
Joined
June 30, 2006
Messages
118
Reaction score
0
City, State
Pittsfield, Ma
Year, Model & Trim Level
02 4.0 XLT 4x4 5R55W 3.55
<



BigRondo

USMC 1371
Elite Explorer
Moderator Emeritus
Joined
February 15, 2010
Messages
7,842
Reaction score
14
City, State
Worcester, MA
Year, Model & Trim Level
2002 XLT V6 4x4
The dashlight that illuminates the gas gauge and temperature gauge on my 2003 Ford Ranger is out. I just purchased it yesterday. Is it an LED light and do I have to remove the whole dash like BigRondo did? By the way, great posting! Jim

Welcome aboard!! :salute:

I am not familiar with the Rangers. I guess they are pretty much the same as the Explorers. I know that in order to replace those bulbs in the Explorer, the cluster has to come out. I used this thread for removing the cluster: http://www.explorerforum.com/forums/showthread.php?t=218636 You could also pose this question to the Ford Ranger - Mazda B-Series Sub-Forum. Click here to go there now.

Once you have the cluster out you can change the bulbs. I recommend changing all the bulbs while you have the cluster out!

The changeable bulbs are removed from the back of the cluster.

This picture is from my '02 cluster.

The color coding of the arrows is as follows:

White - High Beam Bulb
Red - Cruise Control Bulb
Green - Turn Signal Bulbs
Purple - Gauge Cluster Illumination Bulbs





Good luck with the fix. :D:thumbsup:

Please keep us posted as feedback helps others reading this post looking for a fix to the same or similar issue!

<



BigRondo

USMC 1371
Elite Explorer
Moderator Emeritus
Joined
February 15, 2010
Messages
7,842
Reaction score
14
City, State
Worcester, MA
Year, Model & Trim Level
2002 XLT V6 4x4
My message center on the bottom right is very dim, pretty much can't see it during the day. Is that something I could fix by changing one of these bulbs, or is it more complicated than that?

Welcome aboard!! :salute:

Like Nevea'sExplorer said, this issue is very common to the 3rd Gen's. I had to fix my cluster & the Mounty cluster I installed in my Ex. I got the soldering iron at Walmart for $10.00, complete with solder: http://www.walmart.com/ip/30-Watt-Soldering-Iron/16539504

Use this link for removing the cluster: http://www.explorerforum.com/forums/showthread.php?t=218636

Good luck and be sure to let us know how you make out! :biggthump

<



<
