The following applies to the Explorer & PIU (thanks to Jason, jmr061 for the info)

SSM 6329
- Apr 11 2018
2007-2016 Various Vehicles - All Wheel Drive (AWD) - Propane Or Natural Gas Odor During Idle Or Low Speed Driving - Built On Or Before 30-Jun-2016


Some 2007-2016 Edge/MKX/Flex/MKT/MKZ/MKS/Taurus/Police Interceptor Sedan/Explorer/Police Interceptor Utility vehicles equipped with AWD and built on or before 30-Jun-2016 may exhibit a propane or natural gas odor during idle or low speed driving. This may be due to break down of the power transfer unit (PTU) fluid caused by excessive heat. If the source of the odor is identified as originating from the PTU, an idler bearing repair kit is available to repair the PTU. Refer to the Workshop Manual (WSM), Section 308-07. If the PTU is determined to be repairable, utilize kit GB5Z-7P258-A and the included instruction sheet. For claiminguse causal part 7P258 and applicable labor operations in section 07 of the Service Labor Time Standards (SLTS) Manual.

Jason



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Technical Service Bulletins of the 2018 Ford Explorer

Aquiring Signal Notification - 2018 Explorer

2018 Ford Explorer equipment TSB (Bulletin SSM 47499)
Bulletin Date: Aug. 30, 2018
Component: Equipment.
Bulletin Summary: Some 2018 explorer and escape vehicles equipped with a 4g tcu modem may exhibit an acquiring signal message with a loss of satellite radio reception while driving in unobstructed areas. If normal workshop manual (wsm) diagnosis and testing
Vehicles covered in this TSB:
2018 Ford Escape, 2018 Ford Explorer.





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3




peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
TSB 17-2251
High Pitched Buzzing/Ringing Noise With Engine Running From Right Side Front Interior – 2017-2018 Ford Explorer


TECHNICAL SERVICE BULLETIN
110V Power Outlet – High Pitched Buzzing/Ringing Noise With Engine Running From Right Side Front Interior 17-2251
04 December 2017

Model:

Ford
2017-2018 Explorer

Issue: Some 2017-2018 Explorer vehicles equipped with a 110V power outlet may exhibit a high pitched buzzing or ringing noise from the right side front interior area while the engine is running.

Action: Follow the Service Procedure steps to correct the condition.

Parts

Part Number Description Quantity
GB5Z-19G317-D DC/AC Inverter 1
Warranty Status: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.

Labor Times

Description Operation No. Time
2017-2018 Explorer: Diagnose And Replace DC/AC Inverter (Do Not Use With Any Other Labor Operations) 172251A 0.8

Repair/Claim Coding

Causal Part: 19G317
Condition Code: 42


Drive
Tool Name
1/4″ Ratchet
1/4″ Torque Wrench
1/4″ 10 mm Socket
1/4″ 7 mm Socket
Adjustable Torque Wrench Adaptor

Service Procedure
1. With the engine running and nothing plugged into the 110V outlet, remove fuse F56 from the battery junction box (BJB). Is the noise still present?

(1). Yes – this article does not apply. Refer to the Workshop Manual (WSM) for normal diagnosis.

(2). No – proceed to step 2.

2. Replace the direct current/alternating current (DC/AC) inverter. Refer to WSM, Section 414-05.





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3




peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3




peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Apr 5 2019 SSM 47914
2016-2019 Explorer roof rack cap trim clips now available.

2016-2019 Explorer roof rack cap clips are now available as a separate part. It is no longer necessary to order a complete roof rack rail to obtain the cap retainer clips. To correct loose roof rack caps or broken or missing clips, order part number FB5Z-7851050-A. Ensure roof rails are properly torqued to 55 in/lbs (6.2 Nm) and that power tools are not used for installation as over-torqueing may cause warpage and poor fitment.

Thanks to Jason (jmr061).





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Air Conditioning (A/C) Defaults To Heat And Defrost During Remote Start – 2016-2018 Ford Explorer
oemdtc June 30, 2018 Diagnostic Tips


SSM 47570

2016-2018 ExplorerAir Conditioning (A/C) Defaults To Heat And Defrost During Remote Start – Built On Or Before 07-Aug-2018

Some 2016-2018 Explorer vehicles built on or before 07-Aug-2018 may automatically switch from A/C to heat and defrost after 1 minute during a remote start event when the customer expects the A/C to remain on.



To resolve the concern, reprogram the heating, ventilation and air conditioning (HVAC) control module using the latest software level of the appropriate Ford diagnostic scan tool.

For claiming, use causal part 19980 and applicable labor operations in Section 10 of the Service Labor Time Standards (SLTS) Manual.

MAKE MODEL YEAR
FORD EXPLORER 2016-2018
SSM 47570



SSM 47393

Check for Recalls: Vehicle, Car Seat, Tire, Equipment





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
SSM 48123

Battery Cable Clamp Corrosion Repair – 2012-2019 Ford & Lincoln

oemdtc September 25, 2019 Info


NHTSA ID Number: 10164497

Manufacturer Communication Number: SSM 48123

Summary

For Ford and Lincoln vehicles that require positive or negative battery terminal replacement, it is not necessary to replace the complete battery cable harness (14300 and 14301) for this concern. Positive battery cable clamp BT4Z-14450-AA and negative battery cable clamp BT4Z-14450-BA are available for this type of repair. Do not cut or shorten the battery cable, instead carefully remove the affected battery cable clamp and clean the cable end as necessary to preserve wire length. Some rework may be necessary for some vehicle environments. Bend the new positive battery cable clamp as needed and crimp it to the existing battery cable. Make sure to use heat shrink tubing over the battery cable to battery cable clamp connection. Obtain the heat shrink tube locally.

For affected vehicles, see; Battery Cable Clamp Corrosion Repair - 2012-2019 Ford & Lincoln





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
SSM 47738 FYI only.....not a fix.

Some 2016-2019 Explorer vehicles may exhibit a heated lower front seat cushion that does not operate properly after turning the ignition on after a remote start event. To temporarily resolve the concern, the heated seat control switch may be cycled off and then back on. Do not attempt any repairs at this time. Engineering is investigating. To assist with the investigation, use the Report a Vehicle Concern link at the bottom of the OASIS report and fill out the form. Monitor OASIS for updates.

(Thanks to ISTGradFromPSU)

Peter





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
TSB 19-2364
2016 - 2019 Explorers Roof Rail Cover Loose

Issue: Some 2016-2019 Explorer vehicles may exhibit roof rail covers that become loose or partially detached. This may be caused by a lack of retention of the clips securing the roof rail covers. To correct the condition, follow the Service Procedure to apply adhesive to the roof rail covers.

https://static.nhtsa.gov/odi/tsbs/2019/MC-10169810-0001.pdf (supplied by metroplex)

Peter





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
SSM 48431 (update to SSM 47738 above)
2016-2019 Explorer - Heated Seat Lower Cushion Inoperative After Remote Start

Some 2016-2019 Explorer vehicles may exhibit a heated front seat that does not operate properly after turning the ignition on after a remote start event. The seat back heats properly while the lower seat cushion does not. To correct the concern, reprogram the driver seat module (DSM) using the latest software level ofthe appropriate Ford diagnostic scan tool. For claiming, use causal part 14C708and applicable labor operations in Section 10 of the Service Labor Time Standards (SLTS) Manual.





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
TSB 17-2255
3.5L GTDI - Blue Or White Smoke From Exhaust While Driving After Extended Idle


Issue: Some 2016-2017 Explorer/Police Interceptor Utility/Taurus/Police Interceptor Sedan/Flex/MKT and 2016 MKS vehicles equipped with a 3.5L GTDI engine may exhibit blue or white smoke from the exhaust while driving after extended idle.


Peter (thanks to Bstard2001)





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
TSB 19-2390 Multi-Contour Seats
Intermittent Multi-Contour Seat Operation And/Or Massage And Lumbar Adjust Inoperative


Issue: Some 2015-2019 F-150, 2015-2020 Explorer, 2017-2019 F-Super Duty, 2017-2020 Continental, 2018-2020 Expedition/Navigator, 2016-2018 MKX, 2019-2020 Nautilus, 2020 Aviator/Corsair and 2013- 2020 MKZ vehicles equipped with multi-contour seats may exhibit intermittent multi-contour seat operation and/or massage and lumbar adjust inoperative from the seat switch or SYNC screen with or without diagnostic trouble code (DTC) B1471, U024B, and/or U024C

https://static.nhtsa.gov/odi/tsbs/2019/MC-10169898-0001.pdf

Thanks to ISTGradFromPSU





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
TSB 18-2367
3.5L EcoBoost - Illuminated MIL - DTCs P0325, P0327, P0330 And/Or P0332 - Built On Or Before 30-Sep-2016


Issue: Some 2016-2017 Explorer/Police Interceptor Utility vehicles equipped with a 3.5L EcoBoost engine built on or before 30-Sep-2016 may exhibit an illuminated malfunction indicator lamp (MIL) with diagnostic trouble codes (DTCs) P0325, P0327, P0330 and/or P0332. This may be caused by a wire chafe condition near the knock sensor connector C109


Thanks to Was13Now16Sport





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,639
Reaction score
2,444
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3

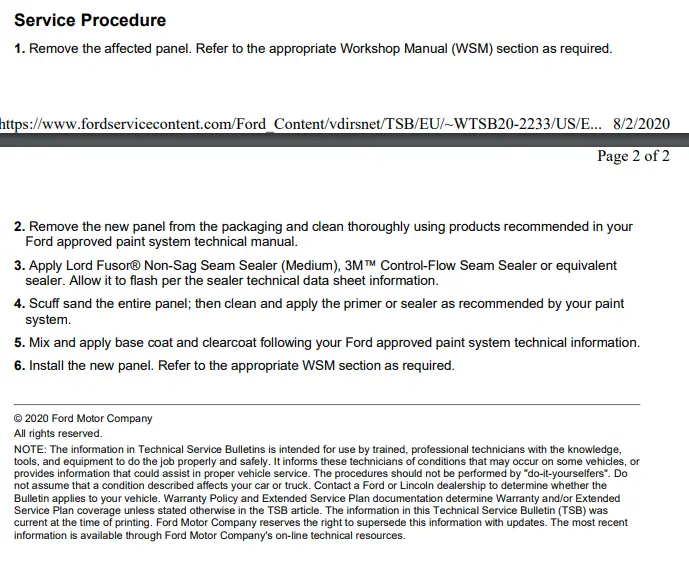

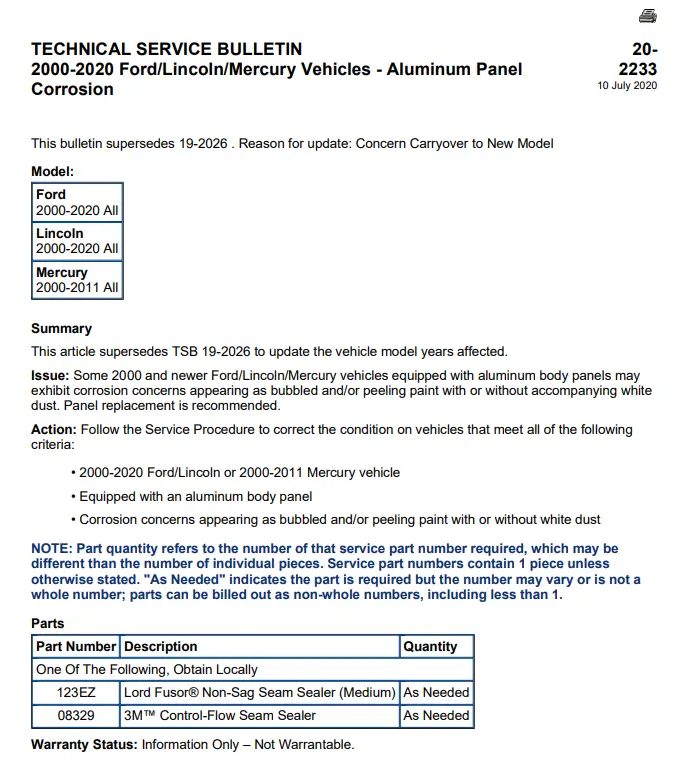

Aluminum Panel Corrosion - TSB 20-2233.

TSB 20-2233
