Hey everyone, I've been unable to find anything regarding hideaway bulbs in a 2016 Explorer. I was looking to add the hideaways in the tail lights in 1 of 2 locations; I was hoping someone has drilled into these before and knows more of what to expect once going through the first layer of plastic.

I've been looking at Feniex's Cannon 120 and Cannon 360 (same exact light, different internal reflector.)
-http://www.feniex.com/cannon-120
-http://www.feniex.com/cannon-360
The 120 is meant to be viewed head on, meaning it would need to be drilled in from the back of the tail light assembly. The 360 is meant to be viewed from the side, so it would need to be drilled in from the side of the assembly.

There is an open reflective area on the bottom of the tail light assembly below the brake light, it would need to go in from the side, or I could go head on from the directional area. I'd rather go in from the appearing open area at the bottom of the assembly, but am not sure if I will encounter a problem along the way (it seems as if there are a lot of screw supports in the area). It requires a 1.5 inch hole through the outside layer, and the cut through the reflector would need to be 1 inch.
View media item 169View media item 168View media item 167View media item 166
Also last question, on the LED brake light it has 3 wires going in. I could be wrong but I thought the middle only illuminated when the brake was pressed, I wasn't aware it was also a tail light? So what are the three wires if anyone knows. And what is the plastic tab that sticks out at the top?
View media item 165
Thank you for your help.
Nick




Join the Elite Explorers $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links.
Add an avatar, upload photo attachments, and more!
.



PDExplorer

Active Member
Joined
January 7, 2006
Messages
79
Reaction score
5
City, State
Long Island, NY
Year, Model & Trim Level
16 Xsport, 12 Mustang GT
Nick,

I will be doing the same soon as well. Not sure if going with the 120 or 360 yet. However, the cannons are 3-mode lights. Meaning you can use them for turn signals or reverse lights. I havent seen hideaways yet installed in the turn signals of 16 explorers. Everyone seems to go in the reverse light. But i plan to not drill into the light in a new location, Im either going to utilize the turn signal or reverse bulb hole. This might be an option you can consider.

Good luck







NickyB

Active Member
Joined
January 13, 2016
Messages
59
Reaction score
18
City, State
Massachusetts
Year, Model & Trim Level
2016 Ford Explorer Sport
The reverse light would be easiest but I live in a rural town where it is pretty dark so I was hoping to add additional reverse lighting and I've read going to LED bulbs causes a hyper flash and I don't know how to stop that; so I hadn't really considered that. I was hoping that bottom open slot would be an option but I believe it will be too small. Oh well. If you can, let me know what additional steps you had to take to install the Cannon's in place of the OEM bulb.

Nick







Crown XSport

New Member
Joined
September 9, 2016
Messages
5
Reaction score
3
Location
San Diego, CA
City, State
San Diego, CA
Year, Model & Trim Level
2016 Explorer Sport
@NickyB - Just installed a set of LED reverse bulbs in my '16 Sport. No hyper flash, just a ton of light now! If you do experience hyper flash, adding in line resistors to the wiring will stop any hyper flash.







thefranchise713

Explorer Addict
Joined
April 22, 2016
Messages
1,246
Reaction score
163
City, State
Buffalo, NY
Year, Model & Trim Level
'18 Toyota Prius Prime
Hyperflash won't occur on a bulb that doesn't have a duty to flash--only for your turn signals. And @jmr061 has figured out how to turn off the turn signal flash via programming, too, if you went that route.







peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
34,062
Reaction score
3,161
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
@NickyB - Just installed a set of LED reverse bulbs in my '16 Sport. No hyper flash, just a ton of light now! If you do experience hyper flash, adding in line resistors to the wiring will stop any hyper flash.
Just curious if you've checked how bright they are by standing behind the vehicle? Could they be 'blinding' to other motorists? The reason I ask is that my MKT has OEM LED reverse lights and in looking at the camera I can notice that while providing plenty of illumination, the main focus of the light seems to be directed in a downward direction about 15 - 20 feet behind the vehicle.

Peter







Crown XSport

New Member
Joined
September 9, 2016
Messages
5
Reaction score
3
Location
San Diego, CA
City, State
San Diego, CA
Year, Model & Trim Level
2016 Explorer Sport
Just curious if you've checked how bright they are by standing behind the vehicle? Could they be 'blinding' to other motorists? The reason I ask is that my MKT has OEM LED reverse lights and in looking at the camera I can notice that while providing plenty of illumination, the main focus of the light seems to be directed in a downward direction about 15 - 20 feet behind the vehicle.

Peter

They're bright, more so than the OEM bulbs. I wouldn't say blinding and since your reverse bulbs aren't normally on very long, not too worried about how bright they are. The aftermarket LED bulbs seem to yield a slightly wider emission and throw light a greater distance. I'd also say that the majority of the light is also focused in a downward pattern versus straight back similar to that of you MKT.







Advanced VS

Member
Joined
October 10, 2016
Messages
14
Reaction score
1
City, State
Hunterdon Cty. NJ
Year, Model & Trim Level
2016 Interceptor Utility
Go check out elightbars.org







asull85

The Storm Chaser
Joined
April 29, 2010
Messages
358
Reaction score
27
City, State
Agawam, MA
Year, Model & Trim Level
2016 Interceptor Utility
Callsign
WX4FUN
I have Whelen Vertex's in my reverse lights. At least with my vehicle there was a specific location to drill the hole. I'm not sure if all the Explorers have them but my Interceptor does. There was only one layer in the housing so it was pretty easy to install. I even lucked out and didn't need to vacuum out any little plastic pieces out of the housing.







NickyB

Active Member
Joined
January 13, 2016
Messages
59
Reaction score
18
City, State
Massachusetts
Year, Model & Trim Level
2016 Ford Explorer Sport
I wish all of the explorers had the same thing as the interceptor. The idea for me has faded for now but may think about it again someday in the future. Ill keep an eye on this though incase anyone else has some other ideas







Sgt1411

Elite Explorer
Joined
February 22, 2011
Messages
4,500
Reaction score
459
City, State
VanBC/GoodyearAZ
Year, Model & Trim Level
2021 Explorer ST
Callsign
PRINCE51
You can buy the PI Utility reverse light housing if you want.







NickyB

Active Member
Joined
January 13, 2016
Messages
59
Reaction score
18
City, State
Massachusetts
Year, Model & Trim Level
2016 Ford Explorer Sport
So, fortunately someone unfortunately broke one of my tail lights which gave the opportunity to drill into it without worrying about damaging a good lens. The tail lights are single layered which made this extraordinarily easy. I made two holes, one which was in the directional spot, and the other in the open bottom spot. I forgot to take a picture of the directional area but the light output is perfect on the bottom for the extra reverse lighting plus the strobe function I was looking for. I ended up purchasing the Feniex Cannon 360's because they will be drilled into the housing from the side. Hopefully this information will be useful for someone else.







NickyB

Active Member
Joined
January 13, 2016
Messages
59
Reaction score
18
City, State
Massachusetts
Year, Model & Trim Level
2016 Ford Explorer Sport

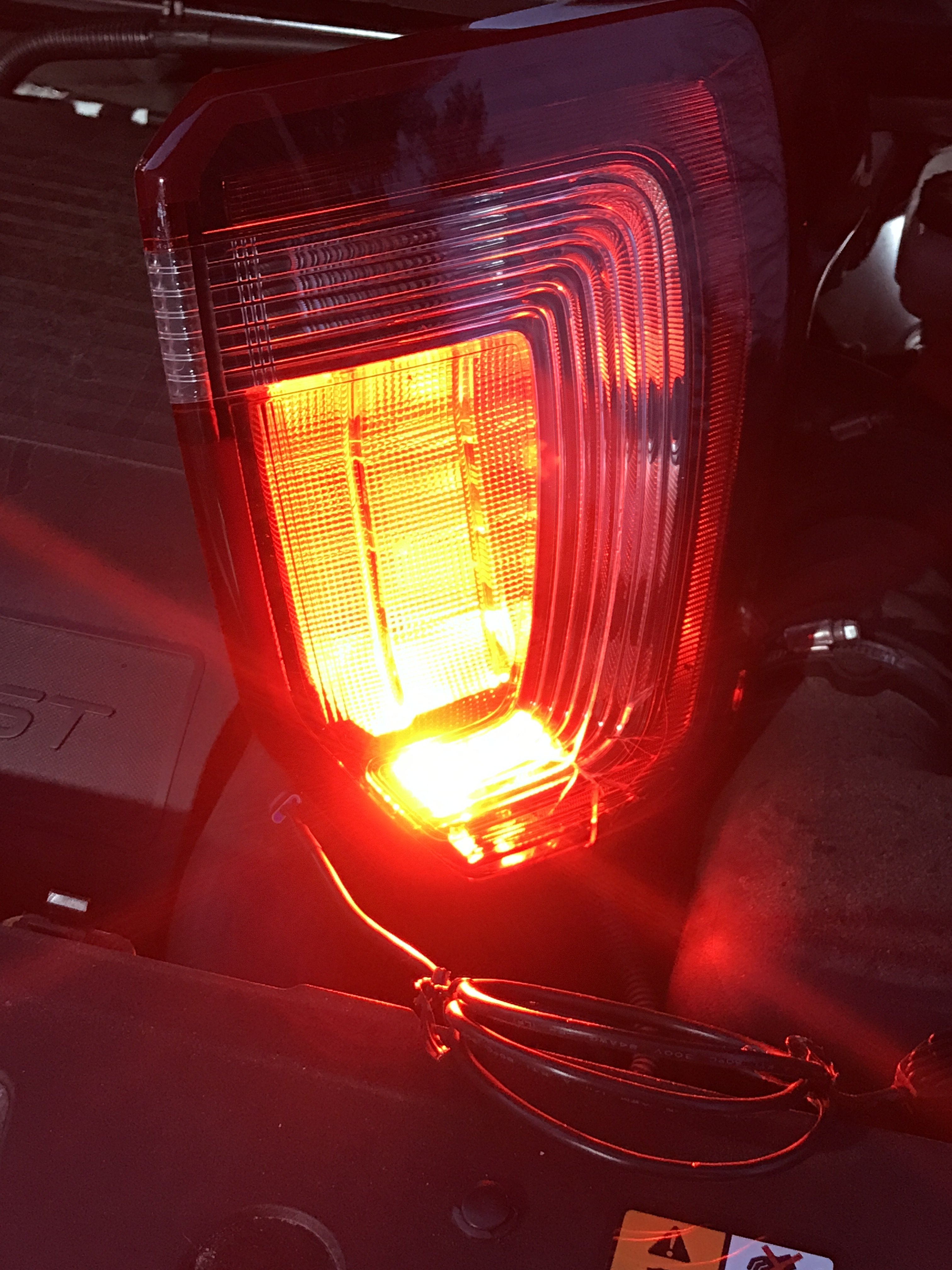

Red color in open bottom area of lens. So much light is being emmited and reflected it appears as if the brake light is on





White light in same housing (dual colored bulb), this one doesnt appear as bright but that is only because the camera adjusted itself because it was being washed out

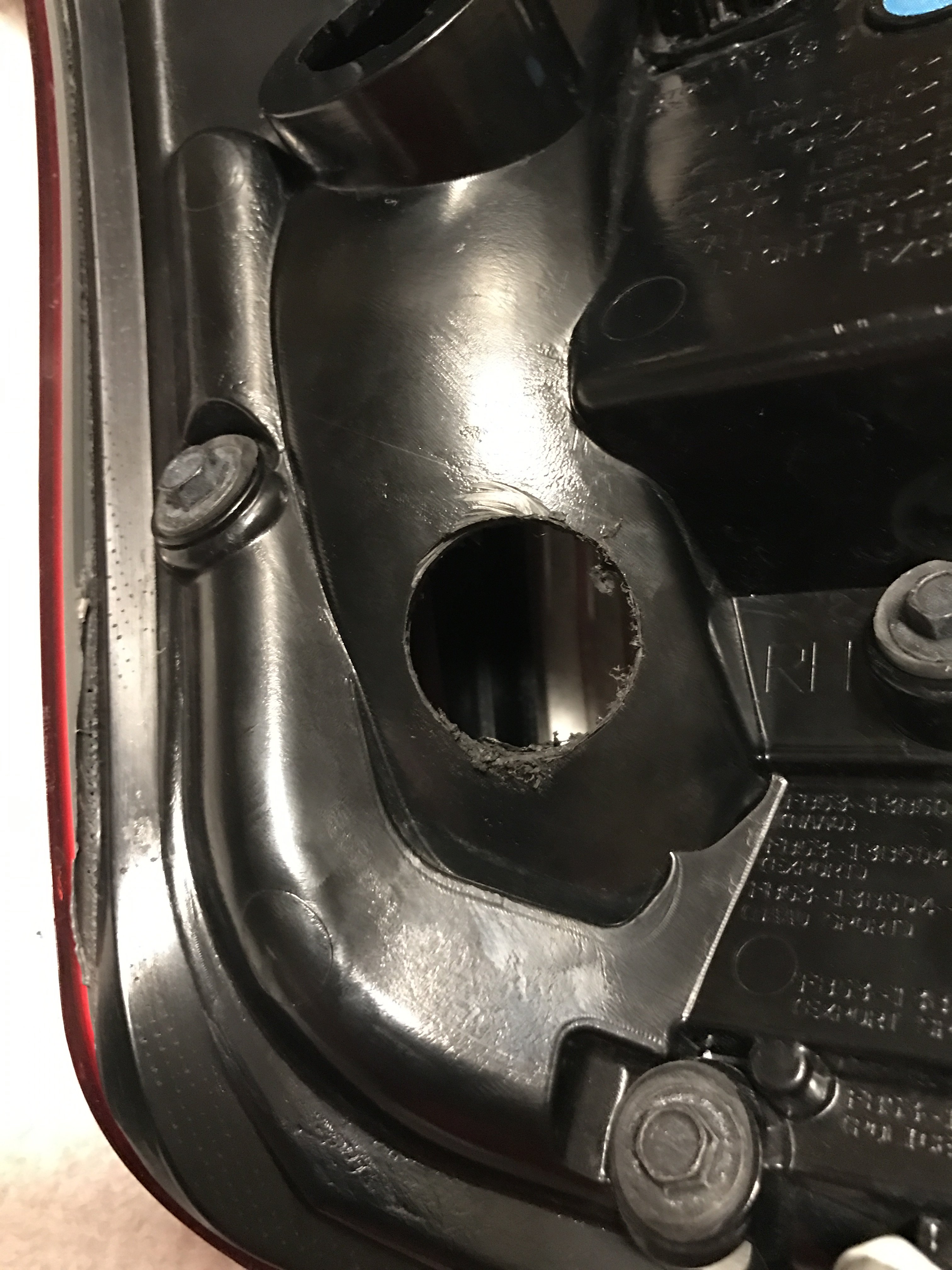

This is the hole in the bottom area of the lens. Lens is turned to the side. The first hole I drilled was too high and too far forward to the front of the lens so the bulb wouldn't fit











Up close photo looking into the empty lower lens











Hole drilled into the directional area of the lens











Whole view of the assembly with drilled in holes







PDExplorer

Active Member
Joined
January 7, 2006
Messages
79
Reaction score
5
City, State
Long Island, NY
Year, Model & Trim Level
16 Xsport, 12 Mustang GT
Nice job @NickyB . I ended up doing the reverse bulb and the turn signals. I never thought I could get a light in that bottom area, especially a 360. Maybe ill consider that. I have dual color bulbs, so when the truck goes into reverse, all 4 hideaways flicker 3x and then steady burn white. I also have 9W LED reverse bulbs as well so my light output to the rear is amazing, and well as slightly to the side because of where I drilled into the reverse housing (same place as yours - you're going to get more 1/4 warning then rear).

Before I hear the "you're going to blind other drivers", Im not worried about that since I don't drive on dark roads against traffic in reverse :dunno:. And ,my reverse lights are on for all of about 3 seconds. The only time other drivers really will see them is in a relatively lit parking lot.

I pretty much spent weeks figuring out these housings and how the hideaways work in them, so if anyone has questions, feel free to message me.







NickyB

Active Member
Joined
January 13, 2016
Messages
59
Reaction score
18
City, State
Massachusetts
Year, Model & Trim Level
2016 Ford Explorer Sport
Nice job @NickyB . I ended up doing the reverse bulb and the turn signals. I never thought I could get a light in that bottom area, especially a 360. Maybe ill consider that. I have dual color bulbs, so when the truck goes into reverse, all 4 hideaways flicker 3x and then steady burn white. I also have 9W LED reverse bulbs as well so my light output to the rear is amazing, and well as slightly to the side because of where I drilled into the reverse housing (same place as yours - you're going to get more 1/4 warning then rear).

Before I hear the "you're going to blind other drivers", Im not worried about that since I don't drive on dark roads against traffic in reverse :dunno:. And ,my reverse lights are on for all of about 3 seconds. The only time other drivers really will see them is in a relatively lit parking lot.

I pretty much spent weeks figuring out these housings and how the hideaways work in them, so if anyone has questions, feel free to message me.

Sounds nice, throw some pics up when you have time. I just ordered two more Cannon 120's. I'm going to be swapping out the directional and placing the new cannon in its place. Now the whole "outer ring" is going to light up around the brake/tail light. Like you said, I don't drive in reverse and I don't think they are actually brighter than a headlight so I'm not worried about the output being too much. I was hesitant about ever trying to get into that bottom spot because like you said, wasn't sure if they would fit. But since I had a housing that was damaged I figured I would give it a try. Worst case is it didn't fit.







PDExplorer

Active Member
Joined
January 7, 2006
Messages
79
Reaction score
5
City, State
Long Island, NY
Year, Model & Trim Level
16 Xsport, 12 Mustang GT
I had dual color Cannon 120s with Amber to dual function as a turn signal. However, I swapped them out for the Clear since I didn't like the way the amber looked, and also the 120s don't really "fill" the housing with color that well - They more or less over saturated where the bulb was and faded out thru the lens, and they were super bright straight back which could get annoying to others. Maybe a 360 would be better for a turn function, but again, they were dual purpose and mainly a warning light, so I needed the direct output of the 120.

Just as an FYI, I had to drill the housing, opposite of my original plans. The cannons are too big to fit in the existing bulb holes without modifying the factory hole which I didn't want to do.

Ill get pics or a video as soon as I can.







MolonLabe

New Member
Joined
April 15, 2017
Messages
6
Reaction score
1
City, State
ケベック州
Year, Model & Trim Level
2016 Ford Explorer Sport
Thanks for these awesome pictures...







NickyB

Active Member
Joined
January 13, 2016
Messages
59
Reaction score
18
City, State
Massachusetts
Year, Model & Trim Level
2016 Ford Explorer Sport
Not sure if anyone else has noticed this, but 1 problem I have is that there is a really quick flash of the opposite color (I have the dual color) randomly at times; but only if the car is running. So in the back sometimes there is a really quick flash of white light, in the front red. Most of the time it isn't too noticeable, but it drives me crazy. I contacted Feniex and they said the firmware has a hard time knowing which color to fire off so that happens. I asked them if there was going to be a fix or replacement to those with the issue and never got a response back...
