Here is what to look for if you have a 95-01 with cold ac, and hot heat, but it only blows from the defrost vent.
IF YOU HAVE COLD AND / OR WARM AIR BLOWING FROM DEFROST DUCT ONLY THIS THREAD IS FOR YOU!!!
I will immediately delete all ac cooling questions without answer-let's stay on track with this common issue.
I will also delete all non 95-01 questions
okthankyewverymuch!:D


Let's identify all the parts involved--

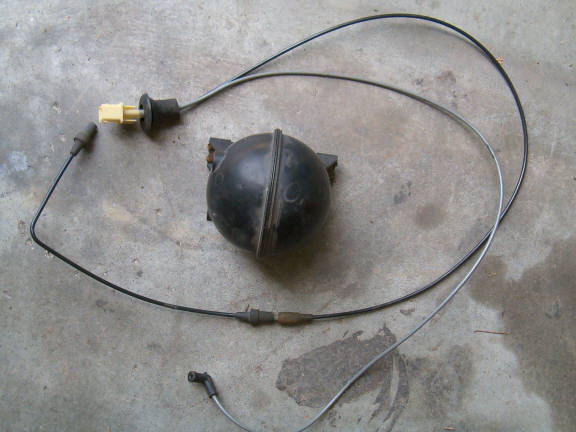

First, a picture of the vacuum reservoir

A diagram of the vacuum circuit

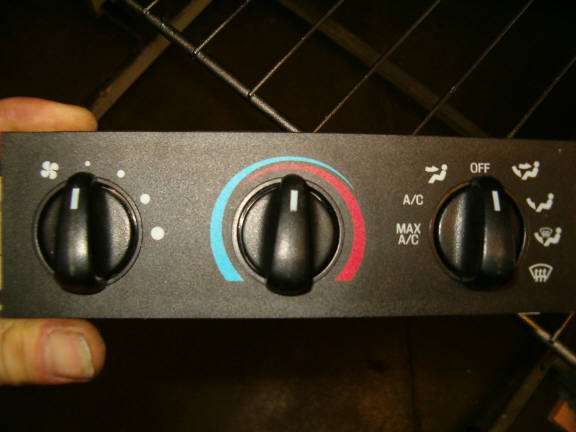

then there is the hvac panel of course

Thanks Shamaal for the diagram


reservoir and lines.jpg




ac panel.jpg



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Ok, now it is important to understand a bit of how it is supposed to work together-

On the back of the HVAC control is a vacuum switch connection-with several colors of rubber hoses connected to it.
The vent functions are vacuum controlled and powered-there are no cables or wires involved.

Here is the rear of the switch with the plug removed


Attachments

  • hvac connections.jpg
    hvac connections.jpg
    35.8 KB · Views: 30,497




Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Vacuum is accumulated in this "globe" or vacuum reservoir

here is a good shot of where it is located, tucked and hidden well in the passenger front wheel well
--see how easy a tire could hit it?
It may look fine, be filled with water (not good) or rattle (not good either) or have broken lines.

For thelowered trucks, or large tire guys-I relocated mine below my cone style open air filter, above the fender liner inside engine compartment. My tire had bumped it.


More info on globe here- http://www.explorerforum.com/forums/showthread.php?t=192337

Here is a thread with several pictures of it, discussing it's location and function

http://www.explorerforum.com/forums/showthread.php?t=169945


Attachments

  • Vacuum globe location.JPG
    Vacuum globe location.JPG
    79.6 KB · Views: 31,332




Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
There is a vacuum supply line going from the globe to the intake manifold. You should follow it back to be sure it is connected and intact.


The other black line runs to the firewall, to this connector.

It is right above the spot where the radio antenna goes through, in the passenger wheel well area.
It is best to jack up your truck and remove the tire and inner fender liner to get here, as this picture is with the inner fender liner removed. It really only takes 5 minutes at the most to get it off


Attachments

  • outside firewall vacuum.jpg
    outside firewall vacuum.jpg
    39.6 KB · Views: 30,512




Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
You'll notice a grey plastic line at this point-it goes to the "coolant bypass valve"
Vacuum is applied at most times, unless ac is selected
at this time the vacuum is switched off to the valve,which in turn cuts flow of coolant through the heater core. This helps the HVAC box run a bit cooler for maximun a/c efficiency

This may develop a vacuum leak-check it

BTW , this is not my truck


Attachments

  • bypass valve1.jpg
    bypass valve1.jpg
    60.6 KB · Views: 31,040




Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Now, going on through the firewall is the "reserve" or " boosted" vaccum.It is the black line.

It arrives through this connector-right above the "fuel pump inertia switch"

The white line is the controlled vacuum return-we'll discuss it later


Attachments

  • inside vacuum connection.jpg
    inside vacuum connection.jpg
    42.9 KB · Views: 33,812




Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
From there, the black supply line runs here, past a bulk connector
This is on left side of glove box


Attachments

  • lines in glove box.jpg
    lines in glove box.jpg
    33.7 KB · Views: 30,283




Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Then finally, the lines shown connected to rear of HVAC panel-

Sorry for the burry image, but it should be good enough--


Attachments

  • HVAC connected.jpg
    HVAC connected.jpg
    36 KB · Views: 30,185




Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Ok, the red blue and yellow line go to no mans land-let's forget them right now.

The white "controlled vacuum" line (from HVAC switch) now goes back through the bulk connector, to the glove box area,through several connections and "T's" to the defrost baffle "motor" (diaphragm)-and back through the firewall for controlled vacuum to the Grey coolant bypass valve line.
Phew!


Attachments

  • defrost valve.jpg
    defrost valve.jpg
    34.8 KB · Views: 30,215




Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
There you go,
As you can see there are several places to develop a leak-from loose lines hitting the exhaust to a broken globe, or even a leaking contol switch.
Not to mention about 50 connections--
If there is the slightest leak-the diaphragm motor in above post will not "close" and all the air will blow from the defrost ducting--

Now, about the other lines--

The red, blue and yellow lines work to control "blending" of the vents-floor and defrost only. (Don't confuse this with the dreaded hot to cold "blend door")
These colored lines will not usually be a problem--

OK

Your mission, find the vacuum leak.
Mine turned out to be the connection inside the firewall right above the fuel pump inertia switch-it was kicked loose. :confused:

For the first time in over a year, I now have ac from the vents!!!!









JaeKThomas

Active Member
Joined
February 11, 2007
Messages
59
Reaction score
0
City, State
Philly
Year, Model & Trim Level
2000 Eddie Bauer V8!
From there, the black supply line runs here, past a bulk connector
This is on left side of glove box

first off let me thank you for making this thread....ive searched everwhere and the pics you've included really helped. Now these colored tubes I found behind my glove box...my air was working fine until blue tube was cut....could this be the source of my problem? or where my leak is coming from?





Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
first off let me thank you for making this thread....ive searched everwhere and the pics you've included really helped. Now these colored tubes I found behind my glove box...my air was working fine until blue tube was cut....could this be the source of my problem? or where my leak is coming from?

definitely. you might be able to just plug it back into the connector, after removing the cut off end--





JaeKThomas

Active Member
Joined
February 11, 2007
Messages
59
Reaction score
0
City, State
Philly
Year, Model & Trim Level
2000 Eddie Bauer V8!
definitely. you might be able to just plug it back into the connector, after removing the cut off end--

thats wat i thought. i had tried that actually and it just sits in the connector now, slipping out every so often. got any idea where I can get another connector and/or a replacement tube?





Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
thats wat i thought. i had tried that actually and it just sits in the connector now, slipping out every so often. got any idea where I can get another connector and/or a replacement tube?

There are 2 members here recycling explorers
Both are site vendors

kbabiak
ped5stang

You might send a pm to one of them-





JaeKThomas

Active Member
Joined
February 11, 2007
Messages
59
Reaction score
0
City, State
Philly
Year, Model & Trim Level
2000 Eddie Bauer V8!
There are 2 members here recycling explorers
Both are site vendors

kbabiak
ped5stang

You might send a pm to one of them-

thanks alot man





Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Info added-
Boy-I like my AC !

Now I need to get a new center vent. Mine is weird--





JoshuaLO

New Member
Joined
July 5, 2007
Messages
2
Reaction score
0
City, State
Corpus Christi, Texas
Year, Model & Trim Level
1999 Mountaineer
Hello guys i would first like to say how helpful this site is.....Now to the question......My a/c only blows from the defrost ducting on acceleration....what would cause this?





Turdle

Lowrider
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,584
Reaction score
1,114
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Hello guys i would first like to say how helpful this site is.....Now to the question......My a/c only blows from the defrost ducting on acceleration....what would cause this?

I'll bet you have a vacuum leak--



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Swanny

Member
Joined
November 3, 2004
Messages
29
Reaction score
0
City, State
Indy, Indiana
Year, Model & Trim Level
'96 Sport 4x4
Mine started having this symptom after the battery died on me in winter time... Does this indicate anything?
