Maybe just use a grade 8 bolt of around that size and drill a hole through it for a pull pin.

I hope a grade 8 will be strong enough to handle all the tension on that sway bar.

Maybe a donor sway bar can be experimented on... Hmm.... I have an idea, but I'd have to go to the drawing board first.

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




Ronin8002

Explorer Addict
Joined
March 23, 2003
Messages
4,419
Reaction score
12
City, State
Virginia
Year, Model & Trim Level
2008 XLT Ironman
I hope a grade 8 will be strong enough to handle all the tension on that sway bar.

Maybe a donor sway bar can be experimented on... Hmm.... I have an idea, but I'd have to go to the drawing board first.

I bet the bolt would be fine if you went with a 3/8 or bigger grade 8. Welds on the coupler that connects the two sides would need to be good and strong since that would be the other potential failure area.

<



NHarris

Explorer Addict
Joined
May 31, 2010
Messages
3,338
Reaction score
6
City, State
Gillette, Wyoming
Year, Model & Trim Level
04 Wrangler, 08 Ranger
I bet the bolt would be fine if you went with a 3/8 or bigger grade 8. Welds on the coupler that connects the two sides would need to be good and strong since that would be the other potential failure area.

Really all I would think it would need is a decent thickness sleeve with two holes drilled in it that go through the sway bar. Then with the bolts in place the sleeve acts as the sway bar, disconnected (or just one side) the sleeve doesnt move with the sway bar. Of course a pin will be needed in the center of the sway bar to keep it from trying to split.

<



Ronin8002

Explorer Addict
Joined
March 23, 2003
Messages
4,419
Reaction score
12
City, State
Virginia
Year, Model & Trim Level
2008 XLT Ironman
Really all I would think it would need is a decent thickness sleeve with two holes drilled in it that go through the sway bar. Then with the bolts in place the sleeve acts as the sway bar, disconnected (or just one side) the sleeve doesnt move with the sway bar. Of course a pin will be needed in the center of the sway bar to keep it from trying to split.

that would probably work too. bolt one side of the sleeve thru a hole drilled in the swaybar, and have a strong clevis pin or another bolt through a similar hole on the other end that you would remove to do the disconnect.

It would just mean you have to drill through the swaybar vs welding the coupler on. prob not too hard if you have a drill press.

If you used a cutting tool that makes a wider cut (like a grinder) vs say a band saw that would probably give you a little bit of separation between the two halves so they don't grind together when offroading.

Just a matter now of finding the right sized piece of steel tube to use as a coupler.

<



NHarris

Explorer Addict
Joined
May 31, 2010
Messages
3,338
Reaction score
6
City, State
Gillette, Wyoming
Year, Model & Trim Level
04 Wrangler, 08 Ranger
Lots of ideas; someone just needs to try this out, then maybe I can copy.

Looking at my set-up and testing it, I dont think the sway bar hitting a tire is going to be an issue. Especially if one link is still connected (which I will probably do). I probably will go do some flexing with it to test it.

<



Ronin8002

Explorer Addict
Joined
March 23, 2003
Messages
4,419
Reaction score
12
City, State
Virginia
Year, Model & Trim Level
2008 XLT Ironman
Let us know how the 1-link thing works out...if it goes well then I think that's the easiest option.

Biggest area of concern would be when one side is stuffed and the other side is fully drooped out...the swaybar might touch the LCA on the stuffed side in that situation but just need to try it and see.

<



NHarris

Explorer Addict
Joined
May 31, 2010
Messages
3,338
Reaction score
6
City, State
Gillette, Wyoming
Year, Model & Trim Level
04 Wrangler, 08 Ranger
Let us know how the 1-link thing works out...if it goes well then I think that's the easiest option.

Biggest area of concern would be when one side is stuffed and the other side is fully drooped out...the swaybar might touch the LCA on the stuffed side in that situation but just need to try it and see.

I'm headed off to start testing it soon. I'll be back with pictures and results.

<



NHarris

Explorer Addict
Joined
May 31, 2010
Messages
3,338
Reaction score
6
City, State
Gillette, Wyoming
Year, Model & Trim Level
04 Wrangler, 08 Ranger
Some pics.

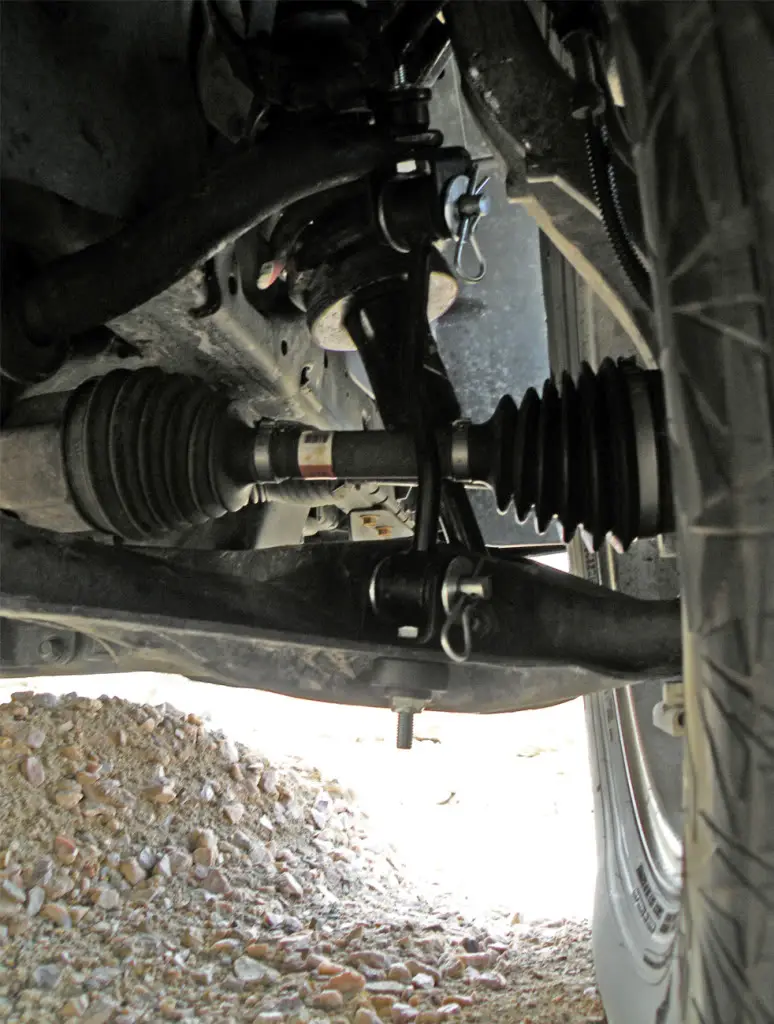

Sway bar disconnected on one side only.

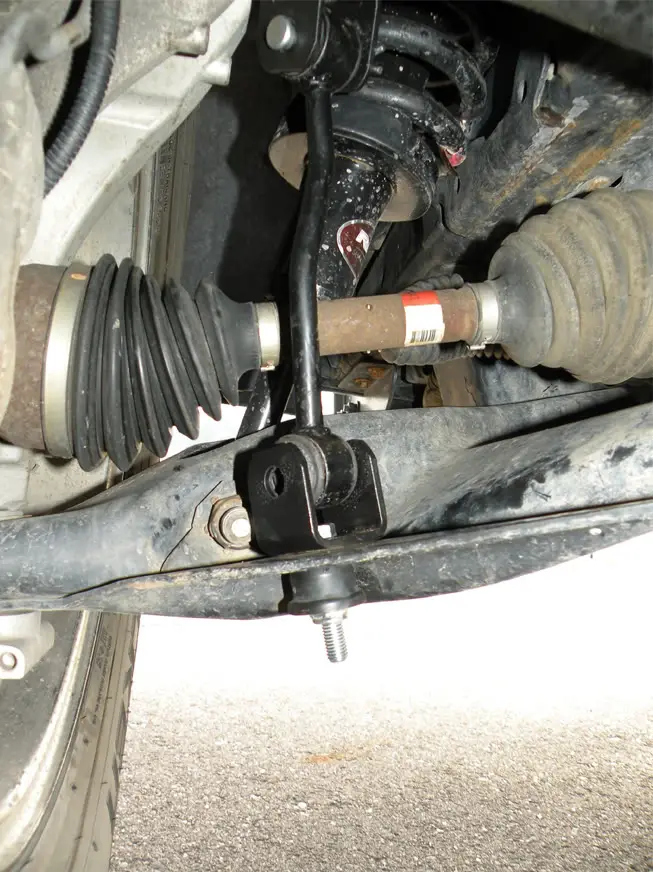

And right back where its supposed to be after flexing.

<



skysthelymyt

Well-Known Member
Joined
September 29, 2011
Messages
124
Reaction score
0
City, State
Florence, SC
Year, Model & Trim Level
2003 Explorer
If you are going to disconnect one side, I would take the end link out completely to avoid it being hit on up-travel when flexing. I think it would work then. Very nice work. :thumbsup:

Btw, what website did you go to when you ordered these parts?

<



Ronin8002

Explorer Addict
Joined
March 23, 2003
Messages
4,419
Reaction score
12
City, State
Virginia
Year, Model & Trim Level
2008 XLT Ironman
If you are going to disconnect one side, I would take the end link out completely to avoid it being hit on up-travel when flexing. I think it would work then. Very nice work. :thumbsup:

Btw, what website did you go to when you ordered these parts?

Agree. Looks like it should work out pretty well otherwise. Thanks for posting the pics!

<



Triton8273

Explorer Addict
Joined
April 27, 2010
Messages
1,140
Reaction score
2
I think he only disconnected one end of it to show the flex.

This is Nate were talking about. Of course he's going to remove it completely when he gives the truck a good workout.

<



NHarris

Explorer Addict
Joined
May 31, 2010
Messages
3,338
Reaction score
6
City, State
Gillette, Wyoming
Year, Model & Trim Level
04 Wrangler, 08 Ranger
I think he only disconnected one end of it to show the flex.

This is Nate were talking about. Of course he's going to remove it completely when he gives the truck a good workout.

Exactly right! :thumbsup: I didn't want to disassemble the whole thing for just a picture. If I was running a trail, I most definitely would take the whole thing out; reason for both ends (of the end link) being quick disconnects.

<



NHarris

Explorer Addict
Joined
May 31, 2010
Messages
3,338
Reaction score
6
City, State
Gillette, Wyoming
Year, Model & Trim Level
04 Wrangler, 08 Ranger
If you are going to disconnect one side, I would take the end link out completely to avoid it being hit on up-travel when flexing. I think it would work then. Very nice work. :thumbsup:

Btw, what website did you go to when you ordered these parts?

Fat Bobs Garage has the the brackets, any auto parts store will have the end link.

<



rangermidtn

Well-Known Member
Joined
February 26, 2011
Messages
424
Reaction score
7
City, State
Smyrna TN
Year, Model & Trim Level
2004 Explorer XLT 4x4
Fat Bobs Garage has the the brackets, any auto parts store will have the end link.

I am on the Fat Bob's site, and I can not find the brackets.

<



<



NHarris

Explorer Addict
Joined
May 31, 2010
Messages
3,338
Reaction score
6
City, State
Gillette, Wyoming
Year, Model & Trim Level
04 Wrangler, 08 Ranger
You'll have to call on these. They're a whole sway bar kit, just this is part of the kit

<



<



<



Triton8273

Explorer Addict
Joined
April 27, 2010
Messages
1,140
Reaction score
2
Yea, I'm not gunna pay $40 for those when it cost me $18 for a replacement end link lol

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




skysthelymyt

Well-Known Member
Joined
September 29, 2011
Messages
124
Reaction score
0
City, State
Florence, SC
Year, Model & Trim Level
2003 Explorer
Is it holding up well?
Does it hit/rub your spindles at full lock?

<
