4.3l sohc v6?

2000StreetRod

Staff member
Moderator
Elite Explorer
Joined
May 26, 2009
Messages
10,587
Reaction score
221
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
crankshaft oil passages

Is offset grinding the stock crank an option? I seem to vaguely recall reading, somewhere on here, that it wouldn't work because of the oiling passages in the crank or something like that. Anybody know?
I found this response to a question posted January 10, 2006 on StangNet:

"The 4.0 crank is not suitable for offset grinding in power adder applications, this means we'd need a custom billet crank, high strength forged rods, and custom forged pistons. We'd shoot for 4.4-4.5L displacement with .060 over bore. The estimated cost of a stroker kit suitable for a power adder would be $3800-$3900 and would include the billet cranks, forged rods, and forged pistons. This crank/rod/piston kit would be capable of well over 500-600 horsepower but of course we really don't know what the upper limit of the block would be. with good preparation, good balancing, the block should tolerate similar power levels.
Tom Yentzer
www.supersixmotorsports.com
478-256-7766"

However, in Super Six Motorsports' 4.0L SOHC Tech Note dated 7 Nov 2005:
"The crank is neutrally balanced and actually looks pretty sturdy. It appears to be heavily counterweighted and is probably close to a 50% balance factor. The crank is robust enough to allow off-set grinding since it uses single pin rod journals, so the potential for stroker motors is there, based on the crank."

Since Tom Morana offers a 4.3L stroker kit using an offset ground OEM crankshaft he must have an alternative solution.

Join the Elite Explorers for $20.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see practically no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.


SVO

Moderator Emeritus/Doctor
Moderator Emeritus
Joined
May 3, 2003
Messages
9,411
Reaction score
14
City, State
Bastrop/Austin, Tx
Year, Model & Trim Level
Turbocharged Navajo LX
.......

Last edited:

SVO

Moderator Emeritus/Doctor
Moderator Emeritus
Joined
May 3, 2003
Messages
9,411
Reaction score
14
City, State
Bastrop/Austin, Tx
Year, Model & Trim Level
Turbocharged Navajo LX
...

Last edited:

2000StreetRod

Staff member
Moderator
Elite Explorer
Joined
May 26, 2009
Messages
10,587
Reaction score
221
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
Terlingua Mustang SOHC V6

Greetings Jeff. It's good to see you posting on the forum again. I hope that you have recovered from your heart scare.

I was hoping that you would contribute to this discussion. First hand experience is always more valuable than speculation or theoretical analysis. Your photos have answered several of my questions. You were able to retain the block cradle after stroking the engine. Did you have to modify it?

It appears that at least one notch was ground in the block to obtain clearance for the longer stroke.

The bore of the stroker connecting rod looks about the same diameter as the stock rod bore.

Did you use a new billet for the crankshaft or offset grind the OEM crankshaft?

What is the stroke?


SVO

Moderator Emeritus/Doctor
Moderator Emeritus
Joined
May 3, 2003
Messages
9,411
Reaction score
14
City, State
Bastrop/Austin, Tx
Year, Model & Trim Level
Turbocharged Navajo LX
.....

Last edited:

SVO

Moderator Emeritus/Doctor
Moderator Emeritus
Joined
May 3, 2003
Messages
9,411
Reaction score
14
City, State
Bastrop/Austin, Tx
Year, Model & Trim Level
Turbocharged Navajo LX
...

Last edited:

SVO

Moderator Emeritus/Doctor
Moderator Emeritus
Joined
May 3, 2003
Messages
9,411
Reaction score
14
City, State
Bastrop/Austin, Tx
Year, Model & Trim Level
Turbocharged Navajo LX
....

Last edited:

jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger
Greetings Jeff. It's good to see you posting on the forum again. I hope that you have recovered from your heart scare.

Hi Dale, yes it's nice not being dead any more, was quite comforting, but kinda a drag too, Life Flight is expensive.

Thanks :)

I returned cause Jon asked me to.


I was hoping that you would contribute to this discussion. First hand experience is always more valuable than speculation or theoretical analysis. Your photos have answered several of my questions. You were able to retain the block cradle after stroking the engine. Did you have to modify it?

It appears that at least one notch was ground in the block to obtain clearance for the longer stroke.

The bore of the stroker connecting rod looks about the same diameter as the stock rod bore.

Dale, please don't take this as being mean, but I spent a nice chuck of a nest egg that we had saved up to do all the R&D on this and try and produce an affordable forged bottom end for boosted/spray applications.
I was pinned under the gun after too many phone calls to both of the Tom's with absolutely no results, only the knowledge that all the products that the Tom's have are for drag racing application and NOT for street use, and NONE of it is in stock. (Tom's = both Moranna and Super Six)

Now a year ago MMR list a rod and piston set, and one of my customers went that route, guess what?

Today he called me and said that after waiting since August of last year ordering he STILL has received anything but empty promises, so he will be dropping his Shelby with me in two weeks.

OK, to get back on track, and again sorry to sound mean here, but another guy with way deeper pockets was having his engines build but another guy, but they start at $15,000 and got to $25k plus, and he took three of my customers with him, on a sucker punch, after they were already on MY books for engines.
So, I will give you a little help here BUT if you really want to know (ALL the secrets), I have a short block waiting to go on a pallet to your point of origin of your choice, for my cost plus shipping.
I'm not trying to make a business deal out of it, I just want the last one I have in stock gone, the monies would be betting in my account than short block doing nothing.

I hope you understand.

The rods are 800hp Scat rods

Pistons are custom 4" BRC forged flat tops

Crank is stock and good to 500hp it is NOT offset ground

Block is punched and sonic tested for voids in the casting

Compression is 9:1


Did you use a new billet for the crankshaft or offset grind the OEM crankshaft?

What is the stroke?

Stroke is 4.7 as stated above, the stroke is based on the piston/rod combo plus the punch.

I have lost my ass on this deal, and it need many more hours of research to be right, of which I don't have the time nor the monies to do.

There are also differences in head castings, degree the cams, and intake set up also.



SVO :navajo:



I take it Turdle said something about my coaking? Luv Ya Jon ;)
I dont understand this...

If the crank is stock and not offset grind then the stroke should still be 3.31, correct??..also piston or rods dont change the stroke..also no way does a 4" piston with stock stroke equal 4.7.:scratch::scratch:

So is the stroke or displacement 4.7??

But sounds like it doesnt matter anyways because one hasnt stayed together. .


2000StreetRod

Staff member
Moderator
Elite Explorer
Joined
May 26, 2009
Messages
10,587
Reaction score
221
City, State
Greenville, SC
Year, Model & Trim Level
00 Sport FI, 03 Ltd V8
4.7L stroke

4.7L = 286.81 cu. in. To get that displacement with a 4" bore the stroke would be about 3.8" or an increase of 0.49 inch.

I suspect the reason the engine failed was too much total compression or possibly valve float. Is the 9:1 compression ratio of the pistons with the stock heads (chamber size = 65.2 cc)?

I'm not interested in racing and my objective is increased torque at low to midrange engine speeds. That's why I was looking at stroking and possbily boring the engine. I know it would be a waste of performance potential but would your 4.7L short block be compatible with stock heads? My max boost target is 8 psi which should work fairly well with 9:1 pistons. Do you think the block would hold up under normal driving with infrequent rapid starts? I only drive my Sport about 3K miles per year.


jd4242

Explorer Addict
Joined
October 15, 2008
Messages
10,809
Reaction score
281
City, State
va beach
Year, Model & Trim Level
92explorer&94 ranger

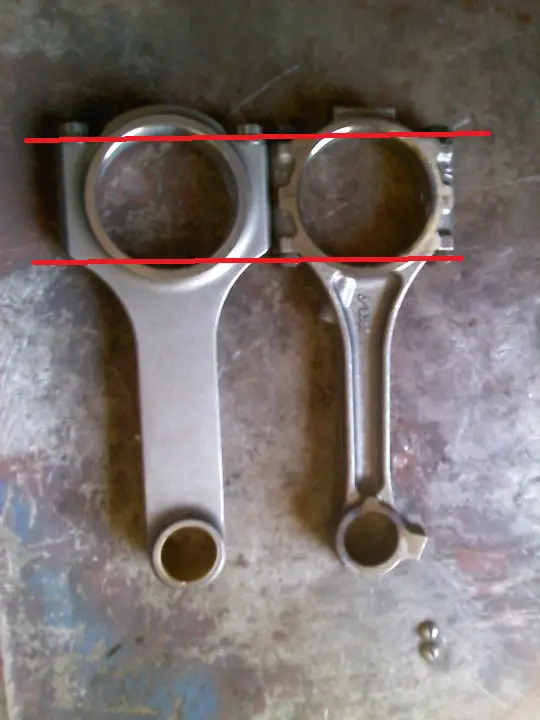

The rods posted dont look to be a 1/2 smaller nor does the CH on the new pistons appear to be smaller, if anything the new pistons look to have a increase in CH..to keep a good rod to piston ration he would have to run damn near 5.9" bare minimum rods so CH would have to decrease..also how is a sohc block taking a 4" bore??
