4.6L Explorer engine timing chain ooops!

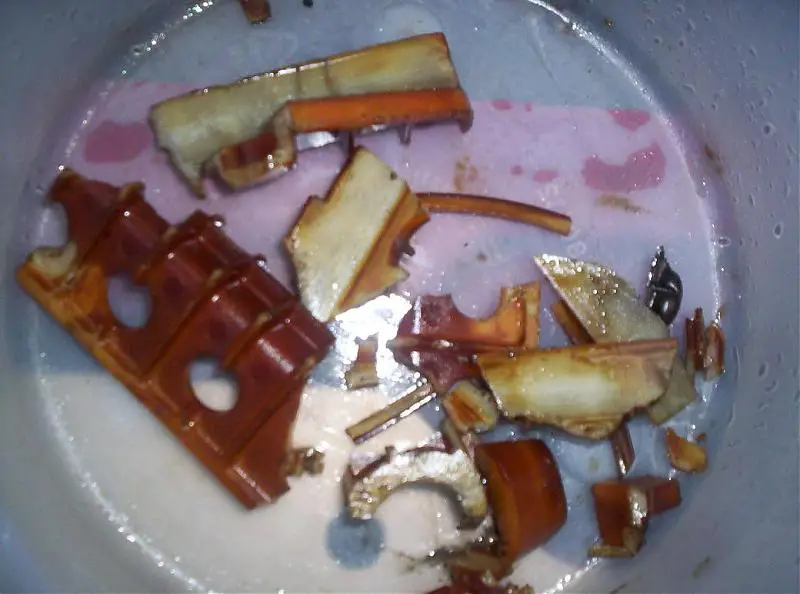

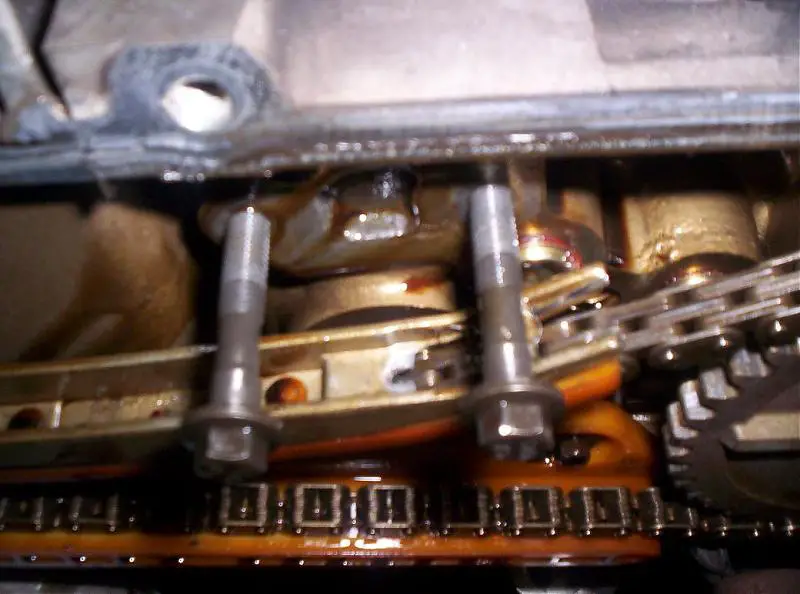

Got a local customer with an Explorer who came to the shop with a noise coming from the front cover. As I suspected the timing chain guide on the pass side was broken completely and both movable guides were worn through, right down to the tensioner. Attached is some pics.....


Attachments

  • 000_0180web.jpg
    56.2 KB · Views: 42,006
  • 000_0181web.jpg
    89.4 KB · Views: 93,735
  • 000_0182web.jpg
    58 KB · Views: 38,069
  • 000_0184web.jpg
    85.2 KB · Views: 85,743



Join the Elite Explorers $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links.
Add an avatar, upload photo attachments, and more!
.



jah81592

Explorer Addict
Joined
June 12, 2005
Messages
1,502
Reaction score
22
City, State
Corner, AL
Year, Model & Trim Level
2001 Explorer Sport

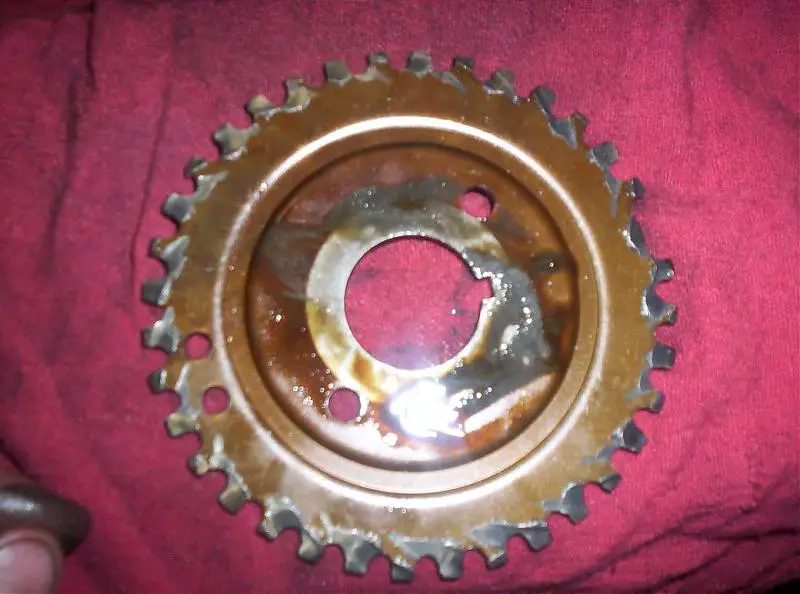

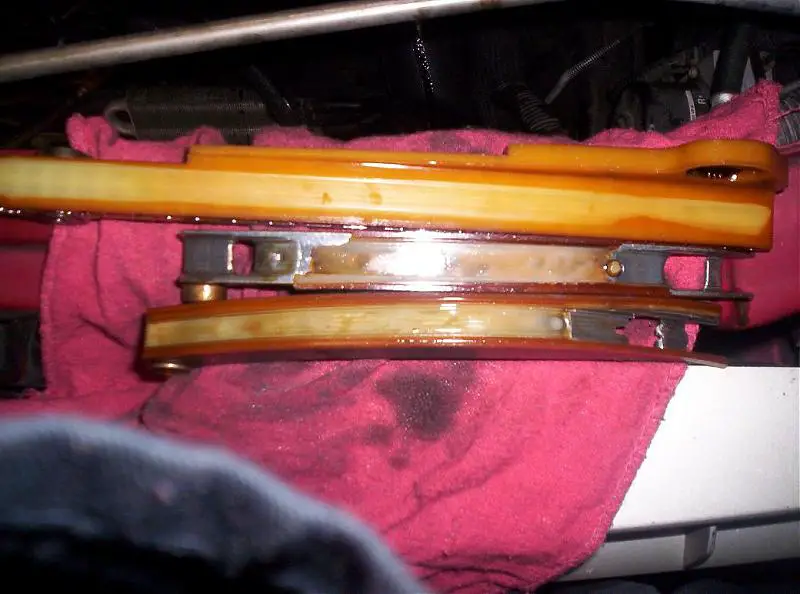

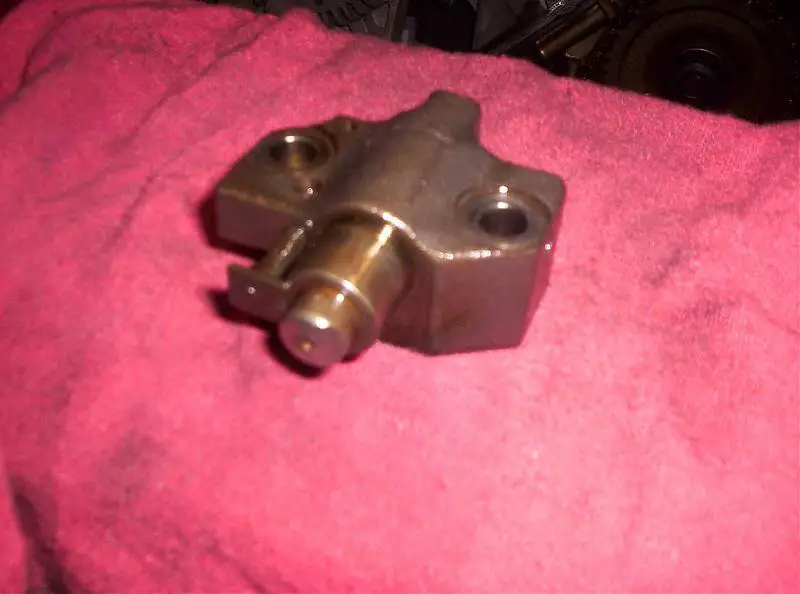

As you can see in the 1st pic the tensioner has been "ground" down by the timing chain. This is after the chain wore through the tensioner guide. 2nd pic is the "timing wheel" which the crank sensor gets it report from. You can clearly see that the chain was really loose. Bottom pic is another pic of the tensioner guide showing the tell tale signs of being completely worn.


Attachments

  • 000_0188web.jpg
    59.9 KB · Views: 35,360
  • 000_0187web.jpg
    88.1 KB · Views: 35,830
  • 000_0186web.jpg
    66.1 KB · Views: 35,653
  • 000_0185web.jpg
    48.5 KB · Views: 36,225












jah81592

Explorer Addict
Joined
June 12, 2005
Messages
1,502
Reaction score
22
City, State
Corner, AL
Year, Model & Trim Level
2001 Explorer Sport

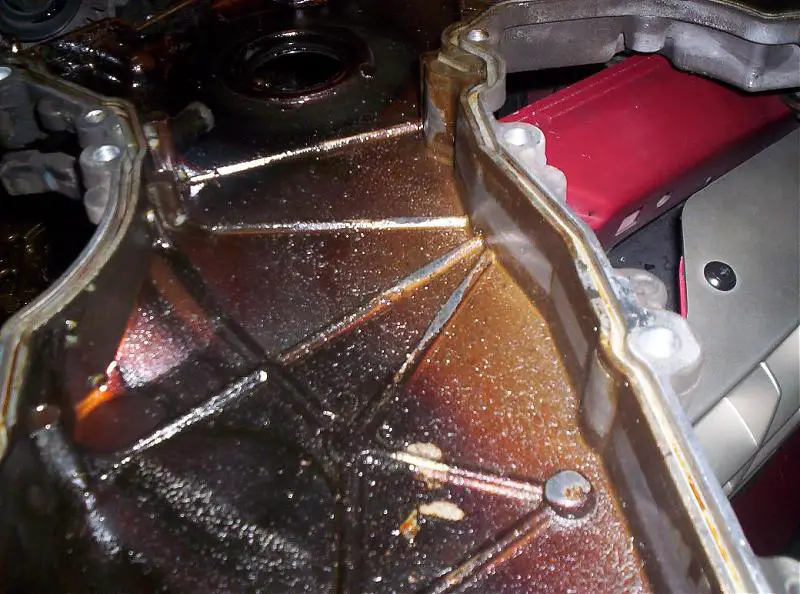

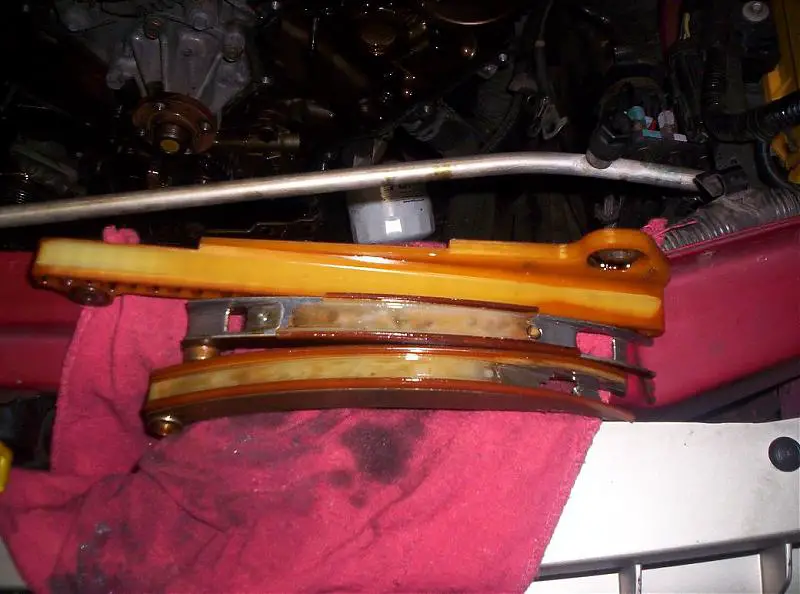

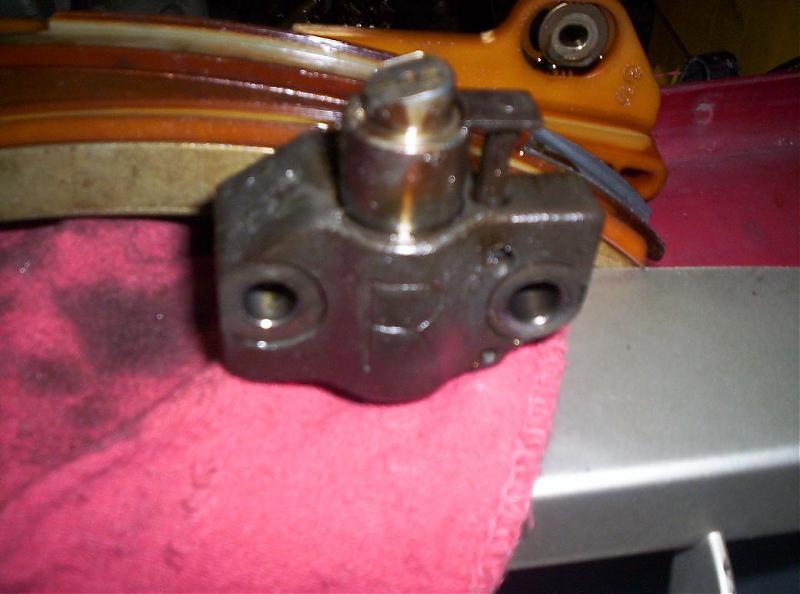

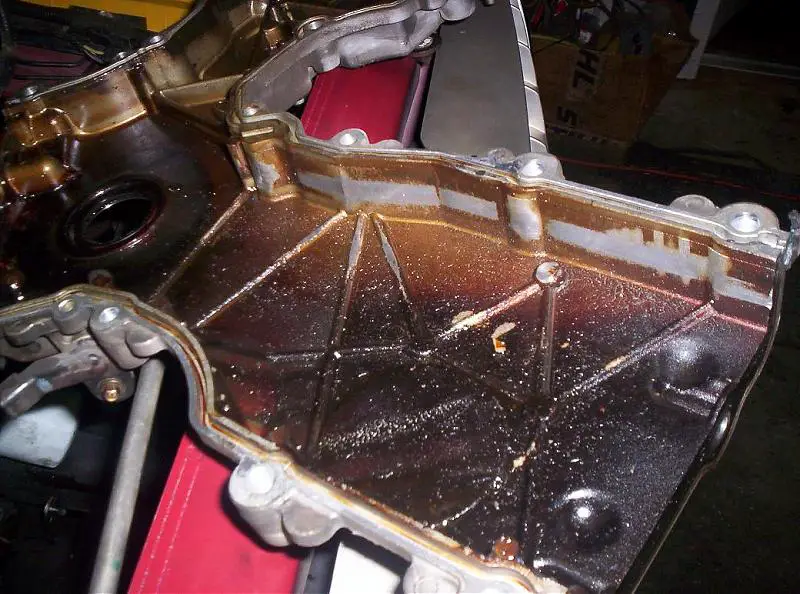

final pics


Attachments

  • 000_0189web.jpg
    62.4 KB · Views: 35,103
  • 000_0190web.jpg
    46.2 KB · Views: 36,647
  • 000_0191web.jpg
    94.5 KB · Views: 35,033
  • 000_0192web.jpg
    88.2 KB · Views: 35,228






jah81592

Explorer Addict
Joined
June 12, 2005
Messages
1,502
Reaction score
22
City, State
Corner, AL
Year, Model & Trim Level
2001 Explorer Sport
Wow. I ran the phooey out of my 4.6 TBird back in the day, never a problem. I guess that is a high mileage motor? Or is it on some power adder?

Interestingly enough this is a naturally aspirated 4.6L Explorer engine. Basic bolt on's (CAI,catback,underdrive pulley,HensonToon). He is considering a set of cams. I told him while it is out might as well get 'em. If he decides to go with the cams I will highlight a full installation and get video of the sound.

This is definately not a normal failure. This engine has around 107K. Alway run sythetic oil. I am around alot of Mustangs and I haven't seen this one yet. OUCH!



















justin146

Explorer Addict
Joined
April 8, 2001
Messages
2,204
Reaction score
2
City, State
Oxford, MS-- home of the Ole Miss Rebels
Year, Model & Trim Level
2000 XLT Sport 5.0 Turbo
My 5.4 3v ran through a tensioner, destroyed the VVT unit, and completely lost compression in 1 cylinder at around 105k :)







1996explorerxlt

Well-Known Member
Joined
October 24, 2005
Messages
224
Reaction score
1
City, State
Marshfield, MA
Year, Model & Trim Level
00Mounty+96X both V8 AWD






Joe Balls

New Member
Joined
January 22, 2008
Messages
1
Reaction score
0
City, State
Long Island NY
Year, Model & Trim Level
02 Explorer
My 02 engine failure at 82000 miles

I bought my 02 explorer used with 82k at 87k the timing chain tensioner let loose and the right side front cylinder sucked a valve through the piston. Now a new remanufactured engine is going to cost $4000.00 to install.

I am not a happy camper to say the least!







Port

Member
Joined
January 27, 2006
Messages
32
Reaction score
0
City, State
Bel Air, Md
Year, Model & Trim Level
02 XLT
that was bad. you should c the state police cars. very common problem on those. I've been with the state police motor vehicle division for about 7 months and have done 3 or 4 and have heard about alot more. and i'm sure more of them are actually like that they just haven't broke anything yet. had one that ate both tensioners. i don't know how it was running it was so bad.







jah81592

Explorer Addict
Joined
June 12, 2005
Messages
1,502
Reaction score
22
City, State
Corner, AL
Year, Model & Trim Level
2001 Explorer Sport
Got the parts in and got the engine timed. Will post some pics-j







SnookMan

Well-Known Member
Joined
February 2, 2008
Messages
104
Reaction score
0
City, State
Miami, FL
Year, Model & Trim Level
'02 XLT V8
What did the noise sound like??????







jah81592

Explorer Addict
Joined
June 12, 2005
Messages
1,502
Reaction score
22
City, State
Corner, AL
Year, Model & Trim Level
2001 Explorer Sport
Chatter,chatter,rattle,rattle, pop,pop.- Kinda like a rod bearing let loose but the harmony wasn't perfect with the rpm's.-j







rburns4

New Member
Joined
July 21, 2008
Messages
1
Reaction score
0
City, State
Clinton, MS
Year, Model & Trim Level
2003 Limited
Replace them.

How hard is it to replace the chain tensioners?







Pontisteve

Well-Known Member
Joined
August 30, 2008
Messages
508
Reaction score
6
City, State
Florida
Year, Model & Trim Level
03 Eddie Bauer 4WD V8
I suspect my 03 Explorer 4.6 may have the same thing starting to happen at 100k. It's made noise since I bought it at 85k. My noise sounds like a piece of broken catalytic converter rattling around in the cat, or maybe like a torque converter problem of some sort. It's load-sensative, and seems to mostly do it while accelerating from 0 to 60. The noise always lets off as the tranny shifts (I'm thinking due to lack of load), and goes away as the truck enters 5th gear, especially with the converter locked up.

An ex Ford tech told me he recognized the noise, it was a common problem, and was the timing chain guides. Once he told me that, the symptoms seemed to fit. There's no rod-knock type of noise. Just a SHHHHHHH noise when accelerating. It doesn't seem to be getting any worse, oil changes don't affect it, and it goes away above maybe 2500 rpm.

Can you change tensioners or guides without having to retime the motor? I'm hoping to not have to buy the 2v cam timing kit. How much work is it on an 03 explorer? I've done this job on 4v Mustangs, but I'm guessing the explorer chassis is a bit tougher to work on, due to it's height and size. Couldn't you just paint the chain links and the timing gear before you disassemble that tensioner, so you don't have to retime the motor from scratch?







jah81592

Explorer Addict
Joined
June 12, 2005
Messages
1,502
Reaction score
22
City, State
Corner, AL
Year, Model & Trim Level
2001 Explorer Sport
I would recommend retiming the engine for the insurance of knowing the engine is timed correctly. This would only ensure (if the tensioner was broken) that the engine hasn't jumped a tooth. I would not replace just the tensioner anyway. Usually the sprockets get wear and the chain has surface damage from not being tight. I would recommend replacing the entire timing setup- chain,tensioners,guides,etc.







Pontisteve

Well-Known Member
Joined
August 30, 2008
Messages
508
Reaction score
6
City, State
Florida
Year, Model & Trim Level
03 Eddie Bauer 4WD V8
Do my symptoms and noises match up with what your customer had?







jah81592

Explorer Addict
Joined
June 12, 2005
Messages
1,502
Reaction score
22
City, State
Corner, AL
Year, Model & Trim Level
2001 Explorer Sport
Without being present it will be hard to tell. It actually sounded like a wrist pin rattle except it came from the front of the engine.-j




Join the Elite Explorers $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links.
Add an avatar, upload photo attachments, and more!
.



Pontisteve

Well-Known Member
Joined
August 30, 2008
Messages
508
Reaction score
6
City, State
Florida
Year, Model & Trim Level
03 Eddie Bauer 4WD V8
My noise doesn't sound like a knock at all. Just sounds like a lot of small pebbles being spun around in a coffee can (but it's nothing like detonation). It's not really there at idle, which makes it hard to diagnose. It's only evident under load at acceleration. Once it gets up into overdrive or converter lockup, the noise is gone. And it also goes away during each shift of the auto tranny. I'm assuming that's from a temporary lack of load.

I thought it was broken catalytic converter pieces or a rattling cat heat shield at first, but close inspection of the cats showed no problems there. The noise does sort of sound like a chain being dragged over something metal though, so a failed chain guide seemed feasible.
