4 gen mounty tail light fitment on 4 gen Explorer

Bazz270

Well-Known Member
Joined
April 14, 2020
Messages
926
Reaction score
303
City, State
Haifa,Israel
Year, Model & Trim Level
Ford Explorer 2007 XLT
Hi all

Never seen 4 gen Explorer with Mounty led tails
So decided to purchase in ebay pair of used Mounty led tails.

1.Hate this chrome bezels so - painted with Rustoleum matte black:


By the way if you have these strange kind of tail light with Russia sticker on,you also will need to get a kind of ford plastic grommet mounts.
2. For harness modify get an 18-22 awg heat shrinkable sleeves and multimeter.
3.No need to modify any kind of body parts.fits perfectly.
4.As build file needs to be changed (or u will get turn light warning and hyper flash) similar to F150 procedure- bulb outage control disable mode.
5.Honesly..looks a bit strange...but my old tail lights are ugly and broken anyways =))

About dimensional difference...its almost the same..i mean maybe will need to push your rear bumper a bit downwards...but no any major installation problem..no need to cut your bumper

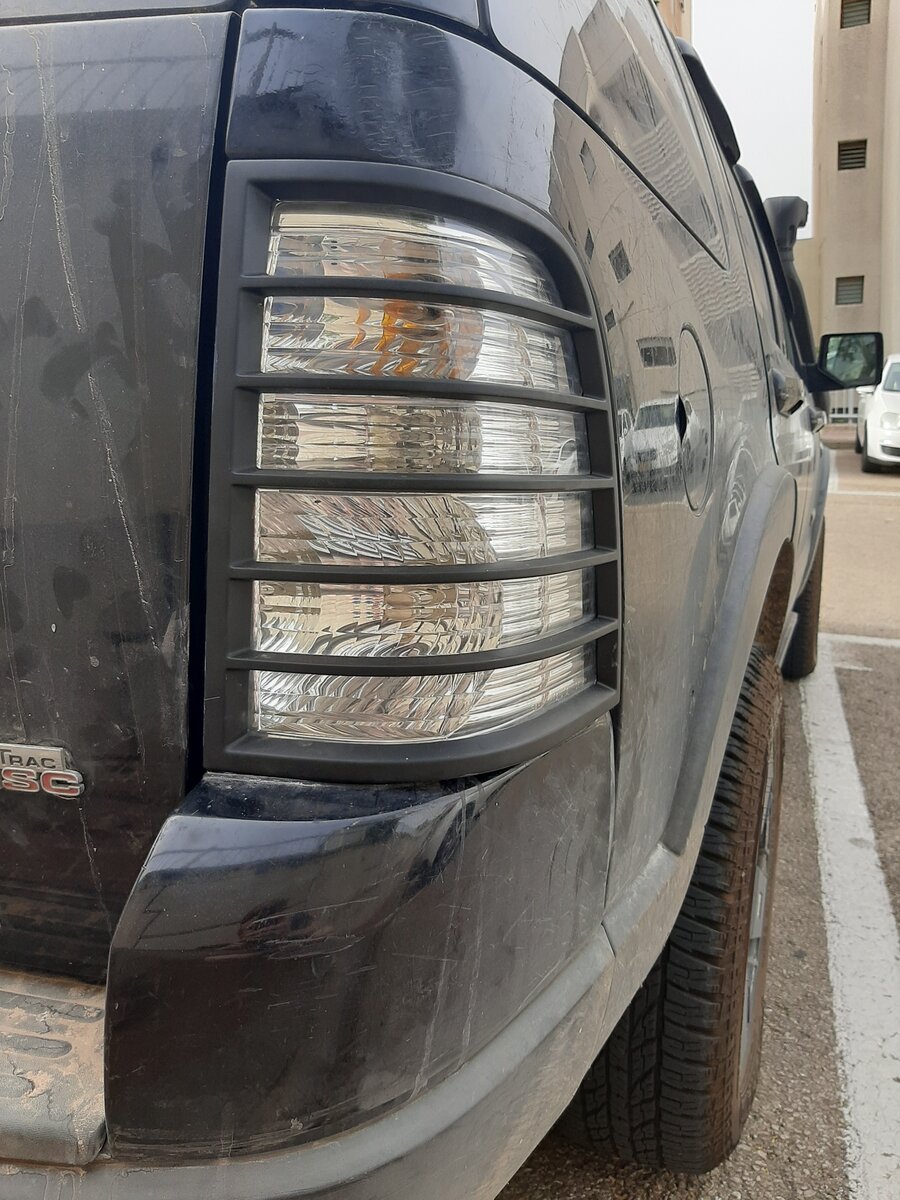

Additional photo (my rear bumper side shape caused by small parking accident)







Turn indicator red LED swap (cause of mounty as-build file uploaded,got an amber color brake/turn light indicator).led hyperflash cured with 6ohm resistor.
