12" of wheel travel

I cannot run a 2.5" shock, the shock will start to hit the axle shaft with this 2" kit, so we are going to run a 2.0, 10" travel threaded body and a 2.0 bypass on the front corners.

Drivers side is mocked up and tack welded, I am now working on the engine, valve train is going together, putting the 5.0 together and wiring it along the way. Updates are coming!!!! I have more time in the shop then I do in front of the pc (good thing!!)... but I will get progress posted



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




JoleneTheExploder

New Member
Joined
January 8, 2021
Messages
13
Reaction score
19
City, State
WEST LINN
Year, Model & Trim Level
1997 Explorer XLT V8
I'm running the same set up on a 1997 v8 Explorer with BW 4406 manual transfer case, spring over rear and a superlift and true travel +2 front on 35" tires. Running a fox 10" with a 10" 500lb upper coil and a 12" 650lb bottom coil... this is my first post...trying to figure out how to post pics..





JoleneTheExploder

New Member
Joined
January 8, 2021
Messages
13
Reaction score
19
City, State
WEST LINN
Year, Model & Trim Level
1997 Explorer XLT V8


Figured it out. As you can see its all very new. hoping to have things finished up with it today so I can take it down for alingment and get it in the snow tomorrow









BKennedy

Elite Loser
Staff member
Moderator
Elite Explorer
Joined
November 29, 2000
Messages
7,815
Reaction score
1,317
Location
USA
City, State
San Diego, PRofK
Year, Model & Trim Level
1994 XLT
A 2" body shock should be fine unless you are racing. I have 2"x14" travel coil overs on the front and have driven at fairly good speeds through 30 miles of dirt road and the shocks don't even get warm. My Radflo's have the same shaft diameter as larger body shocks.





JoleneTheExploder

New Member
Joined
January 8, 2021
Messages
13
Reaction score
19
City, State
WEST LINN
Year, Model & Trim Level
1997 Explorer XLT V8
Yeah a 2" body coilover is perfect most race teams don't even bother going above a 2.5. The coilover shock is literally there to hold the vehicle at the proper height. Using a dual rate set up allows the softer upper spring to take in the drops (suspension fully extended) and the firmer lower spring to absorb the hits and compression. Dampening is all done with an additional bypass shock. I have yet to receive my bypass shocks as they are on backorder but it's not necessary to have them in to drive. I'll throw them in when the show up in a few weeks.





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,594
Reaction score
2,241
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Well HELL YEAH!!!!! nice setup, great minds think alike LOL

What are you using for a bump stop? (hard to see in pic)

What gears ratio are you running?

Thanks for sharing your setup! I love the dual coils and had planned to do the same





CDW6212R

Hauls the mail.
Elite Explorer
Joined
June 17, 2004
Messages
20,778
Reaction score
1,730
City, State
Knoxville, TN
Year, Model & Trim Level
98 Limited AWD
Ditto, good ideas. I'd much prefer a progressive spring or that dual spring that does the same thing.





JoleneTheExploder

New Member
Joined
January 8, 2021
Messages
13
Reaction score
19
City, State
WEST LINN
Year, Model & Trim Level
1997 Explorer XLT V8
Well HELL YEAH!!!!! nice setup, great minds think alike LOL

What are you using for a bump stop? (hard to see in pic)

What gears ratio are you running?

Thanks for sharing your setup! I love the dual coils and had planned to do the same
Running 4.56 right now and it's working great, keeps RPMs around stock but they're left over from a previous version of this build when I was running 33's. Ideal for 35's would be a 4.88 but I want to move up to 5.13's in the next few months, just picked up another front and rear axle to rebuild with the bigger gear. With a 5.13 I'll be able to push 37's for winter driving in the snow with no problem but still maintain highway speeds while running 35's in the summer. It'll also take a lot of the stress off the rig while towing my offroad camper trailer.





JoleneTheExploder

New Member
Joined
January 8, 2021
Messages
13
Reaction score
19
City, State
WEST LINN
Year, Model & Trim Level
1997 Explorer XLT V8
@410Fortune , have you had any issues with your RCV axles? My drivers side is literally 4 thousandths of an inch too big in diameter on the spline side going into the diff and won't fit. Just figured this out today as I was trying to wrap it up. Hopefully get and answer back on Monday from either true travel or RCV.





410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,594
Reaction score
2,241
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
I have not tried to install them into the diff yet no! Now that you said this I am going to
Thanks for bringing this up. I will let you know what I find out
I have sent Brett about 3 different shock options for the front end for pricing. I expect to have the info back soon and then we can put in our order!
It's getting very exciting as this truck starts to take shape!





JoleneTheExploder

New Member
Joined
January 8, 2021
Messages
13
Reaction score
19
City, State
WEST LINN
Year, Model & Trim Level
1997 Explorer XLT V8
What are you using for a bump stop? (hard to see in pic)
Going to be running a fox 2.0 bump in there... again waiting for them on back order.

A lot of changes going on at Fox with their move but I'm also in no hurry.

If you need anything feel free to reach out. I'm a dealer for Fox, King, and Eibach springs among other things offroad. My volume is low so for the most part I just order as needed but if you're having trouble getting anything we can probably help each other out.

Also I look forward to hearing about your CV fitment. Hopefully it goes better than mine.









410Fortune

ICE Season
Staff member
Moderator
Joined
August 3, 2000
Messages
26,594
Reaction score
2,241
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
@JoleneTheExploder, THANK YOU THANK YOU THANK YOU for bringing this up. I would hate to have the truck all built just to find out the cv axle will not stab (LIKE YOU!!!)

The drivers CV axle does not fit
I measured and measured and still it will not go in. I have the stock cv axle for comparison, I have the diff out of the truck.

The machined portion of the axleshaft is exactly the same size in all dimensions measured with a micrometer.
Comparing to the stock shaft
They are both 27 splines
The splines simply do not appear deep enough to fit inside?
That is the only difference I can come up with, the actual depth of the splines is about half vs a stock shaft.
Very odd since pretty much all 27 spline axle shafts are the same.
I removed the circlip to make sure it is not just getting hung up.
The cv axle simply will not fit in there and I am not about to take a file, emery cloth, or start beating on a custom shaft to make it go.
I plan to remove the diff cover and try again, see if I can spot the hang up.

On paper all dimensions are identical EXCEPT the depth of the splined (inner diameter of the shaft itself)
You said "My drivers side is literally 4 thousandths of an inch too big in diameter on the spline side going into the diff and won't fit"
Can you tell or show me where the .004" too large measurement is taking place?

I am going to call True Travel today to see what gives.





JoleneTheExploder

New Member
Joined
January 8, 2021
Messages
13
Reaction score
19
City, State
WEST LINN
Year, Model & Trim Level
1997 Explorer XLT V8
@JoleneTheExploder, THANK YOU THANK YOU THANK YOU for bringing this up. I would hate to have the truck all built just to find out the cv axle will not stab (LIKE YOU!!!)

The drivers CV axle does not fit
I measured and measured and still it will not go in. I have the stock cv axle for comparison, I have the diff out of the truck.

The machined portion of the axleshaft is exactly the same size in all dimensions measured with a micrometer.
Comparing to the stock shaft
They are both 27 splines
The splines simply do not appear deep enough to fit inside?
That is the only difference I can come up with, the actual depth of the splines is about half vs a stock shaft.
Very odd since pretty much all 27 spline axle shafts are the same.
I removed the circlip to make sure it is not just getting hung up.
The cv axle simply will not fit in there and I am not about to take a file, emery cloth, or start beating on a custom shaft to make it go.
I plan to remove the diff cover and try again, see if I can spot the hang up.

On paper all dimensions are identical EXCEPT the depth of the splined (inner diameter of the shaft itself)
You said "My drivers side is literally 4 thousandths of an inch too big in diameter on the spline side going into the diff and won't fit"
Can you tell or show me where the .004" too large measurement is taking place?

I am going to call True Travel today to see what gives.
Yeah I should have clarified better. It's the inner diameter/spline depth that's 4 thousandths of an inch too big. If you have an old passenger side cv axle it's input side is the same as the drivers input side on the diff. You can use the old passenger cv to verify fit of the new drivers side cv.

I'm slightly frustrated as it did take 6 weeks to get the kit but as a fabricator of offroad components myself I do understand mistakes do happen. I just hope it can be rectified expediently.





JoleneTheExploder

New Member
Joined
January 8, 2021
Messages
13
Reaction score
19
City, State
WEST LINN
Year, Model & Trim Level
1997 Explorer XLT V8
@410Fortune just measured it again, it's actually 4 hundredths if an inch not thousandths.

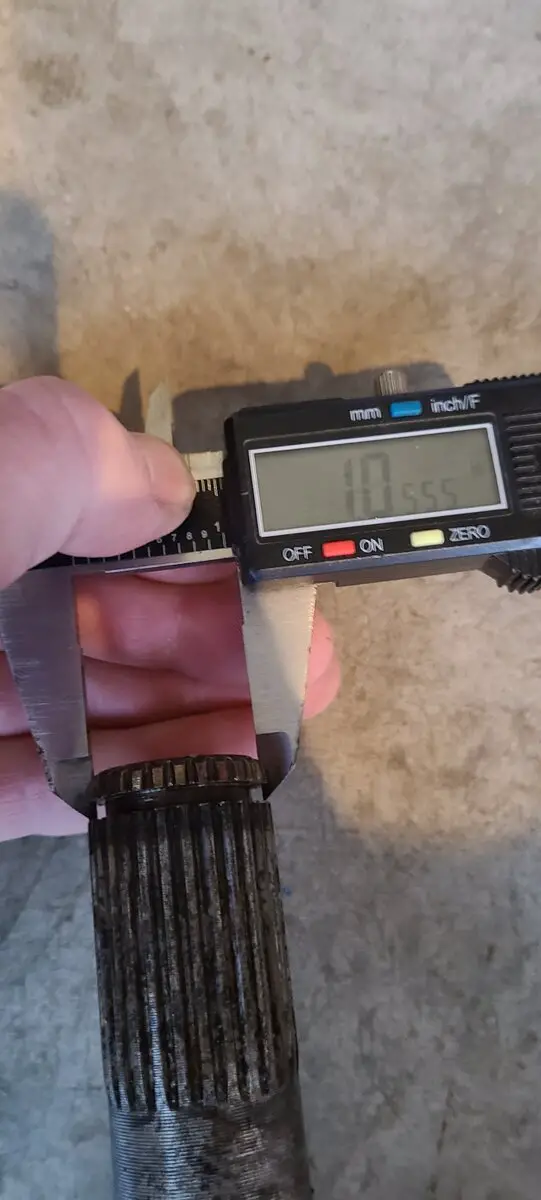

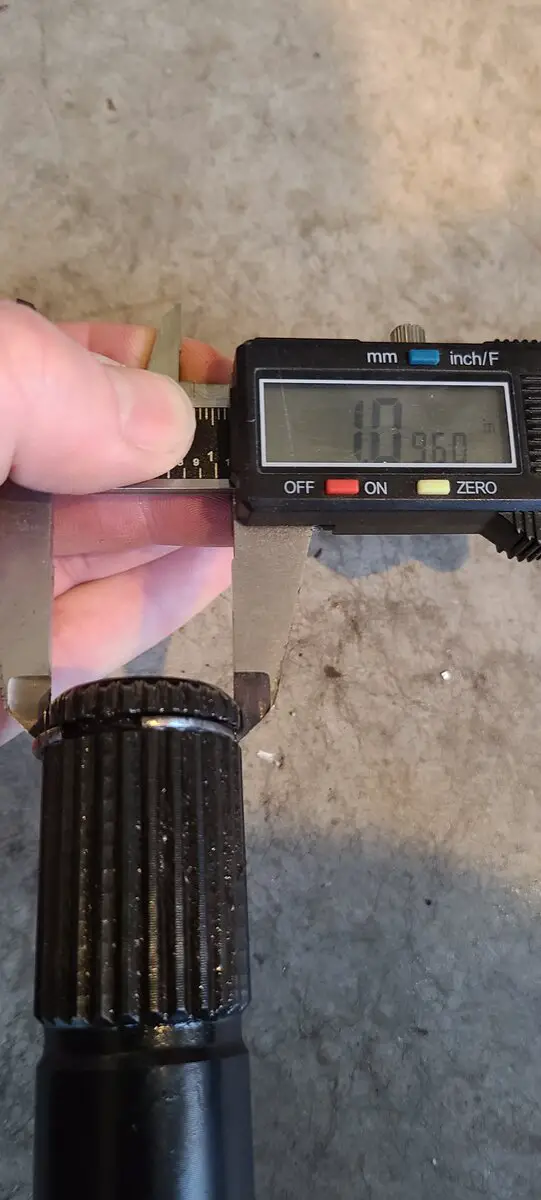

See the pictures of inner spline diameter
















dezertranger

Member
Joined
February 20, 2020
Messages
76
Reaction score
39
City, State
long beach, CA
Year, Model & Trim Level
1993 ranger
no prob. just wanted to help you get the correct info across to the manufacturer. machinists play dumb when they dont hear machinist language
