First things first! Step bits are freaking awesome!

Oh yeah, and I have no clue how i lived without an impact gun...New purchase:
Milwaukee 2663 Impact gun - 450 ft/lbs

And now to what I've done.

My 4405 had long since been fried, so I purchased an electronic 1354 and the conversion kit from RangerX. So the outcome is 2wd and manual control of the tcase, with minimal cutting of the trans tunnel.

So here it goes:

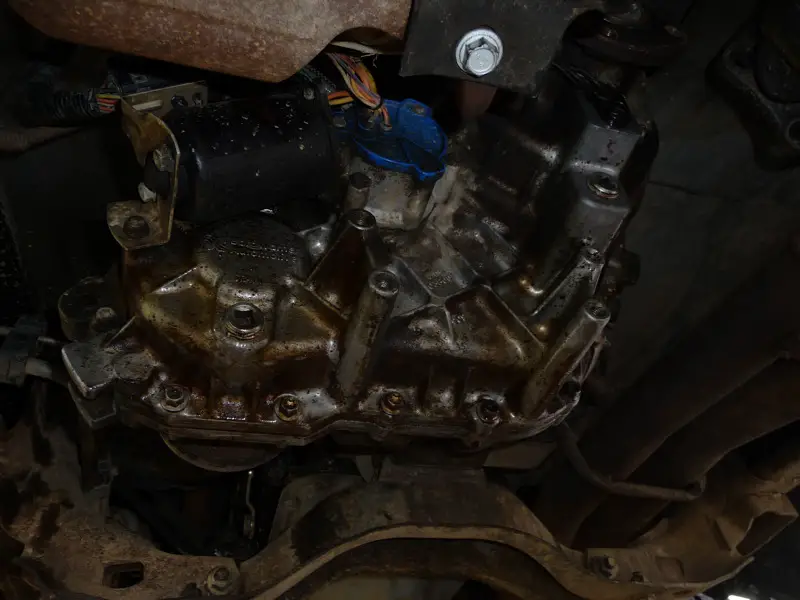

This is the nasty leaking 4405 TCase that sounds like a grinding mess.

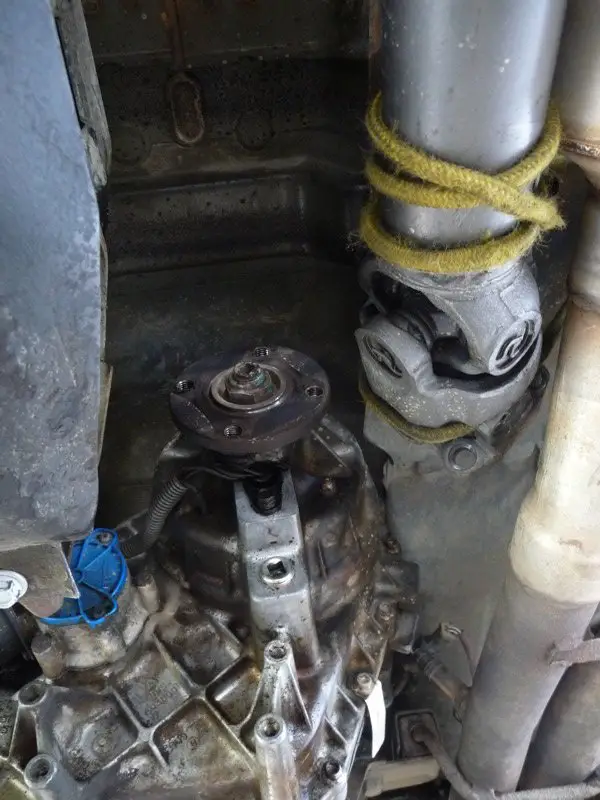

First detach the rear drive shaft from the flange. Mine took a 12mm wrench. Note: A racheting wrench works best. I will be buying a full set soon! Let the driveshaft rest on the ground or tie it up like i did.

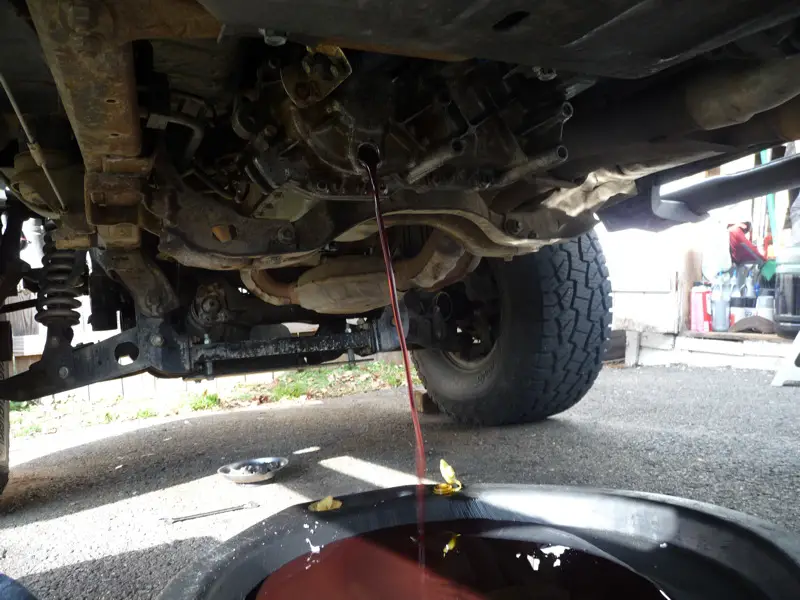

To make the job of lowering the T-Case easier - DRAIN IT!!!

Disconnect the Shift Motor Wiring Harness.

Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!

Let's keep going.

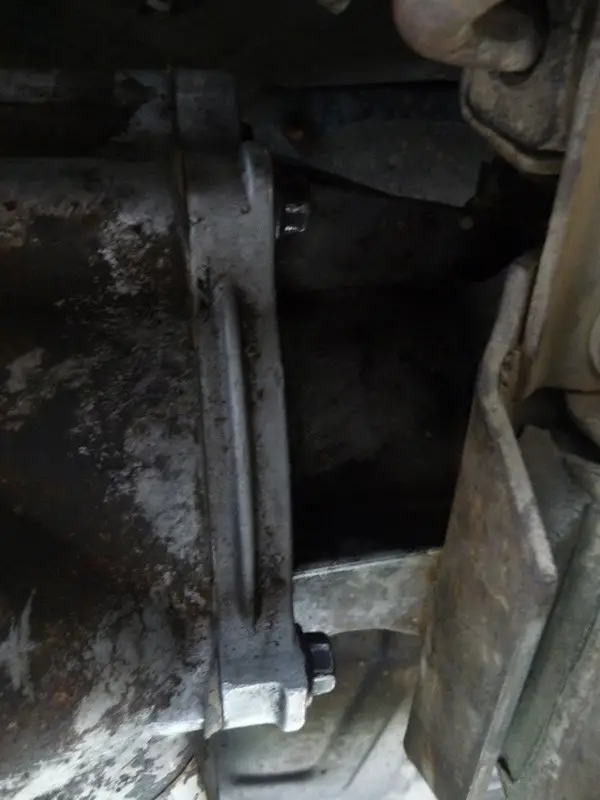

View of the transfer-case mounting location to the transmission.

Remove mounting bolts using a 1/2" racheting wrench.

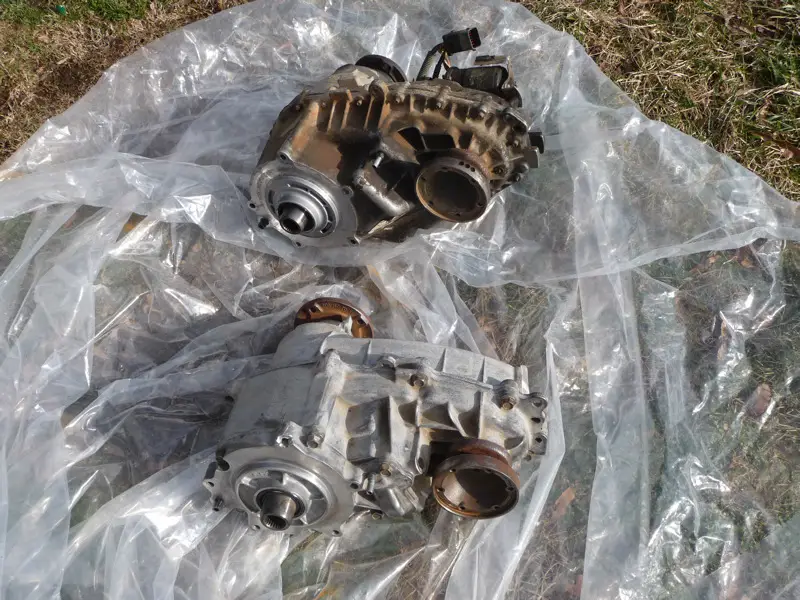

Here is the 1354 (Front/Left) in relation to the 4405 (Rear/Right)


*NOTE: I had to swap the rear output flanges as the 1354 was too large.

Ok, back under the truck!

Don't forget to replace the seal/gasket that's between the T-Case and Trans.

Take it off...and replace with new one!

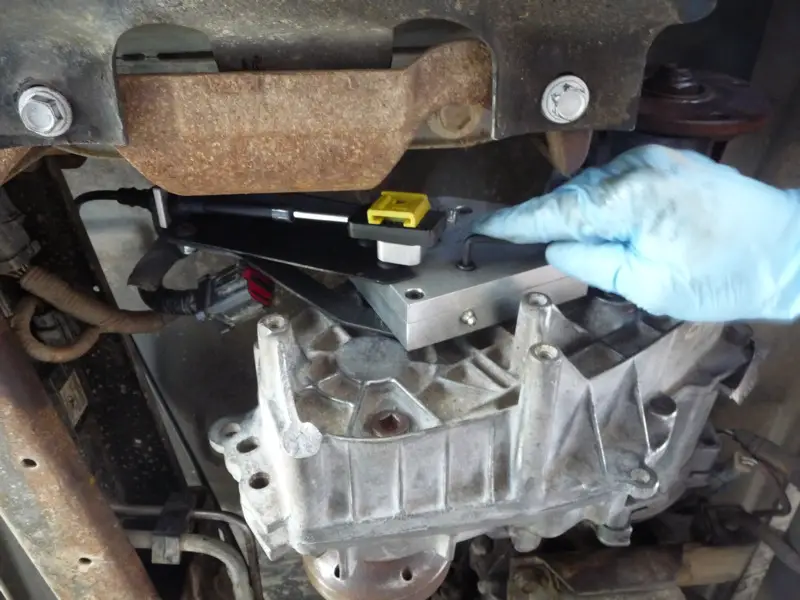

Install the manual shift mechanism in place of the Electronic shift motor.

Re-install Rear Drive shaft. This is where my new impact came in handy: Swap flange from 4405 to 1354e.

Now jumping into the truck!

Time to install the shifter.
Had to be sure to find a position as not to interfere with normal driver operation of the gas pedal! And more importantly the seat adjusting... :rolleyes:

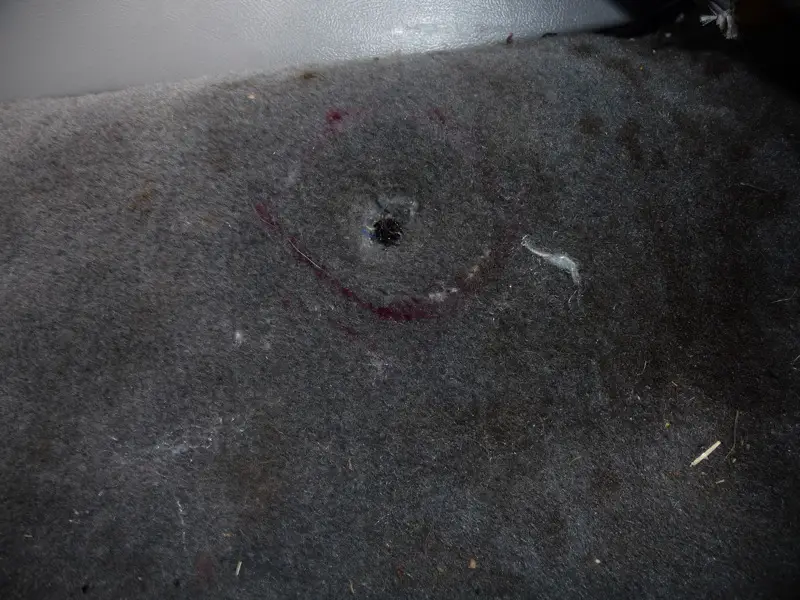

After locating; using a red sharpie to the carpet; cut away a section using a razor blade and remove the carpet material. Using the Step bit drill the center hole. *Be careful because the step bit eats sheet metal like a piranha eats flesh.

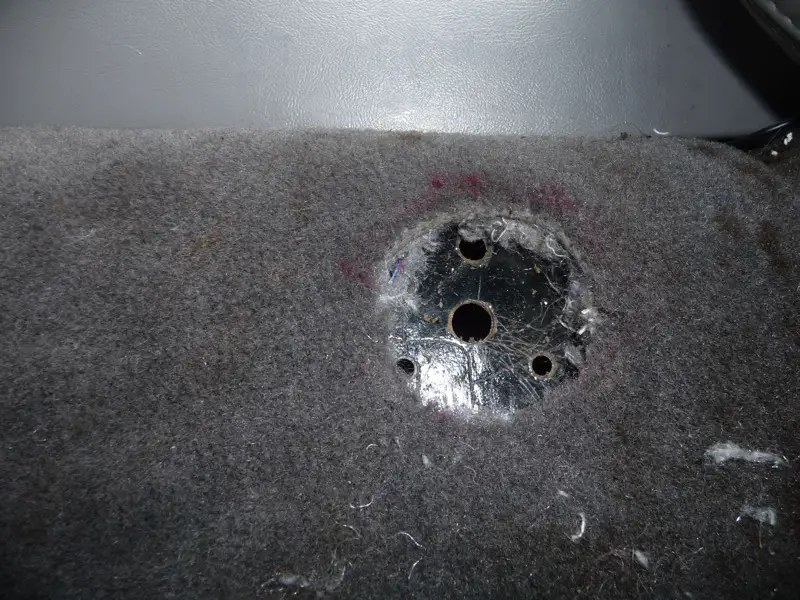

Now cut away carpet to the size of shifter plate and drill the mounting holes. Drill holes using step bit.

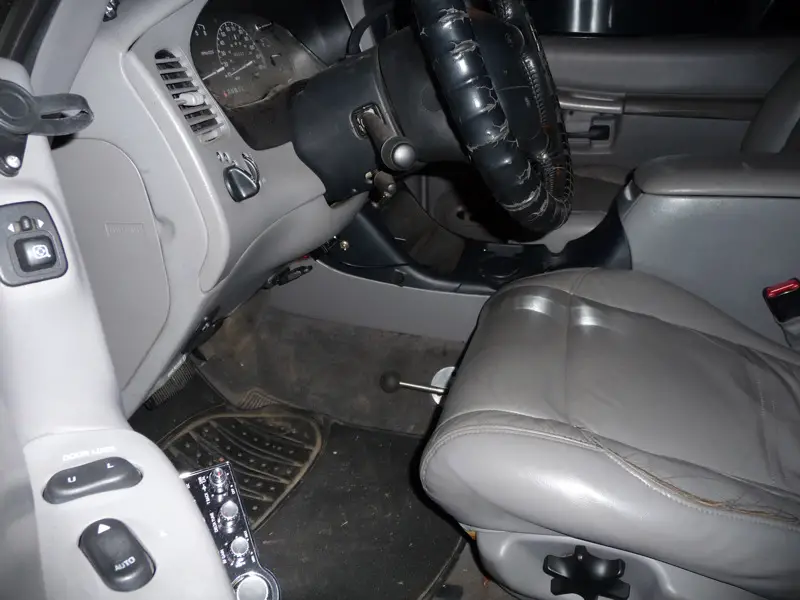

Shifter installed!!!!

*What you can't see is the helper (me and james (Ronin) kept swapping spots) under the truck to hold the backing plate that the shift plate mounts too.

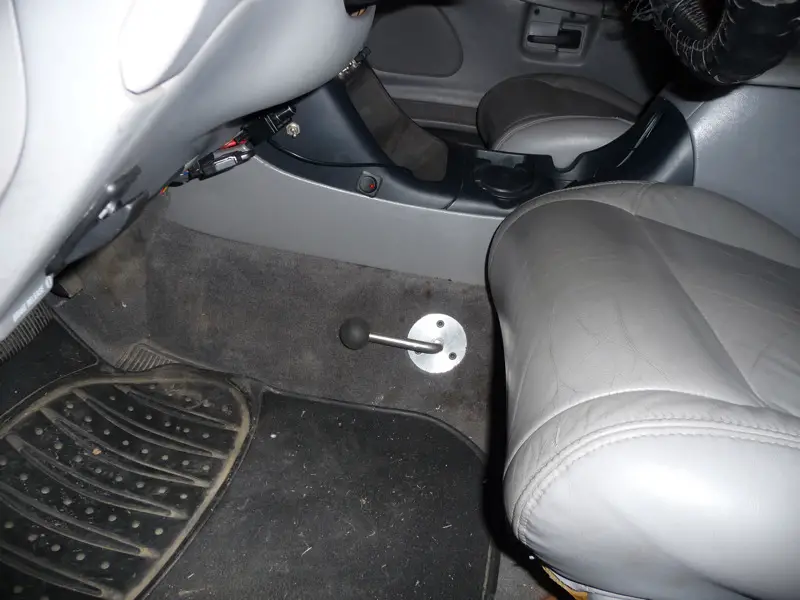

Here's a better shot of the installed Shifter:


Now the Prequel.

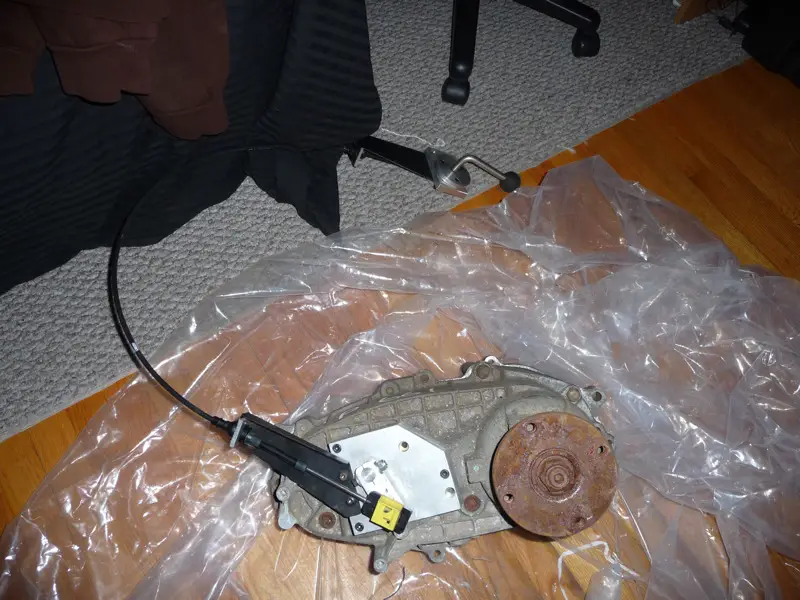

These are all of the parts straight out of the box:

1354 Electronic TransferCase

Remove the shift motor.

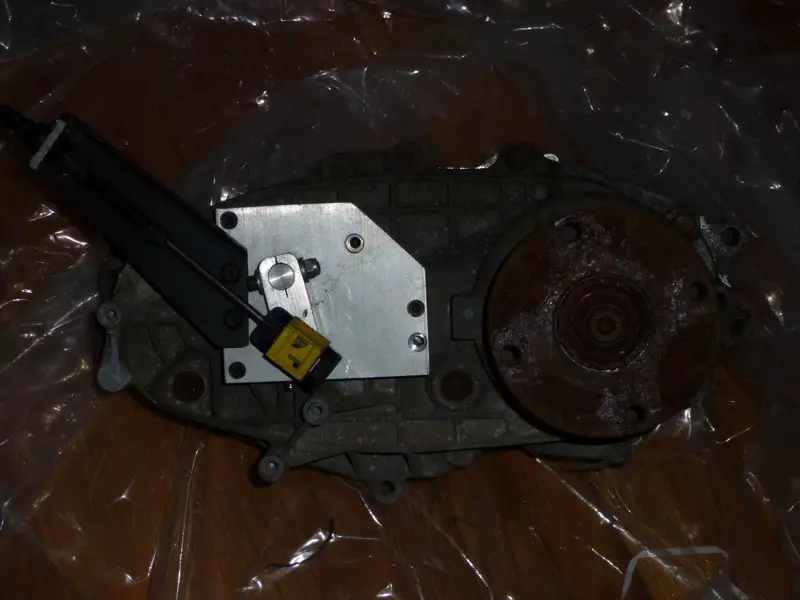

This is what the shift mechanism looks like on the T-Case.

You can kind-of see the whole shifter and backing in this picture.

Here it is in action under the truck!


Done! Front CVs and Driveshaft back in. And an hour after completion the snow started falling.
