4r55e help

jimbo74

Elite Exploder
Elite Explorer
Joined
December 27, 2000
Messages
18,416
Reaction score
20
City, State
Nor*Cal
Year, Model & Trim Level
2001, F150, XLT 4x4
i hate to do this, but my thread has not yielded the information i seek, and glaciers rebuild diary helped a great deal but i still need a little further help


i need to buy a shift soleniod to cure a CEL/flashing od light P0761

i think this is the correct part?
http://www.transmissionpartsusa.com...5E_transmission_solenoids_p/609-00056841u.htm

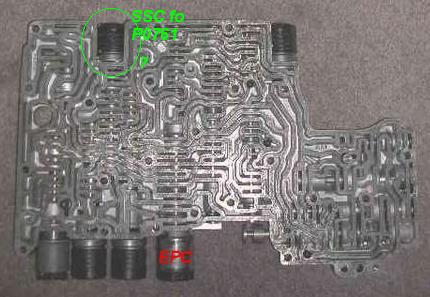

also where is it located in the pic below?




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Glacier991

EF Tranny Guru
Moderator Emeritus
Joined
February 8, 2003
Messages
9,826
Reaction score
61
City, State
Sacramento, CA 95827
Year, Model & Trim Level
1992 XLT
Left most top is SSC solenoid. And that part is the correct part. ALL shift solenoids on the 4R55 and 5R55 are the same, totally interchangeable.







jimbo74

Elite Exploder
Elite Explorer
Joined
December 27, 2000
Messages
18,416
Reaction score
20
City, State
Nor*Cal
Year, Model & Trim Level
2001, F150, XLT 4x4
according to that, this is the correct one correct? im a visual learner, lol


Attachments

  • epcmounting2.jpg
    30.9 KB · Views: 4,249






Glacier991

EF Tranny Guru
Moderator Emeritus
Joined
February 8, 2003
Messages
9,826
Reaction score
61
City, State
Sacramento, CA 95827
Year, Model & Trim Level
1992 XLT

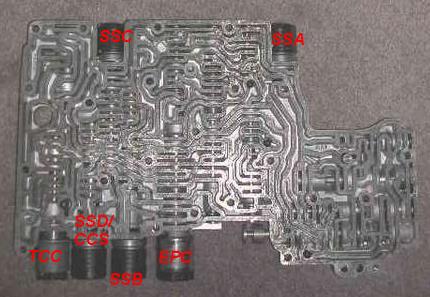

Yes. Let's go around counter clo0ckwise from the\top right.

Top right is SSA, then SSC, then TCC, then SSD/CCS, then SSB then EPC







jimbo74

Elite Exploder
Elite Explorer
Joined
December 27, 2000
Messages
18,416
Reaction score
20
City, State
Nor*Cal
Year, Model & Trim Level
2001, F150, XLT 4x4

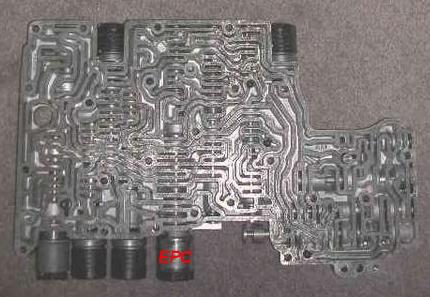

hopefully this will help some people


Attachments

  • epcmount.jpg
    31 KB · Views: 56,812






Glacier991

EF Tranny Guru
Moderator Emeritus
Joined
February 8, 2003
Messages
9,826
Reaction score
61
City, State
Sacramento, CA 95827
Year, Model & Trim Level
1992 XLT
Well done Grasshopper.







jimbo74

Elite Exploder
Elite Explorer
Joined
December 27, 2000
Messages
18,416
Reaction score
20
City, State
Nor*Cal
Year, Model & Trim Level
2001, F150, XLT 4x4
so all of those parts, there are 3 different parts.... the tcc, the epc (both with colored bands depending on tranny) and the shift solenoids (doesnt amtter which tranny and all are interchangeable).....

right?







BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,874
Reaction score
946
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars






jimbo74

Elite Exploder
Elite Explorer
Joined
December 27, 2000
Messages
18,416
Reaction score
20
City, State
Nor*Cal
Year, Model & Trim Level
2001, F150, XLT 4x4
Only the shift solenoids are interchangeable. The 4R55E EPC is different than the 5R55E EPC.


thats what i meant the shift sollenoids are the same:

ssa
ssb
ssc
ssd/ccs

correct?







jimbo74

Elite Exploder
Elite Explorer
Joined
December 27, 2000
Messages
18,416
Reaction score
20
City, State
Nor*Cal
Year, Model & Trim Level
2001, F150, XLT 4x4
need help asap!!!!

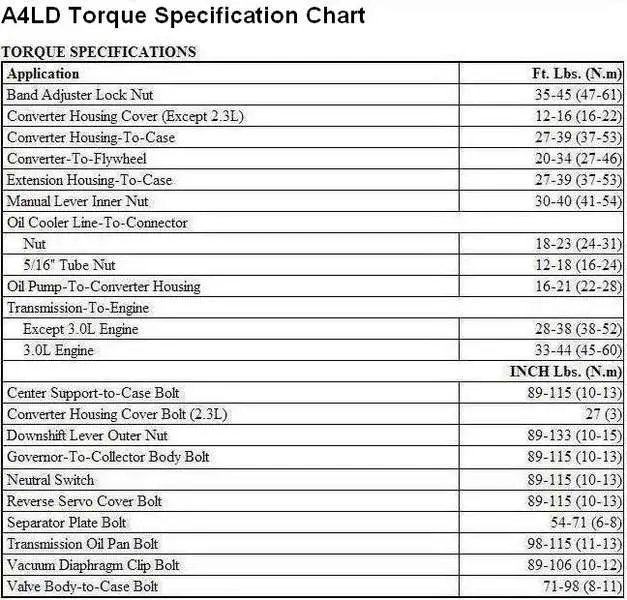

what do i torque my tranny filter, epc bracket and pan bolts to?

im about to go outside, and then realize, i dont have these specs







jimbo74

Elite Exploder
Elite Explorer
Joined
December 27, 2000
Messages
18,416
Reaction score
20
City, State
Nor*Cal
Year, Model & Trim Level
2001, F150, XLT 4x4
ok, about to be a 911 post, lol... truck is apart and new parts are ready to go in, tranny drained, pan cleaned













jimbo74

Elite Exploder
Elite Explorer
Joined
December 27, 2000
Messages
18,416
Reaction score
20
City, State
Nor*Cal
Year, Model & Trim Level
2001, F150, XLT 4x4
thank you brooklynbay

i pulled my EPC and its green, meaning i have the 4r44e... and a $200 epc!!!!!!!

anyway:


I added too much atf. it is past the hatched area. it goes up the dipstick and goes to the D in the word add.

"DON'T ADD IF IN CROSS-HATCHED AREA"

can i leave it alone? or is it critical to go buy a siphon pump and suck some out?







BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,874
Reaction score
946
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars






jimbo74

Elite Exploder
Elite Explorer
Joined
December 27, 2000
Messages
18,416
Reaction score
20
City, State
Nor*Cal
Year, Model & Trim Level
2001, F150, XLT 4x4
The 4.0L engine uses the 4R55E.

my epc is green

from what i gathered the red was the 4r55e or the 5r55e and green was the 4r44e



as for the level, i think it is ok now, i drove to safeway and once there, re-checked it, it was at the apostrophe in "don't"

"DON'T ADD IF IN CROSS-HATCHED AREA"













BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,874
Reaction score
946
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars






jimbo74

Elite Exploder
Elite Explorer
Joined
December 27, 2000
Messages
18,416
Reaction score
20
City, State
Nor*Cal
Year, Model & Trim Level
2001, F150, XLT 4x4
brooklynbay, you said i have a 4r55e, but i have a green epc.... according to the links above, and where i got my info from initially, it says the green one is 4R44E transmission EPC solenoid 1995-96 and the red one is 4R55E 4R44E 5R55E transmission EPC solenoid 1997-on (Also used in 4L30E 2000-on)

being mine is green, wouldnt that mean i have the 4r44e? my truck is a 1996







BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,874
Reaction score
946
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
Since it's used with the 4.0L engine, you should have the 4R55E. Were the valve body or transmission ever replaced by someone other than yourself (maybe a previous owner)? I think that the color is also dependent upon the year, so it's the correct color for your year.
