4r55e Valve body L retainers

medefries

Member
Joined
April 3, 2009
Messages
19
Reaction score
0
City, State
Bellingham, WA
Year, Model & Trim Level
93 Limited
Hi guys, I have a 96 xlt with a 4r55e transmission and 4.0 v6. I have read the diaries on the a4ld and 5r55e valve bodies and they are very helpful in locating these pins and other retainers. What they don't show or explain is where these pins engage the valves. They obviously retain them but do they engage a slot or bump a shoulder? It just seems there must be more to it than simply dropping the pin through the hole on the valve body. Anybody have any good info or pictures? Thanks.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
56,106
Reaction score
1,031
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
https://www.wittrans.com/Schematic.aspx?Transmission=A4LD/4R44E/4R55E/5R55E&Schematic=9







medefries

Member
Joined
April 3, 2009
Messages
19
Reaction score
0
City, State
Bellingham, WA
Year, Model & Trim Level
93 Limited
Thanks for the diagram. I still can't make out exactly how to install the pins. I have a good chart for which holes to use on the valve body, but do the pins engage a groove on the various valves? Are they automatically lined up when they valves and solenoids are fully in place? What do I look for in the hole before I drop in the pins?







BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
56,106
Reaction score
1,031
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars






medefries

Member
Joined
April 3, 2009
Messages
19
Reaction score
0
City, State
Bellingham, WA
Year, Model & Trim Level
93 Limited
Thanks BrooklynBay. I'm probably over thinking this but I still am unsure. For example, in the lower right corner of the diagram is the inboard/ outboard revererse modulator. The L-pin appears to engage the plug #6. That plug is actually captured inside the spool RA-1 (with the spring) and is not exposed for the L-pin to engage. So, can I assume that with the valve assemblies properly in their bores and the U-keepers or solenoids in place, will the L-pins line up properly just by dropping them through the appropriate holes in the casting?







BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
56,106
Reaction score
1,031
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars






medefries

Member
Joined
April 3, 2009
Messages
19
Reaction score
0
City, State
Bellingham, WA
Year, Model & Trim Level
93 Limited
I thought I sent a thanks to you yesterday but I must have pushed the wrong button. Anyway I will not be back to the project for a couple days. Thanks again. I'll let you know if I was successful.













transman304

Staff member
Moderator
Joined
December 4, 2014
Messages
822
Reaction score
148
City, State
Morgantown WV
Year, Model & Trim Level
2004 Chrysler PT Cruiser

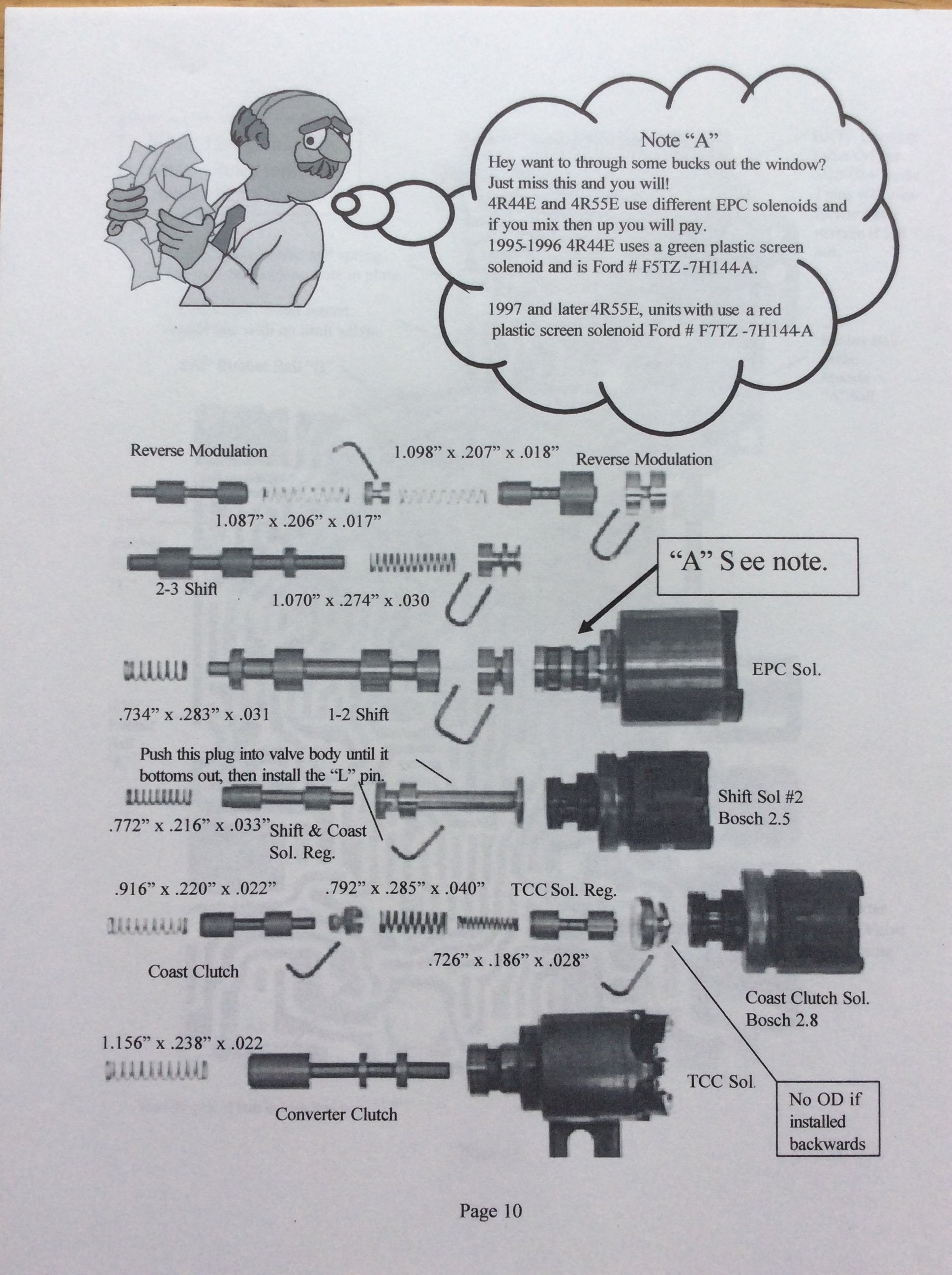

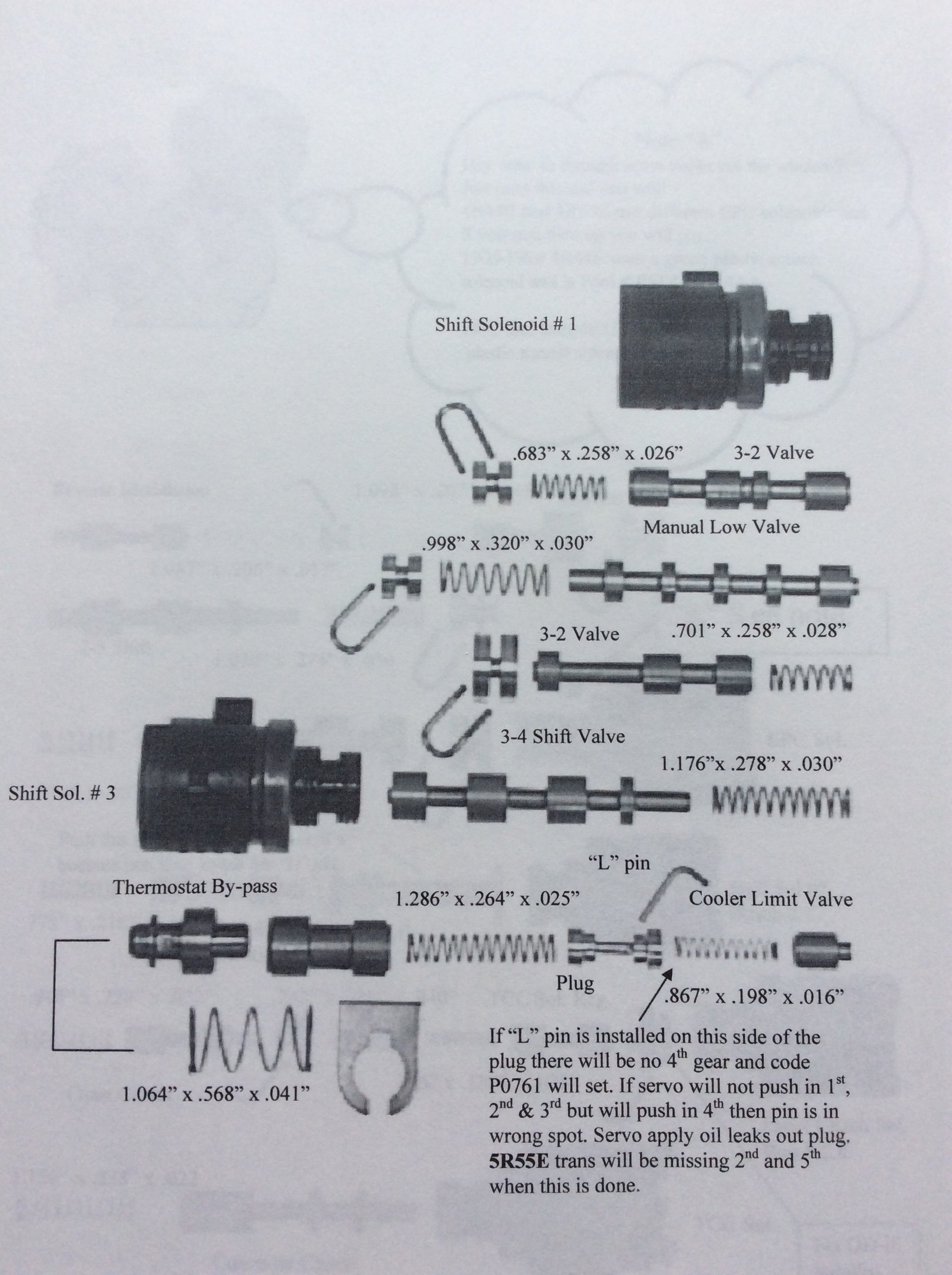

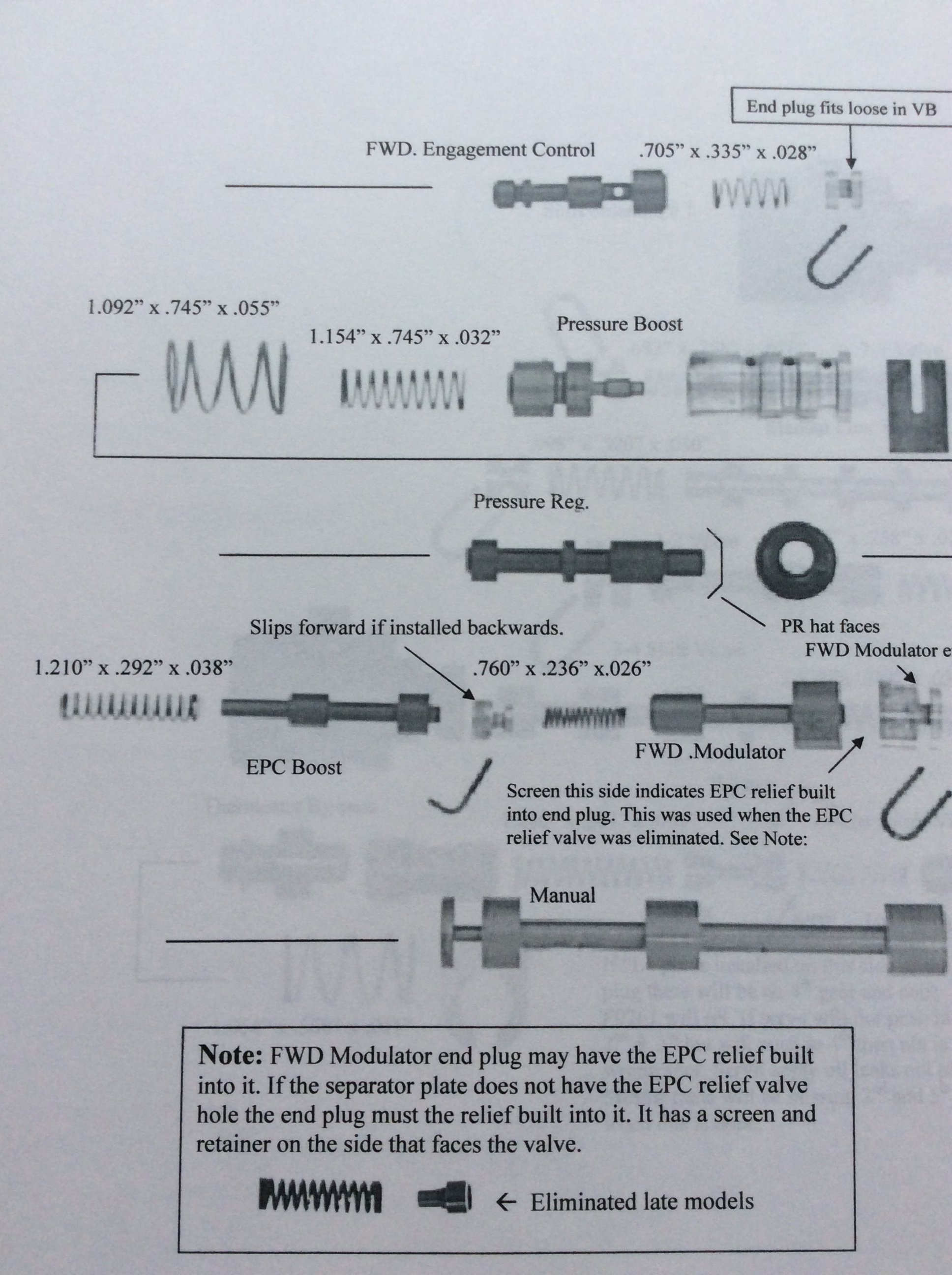

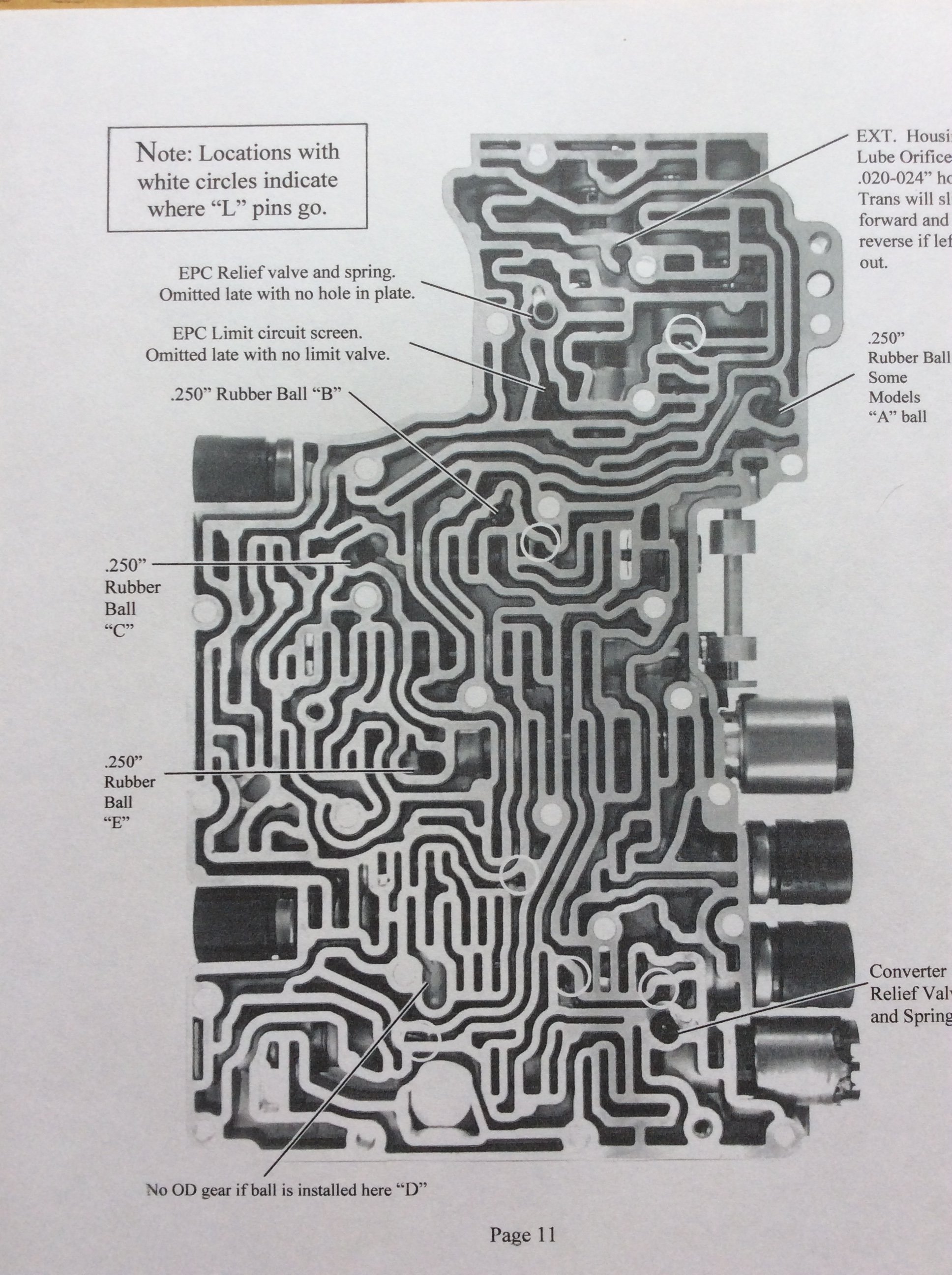

These might help. This is from Ratiotek a paid subscription. ATSG is basic and very seldom updates,but when they do you have to buy another manual. Good luck.
