Well for many of you this is not your first look into an automatic transmission, maybe because you read the A4LD Diary or because you have been there on your own. ALL of them (ok maybe with the exception of the new CVT models) operate in more or less the same way... and part of that is band apply servos and accumulators.

The 4R70W has an OD band apply servo, and a low reverse servo as well as two accumulator pistons. (1-2 and 2-3). These are in the case, under the valve body.

The low reverse servo is a HUGE thing under a snap ring retained cover. All it needs is a new one with soft rubber on the seals. I'll show you what I mean

The OD servo on the 4R70W is a curious thing. The AOD begat the AODE which begat the 4R70W...(sounds almost biblical, eh?) Now, back in the old days of the AOD, you had some serious choices of increasing size of the OD servo in the AOD...but that is not true in the 4R70W. Your choice is very limited.

Stock 4R70W OD has a servo about 2.5 inches dia inside the case and in a sleeve under a snap ring under the valve body. The best I could do aftermarket was an increase it to 2.7 inches diameter, and without a sleeve. I'll show you my quest. Our limit on this is the size of the case bore.

Accumulators have been a problem, with numerous aftermarket and manufacturer fixes. We will look at those too.

This thread will be short, but fun.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Glacier991

EF Tranny Guru
Moderator Emeritus
Joined
February 8, 2003
Messages
9,832
Reaction score
33
City, State
Sacramento, CA 95827
Year, Model & Trim Level
1992 XLT
OD Servo

Well the OD servo, stock, is a manufactured rubber edged servo that goes into a sleeve. Here is a look

(pic forthcoming)

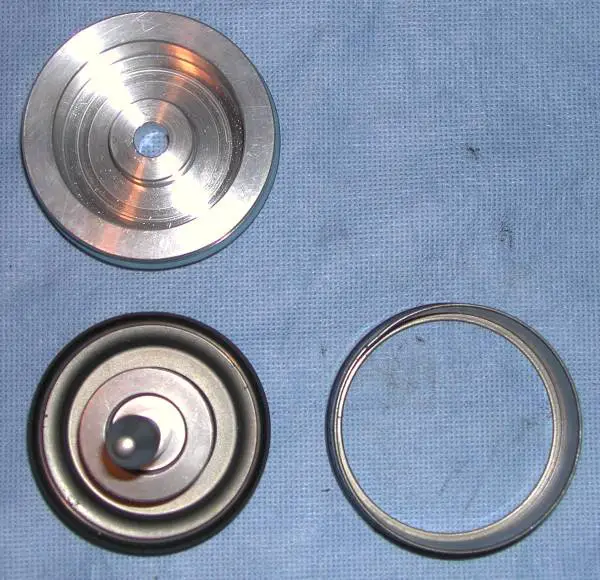

Here is a look from above of the old and sleeve and the new piston

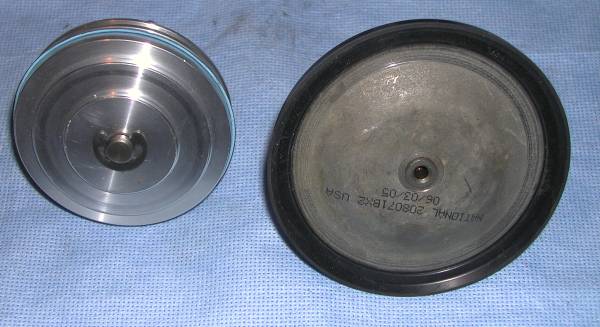

Here it is side by side with the upgrade I selected:
