5R55E Forward Clutch Drum


Well-Known Member
July 19, 2011
Reaction score
City, State
Europe (Germany)
Year, Model & Trim Level
1997 4.0 sohc xlt
Hi at all!

rebuilding my first tranny and going straight through the ATSG manual.
There are bores and check balls, but what is this in the drum?
Only a plug, a check ball or a valve? I don't know?
It looks like a very small steel ball inside, but it didn't move in any direction.


Thanks in advance


Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!

Oil moves through a hole in the bearing race and into a passage that empties out inside the drum to apply the piston, to make that hole they had to drill all the way through it and they just sealed off that end with a small cup plug.

Here is a pic of a A4LD drum that shows the opening that you cant see on the 5R55E.

A4LD Foward Drum Rings.jpg

Hello James,

thank you for this explanation, that saves my weekend!
So the forward clutch cylinder is ok and i can go on!
Very good news, thank you so much!!!

Love this forum!:thumbsup:


5R55E Input Shell

hi at all again,

i thought i could go on, but nothing like trouble with this tranny.

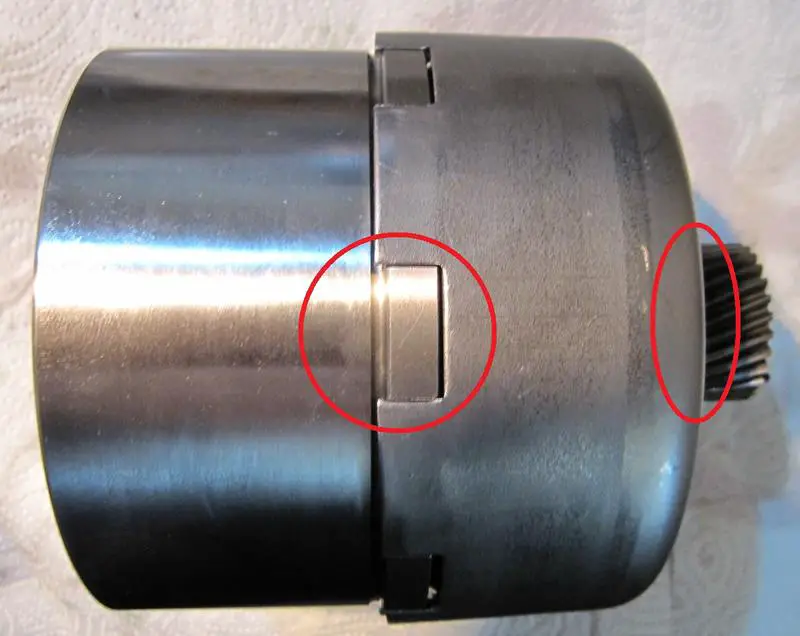

Installing the Forward Geartrain Assembly, i noticed a 0.04 inch endplay
