5R55E VB rebuilt, still no reverse

johnhenry1996

Member
Joined
June 6, 2007
Messages
17
Reaction score
0
City, State
dearborn, michigan
Year, Model & Trim Level
1998 xlt 4.0 sohc
Hello, I rebuilt the valve body with a TransgO kit. I found a blown out VB gasket at the reverse revo far side curve, but after everthing was rebuilt and taken for a ride, still no reverse. I seems like I have two neutral grears. The forward shifting works fine after the build, but the reason I rebuilt it was because of the no reverse. Any clues? I was told to take the VB out and the revrerse servo, but a thin phillips screwdriver up into the servo hole and I whaen it bottoms uot, I should be able to push up about another 1/2 inch. Another word of advice was to look at the VB to check the fluid pressure valve and the reverse boost valve for sticking. where are they? Any pictures? How do I check this? Help please. I plan on cralling back under thisweekend again. Everyone's help was geat foe last weeks take apart. I used many of the pictures (especially of l clip locations) to help me, much appreciated.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,880
Reaction score
946
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars






BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
55,880
Reaction score
946
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars

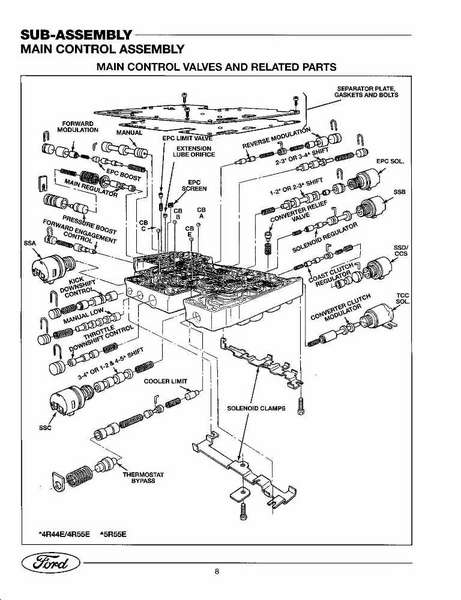

Here is a diagram from Glacier991's photo gallery of the 5R55E valve body:
