5R55S Transmission Fluid Temperature Gauge

mika

Member
Joined
September 22, 2007
Messages
47
Reaction score
9
Location
Poland
City, State
POLAND - Gdansk
Year, Model & Trim Level
EB 2004 4,6 V8 4x4
Transmission Fluid Temperature

I wonder does anyone have installed a sender unit for transmission temperature gauge at pressure control tap?





Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Transmission Fluid Temperature

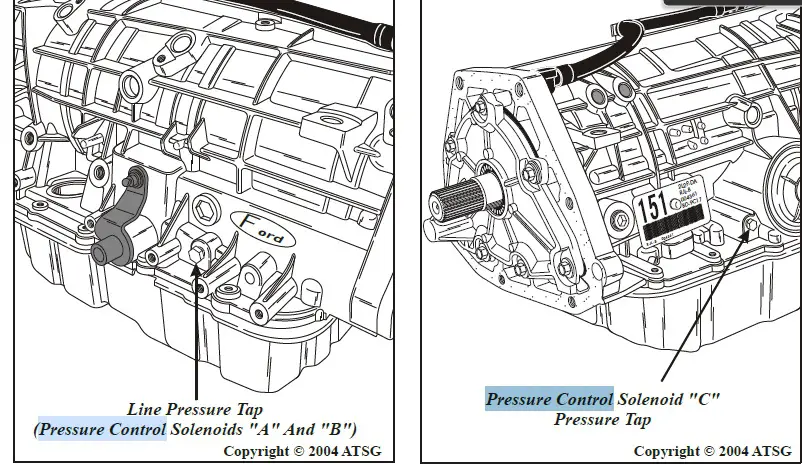

I wonder does anyone have installed a sender unit for transmission temperature gauge at pressure control tap?

View attachment 315820
For what reason? Trans. temp. is largely not controllable, unless towing heavy load, then might be reduced some if is deemed too high by "easing off".







I did. It was easy. My trans was out on the bench. There's a heat shield that will give you trouble. Mine works great. I have GlowShift guage. I installed it simply to know what the actual temp of the trans fluid is at any give moment. I had to add an extender to give me more room.







Temperature Auto Gauge sensor has a - 1/8-27 NPT port

What thread does the extension have to transmission?








Its a M10 x 1.0 thread. Sorry for the delay.







Its a M10 x 1.0 thread. Sorry for the delay.

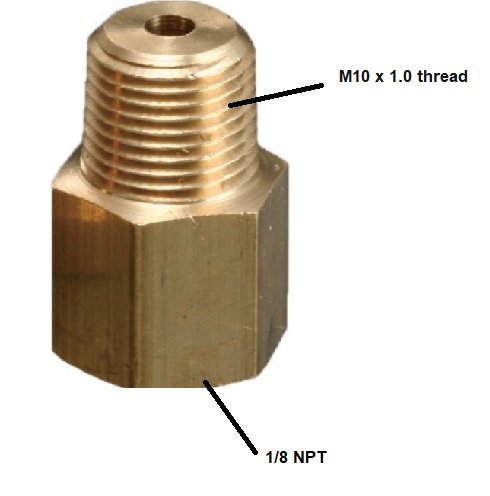

I appreciate your help, as I understood the adapter has a - 1/8-27 NPT port and M10 x 1.0 thread








That's right... perfect.
