5R55W Fluid Fill

FordSploderXLT

Active Member
Joined
October 15, 2001
Messages
105
Reaction score
0
City, State
West Des Moines, Iowa
Year, Model & Trim Level
95 XLT and 97 XLT V8
Im working on my friends 02 Mountaineer...changing tranny fluid and filter.....Ran into a problem.....How do I put fluid back into the tranny? Need help with this one pretty soon. Thanks.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Glacier991

EF Tranny Guru
Moderator Emeritus
Joined
February 8, 2003
Messages
9,831
Reaction score
30
City, State
Sacramento, CA 95827
Year, Model & Trim Level
1992 XLT
they eliminated the dipstick, and added a plug to the fill line.... Ford makes a "tool" that screws into that spot and through which you add fluid....





Glacier991

EF Tranny Guru
Moderator Emeritus
Joined
February 8, 2003
Messages
9,831
Reaction score
30
City, State
Sacramento, CA 95827
Year, Model & Trim Level
1992 XLT

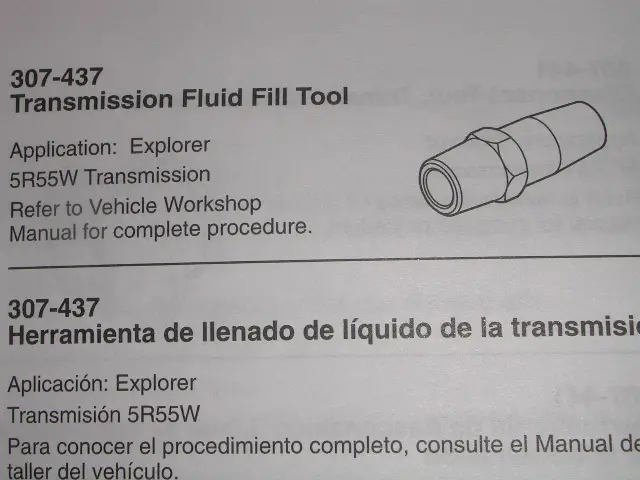

Here is the "tool"
