5th Gen Explorer With LED Light Bar


peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
27,030
Reaction score
1,481
City, State
Ottawa, Ontario area
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
How do you attach a pic?
The easiest way to post pictures is by taking out a $20 Elite membership which allows you to post directly from your device and also supports the Forum. The other method is to find a 3rd party hosting site but those pictures then will not be saved on the Forum's servers and as you can see when scrolling through this thread, they have a habit of disappearing which is very frustrating.
I'm not sure what you meant in another post about a sensor in the middle. I'm not aware of one in that location. Are you perhaps referring to the front camera/washer?

Peter



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.








peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
27,030
Reaction score
1,481
City, State
Ottawa, Ontario area
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Size / Brand of the light bar?
do you have photos of the mounting?
did you have to remove bumper?
Here's what I found looking at his posts;
(EDIT: Links provided here are no longer valid)
There are no pictures that I've been able to find.

Peter

Last edited:




Earl Taylor

New Member
Joined
September 1, 2016
Messages
24
Reaction score
1
City, State
Columbia, KY
Year, Model & Trim Level
2017 Limited
Has anyone put a led light bar on a2016/17 explorer? I want to put one on mine, but don't want to take the grille out. The shutters block a way to run the wire in front of the radiator.









dentalpain

Active Member
Joined
August 10, 2014
Messages
104
Reaction score
12
City, State
Chipley, FL
Year, Model & Trim Level
2016 Ford Explorer Sport

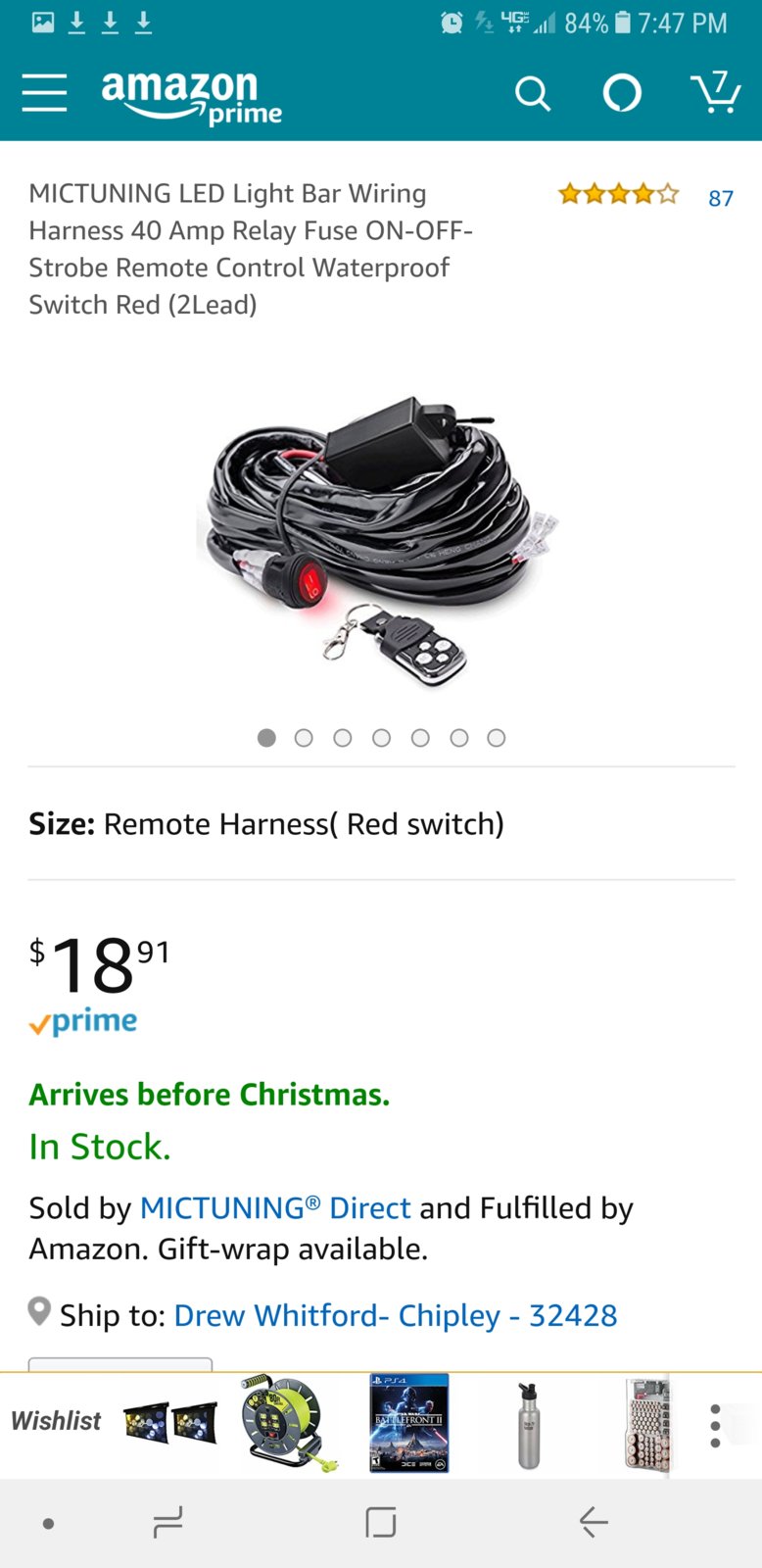

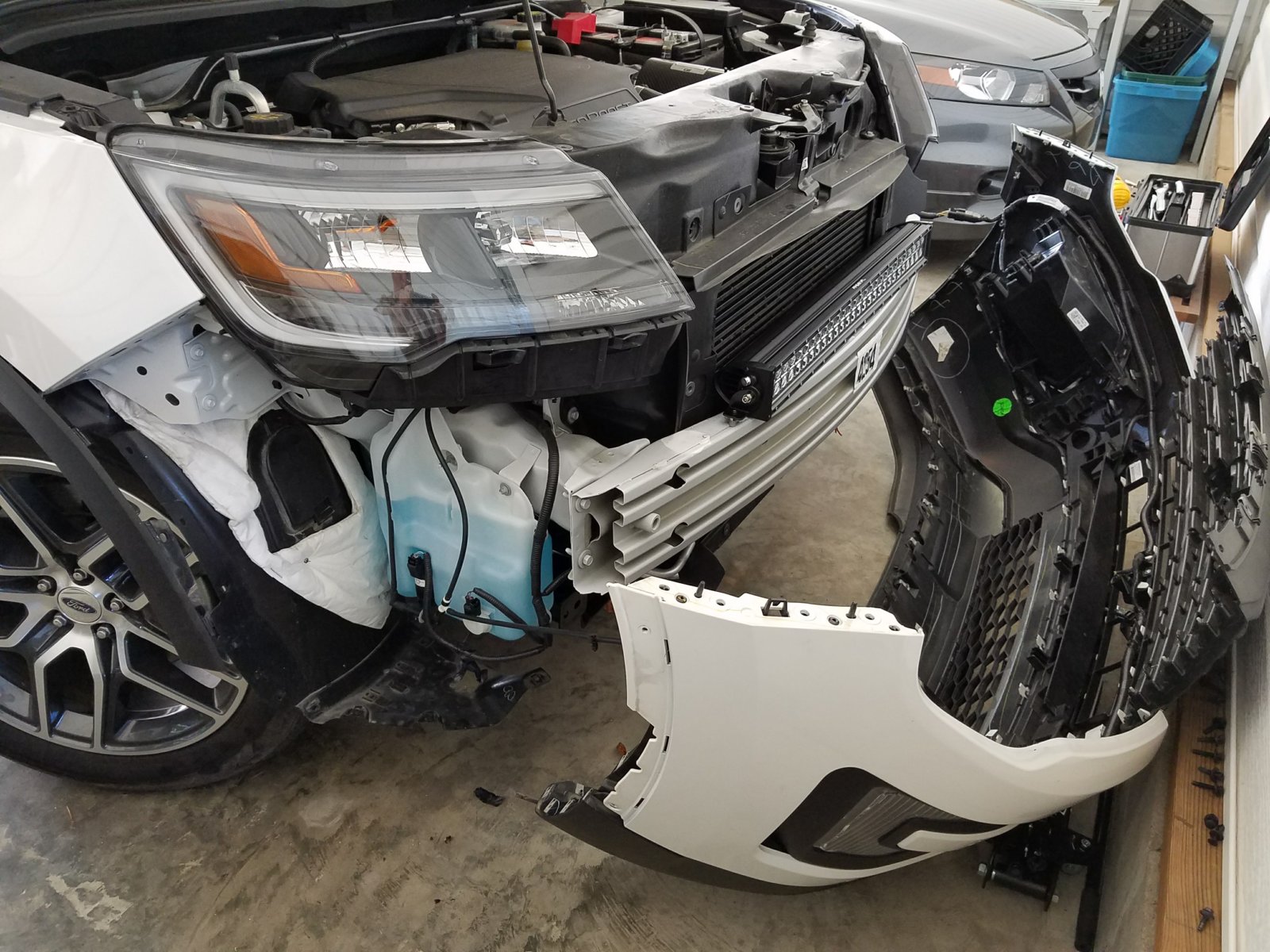

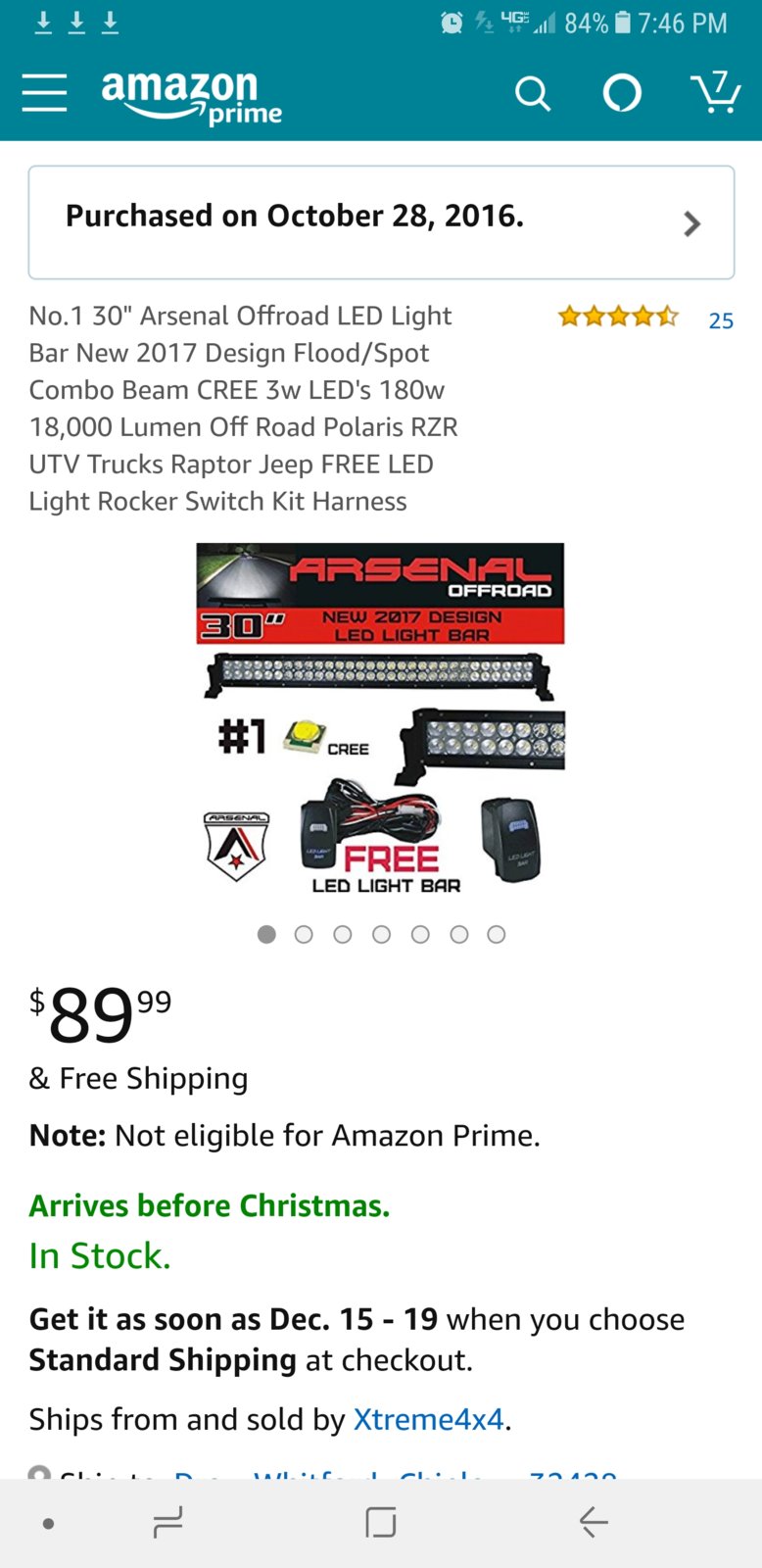

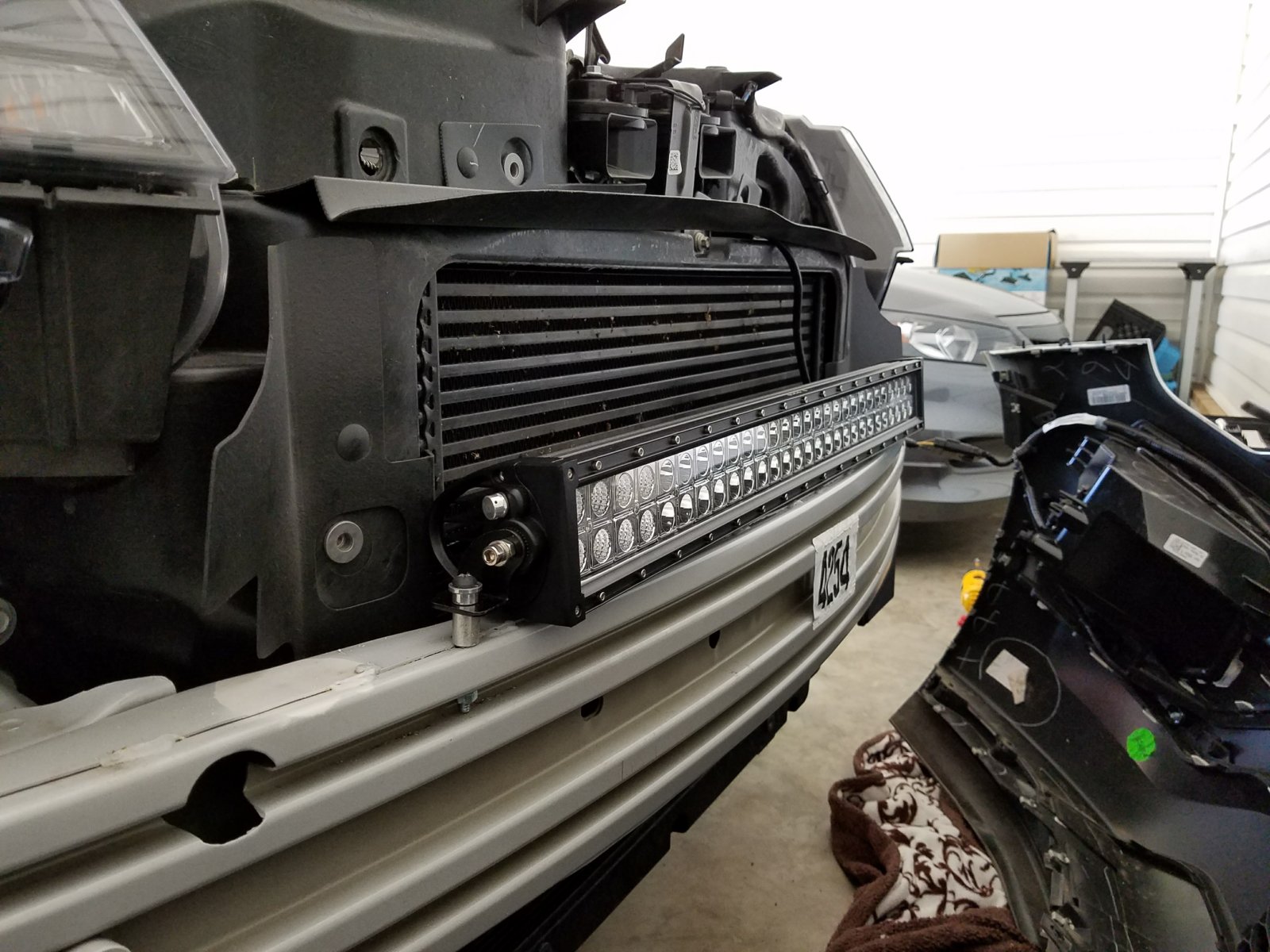

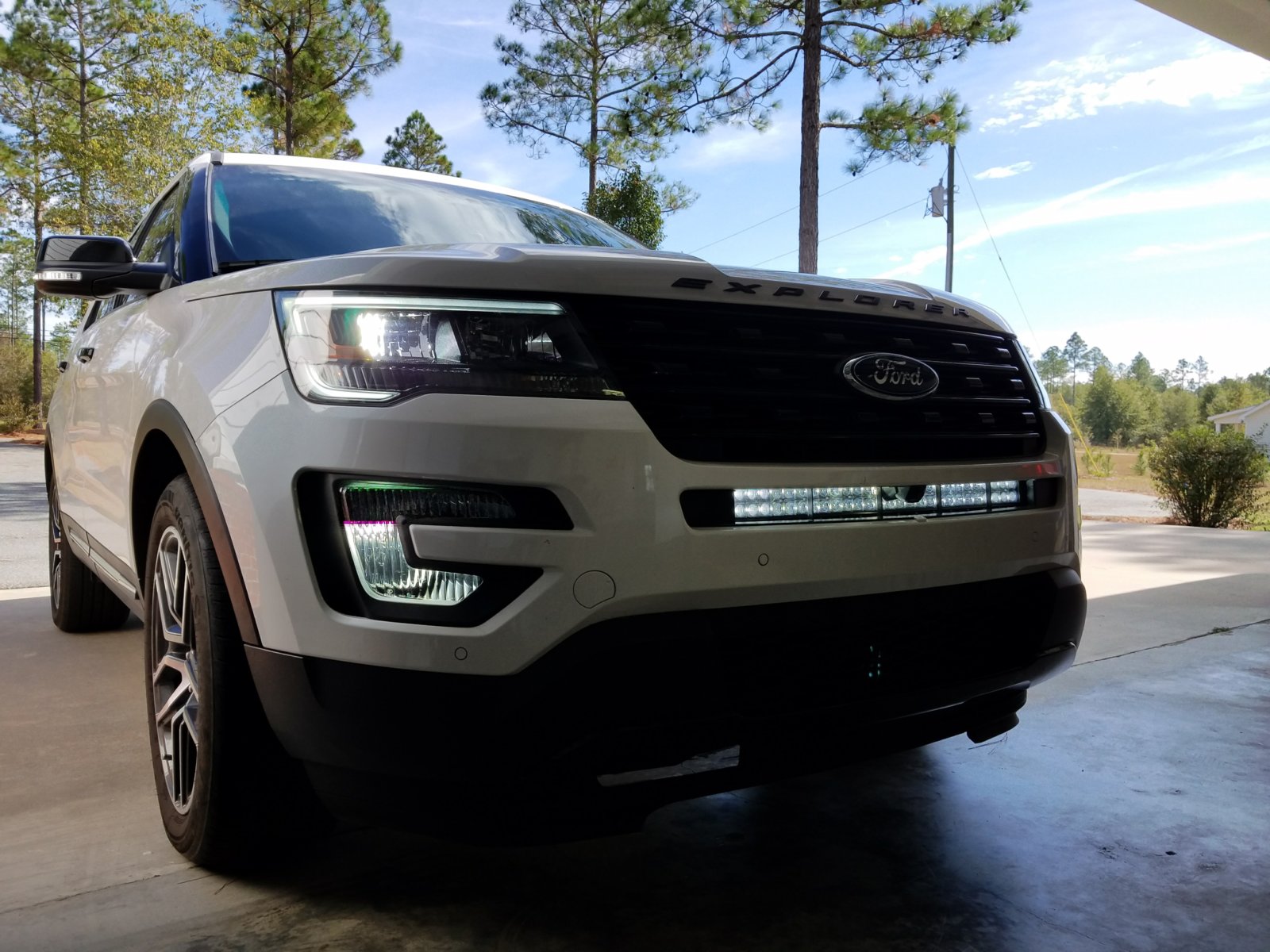

Guys I did this install over a year ago...so a little light on details. Here are the products I used. It was a tight fit but the bumper went back on fine. I used instructions for a bull bumper on how to remove the bumper. I did have to use some aluminum stand offs that I custom cut to fit. I used a wireless mictuning relay and have a remote in the cab. Works very well on rural back roads.


















2013PIU

New Member
Joined
October 29, 2017
Messages
34
Reaction score
12
City, State
WALNUT CREEK, CA
Year, Model & Trim Level
2013 PIU
I have a trans cooler which meant I couldn't mount it in the middle of the grill, although I would have loved to do that. After poking around a bit I decided to mount on the lower grill opening using some aluminum bar stock to support the plastic bumper. I was able to hide most of the wires and ran the switch through a grommet in the passenger side firewall. The light is a single row 21" but it's plenty bright.






MegaCleanCab

Elite Explorer
Joined
July 14, 2016
Messages
36
Reaction score
4
City, State
Lecanto, FL
Year, Model & Trim Level
2020 Ford Explorer ST
Looking for 2 wires to tap. One for the led light bar and the other for the grill lights in my raptor style grill. I would like the hi beam headlights for the light bar and any running lights for the grill. Thanks





Rainlord

Elite Explorer
Joined
June 16, 2017
Messages
177
Reaction score
73
City, State
Zurich, Switzerland
Year, Model & Trim Level
Explorer 2012 XLT
Looking for 2 wires to tap. One for the led light bar and the other for the grill lights in my raptor style grill. I would like the hi beam headlights for the light bar and any running lights for the grill. Thanks
Can't speak for the running lights as I have a 2012, but the procedure is basically the same for any lights you want to tap.

The easiest (in my opinion) hi-beam wire to tap is the wire going to the hi-beam bulb, which you can see by looking down the back of the headlight assembly (not much space back there however). If you have a basic power tester (I use one that has a little bulb that lights up when there's power, that you stick into the wire you want to test, so you'd stick it in the back of the connector for the light rather than poke a hole in your wire. You could also use a clamp power tester if you have one, or any other style) you can just test each wire to see when the hi-beam / drl lights have power vs not. The readout should be 0 when it's off. Then tap that wire for your new light's positive wire. One note, you may want to check the power draw of your new lights (if they're big) that they don't have some massive power-draw as then the fuse used for the lights that you tap may draw too much (you'd check the amps, not the voltage). Usually a lights-only fuse is ~15 amps, but you can see this in the Ford manual in the fuse section. On my 2012 I think I recall amp draw for low+hi-beams (LED) is about 4 to 4.5 amps per light, but this undoubtedly varies per car.





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
27,030
Reaction score
1,481
City, State
Ottawa, Ontario area
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Looking for 2 wires to tap. One for the led light bar and the other for the grill lights in my raptor style grill. I would like the hi beam headlights for the light bar and any running lights for the grill. Thanks
If you have the light bar hooked into the high beams than I think you won't be able to use high beams on the road as I believe there is a limit to the amount of light that you can legally use on the highways. Have you looked into that? Probably won't pass a safety inspection. I think you'd be better off putting them on a separate switch.

Peter





MegaCleanCab

Elite Explorer
Joined
July 14, 2016
Messages
36
Reaction score
4
City, State
Lecanto, FL
Year, Model & Trim Level
2020 Ford Explorer ST
If you have the light bar hooked into the high beams than I think you won't be able to use high beams on the road as I believe there is a limit to the amount of light that you can legally use on the highways. Have you looked into that? Probably won't pass a safety inspection. I think you'd be better off putting them on a separate switch.

Peter
Thanks for the heads up. I don't have to pass safety or emissions inspections. I live in the country and could really use the extra light in the dark and rain.





emerica243

New Member
Joined
July 14, 2018
Messages
39
Reaction score
11
Year, Model & Trim Level
16 explorer xlt
Operation Stealth Light Bar Aux Lighting
Picked up some nice new ultra slim profile lighting products recently. Planning on doing a hidden install of them behind the grille activated by a in cabin switch. Should be nice to supplement the lacking LED Reflector high beam throw.

Few pics so far below. Depending on weather will determine how fast i get to this since its winter here.





Last edited by a moderator:




peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
27,030
Reaction score
1,481
City, State
Ottawa, Ontario area
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Operation Stealth Light Bar Aux Lighting
..................................................Should be nice to supplement the lacking LED Reflector high beam throw............................
If you installed LED bulbs in a housing designed for halogen bulbs, that is the result you will get. The light may be brighter but LED bulbs require a specific housing because the light is produced differently. There have been several posts regarding the shorter distance. You probably would have been better off with the halogen. The high beam halogens in mine throw light quite a distance.
Looking forward to the final install.:)

Peter





emerica243

New Member
Joined
July 14, 2018
Messages
39
Reaction score
11
Year, Model & Trim Level
16 explorer xlt
If you installed LED bulbs in a housing designed for halogen bulbs, that is the result you will get. The light may be brighter but LED bulbs require a specific housing because the light is produced differently. There have been several posts regarding the shorter distance. You probably would have been better off with the halogen. The high beam halogens in mine throw light quite a distance.
Looking forward to the final install.:)

Peter
Sorry I misspoke. I did not mean just specifically the high beam output I did not replace the high beams with LEDs equivilent bulbs. But the whole lighting outfit on the explorer is quite poor. In regards to other methods of light distribution. Especially when compared to a proper bi-xenon hid retrofit of equivilent years technology





ghosted

Elite Explorer
Joined
December 10, 2009
Messages
40
Reaction score
1
Location
Vancouver
City, State
Vancouver, B.C.
Year, Model & Trim Level
97 XLT, 2018 XLT
Hi Everyone.

I just bought myself a 2018 Explorer XLT in Black/Black, a big difference from my 1998 EX from over 10 years ago.

As part of my dealer deal, I got 6 oil changes and 2x LED light bars install on my truck.
My Appointment is for in about 10 days, and I am responsible for purchasing the LED light bars, fine with me!

So I am looking for a place to install these 2x LED light bars, both of the upper open areas would work, and would fit up to a 24" light bar, they do have the open/close vents, but screw it, Im sure itll be fine... (and the vents can be cut)

So Im thinking of installing them on the upper open areas.

Now Im not sure if I should get a white upper and lower, a white upper and amber lower, or RGB bars becuase its fun; on both of them... Anyone have any experience with this on the 2016-2019 mode years? I've seen the cool orange explorer on Google, but am having a hard time finding a single LED bar that is also not very deep.

Anyone install LED Light Bars or even better RGB bars on these trucks? pref 2016-2019 styles.. pretty please.. :) :)





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
27,030
Reaction score
1,481
City, State
Ottawa, Ontario area
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
ghosted, your thread was merged with this existing one.

Peter





ghosted

Elite Explorer
Joined
December 10, 2009
Messages
40
Reaction score
1
Location
Vancouver
City, State
Vancouver, B.C.
Year, Model & Trim Level
97 XLT, 2018 XLT
Thanks for the merge.

So I have the light bars now in the mail. I have a 24" and a 20" RGB bar. The dealer is going to install them for me.

I've been looking everywhere for a stock looking aux lighting switch but haven't found much. Anyone with an interceptor care to chime in if you have any additional switches? I would love to pick up a stock looking interceptor part if i can find it to make the bars work.

UPDATE:
I think I figured it out. These two parts on a vehicle without the extra switches will give me three buttons. 2018 explorer xlt

Switch Panel - Ford FB5Z-7804338-DA

Tract Control Switch - Ford (BB5Z-13D730-AA)

Ive ordered these two parts, Ill update as to how it works out. I might need to find a sticker or something to stick on top of the stock switch designs

Last edited:




teapartyaz

New Member
Joined
December 5, 2014
Messages
3
Reaction score
0
City, State
Arizona
Year, Model & Trim Level
2014 Ford Explorer Sport
Setina Push Bumper -- LED Lighting (Gen 5)

Looking for the best LED Light Bars to mount to a Setina Push Bumper (PB-400VS) on my 2014 Explorer Sport. 30-33" avail on upper bar / 20" avail on lower bar. Any help would be greatly appreciated! :)

Last edited by a moderator:




peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
27,030
Reaction score
1,481
City, State
Ottawa, Ontario area
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Welcome to the Forum.:wave:
FYI, post #52 has a Setina with a light bar. Also, there is also another thread with a post showing a similar setup; Push Bar for Explorer. Also, check out this post #164 in the same thread.

Peter



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




emerica243

New Member
Joined
July 14, 2018
Messages
39
Reaction score
11
Year, Model & Trim Level
16 explorer xlt
Did this today

Adding some incognito light bars behind the grill



Done!



Without lightbar


With lightbar. Might raise it up a tad.
