'93 Sport Expo/ trail rig build


mounty71

It's green, not gray.
Elite Explorer
Joined
February 3, 2007
Messages
3,597
Reaction score
178
City, State
Oakland, CA
Year, Model & Trim Level
'00 Mountaineer
1987 spindles were unique as well and are undesirable from what I remember.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger
I've finally gotten my spindle situation figured. I've verified that 1996 spindles were 1 year only production started around 6/95. Fortunately I was able source 2 good spindles from 2 different wrecking yards.

Now I'm on to sorting out how I'm going to mount the knuckles. Despite apparently many people doing this swap, finding good clear info on adapting the ball joints is really tough.

Here are the different methods I've found:

1. Per @Brian1, ream the D35 LBJ hole at 1.5in/ft to fit the D44 ball joint. Then machine a custom camber adjuster to adapt the D44 UBJ to the D35 upper hole

2. From this thread: Dana 44 Knuckles on Dana 35 TTB - Ream the D35 LBJ to fit the D44 LBJ, then use the D44 camber adjuster and UBJ in the D35 beam, tightening the D35 pinch bolt to take up the difference in diameters between the adjuster and the hole in the beam.

3. Ream the D35 beam for the D44 LBJ, then have a spacer machined to fit in the D44 UBJ hole to allow install of a D35 UBJ. Per my measurements, the D44 UBJ hole measures 1.750", the D35 UBJ measures 1.630". (I've seen a few variations of this method including welding in spacers)

4. There was a thread claiming the the D35 UBJ will mount in the D44 knuckle. So far I cannot find any way this is possible. I've looked at all years of D44 TTB and D35 UBJ specs and cannot find any capability without a spacer.

5. Lastly, there's several methods of adapting D44 spindles to D35 knuckles. At this point, I'm not pursuing any of these methods.

So, I attempted what appeared to be the easiest method, #4, and that didn't work. So, next attempt will be method #2. I'll take good measurements and post what I find as I go.





410Fortune

Flood Season
Staff member
Moderator
Joined
August 3, 2000
Messages
25,092
Reaction score
1,307
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
pretty sure #2 is the preferred method
It would be nice to retain the d35 upper ball joint, camber adjuster and stock pinch bolt situation.
Thanks for going down this path, this is something I might do in the future...





timtimtimajim

Elite Explorer
Joined
May 29, 2014
Messages
535
Reaction score
175
City, State
Colorado Springs, CO
Year, Model & Trim Level
1993 Explorer Sport
X2 on what 410 said... thank you for looking into this!

It’s on my list of eventual projects. Curious to see what you find out





Brian1

Elite Explorer
Joined
February 2, 2000
Messages
5,190
Reaction score
225
City, State
Albuquerque, NM
Year, Model & Trim Level
1991 XLT
Callsign
KG5BAQ
I replied to that thread but I will copy over that info below from my post found here - Dana 35/ 44 hybrid simplified

I've always had a suspicion that the original info in that post is wrong. When I did mine I spent a lot of time measuring to come up with the best solution to do the swap and never once did I see the ball joint swap as being possible.

I just went out to measure the ttb 44 knuckle and a ttb 35 knuckle upper ball joints side by side. The 35 is 0.100" smaller +/-.005. Ttb 44 is 1.725-1.730" and the ttb 35 is 1.631 +/-.005. These are fairly accurate measurements but the ball joints were installed in both knuckles so it was hard to get a precise reading. Still, 0.100 is a big enough difference where it obviously won't work.

I consider the method on TRS to be a hack-job way of doing it because of how much is cut out which weakens the structure and building up weld outside is just a Band-Aid to that issue not to mention the heat you put into it. That just leaves my method of machining an adapter or using the 44 bushing and pinch bolt.

There is another method I saw when doing mine and that was someone TIG welded a piece of tube inside the D35 adjuster to give it enough meat to then ream out to fit the D44 tapered ball joint. They re-cut the slot once it was reamed. I think this is a good alternative to mine and easier since all you need is a welder and the reamer and not machinery. Using the D44 adjuster I think is a little weaker because, as I recall, it doesn't fit all the way down in the bore of the 35TTB upper ball joint holder.

Last edited:




Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger
@Brian1 thank you for the input on this. You've confirmed my suspicions on the deficits in some of the other methods of getting this done.

I like the idea of welding a tube in the D35 UBJ adjuster and reaming to fit. I'm going to take a close look at this. It would be nice to keep my variable adjusters.

I also want to explore pressing a sleeve in to the D44 knuckle a little more. I know it's common practice to sleeve aluminum control arms for ball joints. 1.75 x .065 4130 is pretty close to the right od/id. I'm not sure if a sleeve that thin has enough structure to be turned and work in this application.

Ideally I'd like to keep the explorer UBJ simply for the fact that I'd have a better shot of having a shop so my alignment.

After the holiday I'll be able to work on this a little more.

I appreciate everyone's input!





Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger
Time for some updates on this. I'm slowly making steps forward;

I'm pretty sure I've got my spindle/ hub/ seal situation figured out. Fortunately my local truck wrecking yard was patient and found me a good set of the 1 year only spindles. It also took some work with Napa to get the correct seal kits. I'll post m more specs on that stuff later.

On to the upper ball joints. I chose to go the route of sleeving the upper ball hole in the D44 knuckle. To do this I used 1.75" x .065 wall tube. My supplier only has HREW in this wall thickness. DOM may have been a better for dimensional consistency. But, the HREW worked:

New Explorer UBJ


Old D44 UBJ

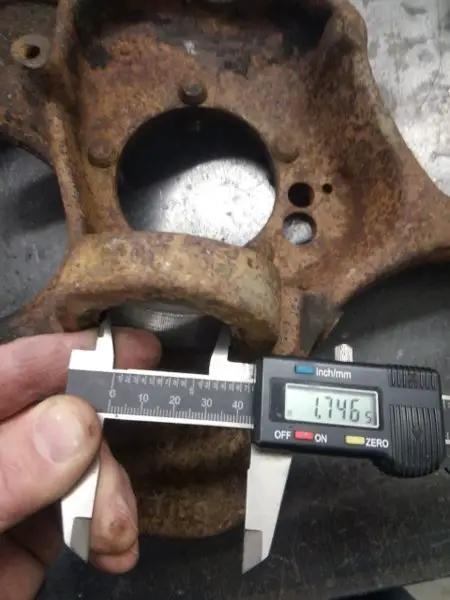

D44 UBJ hole


1.75 HREW OD

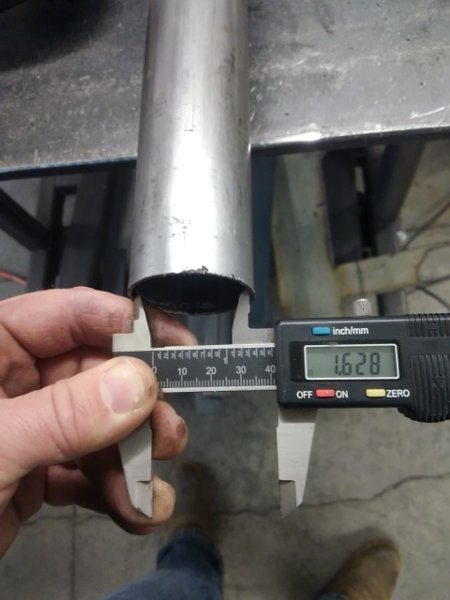

ID


Cut and cleaned up:


Ready to press:

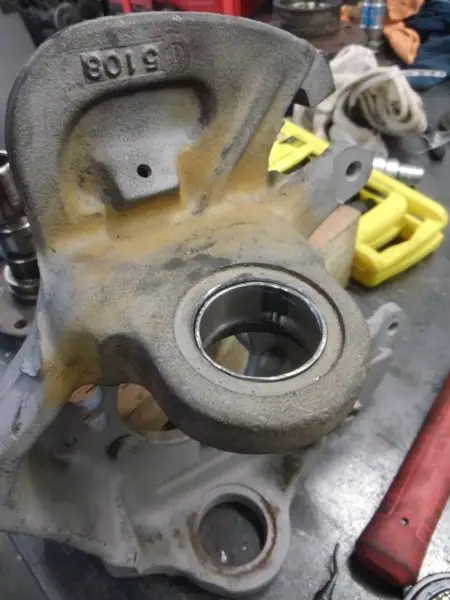

Pressed

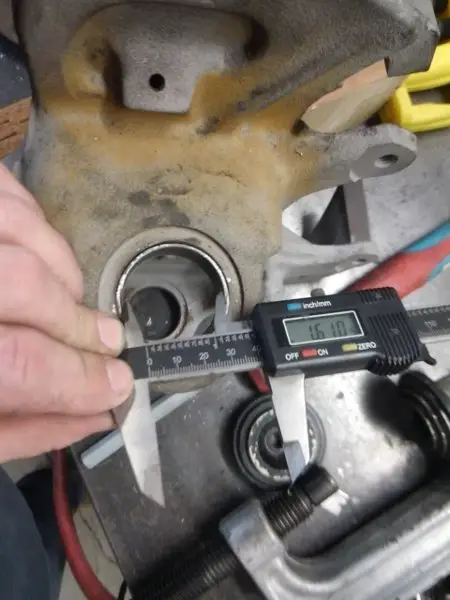

ID after pressing:


Worked over the ID with a brake cylinder hone and a 1.25" cylinder flap disc. In hind site, I needed to take a little more out of the ID. I honed until the UBJ would pass through and sit on the first shoulder.. It was very hard to press. I don't think it will ever come out if I need to replace it in the future.

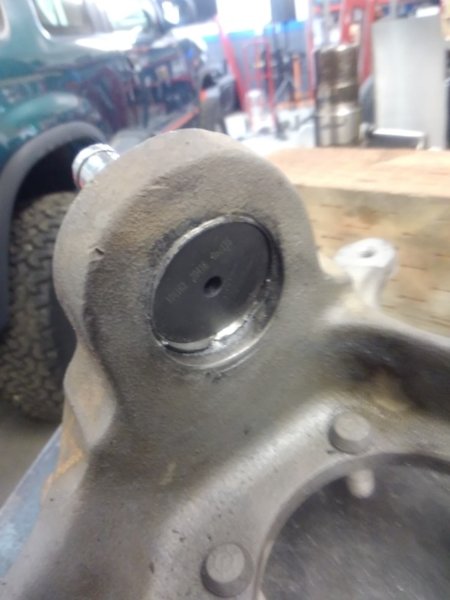

Here's the UBJ in place



Bottom side. You can see where I tacked the sleeve with my TIG



A few thoughts on this;

I'm confident in this set up holding together. Yes, machining a perfect sleeve would have been better, but I believe that any dimensional inconsistences caused by my honing and sanding were taken up when the ball joint was pressed in to the sleeve. With the amount of force I put in to setting that ball joint, if the sleeve were going anywhere, it would have then. I think this is a solid solution for using an Explorer UBJ.

Now to see if I can get it mounted on the beam!

FYI, I'm doing one side at a time. Don't want to waste a bunch of time if it's not going to work!

Last edited:




Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger
Quick update on this;; I'm doing all the prep I can before I make the Explorer inop by tearing down the D35 knuckles.

I'm taking my time to sandblast and paint everything I can to protect against future corrosion.

Speaking of corrosion, the D44 axle shaft u joints were rusted up really bad. Being a little careless with the new press I managed to crack an ear on an outer shaft. So, I'll have to find a new one of those.

I got the knuckles reamed and sleeved to swap the TRE's to the top side. I'm happy with how that turned out.

1.5 in per ft reamer. Used my cordless drill running it very slowly and using lots of oil. I had to take it pretty easy to keep from chattering, but all in all it went well.



Sleeve installed. I left it about 1/32 high after reaming then tapped it home with a punch



Here's the sleeves I used


Last edited:




Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger
I bit more progress;

Got the LBJ hole reamed in the beam and test fit the knuckle. After doing some measuring, I found the distance between ball joints was about 1/8" bigger on the D44. This made me concerned that the D35 UBJ would seat too deep, or stick up out of the adjuster too far. So I was pretty conservative with how deep I reamed the LBJ hole. I just went deep enough to get the lock nut on the lower ball joint fully engaged. This puts the snap ring on the UBJ adjuster about 1/32 above the adjuster. Since the LBJ carries all of the vertical load, I'm not concerned about the snap ring "floating" a bit.

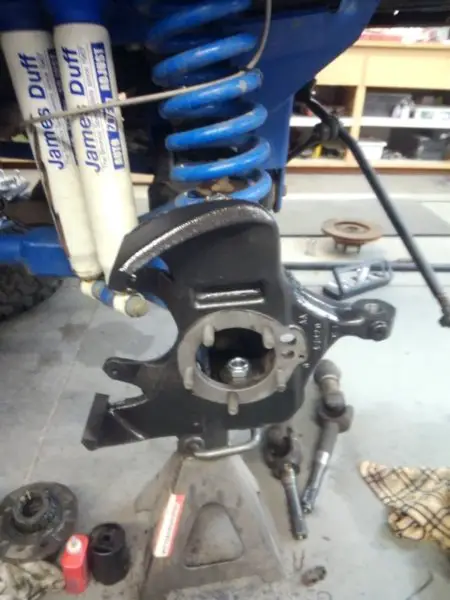

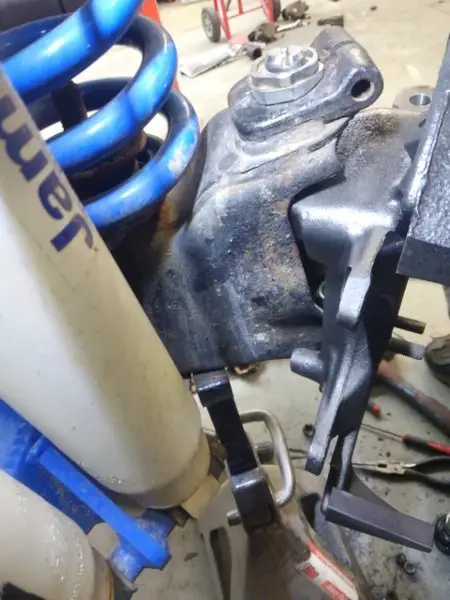

Mocked up:

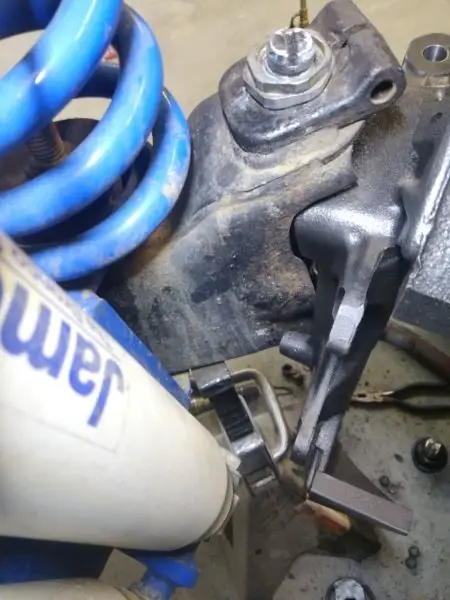

Knuckle inference with back side of the beam:



Beam clearanced:

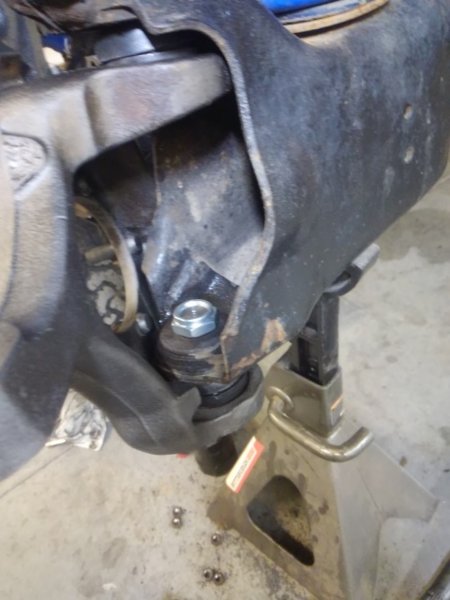

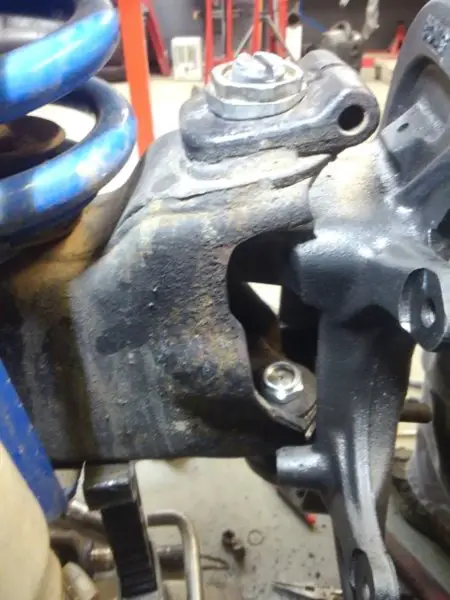

Lower ball joint (not tightened down yet):





D35 UBJ:






Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger

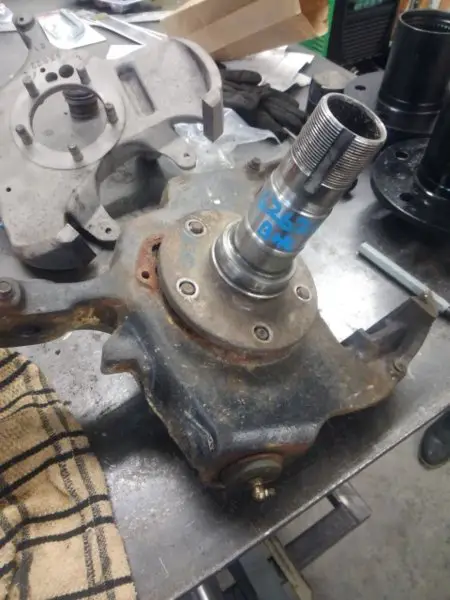

For reference, here's a 91-96 5 bolt spindle on a D35 knuckle. This will bolt up if you want to figure out rotors and callipers

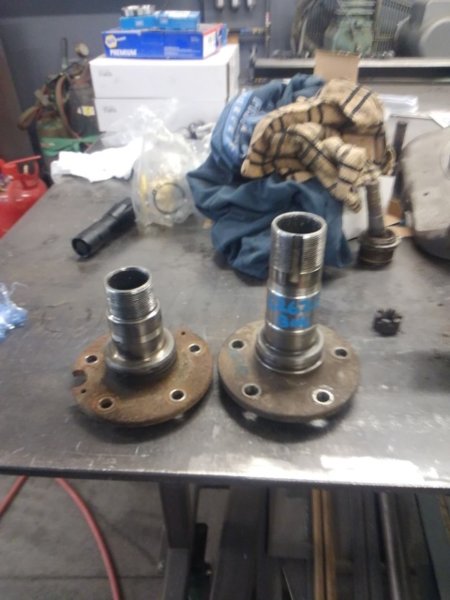

Here's the '96 D44 spindle next to the D35 spindle. That comparison is reason enough to do this swap.






Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger
After an unexpected hospital stay, I'm finally back out in the shop.

Passenger side is all wrapped up, except for waiting on a new caliper.

I'm really happy with how this turned out


Last edited:




Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger
Got it all done! I'm really happy with how it turned out. I've got some miss matched rollers I'm going to throw on it while I'm figuring out my new tire and wheel combo.



Next things on the agenda are:

- F350 master cylinder if needed
- Rear bumper/ tire carrier
- Exhaust

Making slow but steady progress!






fordpickupman

Elite Explorer
Joined
March 18, 2011
Messages
150
Reaction score
88
City, State
Cascade, ID
Year, Model & Trim Level
94 XLT
71 F250 Fummins
I have a mid to late '90s F350 master cylinder in my parts stash. Let us know how it works if you do it.









fordpickupman

Elite Explorer
Joined
March 18, 2011
Messages
150
Reaction score
88
City, State
Cascade, ID
Year, Model & Trim Level
94 XLT
71 F250 Fummins
Those look way better than the ones they show on Amazon. I got the ATs. Now I’m second guessing my decision.





410Fortune

Flood Season
Staff member
Moderator
Joined
August 3, 2000
Messages
25,092
Reaction score
1,307
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Falken wildpeak MT! Nice choice....loving watching this truck come together
I've been beating on my TTB trucks lately....they just keep kicking ass!!





Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger
Falken wildpeak MT! Nice choice....loving watching this truck come together
I've been beating on my TTB trucks lately....they just keep kicking ass!!
Thanks! I'm really enjoying this build. It's a real practice of attention to detail and taking time to get things right instead of a last minute jam session to get it good enough.

Stretch goal for it is be tested and all sorted to go to Moab in 2021! I'm thinking Rubicon in 2022.





Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger

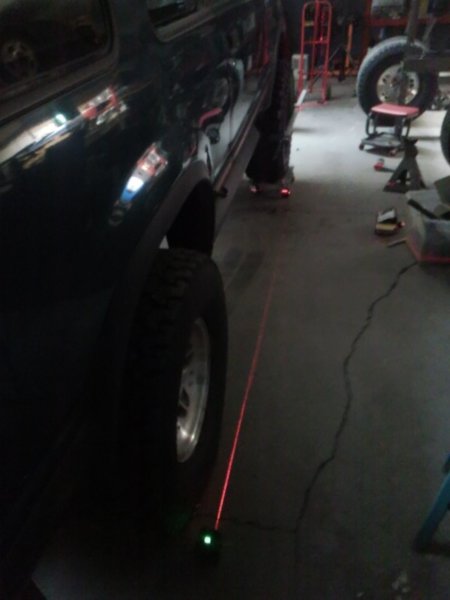

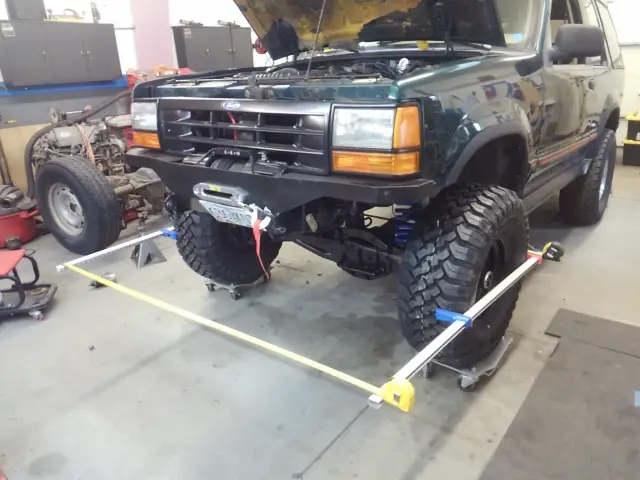

Doing a rough alignment and getting ready to road test




Size difference between the worn out 33" BFG's and the Falken's is pretty impressive. The Falken's measure out at a true 33"







Dzrtcj7

Member
Joined
August 1, 2016
Messages
89
Reaction score
66
Year, Model & Trim Level
93 Explorer, 92 Ranger
Improving my steering geometry was one of my motivations for doing this swap. The drop pitman arm that came with my 5.5" Duff kit wasn't quite enough. I'm super pleased that the D44 knuckles with the flipped TRE's raised my rod ends just enough to get my steering where I want it.



Here we are, all wrapped up and road tested! Alignment is actually pretty close. It drives great. The brake pedal feel is no different than before the swap. I'm very happy with how this came out.




Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




fordpickupman

Elite Explorer
Joined
March 18, 2011
Messages
150
Reaction score
88
City, State
Cascade, ID
Year, Model & Trim Level
94 XLT
71 F250 Fummins
That looks good.
I’m glad to hear your brake pedal is still good. I just swapped the D44 Knuckles on mine.





Thread starter Similar threads Forum Replies Date
E Brainstorming: Modified Explorer Sport 1991, what do to next? Modified 1991-1994 Explorers 6
S Inexpensive 16" wheels for 94 sport Modified 1991-1994 Explorers 14
C LED headlights (92 sport) (Success) Modified 1991-1994 Explorers 13
S 92 Sport 35k orig miles possible rear main issue Modified 1991-1994 Explorers 1
T '94 Sport - Rehab and Mod Project Modified 1991-1994 Explorers 6
O 91 4x4 sport overhaul. Modified 1991-1994 Explorers 6
X Planning a V8 swap in my 93 sport 4x4 5spd Modified 1991-1994 Explorers 2
E Sport 2 door to 4 door conversion Modified 1991-1994 Explorers 32
1 Will my 2v 5.4l fit in my 1994 sport. Modified 1991-1994 Explorers 6
J My 91 Sport Modified 1991-1994 Explorers 28
Siekyre My 92 Sport Modified 1991-1994 Explorers 19
2stroke Sport lift Modified 1991-1994 Explorers 7
1 Budget 2track 1994 sport Modified 1991-1994 Explorers 106
R Adding nerf bars to a 93 sport Modified 1991-1994 Explorers 7
mr cribb 93 Sport "Deep Purple" Modified 1991-1994 Explorers 80
M Explorer Sport bumpy ride Modified 1991-1994 Explorers 8
S My modified 94 sport Modified 1991-1994 Explorers 13
N 1st gen sport 4.0 possible build question Modified 1991-1994 Explorers 20
J Custom first gen sport truck bed Modified 1991-1994 Explorers 1
D 93 explorer sport, " The Complicated Procedure " Modified 1991-1994 Explorers 2
J xlt rear seat can fit in a 94 sport..?? Modified 1991-1994 Explorers 3
J 1st Gen 2wd to 95-97 Ranger Brake Upgrade Using 12" Sport Trac Rotors Modified 1991-1994 Explorers 17
M '94 Sport front axle not engaging hub Modified 1991-1994 Explorers 6
F 94 Explorer sport mini build Modified 1991-1994 Explorers 17
C Looking for advice and suggestions on new gears for my 91 explorer sport Modified 1991-1994 Explorers 2
I 1993 explorer limited to 2003 sport trac front Modified 1991-1994 Explorers 7
C sprng over on 91 explorer sport Modified 1991-1994 Explorers 1
D 93 explorer sport Modified 1991-1994 Explorers 19
C gen 2 sport siderail on a 94 xlt Modified 1991-1994 Explorers 1
F 1st gen to new sport trac seat upgrade Modified 1991-1994 Explorers 6
O 91 sport questions Modified 1991-1994 Explorers 4
davy crockett Sport Trac seats in a 1st Gen? Modified 1991-1994 Explorers 4
D 93 explorer sport lift question Modified 1991-1994 Explorers 1
R Pic Reqest- Navajo and Sport only Modified 1991-1994 Explorers 3
9 93 explorer sport 5.0 Help Modified 1991-1994 Explorers 7
J lifting a 92 ex sport Modified 1991-1994 Explorers 14
P Chevy superlift shocks on 92 sport? Modified 1991-1994 Explorers 3
P '92 Sport Build Modified 1991-1994 Explorers 2
E Need help lifting a 2wd Explorer Sport Modified 1991-1994 Explorers 4
G 3.8 supercharge v6 in a 94 ford explorer sport Modified 1991-1994 Explorers 26
N What to do to my stock sport Modified 1991-1994 Explorers 4
W 94 explorer sport clutch problems Modified 1991-1994 Explorers 6
9 1993 Sport Problem/Question? Modified 1991-1994 Explorers 1
T Upgrades for my 92 sport Modified 1991-1994 Explorers 0
M sport axles into 4 door Modified 1991-1994 Explorers 4
ebgb a couple of pics of "the sport..." Modified 1991-1994 Explorers 21
M 1994 Explorer Sport wheel & nerf bar question. Modified 1991-1994 Explorers 1
G 91 Sploder sport 4x4 thread Modified 1991-1994 Explorers 59
F EXPLORER SPORT side chopped and RANGER tail gate Modified 1991-1994 Explorers 49
G Will 2nd gen step bars fi my 93 sport? Modified 1991-1994 Explorers 3
Similar threads


















































Top
