97 Ranger, Wiring Fuel pump directly to battery


Big Aloe

New Member
Joined
October 12, 2017
Messages
12
Reaction score
0
City, State
Waimea HI
Year, Model & Trim Level
1993 Ford Ranger 4WD
AM I damaging the fuel pump by running it directly from the battery, incl. a 20 Amp fuse and a switch installed inside the cabin?
I've been driving 50 miles so far, no problem, surprisingly the old Ranger is driving much faster.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Mbrooks420

High Voltage.
Elite Explorer
EF Vendor
Joined
February 2, 2002
Messages
9,932
Reaction score
1,383
Year, Model & Trim Level
1998 Mountaineer AWD
If it's faster it was starving for fuel due to a wiring/relay issue most likely. Did you swap/replace relays first?

Is that a returnless fuel system? Have you checked the fuel pressure at the rail after direct wiring? Is the fuel pressure regulator cut out of the circuit?





Big Aloe

New Member
Joined
October 12, 2017
Messages
12
Reaction score
0
City, State
Waimea HI
Year, Model & Trim Level
1993 Ford Ranger 4WD
If it's faster it was starving for fuel due to a wiring/relay issue most likely. Did you swap/replace relays first?

Is that a returnless fuel system? Have you checked the fuel pressure at the rail after direct wiring? Is the fuel pressure regulator cut out of the circuit?
Thanks for your reply. I have difficulty finding the the relays. But it is a fuel pump with a return pipe.





Turdle

Habla tortuga
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,577
Reaction score
1,089
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
Google.
heck, even pinterest had a good result for you. 1997 ford ranger power distribution box






Big Aloe

New Member
Joined
October 12, 2017
Messages
12
Reaction score
0
City, State
Waimea HI
Year, Model & Trim Level
1993 Ford Ranger 4WD
Google.
heck, even pinterest had a good result for you. 1997 ford ranger power distribution box

Wow that helps so much. Thanks for getting me going. Will check the relays.





Big Aloe

New Member
Joined
October 12, 2017
Messages
12
Reaction score
0
City, State
Waimea HI
Year, Model & Trim Level
1993 Ford Ranger 4WD
Google.
heck, even pinterest had a good result for you. 1997 ford ranger power distribution box

But would it be ok to drive permanently with the direct battery connection to the fuel pump?





1998Exp

Well-Known Member
Joined
December 5, 2010
Messages
1,168
Reaction score
98
City, State
Seattle WA
Year, Model & Trim Level
98 Limited V8 AWD
But would it be ok to drive permanently with the direct battery connection to the fuel pump?
It will be bad for your health: 1) Bypassing the inertia switch increases the risk of fire in case of collision. 2) The system is designed to disable the pump if the engine doesn't run. That's another fire prevention mechanism.





fastpakr

Elite Explorer
Joined
February 18, 2005
Messages
502
Reaction score
85
City, State
Roanoke, VA
Year, Model & Trim Level
99 4wd - 5.0/4R70W/BW4406
And outside of the safety factors, you certainly don't want or need the fuel pump running 24/7, burning it up and draining your battery.





Turdle

Habla tortuga
Staff member
Moderator
Elite Explorer
Joined
June 16, 2003
Messages
29,577
Reaction score
1,089
City, State
Humboldt, KS
Year, Model & Trim Level
2000 Mounty
But would it be ok to drive permanently with the direct battery connection to the fuel pump?
There is a reason for triple protection ( fuse-relay-inertia switch) , actually several reason I would say no. Definitely not OK.





Mbrooks420

High Voltage.
Elite Explorer
EF Vendor
Joined
February 2, 2002
Messages
9,932
Reaction score
1,383
Year, Model & Trim Level
1998 Mountaineer AWD
Does the FPR cut power to the pump?









J_C

Well-Known Member
Joined
July 30, 2009
Messages
3,113
Reaction score
372
City, State
Florence, KY
Year, Model & Trim Level
1998 XLT 4WD 4.0L SOHC
Heh, it seems that there is more than one thing that could be called an FPR, fuel pump relay or fuel pump return.

The fuel pump relay does not cut power in an accident, rather the inertia switch does, is the last thing in series right before the pump.

WHY would someone want to drive with it permanently wired to the battery? Doesn't seem to have any purpose except maybe save $10 by not buying a relay if that failed.

That distribution box diagram, as well as the fuse box diagram, should be in the owner's manual which you can get a copy of here:
https://owner.ford.com/tools/account/how-tos/owner-manuals.html





Big Aloe

New Member
Joined
October 12, 2017
Messages
12
Reaction score
0
City, State
Waimea HI
Year, Model & Trim Level
1993 Ford Ranger 4WD
It will be bad for your health: 1) Bypassing the inertia switch increases the risk of fire in case of collision. 2) The system is designed to disable the pump if the engine doesn't run. That's another fire prevention mechanism.
Ok, didn't think about that. Where can I locate the inertia switch?





Big Aloe

New Member
Joined
October 12, 2017
Messages
12
Reaction score
0
City, State
Waimea HI
Year, Model & Trim Level
1993 Ford Ranger 4WD
It will be bad for your health: 1) Bypassing the inertia switch increases the risk of fire in case of collision. 2) The system is designed to disable the pump if the engine doesn't run. That's another fire prevention mechanism.
Ok, didn't think about that. Where can I locate the inertia switch?
Heh, it seems that there is more than one thing that could be called an FPR, fuel pump relay or fuel pump return.

The fuel pump relay does not cut power in an accident, rather the inertia switch does, is the last thing in series right before the pump.

WHY would someone want to drive with it permanently wired to the battery? Doesn't seem to have any purpose except maybe save $10 by not buying a relay if that failed.

That distribution box diagram, as well as the fuse box diagram, should be in the owner's manual which you can get a copy of here:
https://owner.ford.com/tools/account/how-tos/owner-manuals.html
Thank you J_C,
this is not about saving money, so which relays should I replace?





J_C

Well-Known Member
Joined
July 30, 2009
Messages
3,113
Reaction score
372
City, State
Florence, KY
Year, Model & Trim Level
1998 XLT 4WD 4.0L SOHC

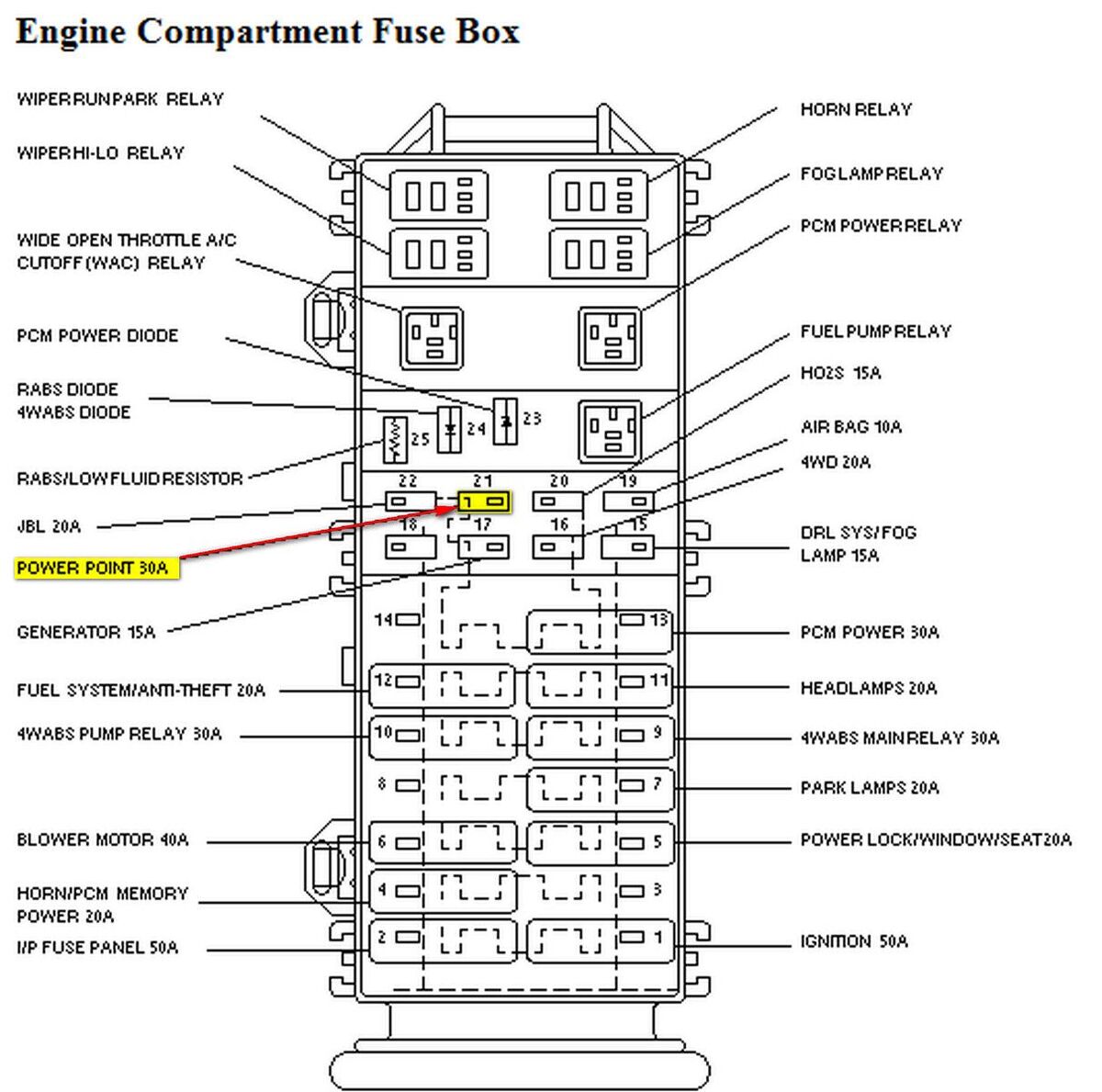

I would use a multimeter to trace where the power stops in the circuit, but if you want a quick relay test then on the diagram, swap the fuel pump relay with the Wide Open Throttle A/C Cutoff Relay, assuming they are the same type as shown on the diagram.

If the pump then works, just as a sanity check (in case the contacts were corroded or something and merely unplugging and replugging them got it working) swap them back and see if the pump works.

Also check fuse 12 in that same box, either with a multimeter, visually, or swapping it with the headlight fuse #11 right across from it.

The inertia switch is probably behind the trim panel on the right in the passenger side footwell.

While it could trip or fail completely, I'd sooner think it's a fuse, relay, or wiring/connector problem unless the vehicle was in an accident. With a multimeter you can tell whether power is getting to and past the fuse and relay, and whether that switch is conducting. If you measure 12V at the output from the inertia switch then there's a problem between it and the pump.

Where did you tap into the wiring to the pump to connect it to the battery?





Mbrooks420

High Voltage.
Elite Explorer
EF Vendor
Joined
February 2, 2002
Messages
9,932
Reaction score
1,383
Year, Model & Trim Level
1998 Mountaineer AWD
I was working under the vehicle and tripped my inertia switch while hammering before, it's worth a check.





Big Aloe

New Member
Joined
October 12, 2017
Messages
12
Reaction score
0
City, State
Waimea HI
Year, Model & Trim Level
1993 Ford Ranger 4WD
I would use a multimeter to trace where the power stops in the circuit, but if you want a quick relay test then on the diagram, swap the fuel pump relay with the Wide Open Throttle A/C Cutoff Relay, assuming they are the same type as shown on the diagram.

If the pump then works, just as a sanity check (in case the contacts were corroded or something and merely unplugging and replugging them got it working) swap them back and see if the pump works.

Also check fuse 12 in that same box, either with a multimeter, visually, or swapping it with the headlight fuse #11 right across from it.

The inertia switch is probably behind the trim panel on the right in the passenger side footwell.

While it could trip or fail completely, I'd sooner think it's a fuse, relay, or wiring/connector problem unless the vehicle was in an accident. With a multimeter you can tell whether power is getting to and past the fuse and relay, and whether that switch is conducting. If you measure 12V at the output from the inertia switch then there's a problem between it and the pump.

Where did you tap into the wiring to the pump to connect it to the battery?
Thanks a lot J_C,
I'll try that today.
I installed a new cable, with a switch in the cabin and 20A fuse from the battery all the way to the fuel pump,
since the the old red cable only showed 7Volts open Voltage, which went down to zero Volts once connected
to the pump.





Big Aloe

New Member
Joined
October 12, 2017
Messages
12
Reaction score
0
City, State
Waimea HI
Year, Model & Trim Level
1993 Ford Ranger 4WD
I was working under the vehicle and tripped my inertia switch while hammering before, it's worth a check.
I wouldn't know how to find that switch!!!





Mbrooks420

High Voltage.
Elite Explorer
EF Vendor
Joined
February 2, 2002
Messages
9,932
Reaction score
1,383
Year, Model & Trim Level
1998 Mountaineer AWD
Pull the carpet back in the passenger side footwell. I think it's red. Up near the glovebox.
