'97 XLT Dana 30 SAS

2TimingTom

Well-Known Member
Joined
October 12, 2010
Messages
2,480
Reaction score
48
Location
Littleton, CO
City, State
Littleton, Colorado
Year, Model & Trim Level
'97 XLT

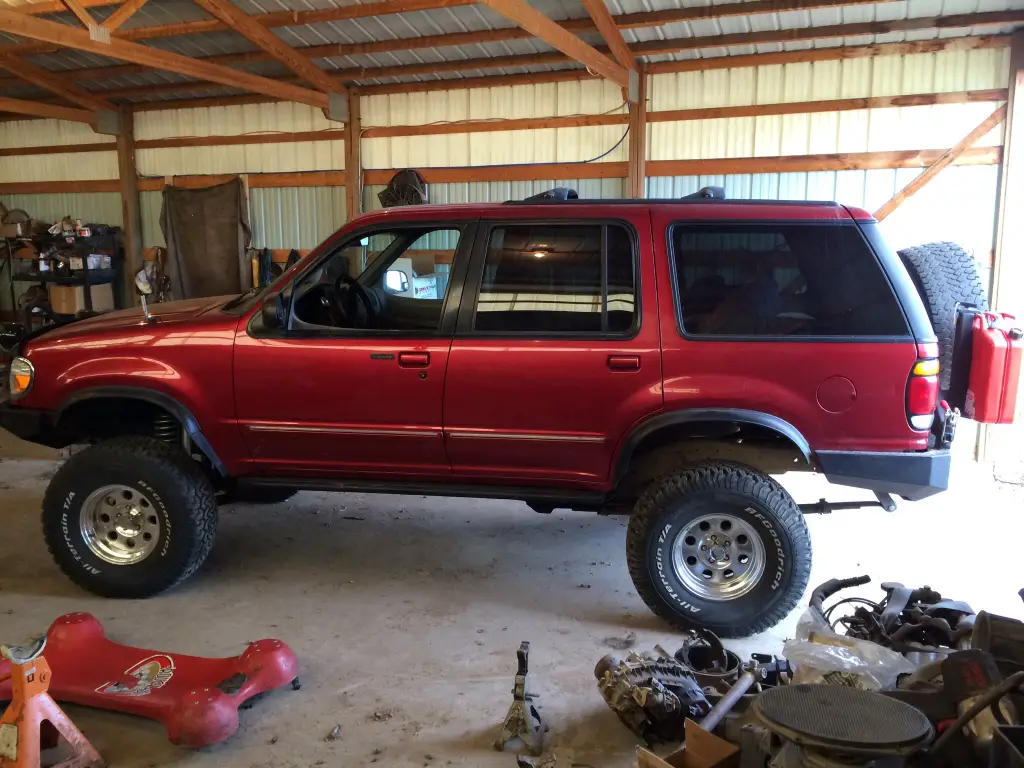

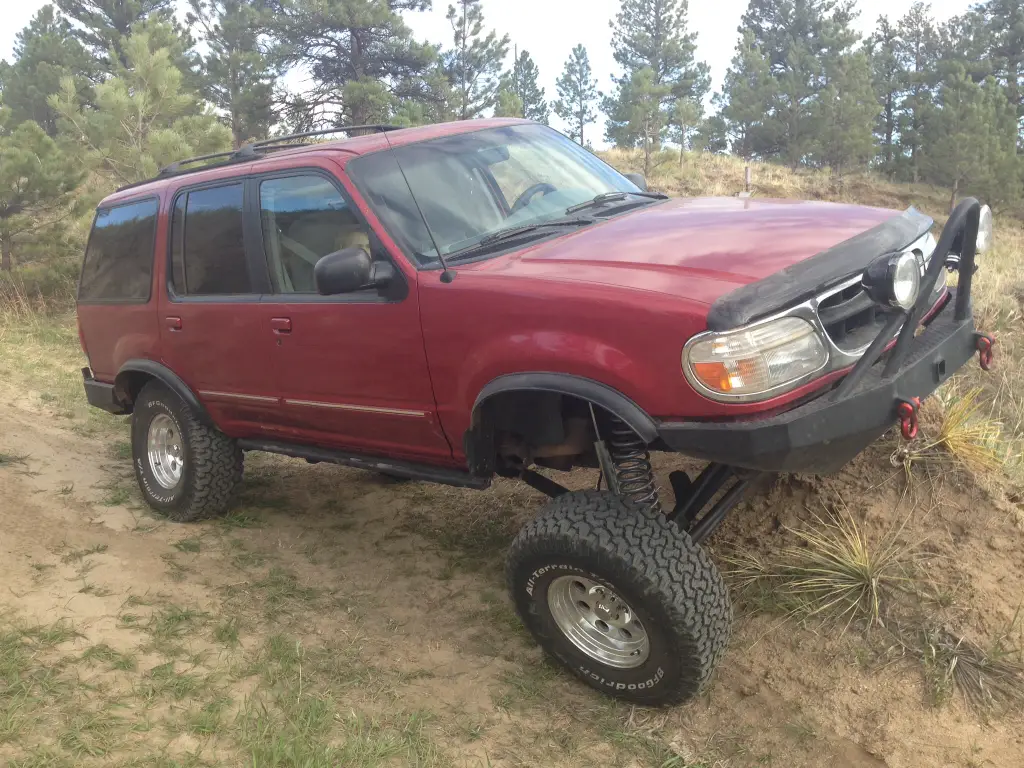

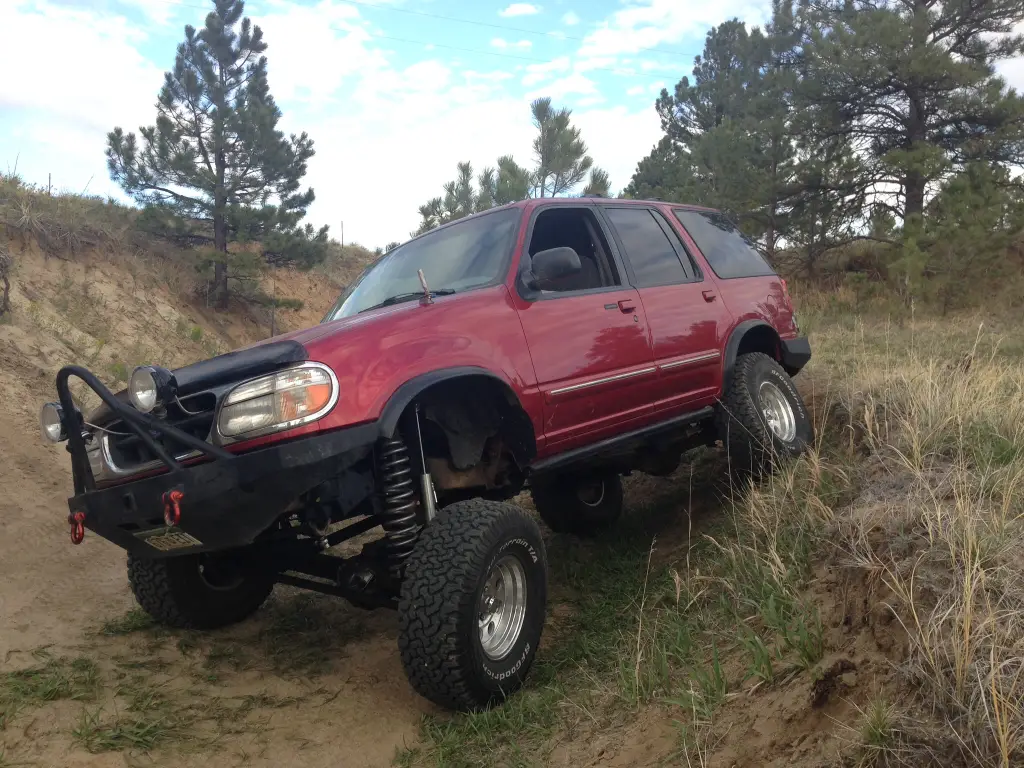

Well since I don't have the time/tools/skills to build my own, but I do have the money, this isn't going to be a build log, just show the final product since I don't have much for "during" pics.

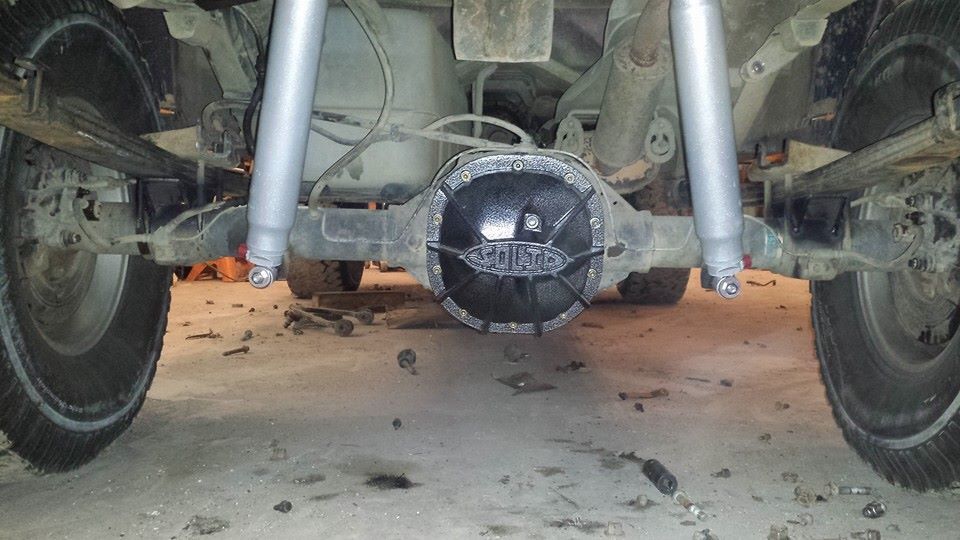

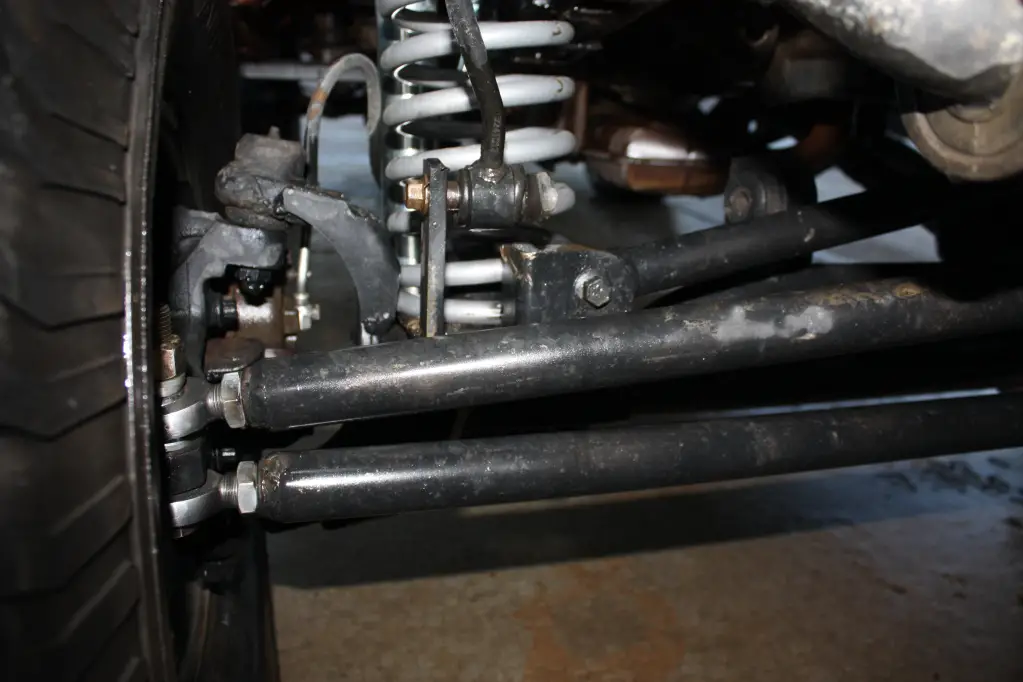

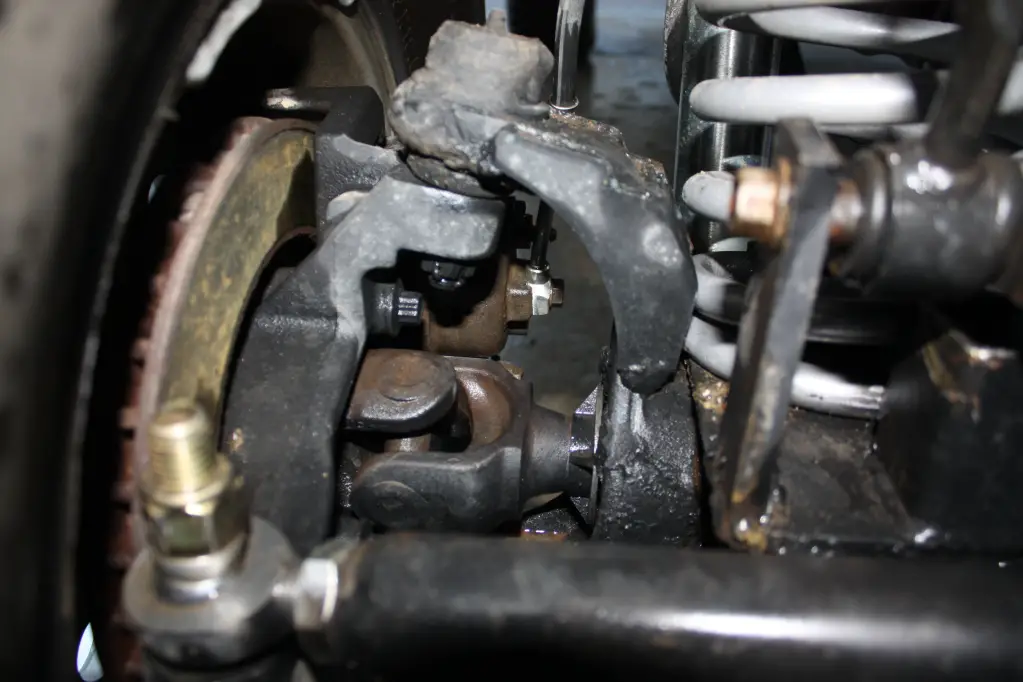

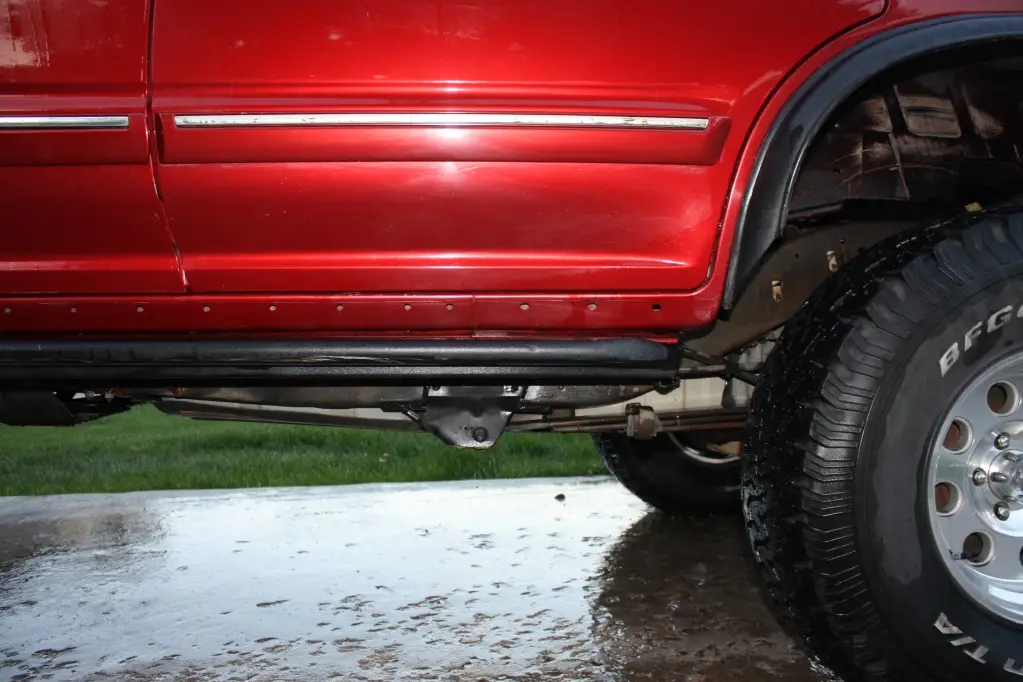

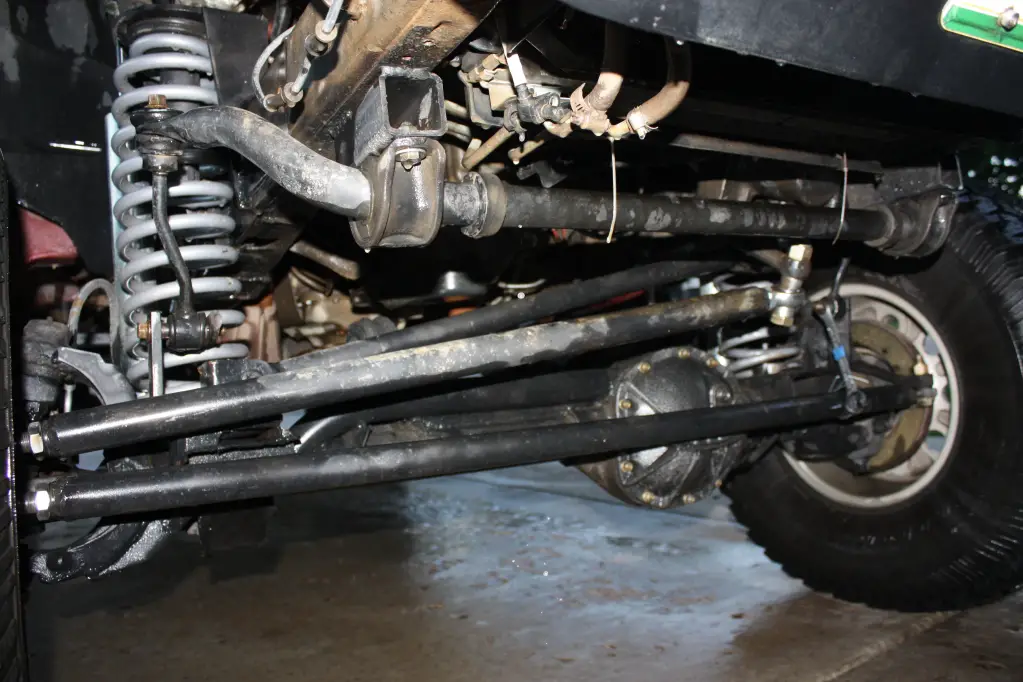

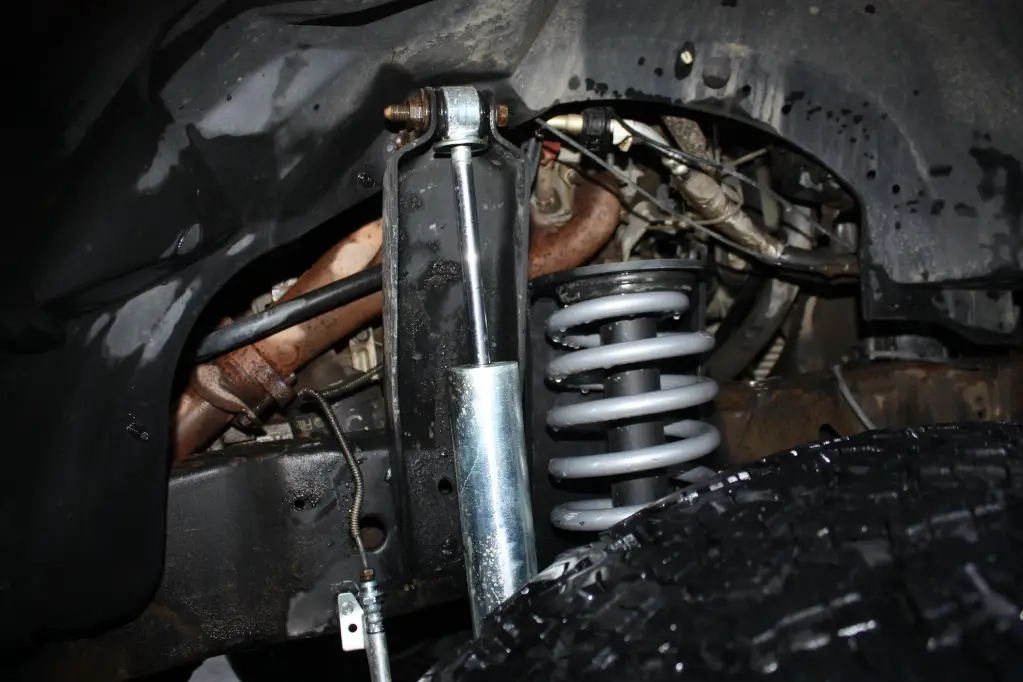

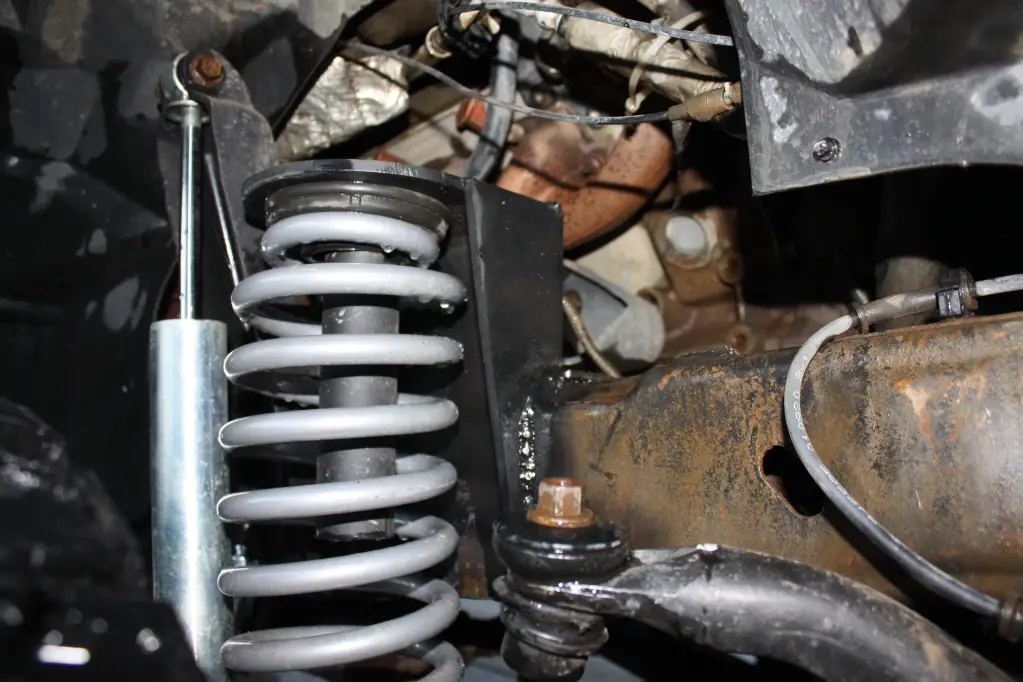

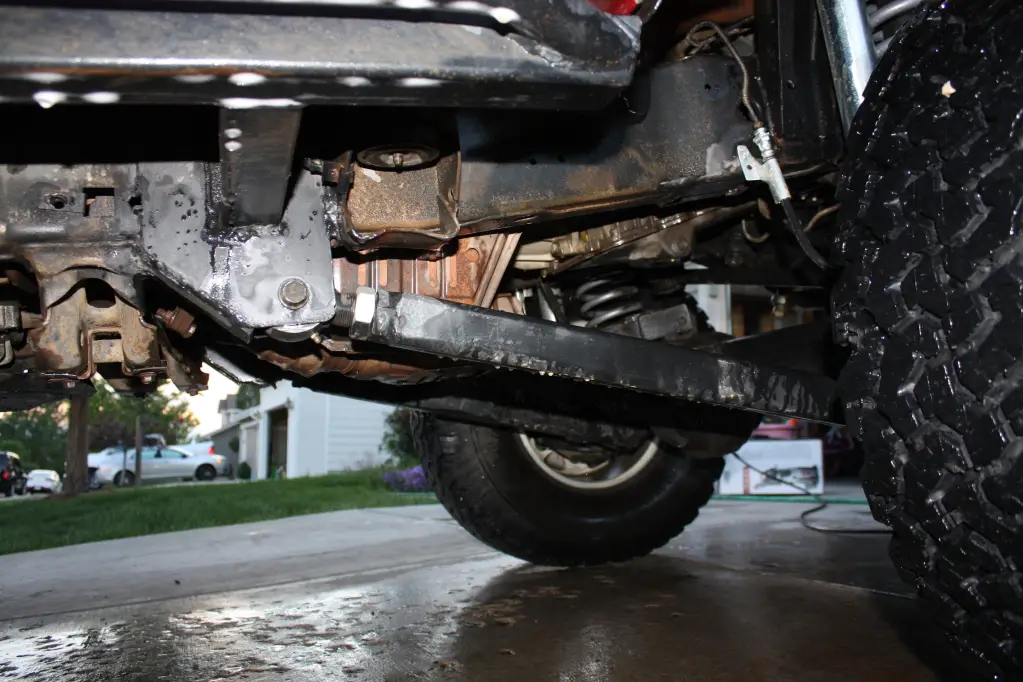

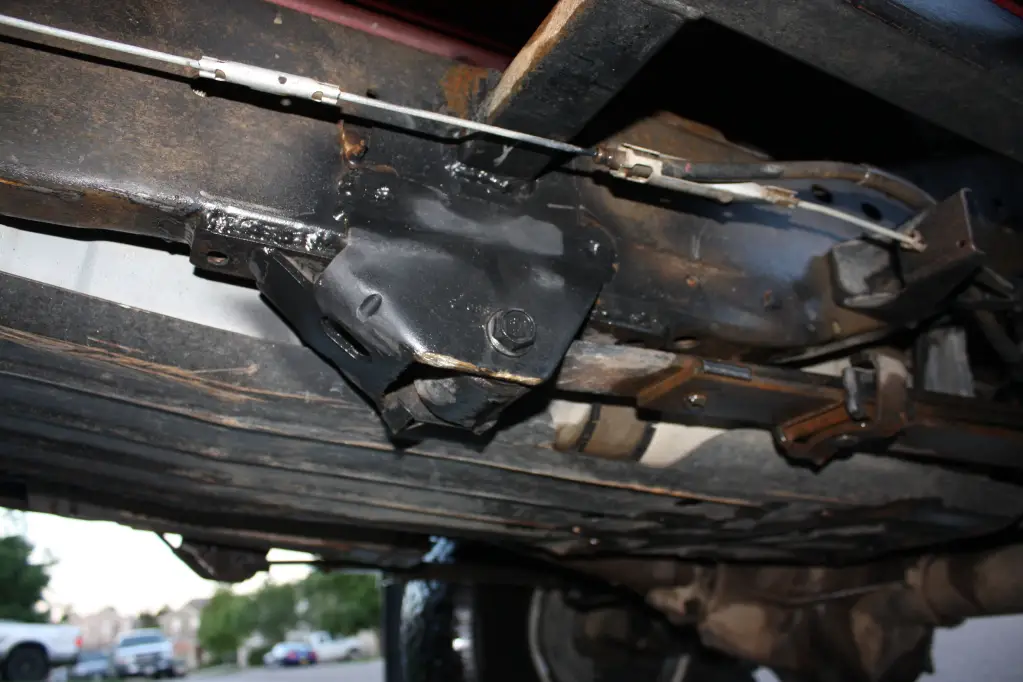

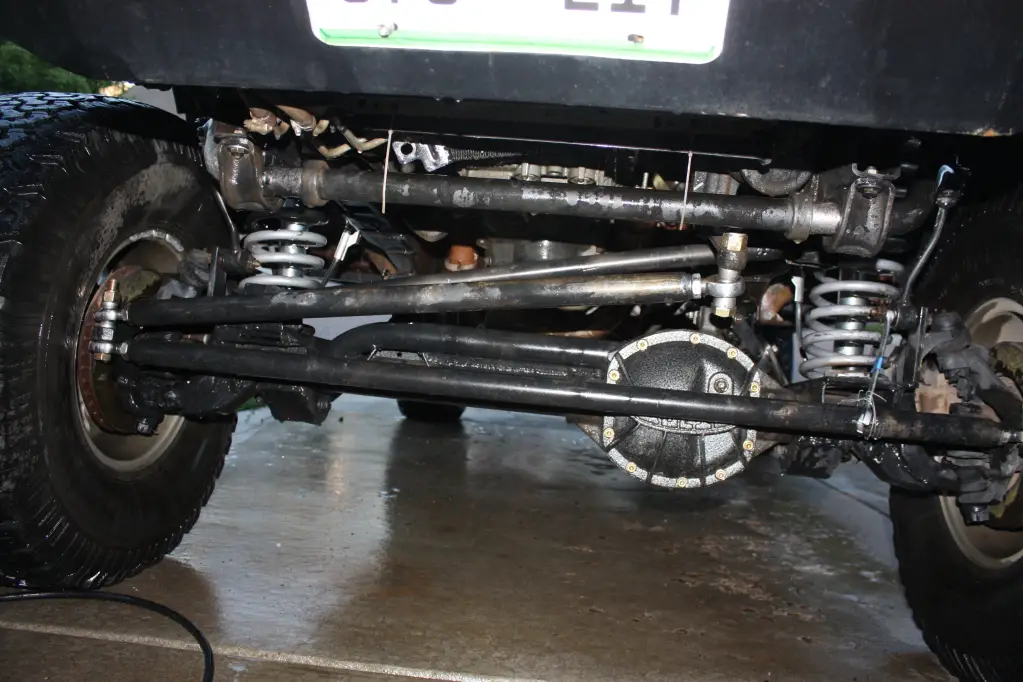

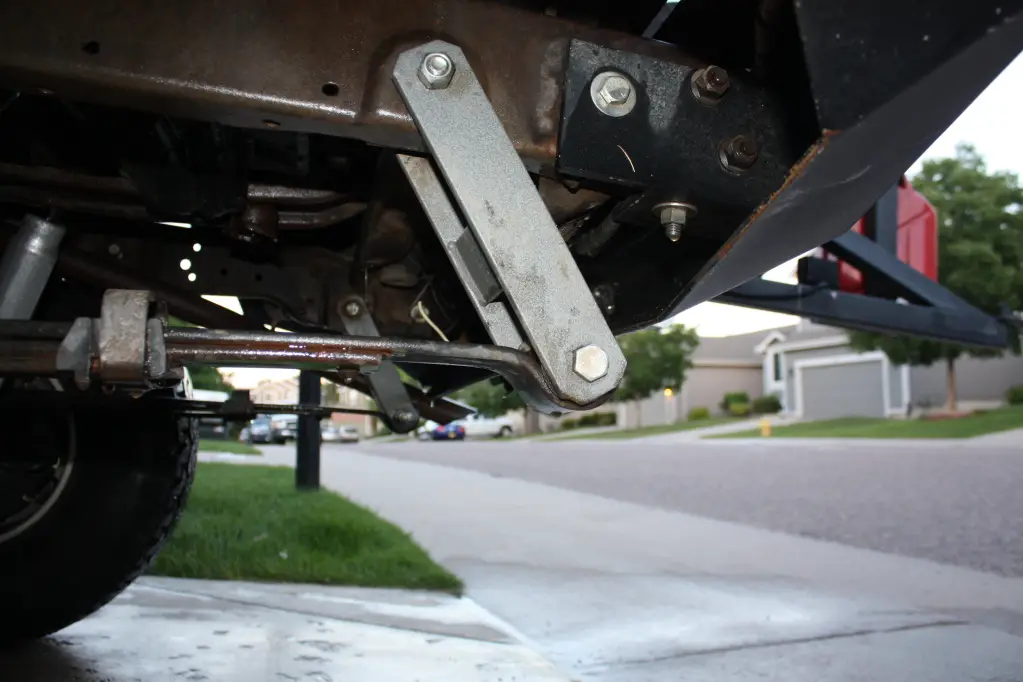

Dana 30, trussed and gussetted. 4.56 gears, Eaton Truetrac (front and rear), SOA with Chevy 1500 63" leafs, 1354 manual transfer case, F-150 steering box.
