98 XLT Dana 44 on Leafs

1998 Explorer XLT

4.0 sohc
5r55e
1354 manual

1982 Jeep Wagoneer Dana 44 front axle
4.88:1 Yukon gears
Detroit Truetrac
Passenger side flat top knuckle (73-76 Chevy) milled and drilled by Sky Mfg
Passenger side Sky Mfg tall high steer arm
Small bearing spindles (73-76 Chevy)
5x5.5 hubs, rotors and wheel bearings (Ford Dana 44 ttb)

Stock rear axle
4.88:1 Yukon gears
Detroit locker
Spidertrax 5x4.5 to 5x5.5 wheel spacers

1997 Ranger steering box
1997 (I think) Steering shaft (has 98+ connection at firewall and rag joint at steering box)
Jeep Wagoneer pitman arm (had to retaper splines)
1.5x0.25 wall DOM tie rod and draglink
Ballistic Fab weld in bungs
Parts Mike EX2234R and EX2234L tie rod ends

1995 Bronco master cylinder 1.125" bore
1985 Chevy 3/4 ton calipers with 3 5/32" piston
1985 Chevy G20 van front brake lines (~23" long)
1985 Chevy Monte Carlo rear brake lines axle to caliper
1979 Bronco rear brake line frame to axle
ABS pump delete (kept engine bay computer for speedometer)

Sky Mfg S10 SAS kit
Sky Mfg Toyota front shock hoops
Marlin Crawler 4" lift Toyota front springs
Stock rear springs
Warrior shackles
RuffStuff u-bolts, perches and plates
First gen Explorer front sway bar

Goodyear MTR Kevlar 35x12.5R15
Crager Soft 8 15x8 4" BS

Dakota Digital SGI-5 speedometer calibrator


Before shot with 3" body lift, TT and shackles


Opened up the 44 and found this, it cleaned up nicely though


Mocking up the steering box, maybe should have looked into an outside the rail mounted box a little more for the longer draglink and ease of mounting




Wagoneer arm (shown installed) vs. stock Ranger arm


I used the stock high pressure line for the power steering but cut off the fitting that went to the old rack and replaced it with the proper fitting for the Ford box


Getting the axle installed using Wagoneer 7 leaf packs that were too weak and replaced with the Marlin's


Got it done and took it out to Carnegie SVRA to give it a shakedown run where I broke both front lockouts (junk yard Selectro) and pulled apart the front driveshaft. (5" slip is not enough)






Overall the truck took about two months to complete working in the driveway and I couldn't be any more satisfied with how it came out.



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




j_mazala

Active Member
Joined
July 16, 2006
Messages
51
Reaction score
1
City, State
Bay Area, CA
Year, Model & Trim Level
98 XLT
Went out and snapped a few more pictures

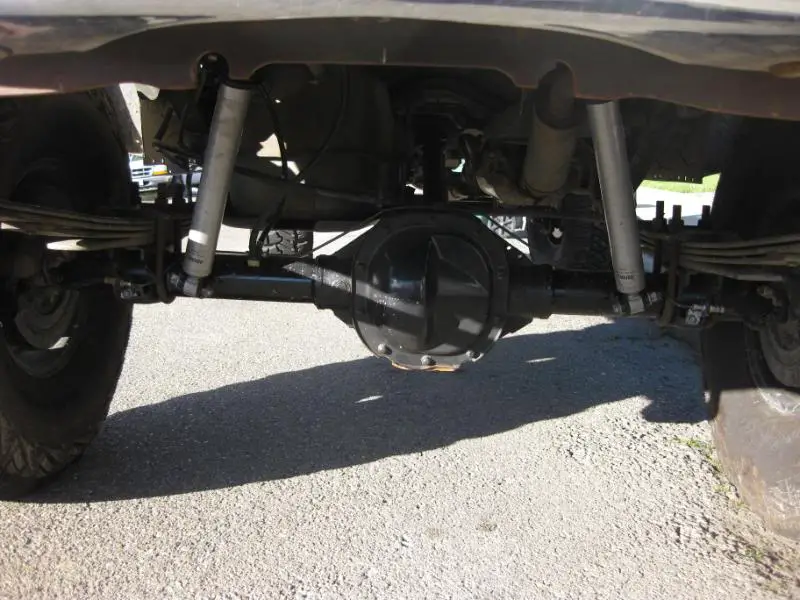

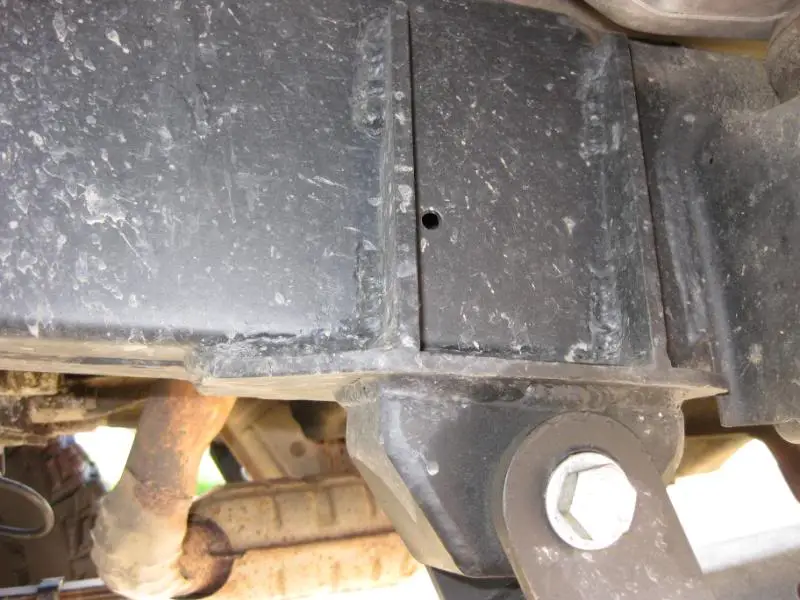

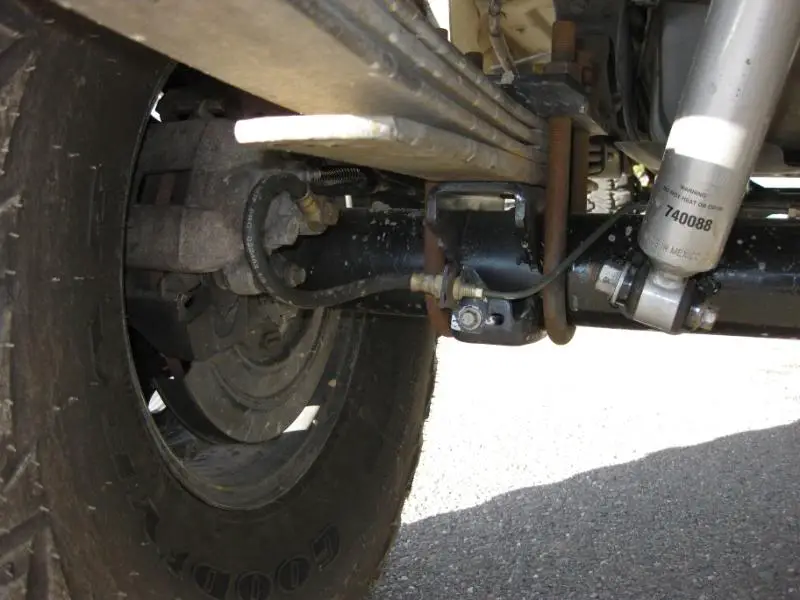

Some shots of the rear axle showing new shock mounts, spring perches and brake line routing

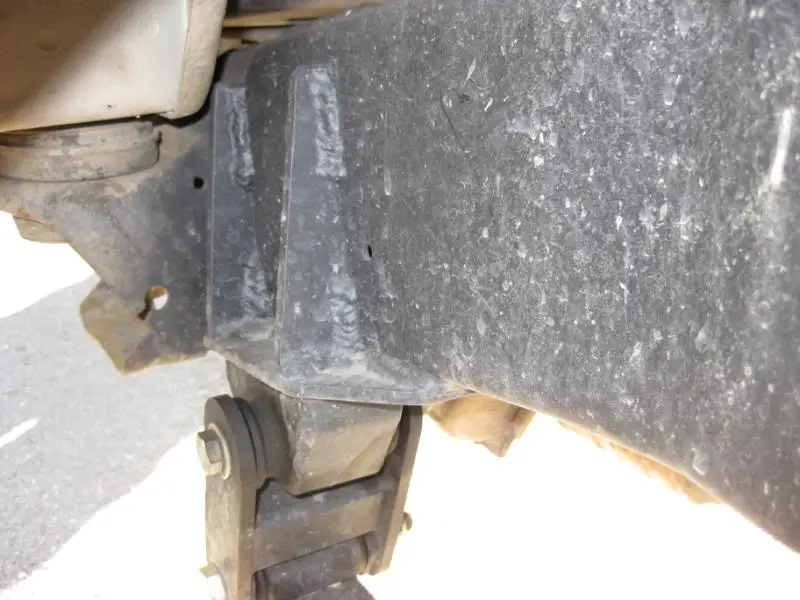

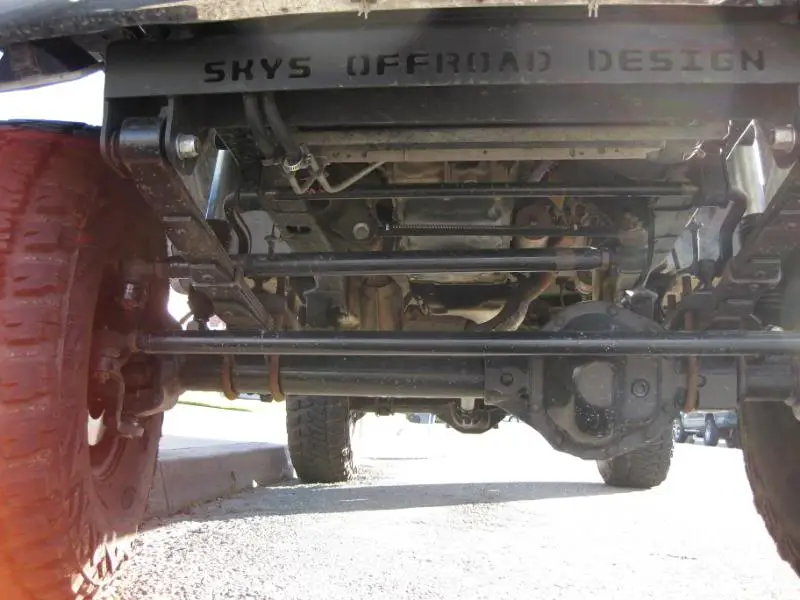

Finished front end set up and shackle mounts, shock hoops, etc...

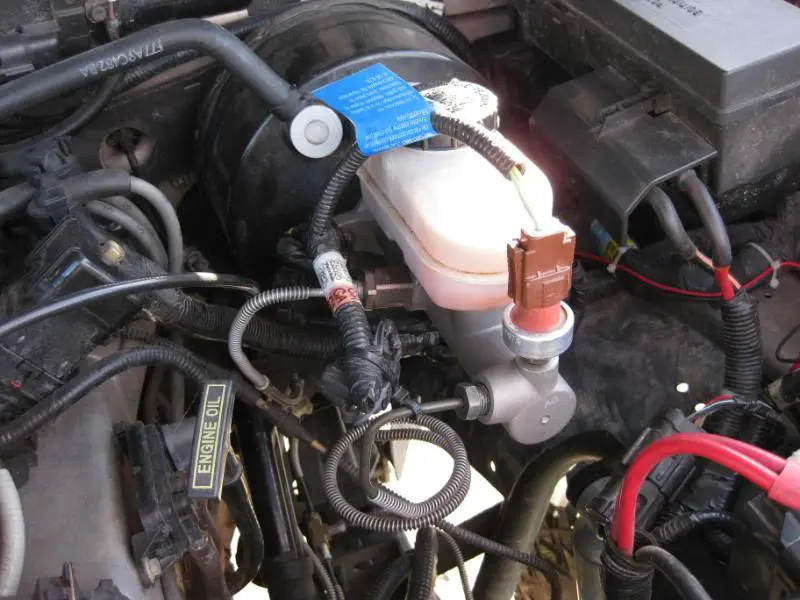

New master cylinder, still need to make up a new rear hard line. The one on there now is the stock one chopped down a couple inches and reflared with the proper flare nut for the master. It works fine but its bent kinda funky and it bothers me that it doesnt match the rest of the lines.


Chopped a hole in the side of the console to get the shifter as far to the side as I could to maintain legroom while keeping the full length console. I used the stock explorer shifter boot and cut an aluminum ring to clamp it down with some RTV. The trim around the cut on the console is door edge mold trim that cleans up the look of the chop.



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




BlakeGordon

Well-Known Member
Joined
April 22, 2009
Messages
144
Reaction score
0
City, State
Tarpon springs FL
Year, Model & Trim Level
'01 XLT
dude this is so clean.. love it





joker1457

Well-Known Member
Joined
July 2, 2009
Messages
283
Reaction score
1
City, State
Aurora, Co
Year, Model & Trim Level
98 Eddie Bauer 4.0 SOHC
All this time I've been looking for a solution to the full length console and 1354tcase swap and you have solved my issue......many thanks:wavey:

Great build, very clean:notworthy





grant00

Well-Known Member
Joined
March 23, 2009
Messages
446
Reaction score
0
City, State
Folsom, CA (home); Pomona, CA (school)
Year, Model & Trim Level
'00 XLT 4.0 SOHC
GREAT idea on the front suspension. seems so simple...makes me want to do mine... :cool:





turboexplorer

Explorer Addict
Joined
August 23, 2008
Messages
1,951
Reaction score
34
City, State
Eagle Mountain, UT
Year, Model & Trim Level
98' XLT 5.0L 4X4
Callsign
Turbo
Great build! Clean and looks like it was done right, good work!

Do you have a pic by chance of you looking straight at the front of the rig so we can see how the tires sit in relation to the fenders?





mjenk430

Active Member
Joined
March 19, 2011
Messages
59
Reaction score
1
City, State
Orange Co, VA
Year, Model & Trim Level
'02 Lifted Sport Trac
Very nice/clean build. I like the Sky Manuf. S10 kit (I think I will go this route) Saves some fab time + it looks cool :)

How did you decide exactly how far forward/backward to mount the front crossmember/perches and the rear perches?





j_mazala

Active Member
Joined
July 16, 2006
Messages
51
Reaction score
1
City, State
Bay Area, CA
Year, Model & Trim Level
98 XLT
For the crossmember mounting I pretty much shoved it as far back as I could while still having about .5" gap between it and the AC condensor.

With the Sky kit and the eye to center pin spacing on the Marlin springs the axle wound up about 3.5-4" forward of stock.

To find where shackle mound should be you need to know the eye to eye length of the spring with the weight of the vehicle on it. After you figure that out and decide how many degrees you want the shackle to be at ride height (more vertical shackle had a stiffer spring rate, laid back shackle has a softer spring rate - theres a bit of an inexact science to this but thats the short and easy of it) its time to bust out the calculator and do a bit of trig!

Mounting Distance = Spring Length - Sin(Shackle Angle) * Shackle Length

With this calculation a 90 degree shackle is flat and 0 degree is vertical

My example...

45.5 - Sin(20) * 4.25 = 44

So I placed the shackle mount 44" back from the hanger.

The Sky kit isn't exactly ideal being that the bottom of the hanger isn't boxed in so a little strenght is lost there and its a universal kit so you gotta work around it a bit instead of purpose building the parts to meet your needs. With that said it was nice just to be able to square up the hanger on the frame, weld it on and be done with it





grant00

Well-Known Member
Joined
March 23, 2009
Messages
446
Reaction score
0
City, State
Folsom, CA (home); Pomona, CA (school)
Year, Model & Trim Level
'00 XLT 4.0 SOHC
Do you have any side pictures on flat ground to show how far the axle moved forward?





Tifoez & Lavinia

Well-Known Member
Joined
March 6, 2011
Messages
229
Reaction score
66
City, State
Charleroi, Pennsylvania
Year, Model & Trim Level
'01 XLT
Love it, subscribing!

I also posted questions about using an entire Early Bronco and swap out everything from front axle, motor, trans, transfer case, and maybe rear axle if its easier for the width.. If anyone has advice stop in

http://www.explorerforum.com/forums/showthread.php?t=313227

Sorry to use your thread as a billboard ;)





joker1457

Well-Known Member
Joined
July 2, 2009
Messages
283
Reaction score
1
City, State
Aurora, Co
Year, Model & Trim Level
98 Eddie Bauer 4.0 SOHC
Chopped a hole in the side of the console to get the shifter as far to the side as I could to maintain legroom while keeping the full length console. I used the stock explorer shifter boot and cut an aluminum ring to clamp it down with some RTV. The trim around the cut on the console is door edge mold trim that cleans up the look of the chop.
[/QUOTE]

:scratch: Would it be alot to ask, how the heck you did this? Did you have to modify the shift lever, I did this swap last night and my shift lever is sitting no where near this angle. It sits directly under the front of the console. Please and Thank you





j_mazala

Active Member
Joined
July 16, 2006
Messages
51
Reaction score
1
City, State
Bay Area, CA
Year, Model & Trim Level
98 XLT
Yea I cut the lever just above the stock shift gate then welded in a piece about 1.5" or so to dog leg it over to the driver side then welded on the top piece of the stock lever to the dog leg at a bit of an angle to it would just barely clear the console and allow the most room for the drivers right leg.

I didn't take any pictures during the process but I'll go out and try to snap a few of the finished product.





joker1457

Well-Known Member
Joined
July 2, 2009
Messages
283
Reaction score
1
City, State
Aurora, Co
Year, Model & Trim Level
98 Eddie Bauer 4.0 SOHC
Yea I cut the lever just above the stock shift gate then welded in a piece about 1.5" or so to dog leg it over to the driver side then welded on the top piece of the stock lever to the dog leg at a bit of an angle to it would just barely clear the console and allow the most room for the drivers right leg.

I didn't take any pictures during the process but I'll go out and try to snap a few of the finished product.

Much appreciated :)





j_mazala

Active Member
Joined
July 16, 2006
Messages
51
Reaction score
1
City, State
Bay Area, CA
Year, Model & Trim Level
98 XLT

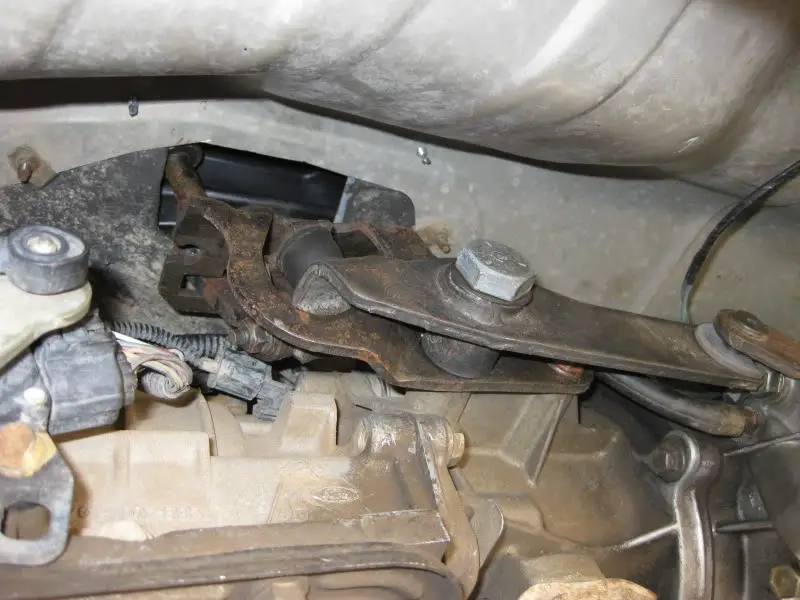

Ok the first pictures are in the 2H position and the last is in 4L. Note the welded in dog leg in relation to the shift gate in 2H and the floor in 4L, those are the only real clearence issues I had other than getting the angle right on the upper portion of the lever to clear the console how I wanted. Its a custom fit and required a bit of trial and error but overall wasnt too bad and it works and clears perfectly now. My only concern was with welding the hardened metal of the lever but so far so good!








And heres a few other pics that were asked for










joker1457

Well-Known Member
Joined
July 2, 2009
Messages
283
Reaction score
1
City, State
Aurora, Co
Year, Model & Trim Level
98 Eddie Bauer 4.0 SOHC
Many thanks sir, off to bust knuckles and hopefully come up with a similar outcome :hammer:









j_mazala

Active Member
Joined
July 16, 2006
Messages
51
Reaction score
1
City, State
Bay Area, CA
Year, Model & Trim Level
98 XLT
At this point I'm not comfortable doing work for others, maybe in a few years if this one has stood the test of time. I'm sure Any 7 Offroad in San Leandro will be able to knock it out quick and easy for you though. There is also white rhino on pirate4x4 that does fabwork out of I believe Morgan Hill.









j_mazala

Active Member
Joined
July 16, 2006
Messages
51
Reaction score
1
City, State
Bay Area, CA
Year, Model & Trim Level
98 XLT
I've put about 2-3000 on it since the swap and it drives great. Only problem I had was too much body roll for my liking but the front sway bar took that all away.





cmhaah06

Elite Explorer
Joined
March 30, 2007
Messages
632
Reaction score
1
City, State
CLOVIS, CA
Year, Model & Trim Level
91 XLT
Great looking rig! Awesome SAS with a leaf pack. Considering a SAS and seeing this makes the decision hard. Three link was looking like the clear winner, but, this rig with the leaf packs makes me rethink my plans. Seems very simple with a great outcome.
