Adding Back Up Camera - It can be done on the OEM screen


jmr061

Well-Known Member
Joined
August 24, 2014
Messages
1,879
Reaction score
134
City, State
Wisconsin
Year, Model & Trim Level
16 Edge
Pr-16 Exp Sport
I know some MFT units and some that have the basic 4.2" display didn't come with back up cameras. I can enable the back up camera feature on the MFT system (you have to add a camera). I need to do this in person or you have to send me your APIM.

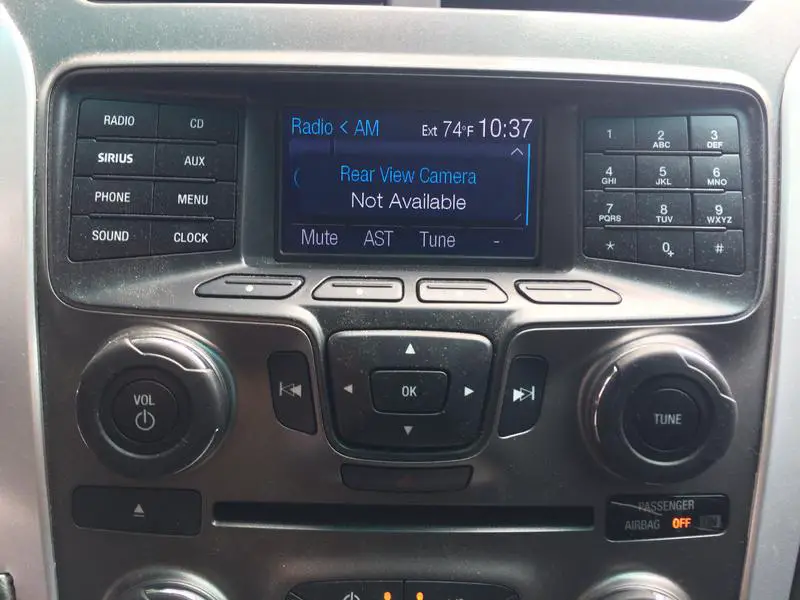

On the basic 4.2" screen I modify the vehicle programming which your dealer can load. I tested this on a 2014 PI Utility. It comes up with that error message as it isn't seeing a video input. Shows that it can be done though.

I am working on sourcing the parts needed to build interface cables that plug directly into the OEM connector for the APIM (MFT units) or the FCDIM (4.2" MyFord). You can install the OEM camera or use an aftermarket camera. This will give you basic back up camera functionality.


Attachments

Last edited:


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Sgt1411

Elite Explorer
Joined
February 22, 2011
Messages
4,321
Reaction score
351
City, State
VanBC/GoodyearAZ
Year, Model & Trim Level
2017 Explorer SPORT
On the 2016 PI Utility and Sedan Ford is offering the customer the option of RVC on either the 2" rear view mirror or the 4" radio screen.

Just want to confirm this is done through IDS tool programming correct?

Could be switched back and forth if needed?





jmr061

Well-Known Member
Joined
August 24, 2014
Messages
1,879
Reaction score
134
City, State
Wisconsin
Year, Model & Trim Level
16 Edge
Pr-16 Exp Sport
If you are asking about the 2016 specifically I can't answer that. The rear view mirror has no programming associated with it so that is probably just a static system, ie not much for programming.

The FCDIM has to be programmed for the camera to display. The FCDIM programming is altered with a file I provide for use with IDS.





Lpasteur

New Member
Joined
July 16, 2016
Messages
2
Reaction score
0
City, State
Allentown
Year, Model & Trim Level
2012 ford explorer
I need the file to add the camera..Also some instructions





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
28,341
Reaction score
1,726
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
I need the file to add the camera..Also some instructions
Welcome to the Forum.:wave:
It would be helpful if you added the 'trim' level (Base, XLT, etc.) to your profile so it always shows in the margin. It may not make a difference in this case but it could in addressing other concerns you may have in later posts. Thanks.

Peter
