Adding factory auto-dimming inside mirror to 2020 XLT

linkovich

Member
Joined
July 7, 2020
Messages
19
Reaction score
5
City, State
Buffalo, NY and West Bradenton, FL
Year, Model & Trim Level
2020 Explorer XLT 202A
Hi,

Has anyone replaced the XLT's manual inside mirror with the basic (non-camera) auto-dimming mirror (JU5Z-17700-C) that's standard on the Limited?

According to the wiring diagrams I have for the 2020, the 5-pin connector should already be under the cover (which I haven't removed yet), and I doubt that anything needs to be programmed for it.

Also, that cover seems to be secured with four plastic snap-ins. Am I the only one that gets nervous trying to unpop them?

Thanks.



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,978
Reaction score
2,523
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3




vallord

Member
Joined
February 10, 2018
Messages
11
Reaction score
0
City, State
Whitehorse, YT
Year, Model & Trim Level
2020 Explorer ST
Hi,

Has anyone replaced the XLT's manual inside mirror with the basic (non-camera) auto-dimming mirror (JU5Z-17700-C) that's standard on the Limited?

According to the wiring diagrams I have for the 2020, the six-pin connector should already be under the cover (which I haven't removed yet), and I doubt that anything needs to be programmed for it.

Also, that cover seems to be secured with five plastic snap-ins. Am I the only one that gets nervous trying to unpop them?

Thanks.

My ST came with the manual inside mirror. It took me less then 10 minutes to switch it with the auto-dimming mirror once the dealership received it. I was also pretty nervous about removing the cover, as it's pretty tight in there.

Take a look at jrgoffin tread, that's what I used to guide me in the process: Power mirror circuit: hard-wiring radar detector, camera, etc.





blwnsmoke

Staff member
Moderator
Elite Explorer
Joined
February 25, 2011
Messages
5,837
Reaction score
1,287
City, State
Moderator
Year, Model & Trim Level
2020 Explorer ST
My ST came with the manual inside mirror. It took me less then 10 minutes to switch it with the auto-dimming mirror once the dealership received it. I was also pretty nervous about removing the cover, as it's pretty tight in there.

Take a look at jrgoffin tread, that's what I used to guide me in the process: Power mirror circuit: hard-wiring radar detector, camera, etc.

To be fair, your ST would have had the wiring there because it was supposed to have the auto dim. My gut tells me that the wiring is there as well but no guarantees.

OP, just remove the cover and check it first. Several have popped it off without issue.





kmacks27

Member
Joined
August 11, 2020
Messages
11
Reaction score
3
City, State
Wintersville ohio
Year, Model & Trim Level
2020 Explorer XLT
Hi,

Has anyone replaced the XLT's manual inside mirror with the basic (non-camera) auto-dimming mirror (JU5Z-17700-C) that's standard on the Limited?

According to the wiring diagrams I have for the 2020, the six-pin connector should already be under the cover (which I haven't removed yet), and I doubt that anything needs to be programmed for it.

Also, that cover seems to be secured with five plastic snap-ins. Am I the only one that gets nervous trying to unpop them?

Thanks.
Did you find out if the plug was behind the cover?





linkovich

Member
Joined
July 7, 2020
Messages
19
Reaction score
5
City, State
Buffalo, NY and West Bradenton, FL
Year, Model & Trim Level
2020 Explorer XLT 202A
Did you find out if the plug was behind the cover?
Yes, finally!
Did you find out if the plug was behind the cover?
Well, I did get the cover off, and it came off cleanly and easily. Just move the mirror downward, including the extension arm, pull from the front center, and move sideways on each side to disengage the four clips (see the attached cover picture).

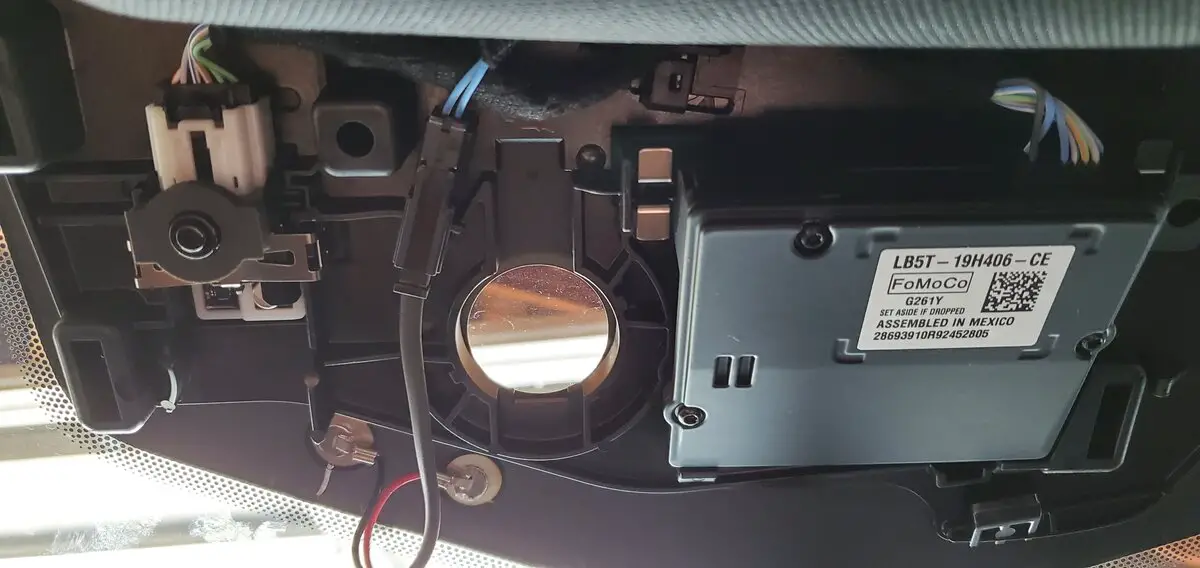

The only connectors I could find, and I do have the XLT 202A, are the temp/humidity sensor (left), the connector for the IPMA (image processing module A) heating element (middle), and the IPMA lane-departure module (right). I couldn't see a mirror connector. If it's there, it must be tucked inside the headliner.

I'll take the cover off again this weekend and look inside the headliner. If there's a green-with-brown-stripe wire running up the A-pillar, that's the reverse lamp feed, and if that's there, the auto-dimming mirror will work with only that and a + and - connection...and I know I can find the part number for the 5-pin connector as well.


Attachments

  • 2020 explorer upper windshield modules.jpg
    2020 explorer upper windshield modules.jpg
    96.6 KB · Views: 78
  • 2020 explorer upper windshield cover.jpg
    2020 explorer upper windshield cover.jpg
    115.5 KB · Views: 81




kmacks27

Member
Joined
August 11, 2020
Messages
11
Reaction score
3
City, State
Wintersville ohio
Year, Model & Trim Level
2020 Explorer XLT
Yes, finally!

Well, I did get the cover off, and it came off cleanly and easily. Just move the mirror downward, including the extension arm, pull from the front center, and move sideways on each side to disengage the four clips (see the attached cover picture).

The only connectors I could find, and I do have the XLT 202A, are the temp/humidity sensor (left), two wires for something connected directly to the windshield (middle), and the lane-departure camera module (right).

I'll take it out again this weekend. If there's a green-with-brown-stripe wire running up the A-pillar, that's the reverse lamp feed, and if that's there, the auto-dimming mirror will work with only that and a + and - connection...and I know I can find the part number for the 5-pin connector as well.

Ok good I have mirror on order too. I can’t wait to switch mine out also. So you are saying the plug is there? Or will I have to wire it up someway different. Did the wire come with the new mirror? Thanks





peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
31,978
Reaction score
2,523
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Be very careful. That module (Image Processing Module) is $1081.62 on Fordparts.

Peter





linkovich

Member
Joined
July 7, 2020
Messages
19
Reaction score
5
City, State
Buffalo, NY and West Bradenton, FL
Year, Model & Trim Level
2020 Explorer XLT 202A
Be very careful. That module (Image Processing Module) is $1081.62 on Fordparts.

Peter
Exactly...I saw that!

I don't even like to see kinked wiring...but anything marked "set aside if dropped" is a red alert.





linkovich

Member
Joined
July 7, 2020
Messages
19
Reaction score
5
City, State
Buffalo, NY and West Bradenton, FL
Year, Model & Trim Level
2020 Explorer XLT 202A
Ok good I have mirror on order too. I can’t wait to switch mine out also. So you are saying the plug is there? Or will I have to wire it up someway different. Did the wire come with the new mirror? Thanks
I didn't see the mirror connector, but I'll look again this weekend. It may be inside the headliner where it meets the cover at the top of the windshield.





kmacks27

Member
Joined
August 11, 2020
Messages
11
Reaction score
3
City, State
Wintersville ohio
Year, Model & Trim Level
2020 Explorer XLT
I didn't see the mirror connector, but I'll look again this weekend. It may be inside the headliner where it meets the cover at the top of the windshield.
Ok thanks let me know what you find





kmacks27

Member
Joined
August 11, 2020
Messages
11
Reaction score
3
City, State
Wintersville ohio
Year, Model & Trim Level
2020 Explorer XLT
I had some time to look under the windshield cover and I even pulled the over head lights right behind the cover and I cannot find the wire for the auto dim light so I guess it’s a no go.





linkovich

Member
Joined
July 7, 2020
Messages
19
Reaction score
5
City, State
Buffalo, NY and West Bradenton, FL
Year, Model & Trim Level
2020 Explorer XLT 202A
I had some time to look under the windshield cover and I even pulled the over head lights right behind the cover and I cannot find the wire for the auto dim light so I guess it’s a no go.
It only needs +, -, and reverse. And reverse is only to brighten it when the reverse lamps are on. Technically, you could even run it without that.
