Picked out the Dual battery charger I want. REDARC's BCDC charger with dual Isolate, solar charger & Regulator, DC-DC, & low voltage amplifier/regulator from Alt/start battery. These are fan less sealed smart charging units. Waterproof & dust proof, and can be installed in any orientation. Works in sub freezing temps and up to 176F. The higher charge rate with managed voltage will help with battery life. These batteries are very expensive consumables, and I want the longest life span I can get out of one.

The model used in this product video is for a single Aux (House) battery. I will get the BCDC1240D unit for dual batteries over 200 Ah. It's a larger 40 amp unit.


Now to save for it.


kmack

Active Member
Joined
December 28, 2000
Messages
121
Reaction score
42
City, State
San Antonio, TX
Year, Model & Trim Level
1993 Ford Explorer
So I just finished reading thru your trailer build and....this thing's awesome! Definitely put a lot of thought into it. Makes me want to build one and I don't even have a use for it!!!

I did want to mention something to you about an issue you brought up about a year ago (half way into this thread) and that was related to a lubricant for the scissor jack on top.
Try this: https://www.amazon.com/Johnson-Evinrude-OMC-508298-Triple-guard/dp/B001KYH6AW

This is used in outboard motors mostly on the prop shafts. It is really thick and sticky and doesn't come off easily. I run this on my boat and the same grease is still on the prop shaft after all summer of running the lakes. Might be a good option that won't get wind/rain-blown off, or affected much by extreme heat.

Keep up the excellent work!


gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
10,812
Reaction score
1,188
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's
Well, first off @kmack, congrats on making it through the entire thread. I bet that took some time! Your still kicking, so it didn't kill you at least. :thumbsup: Thanks for the kind words.

Thanks for the idea on that grease too. I have used that stuff on the Jet ski throttle cable in the past, because of it's water proofing ability, and never even thought of it for these jacks. What my main concern with lubricating that rooftop jack was dripping onto the paint from high heat. It's black, and will be in some hot climates now and then. Since that post was made, I have already bought a couple different lubes for it, but have yet to apply them. DPFE and Silicone sprays made for RV equipment. If those don't hold up, I will test that Johnson/ Evinrude grease on something in the heat, to see if it melts and drips.


kmack

Active Member
Joined
December 28, 2000
Messages
121
Reaction score
42
City, State
San Antonio, TX
Year, Model & Trim Level
1993 Ford Explorer
Well, first off @kmack, congrats on making it through the entire thread. I bet that took some time!
Yeah, it took a couple days! But I had some leisure time here at work... :popcorn:


allmyEXes

Active Member
Joined
February 6, 2016
Messages
752
Reaction score
172
Location
Lickskillet
City, State
No. Alabama USA
Year, Model & Trim Level
'97 Merc "MO" the 5.0
Callsign
KAGG 3611
Just curious. What is your total project weight so far?


gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
10,812
Reaction score
1,188
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's
Just curious. What is your total project weight so far?
Haven't officially weighed it yet. Best guess is just under 2k as set up currently. That's including the spare tire, kitchen stocked, Roof top tent, awning, misc gear & accessories, and packed tongue box with batteries. If I stripped it down to just the trailer itself, guessing around 1200 lbs unsprung, and 1500 with axles and wheels.

It's not a light weight trailer by no means, but it won't fall apart either. It's made to out live me. :D

Goal is 2500 loaded wet. Time will tell how that goes.

Last edited:

allmyEXes

Active Member
Joined
February 6, 2016
Messages
752
Reaction score
172
Location
Lickskillet
City, State
No. Alabama USA
Year, Model & Trim Level
'97 Merc "MO" the 5.0
Callsign
KAGG 3611
You have constructed a well built trailer. To be half the weight of your tow vehicle you are doing good.


gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
10,812
Reaction score
1,188
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's
You have constructed a well built trailer. To be half the weight of your tow vehicle you are doing good.
Tow rig has been modified to help in towing. Both on road and off. Bigger engine, trans mods, and gear reduction case, along with suspension upgrades.

It's been quite a project, and not one for somebody who isn't willing to sacrifice a couple of years of time and resources. Lol


gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
10,812
Reaction score
1,188
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's

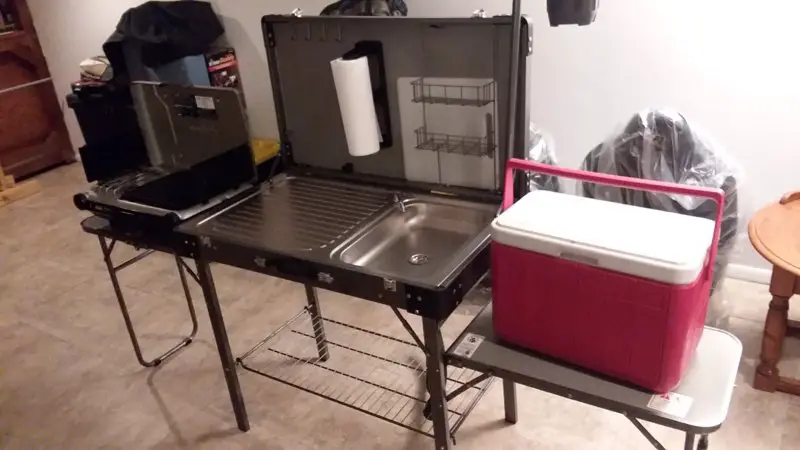

Was going through my camp gear, and deciding what to sell off or give away, and came across my Old Coleman folding Kitchen. This is 15 years old at a minimum, and maybe 20. It's in like new condition still. You can't buy this style anymore from them. This unit has a working stainless sink top, with a nice faucet & drain. It's frame, brackets, racks are all powder coated in a silver vein. Solid work tops, and HD latches. It even has a motion sensor LED light for the underside of the lid, that works! A pole for hanging a bigger light, paper towel holder, utensil hanging pegs, small 2 shelf storage rack on the lid for whatever, and a nice big rack shelf underneath. I forgot how compact this is, and how big it gets when fully open. Heck, It even has laminated assembly instructions still there.

I decided to keep it, and store it in the trailer, as it packs up neatly in a carry case, that will strap to the rear deck perfectly. It will come in handy when there is more than 2-3 of us using this trailer as the main camp base for cooking & what not. Room for one or two more grills, wash station, and lots of room to store items. It folds up in a couple of minutes, easy breezy.

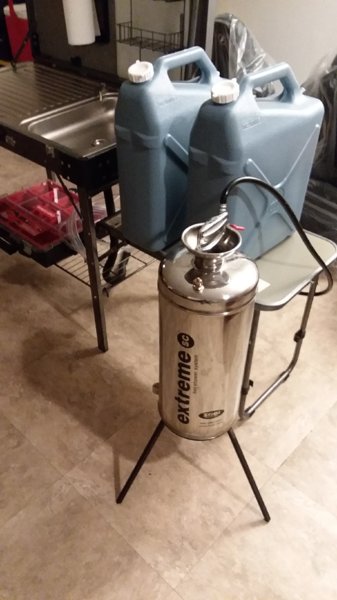

If I don't want to hook up the instant hot water heater to it, I have a pressurized Propane Zodi Hot water heater tank, that will hook up to the faucet, or can use a water jug and gravity feed it with a garden hose. I like having more than one option, and that's 3! lol

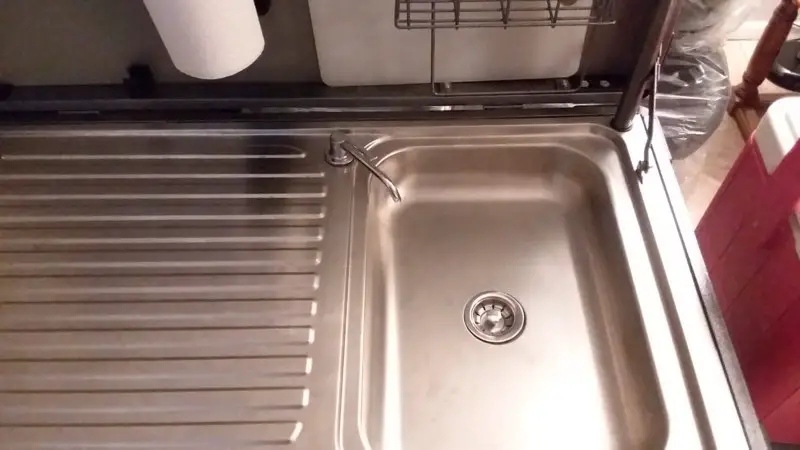

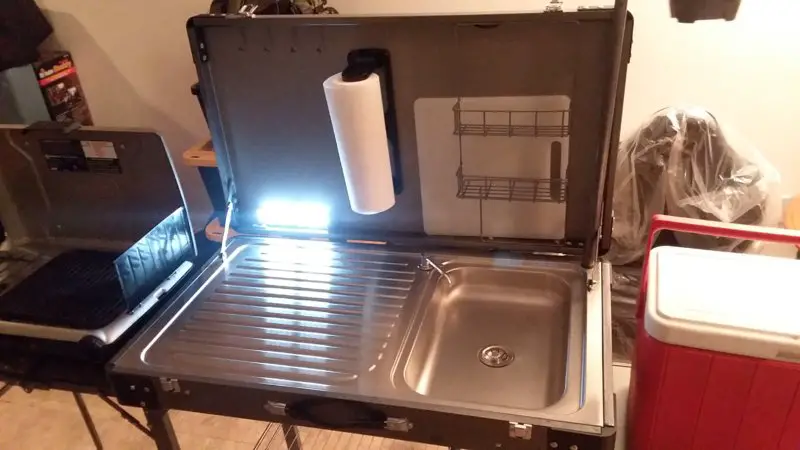

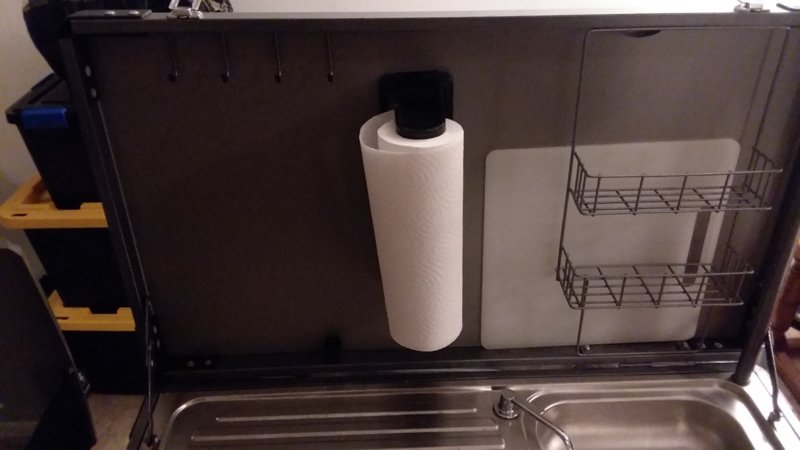

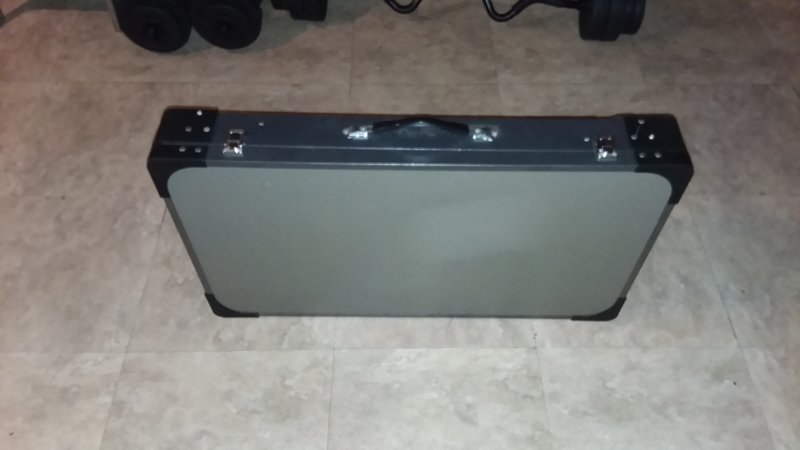

C Kit closed up.jpg
C Kit 1.jpg
C Kit 2.jpg
C Kit 3.jpg
C Kit 4.jpg
C Kit hot water setup.jpg


I understand now why I never got rid of this thing. It's just too cool to part with. Can throw it in the back of the rig to use w/o the trailer too.

The basement has become an parts staging & storage area for all things trailer & tow rig. It's like my 2nd shop with HVAC control. The Bar looks like a cluttered parts counter at Autozone. LOL!


Will be chopping away at this thing a little at a time over the winter into next spring. Won't have many updates to share, as I have other things I'm working on, and can only invest in one thing at a time. I like to spread it out a bit. :D

Happy Halloween EF !!


gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
10,812
Reaction score
1,188
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's
Pulled the trigger on the Heavy Duty, ARK XO 750 Down under "Jockey wheel" (as they call it). Got it installed last night. I went the cheap route, and didn't get the more expensive black version. Same unit, just not black, so......... yeah.

The Good:
It is super easy to work, smooth articulation and fast cranking action. It's solid with all 1/4" steel, Grade 5 hardware, four heavy duty wheel bearings, huge powder coated wheels with nice tires, and with it on the tongue beam the trailer is now easy to move around. No more crank handle to strap up as it is removable with a magnet connection. (Just hope I don't forget it and lose it on the road/trail) It has a 10" crank articulation, with 4 height positions for the unit. I have it set as low as it can go, and it takes 8.5" of lowering to get the wheels to lift the trailer to level. Not much left to raise it higher if needed. Lifted problems, only lifted people understand. LOL

The Bad:
It has a clamp. This clamp is huge. It's universal for 4 sizes of frame heights. From 3" to 6" tall. I needed the 4" setting. The way they have it made, you need to keep the center of the pivot to the center of the frame rail. This drops the clamp way below the frame rail. I lost 2.5" of clearance because of it. The top section raises well above the frame rail too. Nothing I can do about this but weld it directly to the frame rail. As of now, I don't want to do that. the backside of it has two channel pieces for the back half of the clamp. These are massive long, and I still need to cut the excess off, now that It is on.

With it being on the tongue rail vs the tongue box frame, I lost a few right turn radius degrees. It will hit the rigs back bumper as is on a tight turn. I think I need to make a bump stop for it so that doesn't happen. Installed it on the pass side because I am keeping the 2k jack that's on the Dr side, to lift it higher than this thing allows if needed. I still have to cut off the welded tube mount for the old wheel jack, and paint.

Overall thoughts:
I like it for the beef, and ease of operation, but the mounting design, still needs work for smaller frame heights. I would like to see a weld on mount version to make it smaller, and regain the underside loss. Bolt on is more $$ for them with a larger demographic, but even the cheaper versions offer both weld & bolt on.

Now that it's on, I wish I wasn't Scrooge Mc'Duck, and got the black version. This thing is shiny. So shiny, that any future blemish, will stick out like a turd in a punch bowl.


Jockey closed with wheels upright.jpg

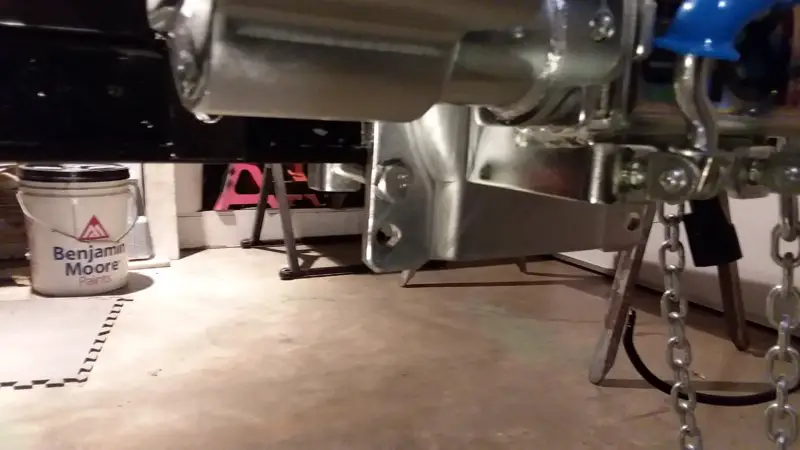

Jockey clamp drop under tongue.jpg

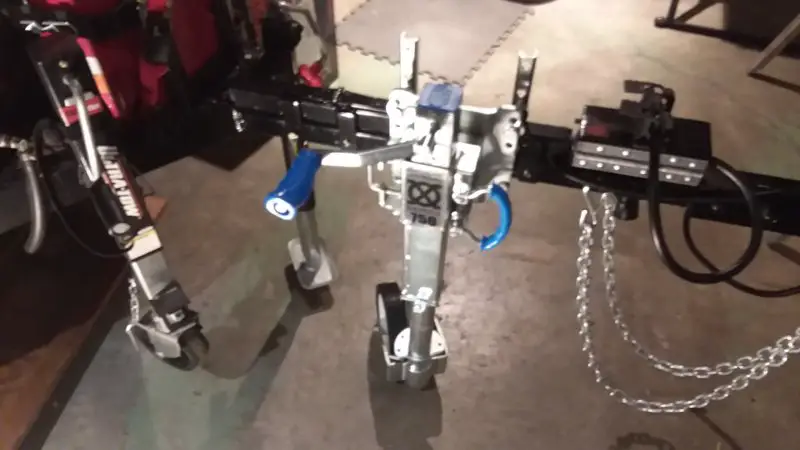

Before the old wheel stand is removed......How is this for redundancy?


All 3 stands on.jpg


Jockey backside of clamp.jpg
Jockey wheels down.jpg

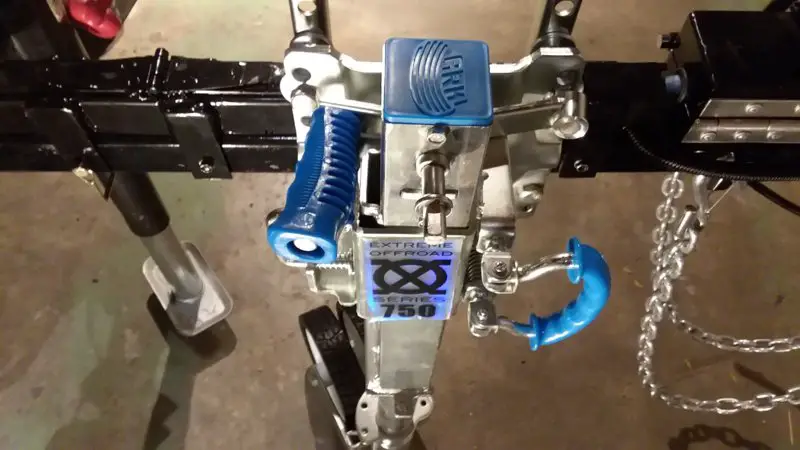

Jockey handle off.jpg


Because of the mounting location, I had to get the upgraded 4 ga charging wire ran to the battery first. That took 5 times as long as installing this thing!

I did notice that this unit is the latest model as they just recently went away with a spring loaded lock pin for the wheel base storage position. It has a welded on pin now, and you have to crank the wheels upward all the way to lock it in. You can see the pin holes for it by the tires, in the last picture. Will trim up the long clamps this weekend.

Shop is cleaned up, and transformed for a new project starting this weekend. Had to set up the big table, and a new wire spool on the welder for this one. :D


Dono

347 V8 Limited turbo
Elite Explorer
Joined
February 18, 2009
Messages
5,265
Reaction score
534
City, State
Winnipeg, Manitoba
Year, Model & Trim Level
00 Limited V8
I was surprised to get to the bottom of the post and the Jockey wheel wasn't painted. lol.

New welding project? Sounds big and ominous.


BKennedy

Elite Loser
Staff member
Moderator
Elite Explorer
Joined
November 29, 2000
Messages
6,936
Reaction score
852
Location
USA
City, State
San Diego, PRofK
Year, Model & Trim Level
1994 XLT
I was typing "How much you want for the Coleman Kitchen?", then I kept reading your post. I like to travel light when I go on expedition type trips, but that is cool.


gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
10,812
Reaction score
1,188
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's
Yeah, Way to many moving/spinning/sliding parts on that thing to paint it. My original thinking when I bought this version was, the black is more expensive, and it will probably get chipped on the trails. Talked myself right out of that in a hurry! (Haha/cry)

Current project is more overland related stuff, but for the tow rig. That one is going to take a couple- three- four- weekends, and evenings. Got a jump on it this evening actually. :)

That old camp kitchen is pure gold. I have tried to get rid of it, but just can't! lol I looked at the new ones available at Cabella's, and they don't compare in quality.

Rant on:
Remember seeing "Made In USA", on long lasting quality goods made here, and was on just about everything? Not anymore :(
Somebody needs to teach them Chinese, to at least translate better. I wanted a small wall rack to hang a couple garden tools, and got this answer to a dimension question..... "OH, you wan the 3ft house for the garden tool, it's for ease of mine, and fit best in space we provided for all in last year chicken soup sale." "Thank you, look again!"
Rant off:


gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
10,812
Reaction score
1,188
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's
Was picking up some supplies at the supply gettin place, and seen this 1200w/2400w Peak inverter, on a clearance rack as I was walking out. I grabbed it, went back in line, and thought they made a mistake with the final price. They told me everything on that rack was half off the marked down sticker price. :eek: Deal!!

Peak 1200w inverter.jpg


I paid $15. :D I looked it up and found them on Ebay for $90+$20 shipping. I think they are a discontinued unit though. I have used this brand in the past, and they worked great. Only a Modified sine wave, but that's alright at this price.

This includes the dual remote power outlet with USB, and on/off switch for the unit. Can mount this thing, then install the remote elsewhere, with the 10 ft cables supplied for it.

I should have grabbed a couple more at that price. Might go back and grab another. lol

Edit: I went back and grabbed the last one they had. Lol

Last edited:

gmanpaint

It's Always Something!
Staff member
Moderator
Elite Explorer
Joined
August 1, 2008
Messages
10,812
Reaction score
1,188
City, State
MO MO
Year, Model & Trim Level
94 & 95 XLT's
It's been a while since I touched this trailer. I decided to get the power inverter installed, since that was the subject of the last post made here.

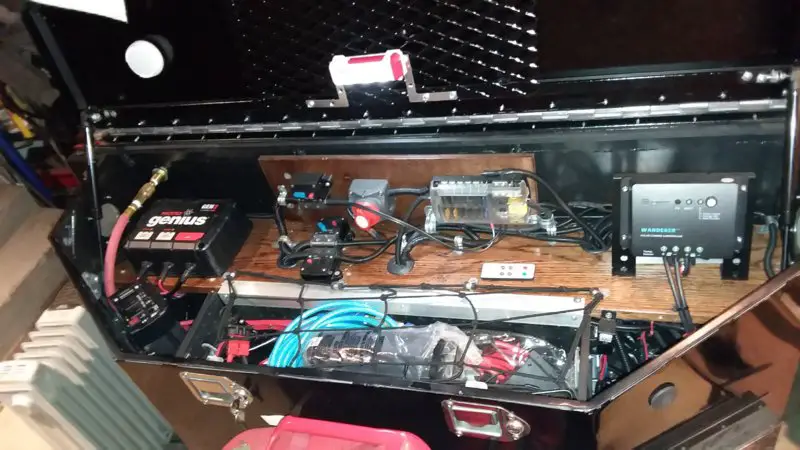

The box is a busy place. There is so much work going on inside this thing, it needs it's own crew manager. Wait....... That's me. :crazy:

I saved a spot for this thing during the install of the other 50 items. It wasn't much of a spot tho. It had to be shoehorned next to the air tank, in front of the batteries. Was like playing a game of Operation. One wrong move, and that red nose would light up. Wait..... That would be my nose. :eek:

Actually isn't that bad after it's mounted. It is just my arms, hands, torso, and big head stopping it from being an easy job. :laugh:

To mount it to the box, and not make new holes into the side panels, I opted to make a bracket for it, then bolt the bracket to the inner frame work. The base is angle that rests on the box floor, with tube spacers that rest against the vertical wall behind it. The upper section is more angle that rests on the middle frame tube. 3/16" Flat stock was used to connect both angles, and the inverter gets bolted to them. Hardest part of making this bracket, was tack welding the upper angle to the flat stock..... inside the box. Oof, that was fun. There is a slight angle to the frame tube, and getting it all to fit well, made this necessary. I need some kind of ground clamp that is small, and made for tight spots. Something with a 90* clamp end. Probably something like that out there, I just haven't seen it yet.

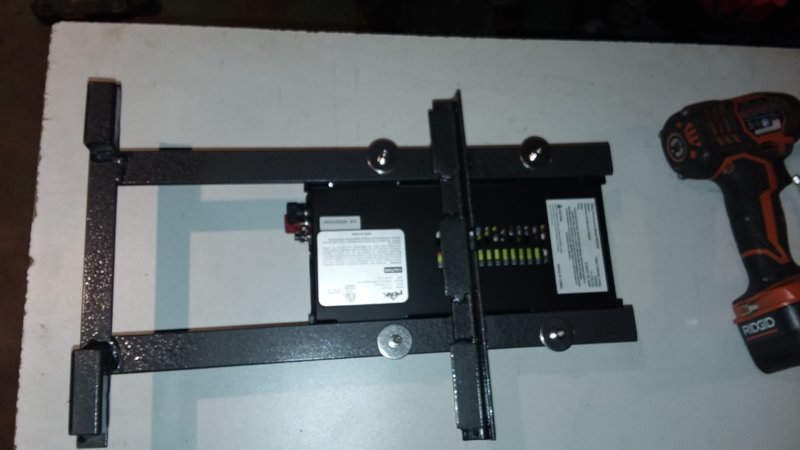

Inverter bolted to the painted bracket, topside & backside.

Inverter on topside.jpg

Inverter on backside.jpg


Shoehorned that Mother F***er in there like size 8 foot, in a size 5 glass slipper. The remote was hooked up to test it.

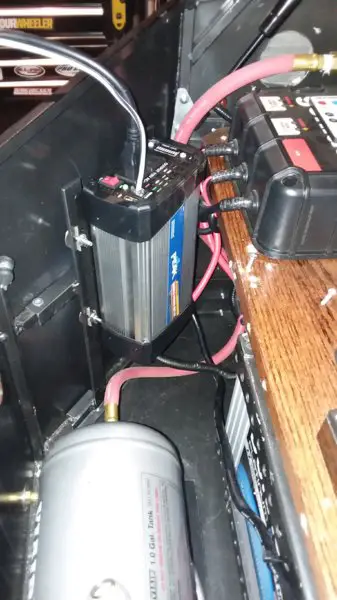

Inverter mounted with remote installed.jpg


To test this doohicky thing a ma bob, I plugged in the remote, and charged a battery with it. No red fault light. No audible bitching sirens. No power consumption Leds.

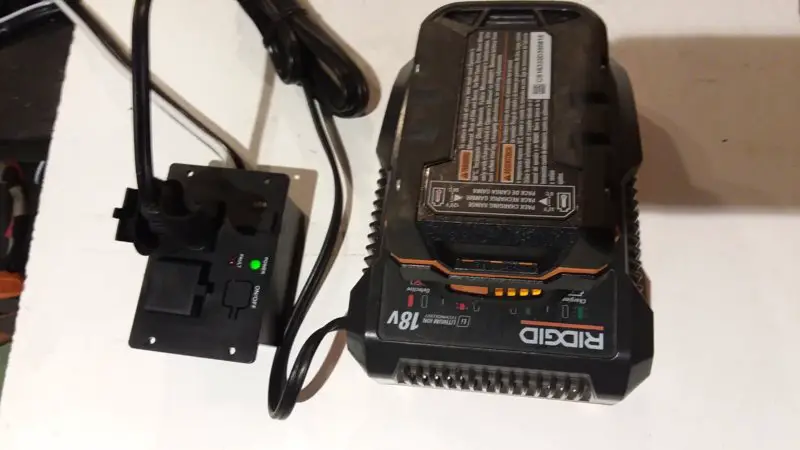

Inverter remote with batt charger in use.jpg


The no Led power bar had me scratching the cranium. Like a neanderthal, I didn't read the fine print in the manual. So.... I dragged my knuckles across the floor, and found it. It says that there is 10 Led's in the bar. Each Led equals 120w of outgoing juice. The battery charger didn't consume enough for even one light. WIMP!!

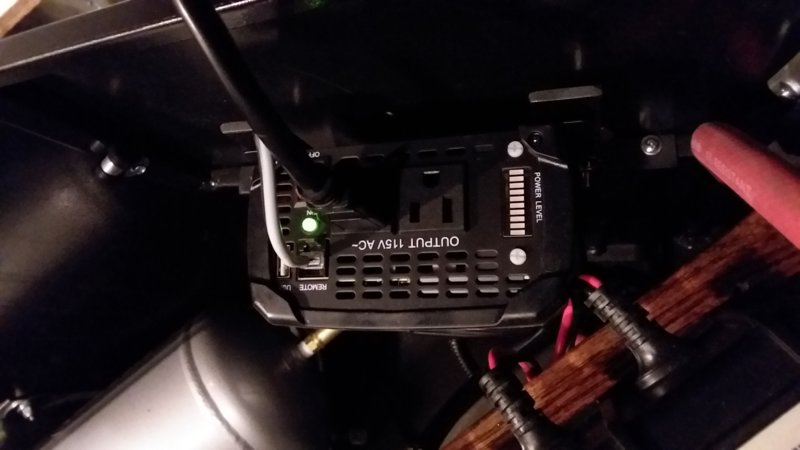

Inverter face with less than 120w draw.jpg



Ok, enough playing with my new toy. Took a few minutes to put the box back together.

T box all together with inverter.jpg



When I was reading that fine print, I seen the part where it said..... This unit will draw .009w/hr. It is suggested to unhook from the battery when not in use. WTF!!! A-holes couldn't have said that in BIG print in the beginning of the install instructions? :censored:

So looks like I need to install a 200amp breaker inline to the battery. They make connect/disconnect a snap. Literally.




I'm Serious.





Not kidding.






Don't look at me like that! :shifty:






Signing off :salute:
