Air intake on undercarriage?

efitz

New Member
Joined
April 7, 2013
Messages
2
Reaction score
0
City, State
Herndon, VA
Year, Model & Trim Level
2013 Ford Explorer Sport
I have a 2013 Ford Explorer Sport.

Recently I pulled up too close in a parking space and ran the front bumper cover up onto the curb.

As a result I dislodged an air intake of some sort. The intake is slightly off to the right side of the vehicle.

What is this air intake for?

Do I need to get it repaired?

Why is there an air intake 6" off the ground on an SUV? What if I drove through a deep puddle...

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




broken strut

Well-Known Member
Joined
June 9, 2012
Messages
733
Reaction score
1
City, State
CHIMOMAN VILLE
Year, Model & Trim Level
2013 White Sport
That's to cool down the engine when towing.

<



broken strut

Well-Known Member
Joined
June 9, 2012
Messages
733
Reaction score
1
City, State
CHIMOMAN VILLE
Year, Model & Trim Level
2013 White Sport
If you intend on towing anything get it fixed.

<



langla4

Active Member
Joined
August 11, 2012
Messages
73
Reaction score
1
City, State
Fullerton CA
Year, Model & Trim Level
2013 Explorer Sport
It is a simple repair as it is held to the undercarriage with three thumb screws. You can do it yourself if you raise the right side of the Sport. Btw, this has to be removed with every oil change if you drain the oil from the bottom.

<



efitz

New Member
Joined
April 7, 2013
Messages
2
Reaction score
0
City, State
Herndon, VA
Year, Model & Trim Level
2013 Ford Explorer Sport
Awesome, thanks guys!

<



peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
32,469
Reaction score
2,659
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
That's to cool down the engine when towing.
It seems that all the 2013 Sports have this intake whether they have the towing package or not. Must have something to do with the Ecoboost engine cooling.

Peter

<



Harley#356

Well-Known Member
Joined
May 20, 2013
Messages
504
Reaction score
9
City, State
NJ
Year, Model & Trim Level
2013 Explorer Sport
follow the channel....it goes to the rear turbo to help cool it since it's nestled back there pretty good.

<



dodgers1

New Member
Joined
November 23, 2014
Messages
8
Reaction score
0
City, State
Conroe, TX
Year, Model & Trim Level
2013 Explorer Sport
Just noticed this air intake part was loose on my 2013 Explorer Sport. Recently had an oil change at a Jiffy Lube type place. (These same guys told me that if I didn't use a synthetic blend oil that Ford would void my warranty, which I'm sure is BS.) I suspect they failed to tighten it properly, although I can't tighten it by hand. Any thoughts?

<



peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
32,469
Reaction score
2,659
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Welcome to the Forum dodgers1.:wavey:
I always have the dealer do my oil changes although according to a few posts, they have also allegedly been guilty of not tightening the defector properly.
A synthetic is recommended but not mandatory. As long as you use an oil that meets Ford's specs. I believe that is covered in the Owner's Guide. My dealer puts regular premium oil in my Ecoboost engine. As for the deflector, it is a very important part of the turbo cooling system.

Peter

<



dodgers1

New Member
Joined
November 23, 2014
Messages
8
Reaction score
0
City, State
Conroe, TX
Year, Model & Trim Level
2013 Explorer Sport
I always have the dealer do my oil changes although according to a few posts, they have also allegedly been guilty of not tightening the defector properly.
A synthetic is recommended but not mandatory. As long as you use an oil that meets Ford's specs. I believe that is covered in the Owner's Guide. My dealer puts regular premium oil in my Ecoboost engine.

Peter

Thank you for the info. I'm going to see if the oil change place can tighten the screws. It's tough to get under there without a lift. My original dealer is quite a journey from where I live. It's still under warranty, so maybe I'll go to the local dealer who was not very helpful during my purchase experience.

<



1995E

Explorer Addict
Joined
July 16, 2010
Messages
1,860
Reaction score
56
City, State
Maryland
Year, Model & Trim Level
95 + 11 Ex both XLT
Just noticed this air intake part was loose on my 2013 Explorer Sport. Recently had an oil change at a Jiffy Lube type place. (These same guys told me that if I didn't use a synthetic blend oil that Ford would void my warranty, which I'm sure is BS.) I suspect they failed to tighten it properly, although I can't tighten it by hand. Any thoughts?

They are partially right. The new engines take semi-synthetic blend oils and no longer use the conventional oil. They come stock with the synthetic blends from the beginning.

Also, I'd avoid changing your oil at Jiffy Lube. They are known for their scams, etc in some parts of the country.

My air intake fell when i went over a speed bump because the person changing my oil decided to tighten it by hand instead of by tool. It's pretty tough though and snapped back on. Thank goodness it was just that and not a broken suspension part of the car lol.

<



Natedogggg

New Member
Joined
March 21, 2021
Messages
1
Reaction score
0
City, State
Brandon
Year, Model & Trim Level
2015 sport exolorer
It is a simple repair as it is held to the undercarriage with three thumb screws. You can do it yourself if you raise the right side of the Sport. Btw, this has to be removed with every oil change if you drain the oil from the bottom.
Have a link to buy these thumb screws?

<



peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
32,469
Reaction score
2,659
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
<



Toddman41

Well-Known Member
Joined
February 24, 2020
Messages
252
Reaction score
66
City, State
Herculaneum, MO
Year, Model & Trim Level
2019, Explorer Limited
These come on all motors. My 19 is the 3.5 NA and has the light metal duct on the passenger side under the motor.

1st time I noticed the cutout on the lower air damage, I thought a plastic trim piece had fell out. When changing the oil I realized it has a purpose.

<



peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
32,469
Reaction score
2,659
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
These come on all motors. My 19 is the 3.5 NA and has the light metal duct on the passenger side under the motor.

1st time I noticed the cutout on the lower air damage, I thought a plastic trim piece had fell out. When changing the oil I realized it has a purpose.
Not actually so. They are on Explorers with Ecoboost motors and those with the factory tow package. My 2011 did not have one.

Peter

<



Toddman41

Well-Known Member
Joined
February 24, 2020
Messages
252
Reaction score
66
City, State
Herculaneum, MO
Year, Model & Trim Level
2019, Explorer Limited
Mine has it, no Ecoboost. But tow package, so

<



ecoboost_xsport

Mad Scientist
Elite Explorer
Joined
March 29, 2015
Messages
521
Reaction score
239
City, State
Orangevale, California
Year, Model & Trim Level
2015 Ford Explorer Sport
It is designed to channel air to the cooler for the PTU as well as the rear catalyst/turbo area as it can get pretty hot back there.

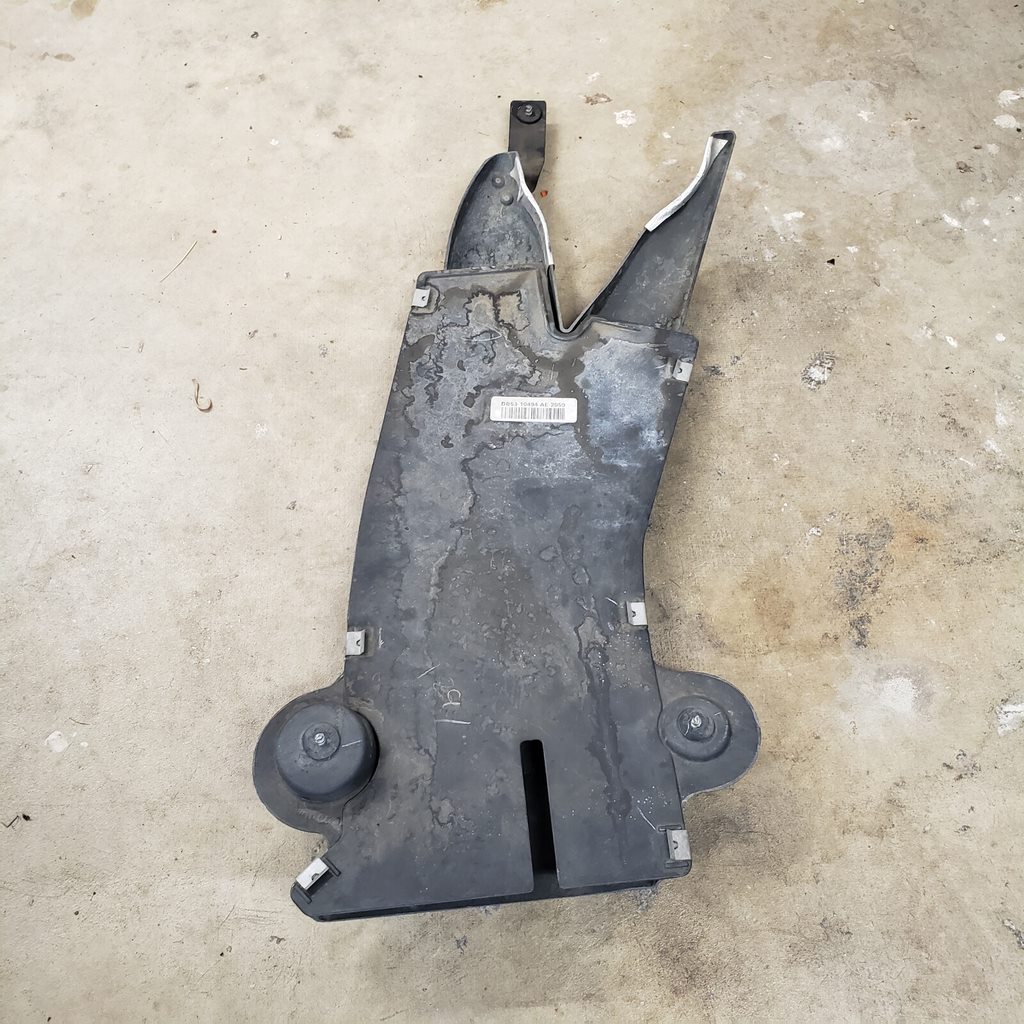

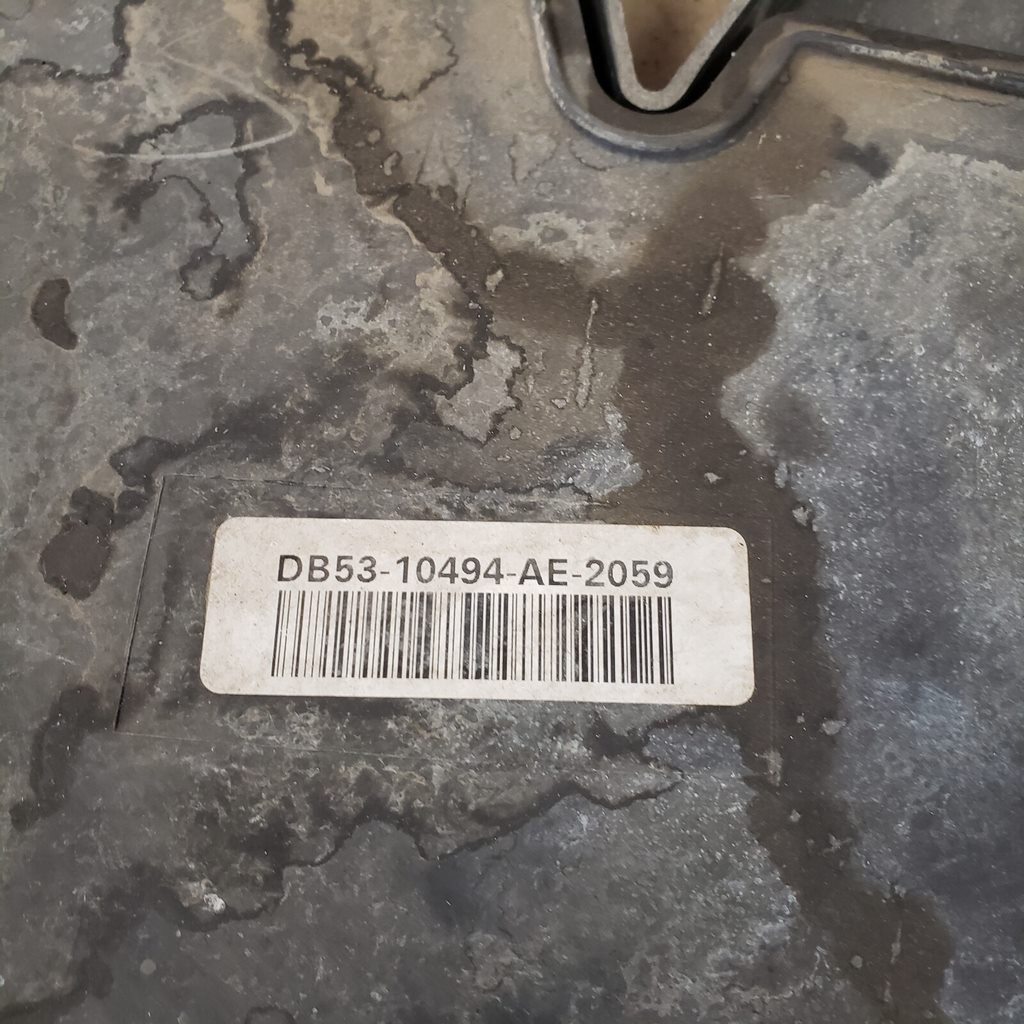

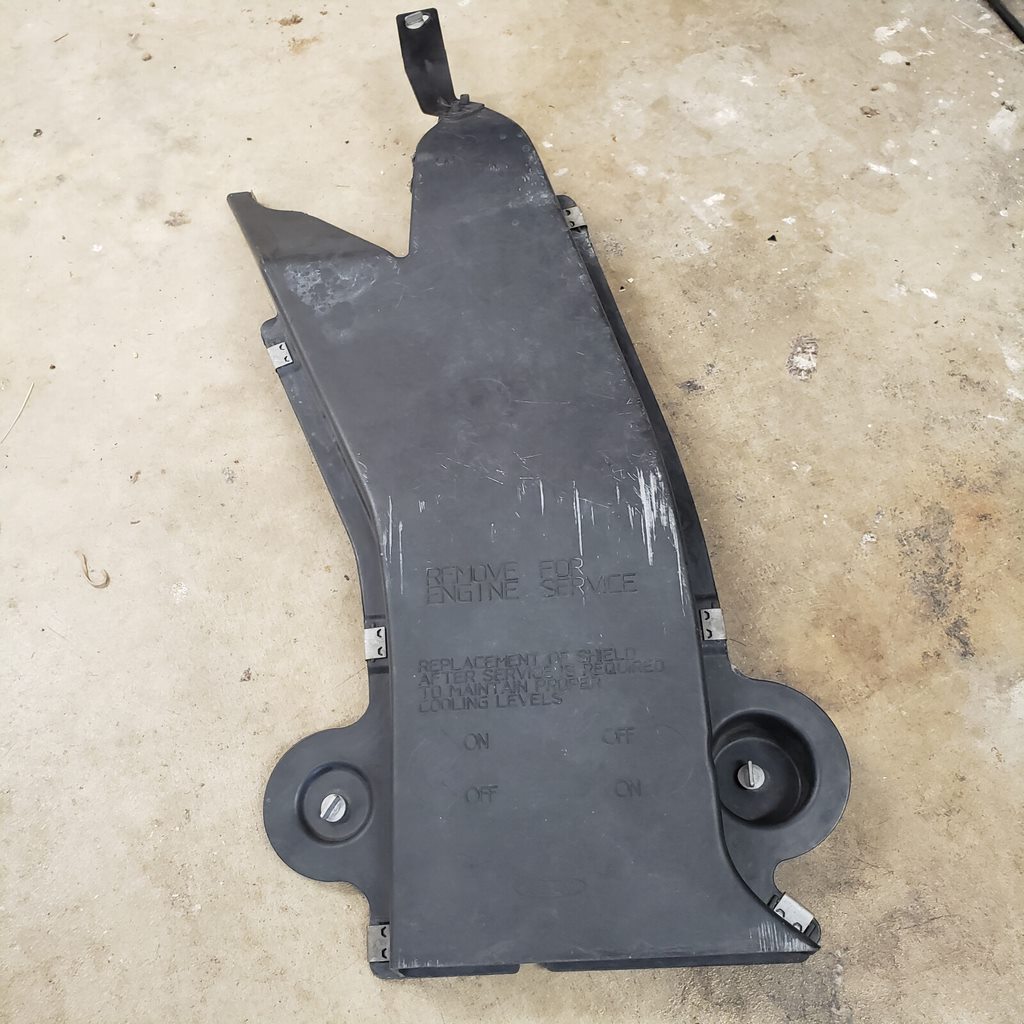

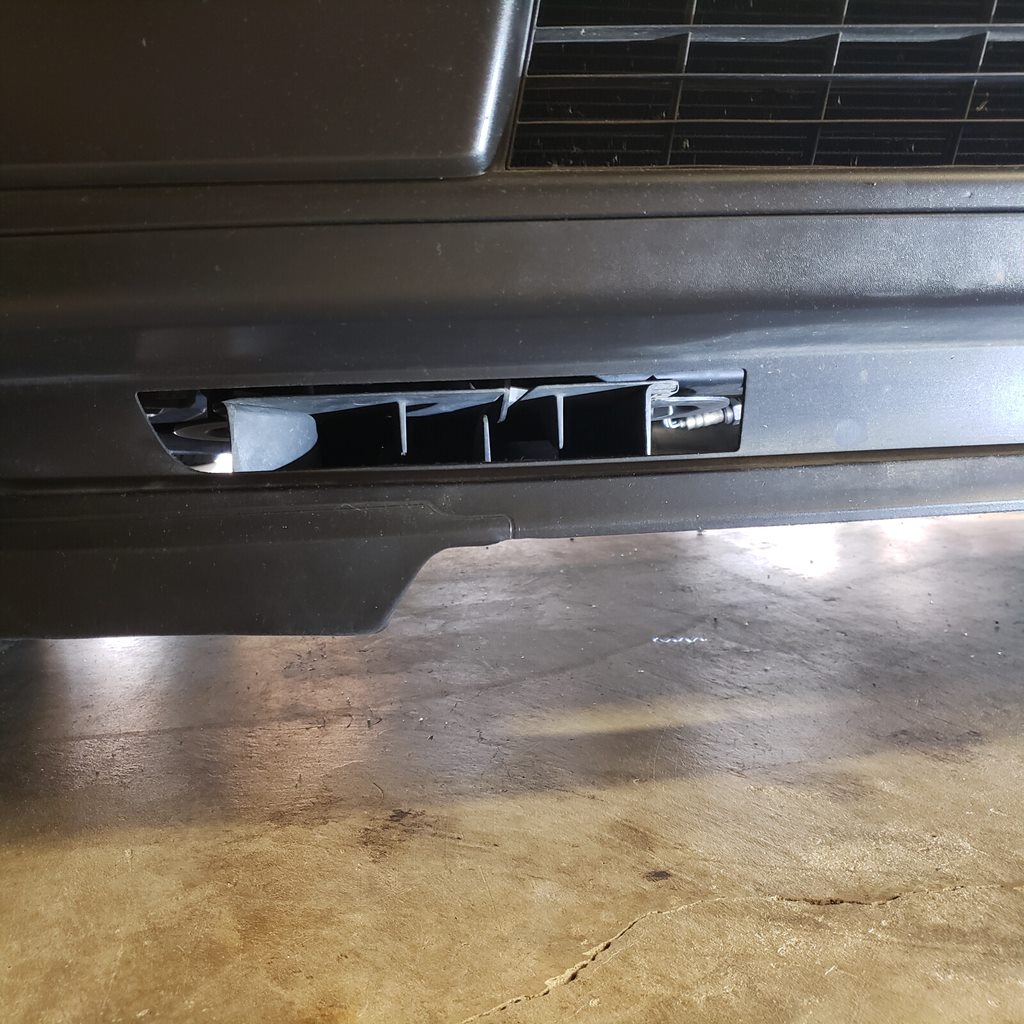

Pics for anyone interested:









<



JBumgarner

New Member
Joined
June 3, 2021
Messages
1
Reaction score
0
City, State
Florence
Year, Model & Trim Level
2016 Explorer Sport
I have a 2013 Ford Explorer Sport.

Recently I pulled up too close in a parking space and ran the front bumper cover up onto the curb.

As a result I dislodged an air intake of some sort. The intake is slightly off to the right side of the vehicle.

What is this air intake for?

Do I need to get it repaired?

Why is there an air intake 6" off the ground on an SUV? What if I drove through a deep puddle...
Not actually so. They are on Explorers with Ecoboost motors and those with the factory tow package. My 2011 did not have one.

Peter
My 2016 sport with tow package has it. I just accidentally pulled it off by pulling to close to a parking barrier.

<



peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
32,469
Reaction score
2,659
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
^^Welcome to the Forum. :wave:

Peter

<
