Alignment 101 - Now With Pictures

ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
A wheel alignment has many benefits for our vehicles. A wheel alignment will keep our vehicle straight, good gas mileage, good tire wear, allows us to change for performance (better cornering), and keep us aware of any suspension, steering, or other vehicle damage.

When a alignment on a vehicle is off, it concerns the customer and it also can cause other problems including premature tie wear, bad gas mileage, and hard steering.

Today, computerized alignment systems are used to align the cars to their specs. Todays vehicles consist of non-adjustable and adjustable angles. Adjustable angles for the Explorer are front tires Toe, Caster, and Camber. Non-adjustable angles include the rear axles Toe, Caster, and Camber. This simply means that to adjust the front angles on the Explorer, there are actual things to change that will effect our angles. On the rear, we do not have anything to change our angles. If a tire/wheel is showing out of spec on the rear, look for axle/frame damage and any other suspension damage.

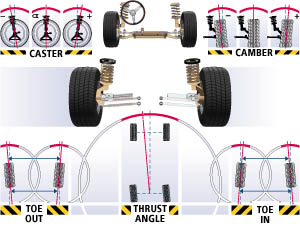

There are three major adjustments that are critical to a vehicles alignment: Toe, Caster, and Camber. Here is a great illustration:



Toe - refers to the in-ward or out-ward tilt of the tires in comparison to the other side. Toe-in refers to the tires being tilted toward one another while Toe-out refers to the tires being tilted outward of one another. Toe issues usually cause "feathering" of the tires.

Camber - Is the tilt of the wheel in and out on a vertical basis, viewed from the front. Negative (more) Camber is when the wheel is tilted in-ward, while Positive (less) Camber is tilted outward. Here is an illustration:





Caster - Is the relationship between a verticle line from the bottom of the wheel to the top in relation to the balljoints. Caster being off will give you "bump steer" - which is when you hit a bump your steering "searchs" the road. See the illustration below:

Positive:


Negative:



The other angle that plays an effect in an alignment is the Thrust Angle. This is basically the relationship between all four wheels. See the picture above!


Hunter, Inc. makes GREAT alignment machines. We have one at work, and I have used two other Hunter alignment machines - and they are all simple to use. Here is a picture of the computer and the alignment head (which go on all four wheels)




-Drew


Problems and Why

Below is a chart I found, but I am going to add a little to it:

1 Problem: Incorrect Camber Setting
1 Effect: Tire Wear Issues (usually inner or outter), Ball Joint/Wheel Bearing Wear

2 Problem: Too Much Positive Caster
2 Effect: Hard Steering, Excessive Road Shock, Wheel Shimmy

3 Problem: Too Much Negative Caster
3 Effect: Wander (i.e. bump steer), Weave, Instability at high speeds (death wobble)

4 Problem: Unequal Caster
4 Effect: Pull To Side Most negative/least positive caster

5 Problem: Incorrect Toe Setting
5 Effect: Tire Wear (feathering, inner and outter wear issues)

Hopefully that'll help also! :thumbsup:



MORE INFORMATION ON PAGE TWO!!!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




Gatorblazer

Well-Known Member
Joined
March 8, 2006
Messages
794
Reaction score
0
City, State
Moody, AL
Year, Model & Trim Level
02 Explorer, 09 Mazda 5
Great post. Does this make it 35 useful threads?





spindlecone

Explorer Addict
Joined
April 30, 2004
Messages
4,836
Reaction score
0
City, State
San Jose, Calif
Year, Model & Trim Level
2003 sport trac
Drew
thx for for the above, will be a great thread, maybe answere alot of commom questions about lifts,drops, TT adjusments etc, and the effects on suspension geometry.





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
I haven't updated My Useful Threads in awhile - it's probably close to 40 now.

However, Spindle, I will be adding some more probably soon! :thumbsup:

-Drew





unclemeat

Explorer Addict
Joined
October 20, 2002
Messages
3,079
Reaction score
4
City, State
Richmond, VA
Year, Model & Trim Level
91 sport
How about alinment 102, how to adjust for each condition, with more illistration and some pictures.





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
unclemeat said:
How about alinment 102, how to adjust for each condition, with more illistration and some pictures.

be my guess meat ;)

-Drew





UtahX

Explorer Addict
Joined
September 30, 2003
Messages
1,109
Reaction score
30
City, State
Grand Junction, Colorado
Year, Model & Trim Level
2000 Explorer XLT
Nice write-up. Was the first thing I did when I got my new tires.





rizzjc

Scubajoe - Radio Mod
Staff member
Moderator
Elite Explorer
Joined
July 13, 2005
Messages
3,885
Reaction score
16
Location
NC
City, State
Garner, NC
Year, Model & Trim Level
2019 F150
Callsign
N1LVN
Now if you can tell us where to find the "home alignment kit" you'd be a saint. I need an alignment on my X about every 6 months. Next Ford I buy I'll be looking high and low for a lifetime alignment deal.





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
A lot of tire places have lifetime alignments and tire balances :thumbsup:

-Drew

EDIT: I don't, personally, think the "home-alignment kit" is a good set up. Theres no real way to align a vehicle properly without a wheel head.





unclemeat

Explorer Addict
Joined
October 20, 2002
Messages
3,079
Reaction score
4
City, State
Richmond, VA
Year, Model & Trim Level
91 sport
Drew I have no resources, experience or qualification. I was hoping that you would expand the thread to explain how each alinment parameter is adjusted.





mel's97explorer

New Member
Joined
May 1, 2006
Messages
5
Reaction score
0
City, State
indiana
Year, Model & Trim Level
97XLT AWD
I bought 4 new tires and was to get an alignment, the tire place told me that they couldn't do a complete alignment because of the ball joints...I have a friend that said they were fine...it's my driveshaft that's bad! Any comments about what I should do about the alignment? Thanks





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
Take it to another shop and see if they will align it. If they say the ball joints are bad, then more than likely they are. A driveshaft problem shouldn't keep you from getting an alignment.

-Drew





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,932
Reaction score
611
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
I was wondering about one thing. Since now a days alignments are basically computerized with all of the specs programmed for a specific car. Why do some shops still make so many mistakes, and have to redo it a few times until they finally get it right? Another question I have is if the tires are improperly balanced, would that cause the alignment to get thrown off faster? Maybe a bad alignment is what causes improperly balanced tires?





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
If tires aren't balanced correctly, there will be more lateral and thrust vibrations which will cause components maybe to wear faster. Which will throw off your alignment. Think about it, when your tires are out of balance, you get a vibration in your steering wheel -- so if the vibration is there in your wheel it has to be at the tie rod ends and else where.

-Drew

EDIT: To my knowledge, the shop that I work at has never had a come-back for alignment issues. The reason why people at alignment/tire shops are having so much trouble is because the number they do are greater, and the people that work there aren't but so familiar with what they are doing. I'm not bashing tire shops; but when you are a "tire" shop...stick with that. Also, if you look at the age group of alignment/tire shops, they are high school kids or at the latest 20 year olds. I go to school with a few people that work at a local tire shop (merchants), and I know just from meeting them that they aren't the sharpest knife in the drawer. :rolleyes:





mel's97explorer

New Member
Joined
May 1, 2006
Messages
5
Reaction score
0
City, State
indiana
Year, Model & Trim Level
97XLT AWD
Thanks! What about the ball joints? Would that hinder with the alignment? What do they mean by a partial alignment?





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
If the ball joints are worn there is no point in an alignment. The play in the ball joint will throw the specs out which will cause all type of problems tirewear/alignment wise. It's basically pointless to do an alignment.

-Drew

Partial Alignment is probably just when they adjust toe.





BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,932
Reaction score
611
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars
I don't know if it is a myth, but I remember hearing that impact guns could throw off an alignment. There is so much vibration from driving (or just the pot holes in NY), that I think it would throw it off faster than the impacts from an impact gun. I once hit a nasty pot hole that the city tried to cover with a metal plate, and my tire blew out. My alignment was so bad, that my wheel was rubbing against the wheelbase. The alignment shop had a really hard time trying to align it, but managed after a pretty long time. The question is: if all of the parts are locked in place after an alignment, how could they go out of spec if the connecting parts (tie rods, ball joints, etc.) are still good?





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
The actually ball and socket joints that are used end up getting play. The thing about alignments is if a ball joint or tie rod end has even the sligtest movement it can throw the alignment off in a few degrees. I will hopefully be able to go more in depth with this later - but I am extremely busy these days with things, but I will get to it soon enough.

-Drew

EDIT: impact guns will not cause issuses unless there are some already there :thumbsup:





ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
Added "Problems and Why" to the list :thumbsup:

-Drew



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




ExplorerDMB

Moderator/Technician
Moderator Emeritus
Joined
January 26, 2004
Messages
6,162
Reaction score
8
City, State
Mechanicsville, Virginia
Year, Model & Trim Level
2004 Acura TL
I know this thread has fallen to the waste-side a little, but I may be doing an alignment sometime in the near future - so hopefully I can do a little tutorial :thumbsup:

-Drew
