ARC self leveling rear suspension.


david188

New Member
Joined
June 25, 2010
Messages
5
Reaction score
0
City, State
Peterborough
Year, Model & Trim Level
2000 North Face
is there any way for an amateur to re-calibrate the ARC? :)
The ARC on my North Face X has been checked with a dianostic tool and apparently is working fine but the light on the dash comes on from time to time (recently, more frequently) and stays on until the next ignition off/on. Diagnostic tool allows access but does not allow re-calibration :(



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




BrooklynBay

Moderator & long time member.
Staff member
Moderator
Elite Explorer
Joined
November 11, 2005
Messages
54,366
Reaction score
511
City, State
Brooklyn, NY
Year, Model & Trim Level
88 89 93 95 96 Aerostars




Howard

Moderator Elite Explorer
Staff member
Moderator
Elite Explorer
Joined
May 17, 2002
Messages
4,203
Reaction score
3
City, State
Milton Keynes
Year, Model & Trim Level
1998 SOHC UK SPEC
You can reset the system by. Switch it off, Jack up the rear so that the axle hangs from the body. Lower to the ground and then switch it back on.





janolsson

Well-Known Member
Joined
July 6, 2009
Messages
1,419
Reaction score
0
City, State
Leicester, UK
Year, Model & Trim Level
No Ex at the mo
Welcome david





david188

New Member
Joined
June 25, 2010
Messages
5
Reaction score
0
City, State
Peterborough
Year, Model & Trim Level
2000 North Face
Thanks, I'll give that a try





janolsson

Well-Known Member
Joined
July 6, 2009
Messages
1,419
Reaction score
0
City, State
Leicester, UK
Year, Model & Trim Level
No Ex at the mo
Holy time lapse batman!!





david188

New Member
Joined
June 25, 2010
Messages
5
Reaction score
0
City, State
Peterborough
Year, Model & Trim Level
2000 North Face
I tried jacking up the rear end of body and also jacking up the rear axle (switching ARC system off then on on each occasion) but still have the system light coming on after a few minutes of driving.
Is there a sequence that needs to be followed - eg do I need to have the ignition switched on/engine running - when jacking up the body?





kevin p

Active Member
Joined
March 26, 2003
Messages
689
Reaction score
0
City, State
Telford Shropshire England
Year, Model & Trim Level
97 4.o sohc
Have you checked that the arm from the self levelling body switch to the axle is still connected; i.e. not come out the ball joints?





david188

New Member
Joined
June 25, 2010
Messages
5
Reaction score
0
City, State
Peterborough
Year, Model & Trim Level
2000 North Face
Thanks for your reply but I can confirm that I did check the arm was still connected before doing this.
I have also had the system checked out again on a test computer - still shows that the system is working correctly!





Howard

Moderator Elite Explorer
Staff member
Moderator
Elite Explorer
Joined
May 17, 2002
Messages
4,203
Reaction score
3
City, State
Milton Keynes
Year, Model & Trim Level
1998 SOHC UK SPEC
When the test was carried out was the light on or off?

The procedure that I used to reset mine was.

1. Switch off self levelling
2 jack up so that axle hangs. (pulling down on wheels to ensure at the bottom of travel)
3 low to floor.
4 switch the system back on.

Keys were not in at any point.





david188

New Member
Joined
June 25, 2010
Messages
5
Reaction score
0
City, State
Peterborough
Year, Model & Trim Level
2000 North Face
Light was off

I will also try pulling down on each wheel!

Thank you





JonC

Active Member
Joined
June 30, 2009
Messages
163
Reaction score
2
City, State
Derby
Year, Model & Trim Level
'99 UK spec - LPG soon!
I've been dying to ask a question about this one! Howard - for us lesser beings - if you do all this with everything switched off, how does it know you've done anything and what exactly changes when you do it?

Cheers,

Jon





Howard

Moderator Elite Explorer
Staff member
Moderator
Elite Explorer
Joined
May 17, 2002
Messages
4,203
Reaction score
3
City, State
Milton Keynes
Year, Model & Trim Level
1998 SOHC UK SPEC
When you get the axle to hang. The shocks extend and the sensor is moved to a different to a lower point on the scale, so to speak. When you lower it back down it does not settle to start with. Now you switch on the system and it should read that this is the standard height. So when it starts to settle the system is activated and pumps up the shocks to bring it back to the neutral position. OK?





JonC

Active Member
Joined
June 30, 2009
Messages
163
Reaction score
2
City, State
Derby
Year, Model & Trim Level
'99 UK spec - LPG soon!
Thank you very much! Now I'm getting it - and also detect the opportunity for a little "cheat" too! Drop the body back onto stands a little above "normal" height and fool it into creating a slight lift maybe? Possible potential to have the system overworking maybe, I don't know enough about it yet to be sure of that.

Cheers,

Jon





sean99

Well-Known Member
Joined
December 13, 2005
Messages
1,290
Reaction score
3
City, State
Sunnyvale, California
Year, Model & Trim Level
01 Limited 5.0

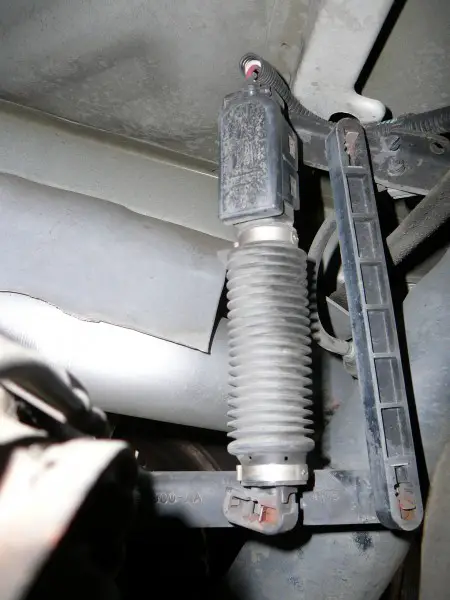

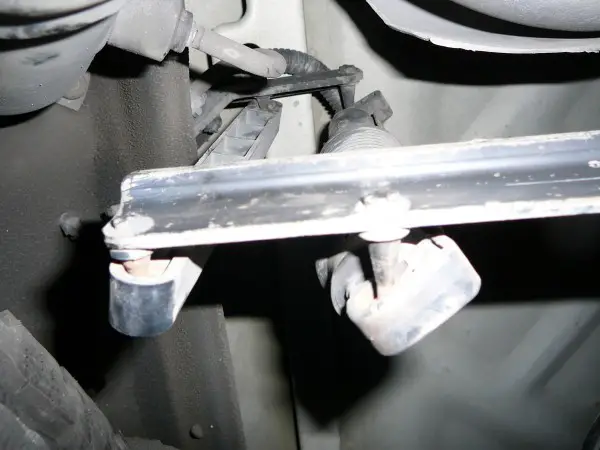

Here's a couple of arc pics for future reference. This is a working system on my 2001 Limited...


Attachments





JonC

Active Member
Joined
June 30, 2009
Messages
163
Reaction score
2
City, State
Derby
Year, Model & Trim Level
'99 UK spec - LPG soon!
Here's a couple of arc pics for future reference. This is a working system on my 2001 Limited...
Not sure how many of us are still active on here - doesn't seem like many of late - but for those who are (and any that are interested) I've recently conducted exactly the 'trick' I alluded to in my answer to Howard's wisdom provided way back up this thread.

After I stupidly let some 'professional' (a.k.a. muppet) fit my exhaust and do some other work on my Explorer, the rear end never seemed to sit right for many months thereafter. Once we got some decent weather, I got to replacing the rear brakes (completely) and while I was in, around and under, had a fiddle with the ARC once again.

It's still basically Howard's prescribed method but with a little addition and it seems to have worked quite well. What I did was go through the well-documented process but before jacking up the first time, I had a look at where the body was sitting in comparison to where I wanted it to be sitting - and set my axle stands to the required new height.

After going through the usual listed process, I lowered it off not onto the ground but onto the axle stands set at the 'right' height for how I want it.

After that, I switched the ARC back on and flipped the sensor linkage off the ball. I then pushed it up to make it activate the compressor and watched the rear dampers. When they started to extend and take load, I continued until it had just got the weight off the axle stands and then let it stop.

After that, I got out from under, switched OFF the ARC, jacked up and got the axle stands properly clear, let it down, switched ON the ARC.....

and it stayed there!!





I like it!

Last edited:




dezufo

Elite Explorer
Joined
September 17, 2012
Messages
81
Reaction score
0
Year, Model & Trim Level
1998 ford explorer/LPG
Nice way of raising it, I think they are a dying breed now. Mine needs the fuel pump replacing but I cant be arsed atm





JonC

Active Member
Joined
June 30, 2009
Messages
163
Reaction score
2
City, State
Derby
Year, Model & Trim Level
'99 UK spec - LPG soon!
Nice way of raising it, I think they are a dying breed now. Mine needs the fuel pump replacing but I cant be arsed atm
It's honestly not as bad as you might think! I was properly bothered by the idea of doing mine but it went really well in the end and a lot easier than I expected. Mind I do think I've got one of the nicer Explorers left - just turned 53,000 this weekend.

My first one was perfect - didn't have ANY of the textbook Explorer faults - even had genuine Ford fitted mats but I was stupid and wrecked it. My next one was an absolute bag of crap, single-point injection (badly fitted!) and ALL the usual Explorer faults. This one is quite nice but I do think it needs its 21 year-old rubber bits replacing (slowly!).

In other news, you might find this useful:
