Ball Joint Help | Ford Explorer - Ford Ranger Forums - Serious Explorations

  • Register Today It's free! This box and some ads will disappear once registered!

Ball Joint Help

colindo94

Explorer Addict
Joined
September 1, 2006
Messages
1,108
Reaction score
4
City, State
Cameron Park, CA
Year, Model & Trim Level
94' XLT
Can someone please give me some step by step instruction on replacing the ball joints as soon as possible. I don't know if I need to remove the c joints so i can get in there with the c clamp ball joint tool. Will I have to take the rotors off to pull the axles? I just don't know what to do. thanks



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




93TwotoneXLT

Well-Known Member
Joined
March 2, 2006
Messages
159
Reaction score
0
City, State
Evansville, In
Year, Model & Trim Level
1993 XLT4x4
Search the forums, you will find out everything you need to know.





colindo94

Explorer Addict
Joined
September 1, 2006
Messages
1,108
Reaction score
4
City, State
Cameron Park, CA
Year, Model & Trim Level
94' XLT
Iv been searching for a while.









DeRocha

NEX Vice President
Elite Explorer
Moderator Emeritus
Joined
July 5, 2003
Messages
6,671
Reaction score
40
City, State
Brockton, MA
Year, Model & Trim Level
'93 XLT 4x4
Can someone please give me some step by step instruction on replacing the ball joints as soon as possible. I don't know if I need to remove the c joints so i can get in there with the c clamp ball joint tool. Will I have to take the rotors off to pull the axles? I just don't know what to do. thanks

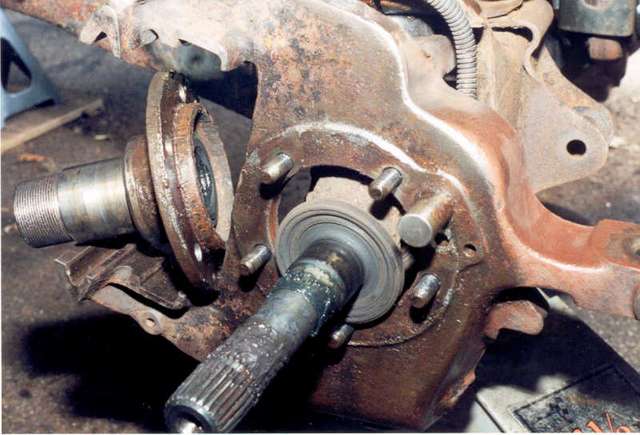

You will need to completely strip the Steering knuckle and pull out the axle shafts. In the pic below the shaft is ready to be pulled out. You should probably pickup a haynes manual. It has lots of info on this...

Brake job diary
Spindle removal





MrShorty

Explorer Addict
Joined
December 27, 2001
Messages
5,078
Reaction score
16
City, State
Spanish Fork, UT
Year, Model & Trim Level
92 XLT and '87 Bronco II
I 2nd getting the Chilton's/Haynes manual. When I did my balljoints the first time, that's what I worked with and figured it out just fine. If print manuals are too old-fashioned for you, the vehicle repair guides at www.autozone.com are the equivalent of a Chiltons. If, after reviewing the repair procedure, you have specific questions or run into a hang up (like the spindle not wanting to come off, my BII did that one to me), then post here and we can help get you through the tricky parts.





colindo94

Explorer Addict
Joined
September 1, 2006
Messages
1,108
Reaction score
4
City, State
Cameron Park, CA
Year, Model & Trim Level
94' XLT
thanks a lot guys. I got it figured out. the only question I have now is about the wheel speed sensor for ABS. Does it just pop off? I dont want to break it. And how do I know if the U joints are shot. may as well change them out hile I got them out. Thanks for the help.





DeRocha

NEX Vice President
Elite Explorer
Moderator Emeritus
Joined
July 5, 2003
Messages
6,671
Reaction score
40
City, State
Brockton, MA
Year, Model & Trim Level
'93 XLT 4x4
thanks a lot guys. I got it figured out. the only question I have now is about the wheel speed sensor for ABS. Does it just pop off? I dont want to break it. And how do I know if the U joints are shot. may as well change them out hile I got them out. Thanks for the help.

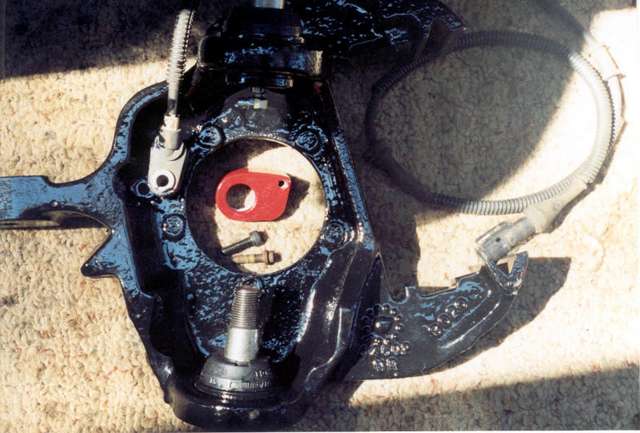

I guess you didn't read through all the info yet... ;) The sensor remains in place as seen in the photo in the previous post, but you will need to remove the ABS sensor protector (pictured in RED below).

ABS sensor
The Sensor is an aluminum cylinder Pressed into the steering knuckle. Do not attempt to remove it since it will be destroyed in the process. You will however need to removed the ABS sensor support bracket which the sensor passes through.

2 bolts, 1 of which is hidden.
6mm 12pt 1/4"drive
3/8" drive sockets are too wide and will not fit.

Caution using a 6pt, or 1/4 socket may STRIP the bolt). I couldn't find this socket so used a 1/4 6pt socket. The passengers came off fine. The drivers side stripped. I used several differently sized drill bits to Erase most of the head (Don't drill into the Knuckle!). I then used a cold chisel and hammer to pop off the head. I then removed the ABS Sensor bracket, put it in a vise and used vise grips to unscrew the broken bolt (it came off easy).








colindo94

Explorer Addict
Joined
September 1, 2006
Messages
1,108
Reaction score
4
City, State
Cameron Park, CA
Year, Model & Trim Level
94' XLT
Do I need to take the steering nuckle off like in the picture above to take out the ball joints. Can I do it when the nuckles on the truck.





colindo94

Explorer Addict
Joined
September 1, 2006
Messages
1,108
Reaction score
4
City, State
Cameron Park, CA
Year, Model & Trim Level
94' XLT
OK so i took the steering nuckle completly off. now i can put the nuckle in a vice and press the ball joints out. by the way the chiltons i have sucks and doesn't give any of the right info for my truck. its all 2nd gen or two wheel drive. anyways. so it says press the lower ball joint out first. to do this do I press the joit down or up . Im still a bit lost. thanks for the help so far.





DeRocha

NEX Vice President
Elite Explorer
Moderator Emeritus
Joined
July 5, 2003
Messages
6,671
Reaction score
40
City, State
Brockton, MA
Year, Model & Trim Level
'93 XLT 4x4
OK so i took the steering nuckle completly off. now i can put the nuckle in a vice and press the ball joints out. by the way the chiltons i have sucks and doesn't give any of the right info for my truck. its all 2nd gen or two wheel drive. anyways. so it says press the lower ball joint out first. to do this do I press the joit down or up . Im still a bit lost. thanks for the help so far.

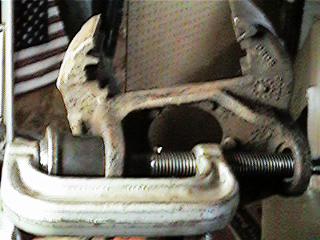

Yeah you need to get your hands on a Haynes 91-94.. they are under $15 and will more than pay for itself in this job alone.. Anyway the ball joints get pressed UP to get them out.. In the pic below you can see the lower ball joint (right) has already been removed. It is important to do it in order because you need the opening to put the screw through to press out the upper joint (left). BTW keep the new ball joints in the freezer so they will shrink a few thousands of an inch allowing they to easily be pressed into the knuckle..






colindo94

Explorer Addict
Joined
September 1, 2006
Messages
1,108
Reaction score
4
City, State
Cameron Park, CA
Year, Model & Trim Level
94' XLT
thanks...that just cleared up most of my questions. so is hynes better then chiltons.?





DeRocha

NEX Vice President
Elite Explorer
Moderator Emeritus
Joined
July 5, 2003
Messages
6,671
Reaction score
40
City, State
Brockton, MA
Year, Model & Trim Level
'93 XLT 4x4
thanks...that just cleared up most of my questions. so is hynes better then chiltons.?

For some things the haynes is much better (which is what i have and prefer). when I thumbed through a chiltons it didn't have the detail and info that the haynes did on the subjects i needed covered...

Pay attention to installing the ball joints in the correct order as well..





Tony H

Explorer Addict
Joined
September 4, 2003
Messages
1,594
Reaction score
1
City, State
New York, Wading River (that's on Long Island)
Year, Model & Trim Level
'91 Eddie Bauer
DEROCHA

I'm looking at your PICS. I did my Ball joints on my '91...No ABS.

I'm looking at the Red ABS bracket and only see one hole to screw into the knuckle, you mention a hidden hole...where is it?

I'm Guessing the Spindle has a notch in it to accept the sensor? on the '91 I could put the Spindle on the 6 bolts anyway I wanted. I guess the newer Spindles have a notch to accept the protruding Sensor?

I may be doing my nephews '94 this Spring ..just trying to anticipate the differences.





Top
