Bank 1 & 2 O2 Sensor ‘03 4.0L

Shobo

New Member
Joined
September 20, 2017
Messages
2
Reaction score
0
City, State
Nampa, ID
Year, Model & Trim Level
2003 Explorer 4.0L
Hi everyone! I’m going to attempt to replace the O2 sensors on my sister-in-law’s ‘03 Explorer 4.0L. The dealership used a code reader and advised that the bank 1 & 2 O2 sensors were bad. I don’t have the code. I’m wondering if those are upstream sensors or downstream? Also, I have never replaced an O2 sensor, do I need any special tools? Thanks!

<

Join the Elite Explorers $20 Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




imp

Explorer Addict
Joined
November 12, 2009
Messages
4,748
Reaction score
694
Location
West-Central AZ along the Colorado River
Year, Model & Trim Level
59 Ranchero F250 D'Line
Hi everyone! I’m going to attempt to replace the O2 sensors on my sister-in-law’s ‘03 Explorer 4.0L. The dealership used a code reader and advised that the bank 1 & 2 O2 sensors were bad. I don’t have the code. I’m wondering if those are upstream sensors or downstream? Also, I have never replaced an O2 sensor, do I need any special tools? Thanks!
There are 4 O2 Sensors, one at either end of the cat converters. The RH side rear sensor, the "downstream" will require removal of a sheet metal heat shield held in place by 3 bolts. No big deal. The connectors are difficult to reach to release the little "latch" on each, which allows them to come apart.

Note that the FRONT or UPSTREAM sensors are DIFFERENT from the rear, or downstream sensors. Your old ones, if original Ford, will have locating lugs on them which prevent using a front in rear and vice versa. MANY replacement sensors have NO LUGS, so you could easily place one in the wrong location. Watch that fact closely, as the APPEARANCE of the sensor head of the replacements may not match the old exactly. Tool needed, 7/8" open end wrench, I use a long screwdriver to depress the latch tang on the connector to allow disconnection. You may need to pry the connector(s) loose from their mounting, a plastic push-pin secures them to the body. After replacement, be certain no wiring can move about and come even close to the exhaust pipe or cat. imp

<



<



Drewmcg

Elite Explorer
Joined
August 27, 2015
Messages
733
Reaction score
92
Location
Michigan
City, State
Ann Arbor, MI
Year, Model & Trim Level
2010 XLT 4WD
2002 XLS 2WD
These are tricky to get out, especially w/o lift. There are kits available on amazon.com, e.g., https://www.amazon.com/Generic-Oxyg...UTF8&qid=1506129756&sr=8-13&keywords=O2+tools . But as Imp suggests you may be able to get out with an open end 7/8" or 22mm wrench. Soak that sucker with PB blaster, too.

You do need to figure out which sensors are bad before replacing. NB: The front (upstream) sensors do all the heavy lifting (providing PCM with info to adjust fuel trims). The rears are really there just to test the efficiency of each cat.

<



imp

Explorer Addict
Joined
November 12, 2009
Messages
4,748
Reaction score
694
Location
West-Central AZ along the Colorado River
Year, Model & Trim Level
59 Ranchero F250 D'Line
"But as Imp suggests you may be able to get out with an open end 7/8" or 22mm wrench. Soak that sucker with PB blaster, too."

I used a 7/8" combination wrench, Craftsman, and had to "nudge" it on the box end with a light rubber hammer on one of the sensors. The others loosened with lots of hand force applied. imp

<



Shobo

New Member
Joined
September 20, 2017
Messages
2
Reaction score
0
City, State
Nampa, ID
Year, Model & Trim Level
2003 Explorer 4.0L
Thank you all for the info. I don’t have access to a lift, so it might be an interesting job lol.

<



TechGuru

Explorer Addict
Joined
August 23, 2015
Messages
2,182
Reaction score
309
Location
Texas
Year, Model & Trim Level
2003 XLS 4X4 4.0L FLEX

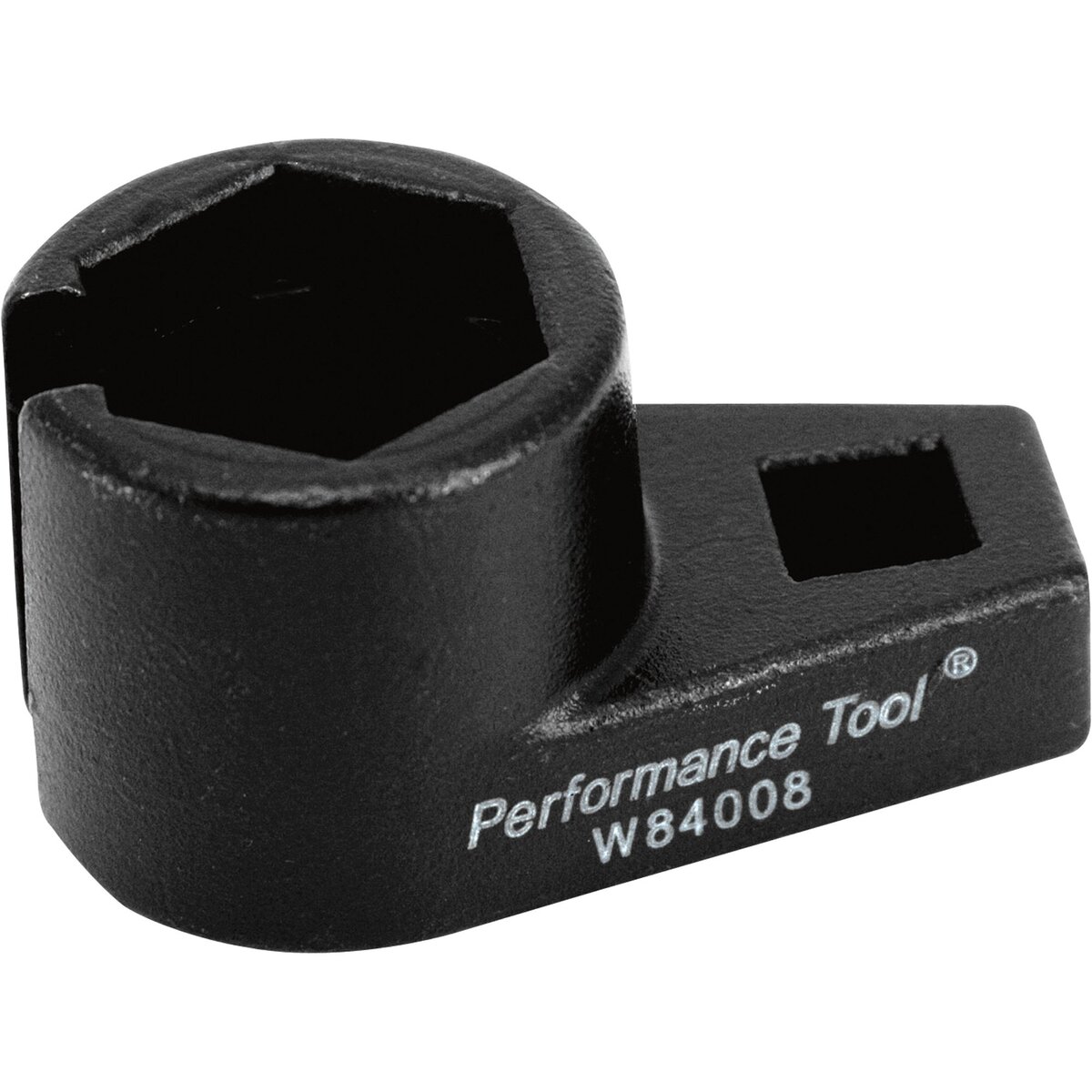

I've never used it on the Explorer so I have no idea if it would help but I have one of these that I've used on other vehicles.


<
