brittle and broken plastic connectors

974X4BLACKSPORT

Well-Known Member
Joined
May 21, 2018
Messages
966
Reaction score
236
Location
FL
City, State
hudson
Year, Model & Trim Level
BLACK 1997 SPORT 4 BY 4
While removing the front turn signal and headlight housings, the little plastic connector locks that hold the electrical connector securely onto the housing, every lock tab broke off while trying to remove the electrical plug, how are these plugs supposed to stay on now without having to resort to replacing every connector?
All I wanted to do is install new left and right headlamp assemblies and repaint the grill so it does not look like a worn out jalopy anymore!



I also found a wire that was chaffed down to the bare wire from rubbing the plastic housing for 21years, good thing it was not against metal!




Join the Elite Explorers $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links.
Add an avatar, upload photo attachments, and more!
.



koda2000

Explorer Addict
Joined
September 2, 2011
Messages
13,860
Reaction score
1,526
Year, Model & Trim Level
x
Plastic doesn't hold up very well over the decades. You truck is going on 22 years old and old plastic gets brittle. It's just the way it is. RockAuto sells replacements for many of the electrical connectors. You might have to spend some money, but it's cheaper than buying a newer truck.







239

Well-Known Member
Joined
April 4, 2011
Messages
729
Reaction score
98
City, State
Bonita Springs, FL
Year, Model & Trim Level
2000 XLT, V6 OHV
I’ve replaced a good amount of connectors on my 2000. I recommend posi-connectors if you’re going to cut the old connector off and splice in a new one.

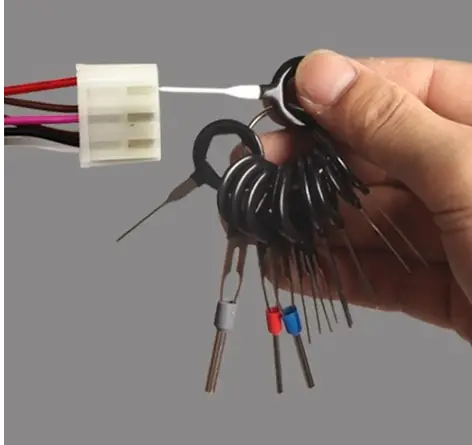

Ford connectors can also be depinned and rebuilt. This video is a good guide:







Spudhut

US Navy Submariner
Joined
August 14, 2017
Messages
674
Reaction score
225
Location
NW Arkansas
City, State
Bentonville, AR
Year, Model & Trim Level
1997 Explorer Sport - 4x4
Callsign
KG5SPB






J_C

Explorer Addict
Joined
July 30, 2009
Messages
4,568
Reaction score
1,170
City, State
Florence, KY
Year, Model & Trim Level
1998 XLT 4WD 4.0L SOHC
If you just want to replace them cheap, head over to a local junkyard... if it breaks getting it out, keep trying, most JY's have lots of Explorers. It may be old and brittle too but consider that you may only need to get it on this ONE time and the new bulb should last many years, unless you're getting some of those over-driven, super-bright headlight bulbs which don't last nearly as long.

I would try to swap the pins to the new connector shell but if you don't want to do that then I would solder and cover that with glue lined heatshrink tubing rather than using a crimp, on something like this that is exposed to the elements.
