Bronco II SAS Dana 30/8.8....

I thought I would share some pics of SAS I am doing for a customer. The BII already has the 4.0 swap done.

Getting a Trussed high pinion Dana 30 with 4.56 gears, and Explorer 8.8 with disc brakes and 4.56 gears. Here are some pics started this Yesterday morning. Should be done today. I geared the 8.8 and cut out the pcs. for the brackets last Fri and Sat morning but didn't get as much done since my wife had other plans.

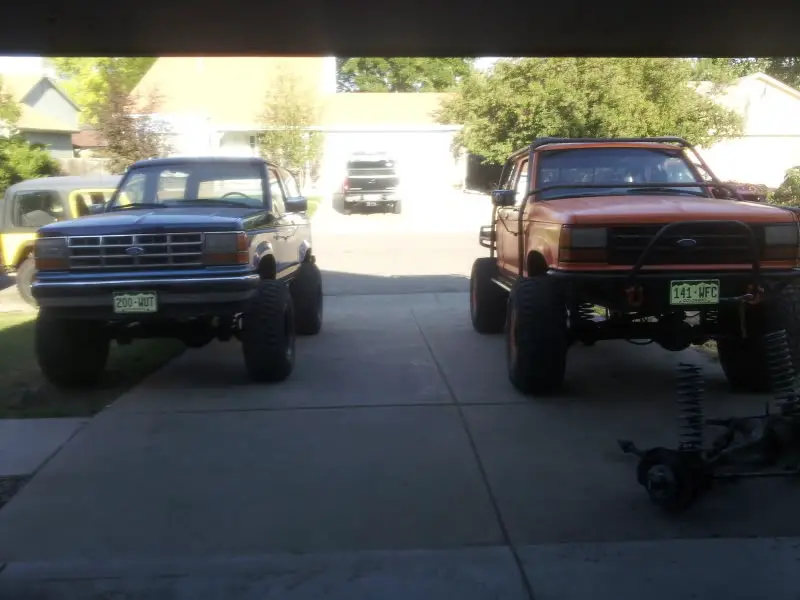

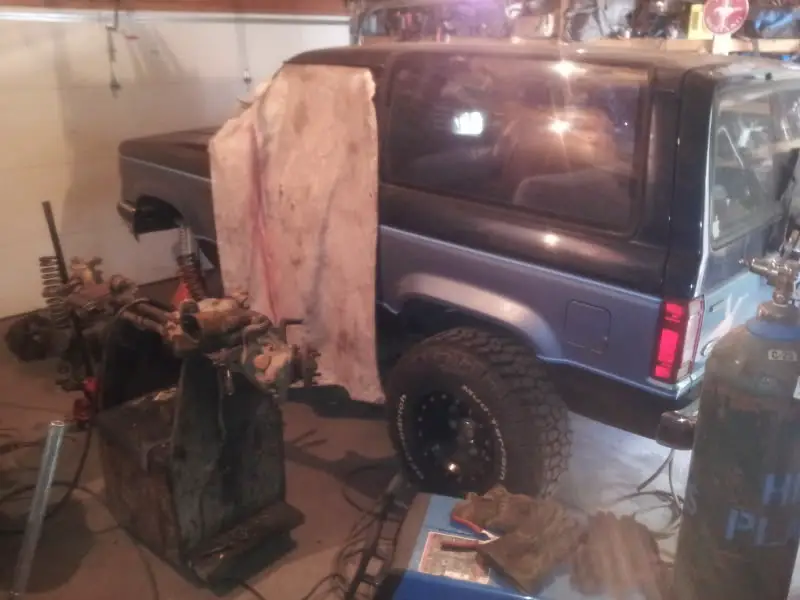

Here is the beauty!!!

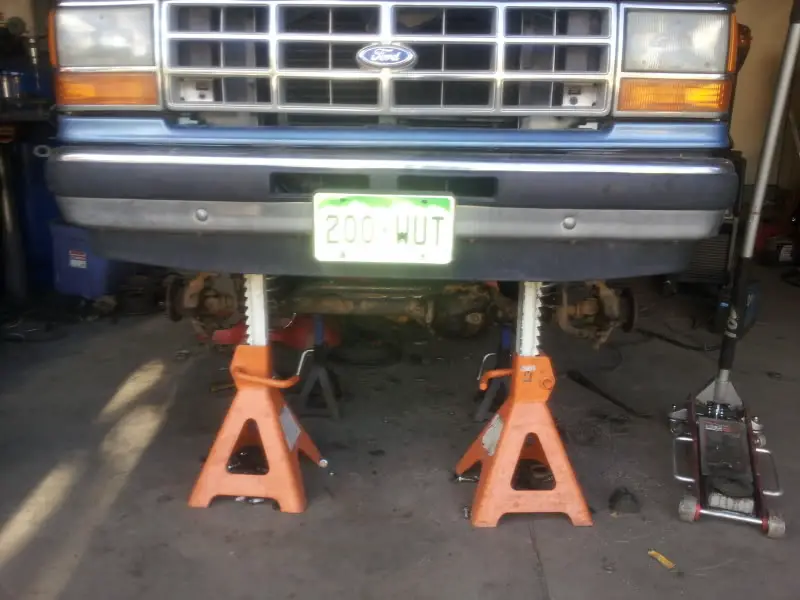

Had a buddy(Austin TNT's owner) come by to help today...

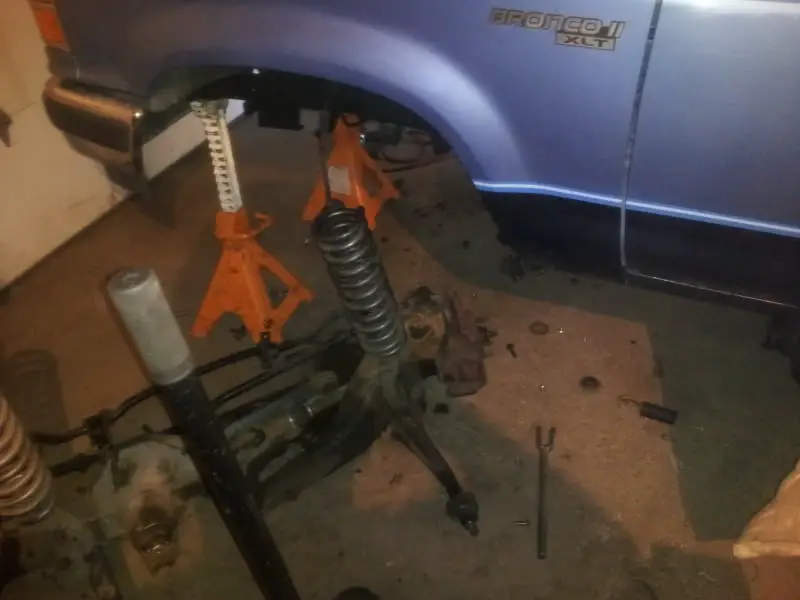

Bye bye TTB...

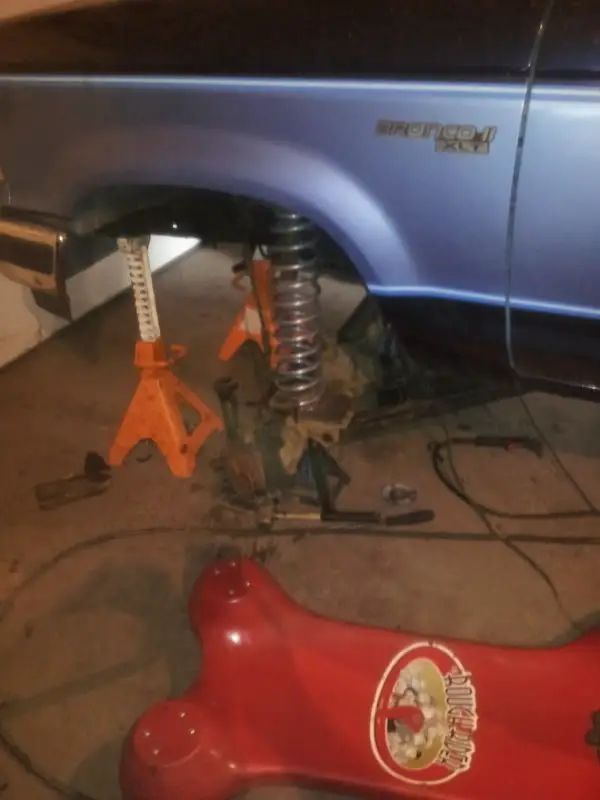

Solid axle set in place...

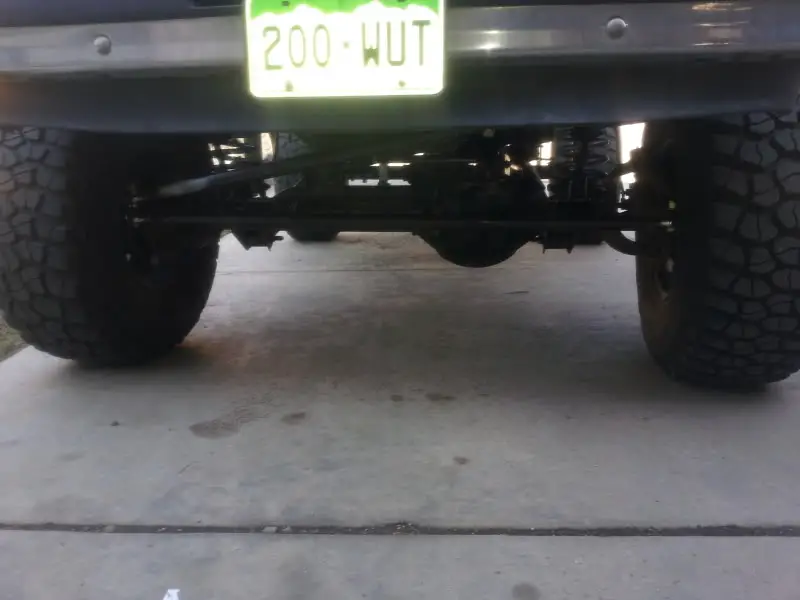

Another solid axle shot!

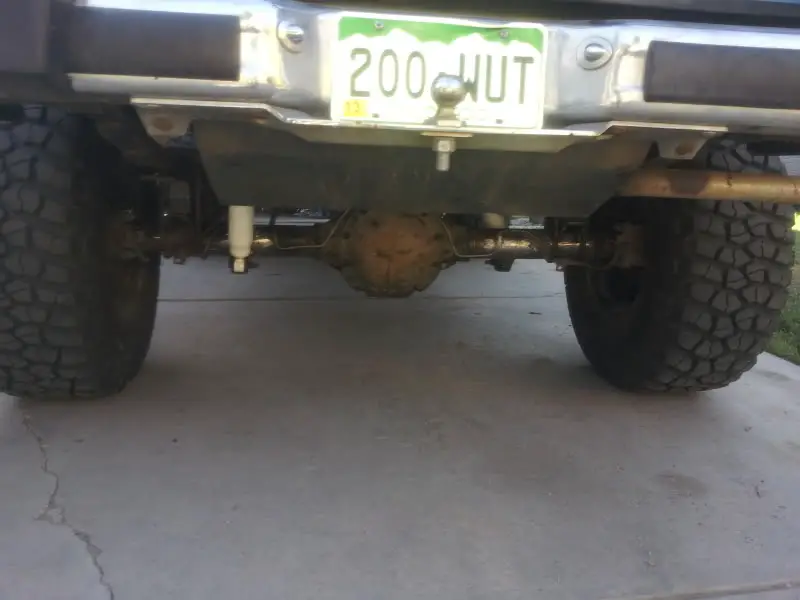

7.5 out 8.8 in...



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.








Stang5lgt

Well-Known Member
Joined
January 16, 2011
Messages
698
Reaction score
2
City, State
Parker, CO
Year, Model & Trim Level
98 Mercury Mountaineer
Started at 9am since Austin was late. We had to take a hour lunch to get some parts but still had it rolling at 3:15pm with shocks, sway, track, steering, brakes, driveshafts and few other things all hooked up. Truck drives great used 4.5" Rubicon Express XJ coils in the front. Truck is so nice and smooth. It is going to need some double cardan shafts front and rear(little bit of vibe) but other then that it is great.



















Stang5lgt

Well-Known Member
Joined
January 16, 2011
Messages
698
Reaction score
2
City, State
Parker, CO
Year, Model & Trim Level
98 Mercury Mountaineer
So, a 4406 swap takes longer than a SAS when an old guy is around. I knew it.

:D
That looks real good. Your skills are freakin amazing.

LOL I think we did good on the 4406 didn't start until 11:30am and we had to run to get parts still had it done before 6pm.:D

Thanks I am getting pretty good at building these. Might have to offer up a kit, almost have it down to a science. :exporange













MisfitBronco87

New Member
Joined
December 26, 2012
Messages
4
Reaction score
0
City, State
Mountainburg, Arkansas
Year, Model & Trim Level
1987 Bronco II
Really thinkin bout offering up a kit for the Dana 30 swap? I might be interested if so.
