Cam position sensor

Watchman

Elite Explorer
Joined
November 11, 2013
Messages
217
Reaction score
3
City, State
Virginia
Year, Model & Trim Level
1993 Explorer Sport-4WD
Well, cam position sensor has been replaced. The shop foreman told me he placed it at 26 deg BTDC. The engine runs smoothly. No CEL. However, the Haynes manual says 26 deg ATDC. I've driven the truck over 50 miles now and no problem.

Is this going to be a problem ? Please advise.



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
110
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
If it were at 26* BTDC it would run very badly, if at all. He's mistaken.

He got his lefty mixed up with his righty.

At 26* BTDC the injectors would fire during the compression stroke while both valves are closed. You would still get some gas in the cylinder the next revolution but the mixture would be wayyy lean and it would be hard to start. A lot of raw fuel would be ejected into the exhaust; lots of back firing out the tail pipe, etc.

You would certainly get a cell out of this!





Rhett

Let Them Eat Cake
Elite Explorer
Joined
May 13, 2000
Messages
4,662
Reaction score
96
City, State
Cape Girardeau, MO
Year, Model & Trim Level
94 Sport 4x4
However if the sensor has not failed electrically but is "chirping" it is the drive unit that is worn. It will run at least 40,000 miles like this. Ask me how I know.

It will run 80,000 miles like this, chirping away in cold weather. Ask /me/ how I know :D

You can see the original 2005 thread here:
http://www.explorerforum.com/forums/showthread.php?t=146928&highlight=bird+chirp

...and all that can be chased to find the culprit. Do not do what I did guys.

The chirping part is called the camshaft synchronizer. May it be cursed forever.

It is the source of many a wasted $$$ chasing down non-existent belt and pulley chirp on these trucks.





FR-425

Used to be a road here.
Elite Explorer
Joined
November 21, 2013
Messages
2,661
Reaction score
110
City, State
Phoenix, AZ.
Year, Model & Trim Level
1994 Explorer Limited
No kidding huh,

It does sound EXACTLY like belt noise!





smegun

Well-Known Member
Joined
April 3, 2013
Messages
387
Reaction score
3
City, State
florida
Year, Model & Trim Level
1994 ford explorer xlt
ordered just the sensor from advanced ended up being wrong part... these units have been changed over the years there is currently a verticle connector in the truck so i assume it is more like the 95 windowed unit I have a 94 XLT cant seem to find that sensor by itself anyone have a link or pic of the part of whats under the two torx screws on the syncronizer or the cardon model


id rather have an original rebuilt unit any other ideas would be good too ..... how are performance chips some people pull out the fuel resistor ? ?

ive replaced most of the sensors in the truck and briefly the truck runs correctly my fear is that it is being retarded or I have a more seriouse oil slip problem as it seems to get retarded and there is more vibration from the running engine than i remember with fords
and slow 0-60 and passing hoping it is just timing time for a pro I get a 111 but the run time test i havnt been able to do it is tougher to do without real scope





pteepee69

Well-Known Member
Joined
February 7, 2010
Messages
160
Reaction score
0
City, State
Lawrenceburg,Ky.
Year, Model & Trim Level
'94 Explorer XLT
I've always had a miss in mine. My story is when I replaced the heads a couple of years ago. Climbing around on top the motor putting it all back together I was looking for a place to put my hand. Found a place and then I felt something snap. Got to looking and I my 220 lbs had managed to snap the electrical connection of the cam sensor. I have always wanted to replace this part because of that but it has always been a hard part to find.





pteepee69

Well-Known Member
Joined
February 7, 2010
Messages
160
Reaction score
0
City, State
Lawrenceburg,Ky.
Year, Model & Trim Level
'94 Explorer XLT
yes. I saw the link and I appreciate it. When I had looked for them before I had a hard time finding them. I was not aware that a newer one would work. Mine has the angled electrical connection and I wasn't sure if the straight connection would work. So is the way of keeping up with this site. I might not know but someone else might. That is why we are members of this community.





Watchman

Elite Explorer
Joined
November 11, 2013
Messages
217
Reaction score
3
City, State
Virginia
Year, Model & Trim Level
1993 Explorer Sport-4WD
Just a final thought ... Thanks Rhett for the link posted above. I could not find anything in the belt area that was causing this chirp. It was that thread that finally pointed to the problem. I had the exact same conditions... garage kept.. only happened during cold weather... and after 10 minutes the chirping started... then it would stop. It is so good to be rid of that annoying sound. Also, the auto parts stores still carry these CPS, but they run around $200. Online is cheaper.





mgmgmg

Elite Explorer
Joined
October 14, 2004
Messages
417
Reaction score
9
City, State
Plymouth, MN
Year, Model & Trim Level
'94 LTD '10 LTD V8
:thumbsup:Found this, I might try....








Watchman

Elite Explorer
Joined
November 11, 2013
Messages
217
Reaction score
3
City, State
Virginia
Year, Model & Trim Level
1993 Explorer Sport-4WD
Just keep in mind that on the 4.0 the CMP sensor/oil drive is in the rear of the engine, very backside and is NOT easy to access without removing the upper intake. And I would read this thread first before you try just lubing the unit. The 1st gen ex's have an issue with these CMP units wearing out. It is not just a sensor. The "oil drive" is attached to it and must be lined up properly with the timing. I bought a Dorman and though there's a lot of folks who haven't had good results - mine is still running good. Check Rock Auto.

Here is the thread:http://www.explorerforum.com/forums/showthread.php?t=146928&highlight=bird+chirp&page=4





DJ94

Member
Joined
August 8, 2006
Messages
25
Reaction score
0
City, State
Magalia, California
Year, Model & Trim Level
1994 4 Door 4WD
If it is bad will it make the check engine light come on, but only sometimes?





Rhett

Let Them Eat Cake
Elite Explorer
Joined
May 13, 2000
Messages
4,662
Reaction score
96
City, State
Cape Girardeau, MO
Year, Model & Trim Level
94 Sport 4x4
If it is bad will it make the check engine light come on, but only sometimes?

Mine did not. No check engine light or codes ever. All it did was chirp in cold weather.

If you're getting a cel I'd pull the code to see what it is.





DJ94

Member
Joined
August 8, 2006
Messages
25
Reaction score
0
City, State
Magalia, California
Year, Model & Trim Level
1994 4 Door 4WD




mgmgmg

Elite Explorer
Joined
October 14, 2004
Messages
417
Reaction score
9
City, State
Plymouth, MN
Year, Model & Trim Level
'94 LTD '10 LTD V8
So just wanted to add info about this thread:

I had the same "CHIRPING" problem thought it was Cam Position Senor after reading thread, didnt really want to replace. So last fall replaced my whole belt tensioner, still the factory one...... I never noticed until now the chirping was gone? So I wonder "IF" just changing the belt tensioner first before Cam Position Senor, if you never changed out will solve the issue...... It solved my chirping issue!!





smegun

Well-Known Member
Joined
April 3, 2013
Messages
387
Reaction score
3
City, State
florida
Year, Model & Trim Level
1994 ford explorer xlt
I suppose you could do it with the hood on, but it would be much more gymnastic.
good slat of osb or ply across the engine bay have to remove the air /throttle body





smegun

Well-Known Member
Joined
April 3, 2013
Messages
387
Reaction score
3
City, State
florida
Year, Model & Trim Level
1994 ford explorer xlt

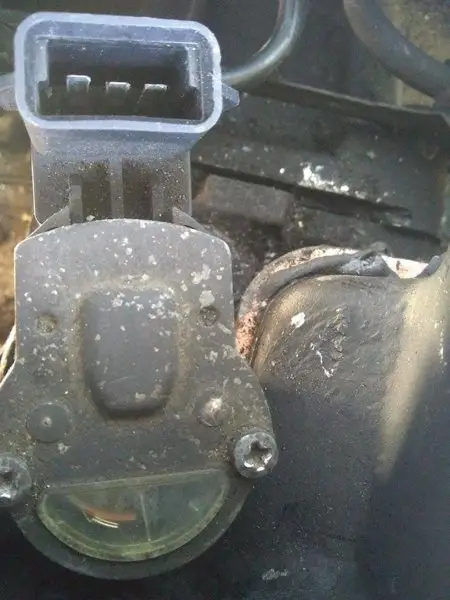

trying to establish what the window looks like at TDC heres mine when going to 26 deg ATDC
the lobe is further clockwise the red is just starting with the arrow ...is this correct ??

...also im told i could still be 180 out ad i need to turn the crank a revolution to get the compression stroke but does the window look right or do i need to rotate the crank and anyone who could post their pics of the CMP window correct at tdc would be great








massacre

Elite Explorer
Joined
January 24, 2018
Messages
969
Reaction score
248
Year, Model & Trim Level
‘94 Explorer
‘19 Nautilus
If you think you could be out of phase, it’s easy enough to double check that.

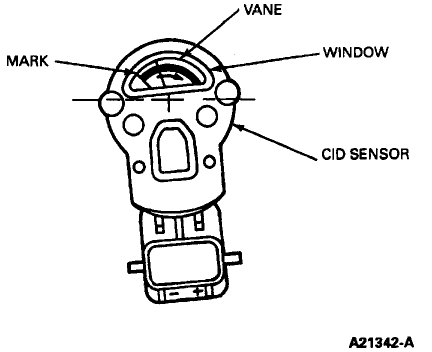

I found this pic on the net, may be of some help






smegun

Well-Known Member
Joined
April 3, 2013
Messages
387
Reaction score
3
City, State
florida
Year, Model & Trim Level
1994 ford explorer xlt
you have to be past TDC to install it (26 deg atdc ) most of these the arch of the vane is pointing 15 deg anti clockwise twards firewall but noticing this model looks different because the shape and connection block look opposite in that the connector is pointing that way instead but likely im not supposed to see a vane at all after tdc





smegun

Well-Known Member
Joined
April 3, 2013
Messages
387
Reaction score
3
City, State
florida
Year, Model & Trim Level
1994 ford explorer xlt
window anyone take a pic of the window at TDC your phone back there and take a pic … if I knew which mark to line it up at then the window makes sense ...currently im investigating that my cmd is on the exhaust stroke instead of compression stroke



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




massacre

Elite Explorer
Joined
January 24, 2018
Messages
969
Reaction score
248
Year, Model & Trim Level
‘94 Explorer
‘19 Nautilus
window anyone take a pic of the window at TDC your phone back there and take a pic … if I knew which mark to line it up at then the window makes sense ...currently im investigating that my cmd is on the exhaust stroke instead of compression stroke

If you remove #1 spark plug you should be able to find out if it’s out of phase or not by turning the engine over with thumb over spark plug hole.
Sucks in = intake
blows out = exhaust
