Changing Spark Plugs on 91-94 Explorer

MrQ

Smokey the clutch is; Missed shift you did
Elite Explorer
Moderator Emeritus
Joined
October 5, 2008
Messages
3,192
Reaction score
398
Location
Humid, Damp, and Hot
City, State
Houston, TX
Year, Model & Trim Level
'98 EB, '93 Limited
I looked for a decent spark plug change how-to on here, but was unable to find one. Well, I just recently replaced mine and took some pics. Hopefully this guide will give everybody a heads-up on doing this.

By replacing your plugs and wires you can potentially increase your gas mileage and extend the life of your engine. You should also gain some power if yours haven't been replaced in a while.

(If I erred and somebody has already done this, then just take it as my spark plug project :D )

Step 1.

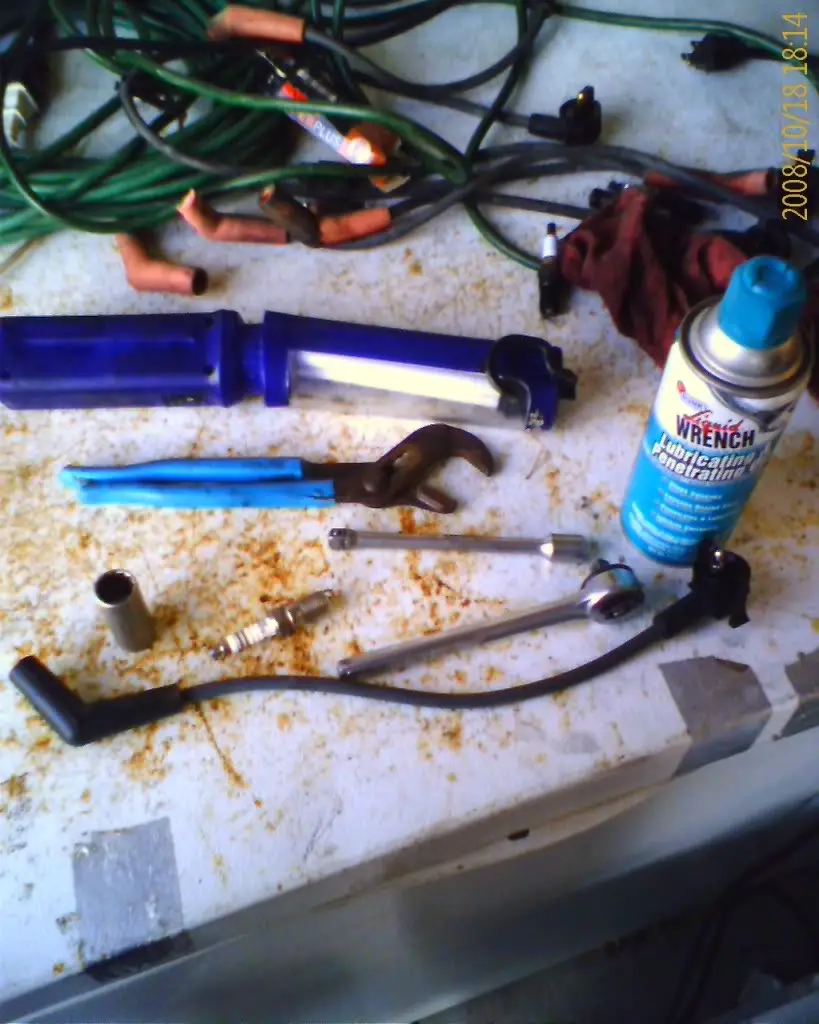

The tools and parts you will need are:

- A 3/8 socket wrench
- A long 5/8 socket
- Several lengths of extenders for the socket wrench
- 6 spark plugs (I used Bosch Plus Copper Cores)

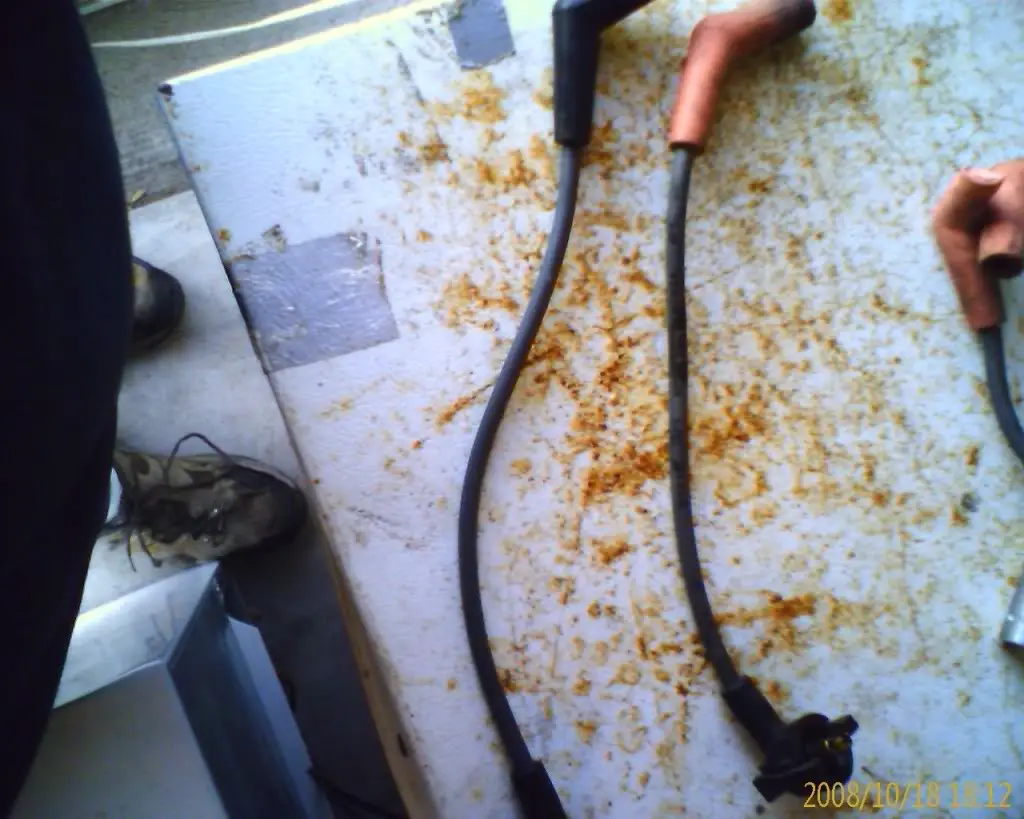

- A set of spark plug wires (Again Bosch)
- Your Exploder jack and accompanying accessories(Located in the compartment in the rear on the driver's side) OPTIONAL
- A jack stand (for safety) OPTIONAL
- Several pieces of wood (I used 4 pieces of plywood) OPTIONAL
- Liquid Wrench or other anti-seize chemical
- Dielectric grease
- Gap Setter
- Flat-head screw driver
- Light



2. Ok it's time to put your Ex on a level surface and pop the hood. Familiarize yourself with where the spark plugs are. Remove the intake hose from the air filter and the intake manifold. Then remove the vacuum tube to the oil fill from the intake hose. Disregard removing the radiator hose. This diagram should help:





3a. Remove the spark plugs on the driver's side: DO NOT DO ALL THE SPARK PLUGS AT ONCE!! Take one spark plug at a time. Remove it, remove the wire (twist left and right if it is hard to get off. Make sure you grab the boot at the base not at the top!) and measure it up to the new wire in the Spark Plug wire set. Apply the dielectric grease to the inside of the rubber boot ONLY!! Do not get it on the metal connector in the boot.

(1) Spark Plug nearest firewall: Should be able to get this out with a short extension.

(2) Middle Spark Plug: Short Extension.

(3) Spark Plug nearest Rad: Long extension.

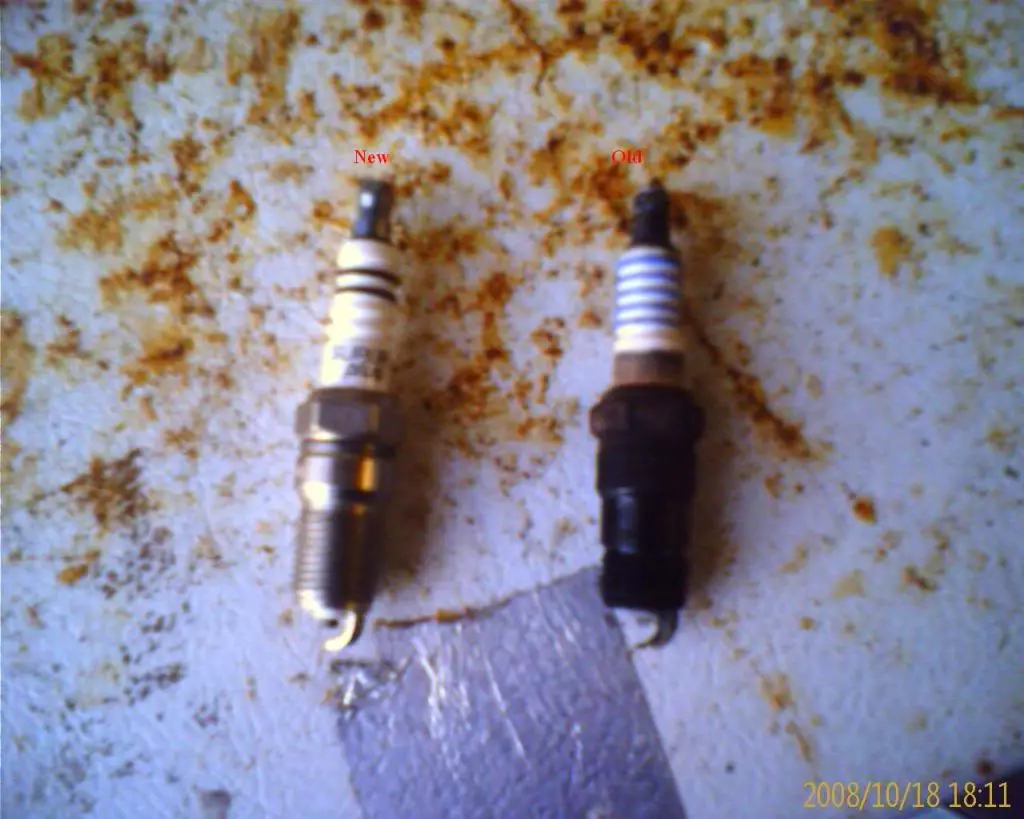

3b. Replace the Spark Plugs on driver's side: Replace each spark plug as you take the old one out. Make sure to set the gap for your Spark Plug at 0.54. Use a gap setter like this one: (Sorry phone cam is not really good) Coat each Spark Plug threads with 3-in-1 oil or anti-sieze. (I used liquid wrench) Torque to 15#



Don't over torque the Spark Plugs or cross thread them. If you do either it could mess up the head. Make sure you that you have the correct Spark Plug wire
replacement. The connector in the boot will click when full contact is made with the sp.

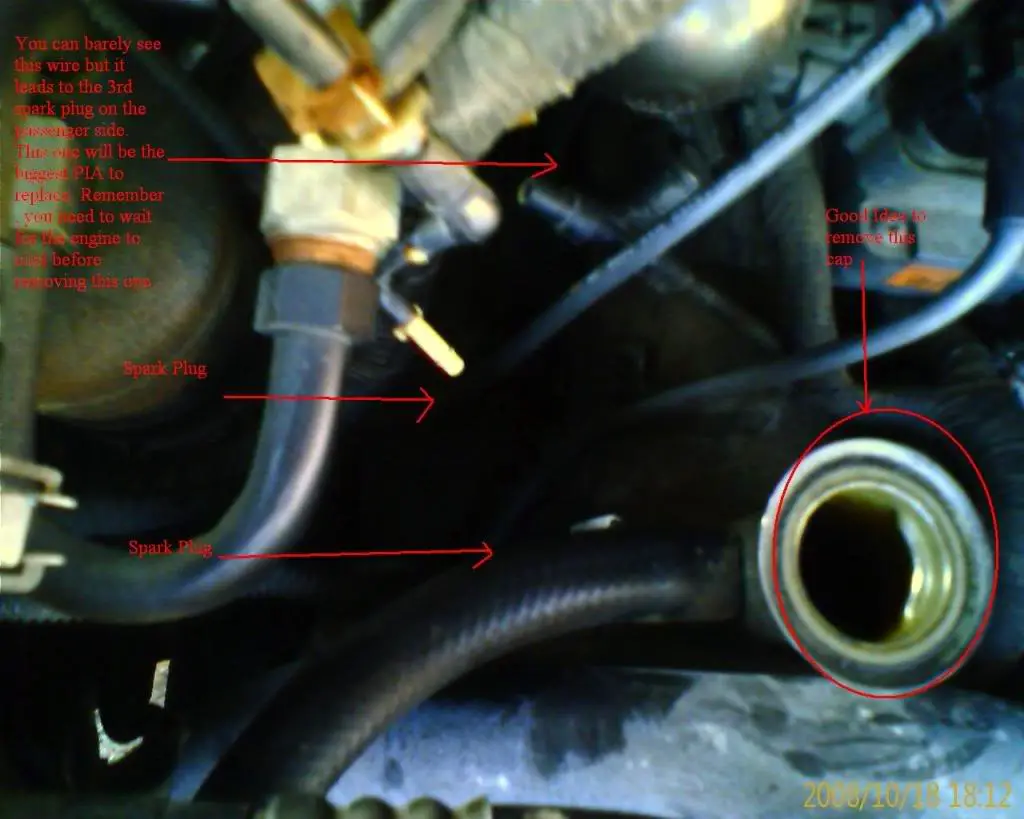

4. Spark Plug's removal and replacement on passenger's side: These will be a heck of a lot harder but still doable. Do the middle one and the one nearest the rad first. I recommend you don't use extensions on either of these. With these two you are going to have to feel your way to get them out. My dad and I used a crate to get high enough up to reach in to get 'em and both of us are at least 6'.



Replacing the Spark Plug next to the firewall.

OPTION 1

Now for the hard part. You are going to have to jack the car up to get under it and reach up through the hole in the wheel well to undo the boot and replace the frickin' thing. Usually one person on top with a flashlight and another underneath should be able to do this. Make sure you let the engine cool for a while because you and your buddy will be getting your hands right next to the exhaust manifold.:eek:

Squirm under the front passenger wheel and place your boards under the shock absorber and set the Ex jack on those boards. Make sure you have the connector piece for the jack to raise it up. It is located right on top of the radiator housing. Raise the jack up till it hits the shock absorber and adjust to make sure it doesn't slip. Now continue to raise it all the way.

When it is up all the way take your jack stand and put it under the frame. This is to protect you in case the Ex jack fails. Now crawl under the passenger side of the engine compartment. There should be a gap in the wheel well between the well and and the frame. You should be able to reach in there and get the boot off the Spark Plug. Your friend up top should be able to guide you.

You will have to use an extension on this Spark Plug and you will have to take it off from the bottom. Smaller hands are better for this job. Make sure your buddy guides you all the way. Once the stupid thing is out put the new one and tighten it. Your buddy may have to tighten it once you get the socket on the Spark Plug.

OPTION 2 (gsmaclean)
Pull the RF wheel well liner out (a few screws, then pull the plastic liner out) it gives you a lot better access to the plug.
OPTION 3 (TedJ)
Remove the passenger side tire

OPTION 4: The Diehard Way (Four0Sport)
Magnetic socket and wobble extension from the top.

6. Take your Ex for a test drive. If it starts to sputter and die under higher speeds then you may have not set the gaps right on the Spark Plugs. If this occurs...redo it all tomorrow. :D


Hope this helps. My plugs and wires had not been replaced in some time (I purchased it this way) so my plugs and wires looked and were really, really bad.




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





beetlebz

Member
Joined
September 29, 2008
Messages
24
Reaction score
0
City, State
Connecticut
Year, Model & Trim Level
1994 XLT
hey yo, good write up! Just to add, the spark plug nearest the firewall on the passenger side is actually pretty easy to get to from the wheel well if you just turn the wheel all the way to the right (i think it was). Didnt have to jack it up or anything :)

I did not bother removing the air intake hose, but thats not a terrible idea! Ill definitely try that next tune-up.







MrQ

Smokey the clutch is; Missed shift you did
Elite Explorer
Moderator Emeritus
Joined
October 5, 2008
Messages
3,192
Reaction score
398
Location
Humid, Damp, and Hot
City, State
Houston, TX
Year, Model & Trim Level
'98 EB, '93 Limited
Thanks man,

My dad and I did the jack-up and it worked well...though I wish for goodness sake's we would get a better jack than that crappy oem Ford one. It takes ten minutes to get it to fully jack up the Ex!!

Back to the point, basically jacking it allowed for easier access to the spark plug as well as the ability to see it. I am definitely not discounting though that there is a better way to do it.

Also removing the air-intake hose let in more light to the spark plug area and made it all the less crowded.







Blacksheep Josh

Slinky+Escalator=Fun
Joined
July 31, 2006
Messages
3,668
Reaction score
13
City, State
Statesboro, GA
Year, Model & Trim Level
'01 Ford Ranger, RIP 93 X
The upper radiator hose, the one you're pointing to that goes from the radiator to engine, does not need to be removed. If you do this on a cool engine, it makes no difference. I've changed the spark plugs on about 3-4 first generations, and this hose has never been a problem. I would think you're asking for more trouble if you remove it, you'll have to make sure you catch the coolant in this hose, and then when you reinstall, you run the risk of damaging it if not done correctly. You also have to burp the system then. Why go through all of that? Do it when the engine has cooled overnight, or at least for a few hours, and you'll be fine.







beetlebz

Member
Joined
September 29, 2008
Messages
24
Reaction score
0
City, State
Connecticut
Year, Model & Trim Level
1994 XLT
Ooooh I was just thinking the air intake hose, didnt realize you meant the radiator hose too. I hate changing coolant lines, its a PITA imho. My engine was red hot when I did mine, I just let it sit for a couple hours and it was tolerable, though id much rather wait till it was cool lol







beetlebz

Member
Joined
September 29, 2008
Messages
24
Reaction score
0
City, State
Connecticut
Year, Model & Trim Level
1994 XLT
Oh! just as a side note RE: that passenger side spark plug in the back... apparently MrQ, you and I are smarter than the ford guy at my dealership. Before I owned the truck the original owner took it in every 2-3k like clockwork for service. When I got around to changing the plugs after I bought the truck, that one spark plug on he passenger side nearest the firewall was a different plug and wire than all the rest LOL the never figured it out!







MrQ

Smokey the clutch is; Missed shift you did
Elite Explorer
Moderator Emeritus
Joined
October 5, 2008
Messages
3,192
Reaction score
398
Location
Humid, Damp, and Hot
City, State
Houston, TX
Year, Model & Trim Level
'98 EB, '93 Limited
The upper radiator hose, the one you're pointing to that goes from the radiator to engine, does not need to be removed. If you do this on a cool engine, it makes no difference. I've changed the spark plugs on about 3-4 first generations, and this hose has never been a problem. I would think you're asking for more trouble if you remove it, you'll have to make sure you catch the coolant in this hose, and then when you reinstall, you run the risk of damaging it if not done correctly. You also have to burp the system then. Why go through all of that? Do it when the engine has cooled overnight, or at least for a few hours, and you'll be fine.

You are right. My bad.







Hitchhikingmike

Explorer Addict
Joined
January 21, 2008
Messages
1,491
Reaction score
21
City, State
Dallas, Texas
Year, Model & Trim Level
'02 XLS
Hey great write up Mr. Q!

On another note, I don't know about the earlier explorers, but I do know that the 3gen 4.0's have aluminum engine heads. If you have aluminum heads like I do don't torque the spark plugs while the engine is warm, the aluminum can be playable while hot.

Here is a trick I like to use when getting my plugs initially threaded before I tighten them down. I like to take a piece of 1/4" rubber tube and stick it on the end of the plug as an extension to help me get it in the hole. It is very hard to strip your threads this way if you get it on wrong, the tube will slip on the plug if you the plug is not threaded in the head the right way. Once they plug is threaded right I just pull the hose off and snug it down with my torque wrench.

I U-joint on the plug socket is also convent.













gsmaclean

Well-Known Member
Joined
February 11, 2007
Messages
397
Reaction score
2
City, State
Strongsville, OH
Year, Model & Trim Level
03 Limited
A couple more hints:

- If you pull the RF wheel well liner out (a few screws, then pull the plastic liner out) it gives you a lot better access to the plug.

- If you have an air compressor, after you pull the boot off the plug but before you remove the plug, blow out the plug area. This will blow out any rust, dirt or other crud, so that it doesn't fall into the cylinder when you pull the plug out.







redrockexplorer

New Member
Joined
July 11, 2007
Messages
9
Reaction score
1
City, State
Utah
Year, Model & Trim Level
1993 xlt 4x4 4dr
I changed my right rear spark plug pretty easy by using the spark plug socket with the hex head on it with a wrench.













Joined
July 8, 2007
Messages
37
Reaction score
1
City, State
surrey bc canada
Year, Model & Trim Level
94 explorer xlt
a lot of trouble for not???

all i do to change that b#tch is use a hex head spark plug socket (most of them are like that anyway) then use a wrench to turn it and break it loose, then turn it by hand( only a few turns), remove the socket, turn plug by hand until it comes out. then reverse procedure to put in new one. takes only about five minutes to do :eek::salute:







Blacksheep Josh

Slinky+Escalator=Fun
Joined
July 31, 2006
Messages
3,668
Reaction score
13
City, State
Statesboro, GA
Year, Model & Trim Level
'01 Ford Ranger, RIP 93 X
For the Passenger side spark plug that's in the very back, I usually just reach down there, put the socket on first, then attach the rachet and remove it. I usually do this FIRST cause it's the hardest, but it's maybe 5 minutes of fiddling with it to replace it, the rest of them take about 15 minutes between removing them, spacing the new ones, and reinstalling them...

It's about time for new plugs and wires, it was spittin yesterday at times...







fubar_mdw

Member
Joined
August 14, 2008
Messages
16
Reaction score
0
City, State
hampton va
Year, Model & Trim Level
93 explorer xlt
This is a great write up.
On both the X's i have owned i never removed anything just went in
and replaced them (busted knuckles and bleeding fingers later)
big pain though.







pugsy

Well-Known Member
Joined
October 10, 2005
Messages
370
Reaction score
0
City, State
Toronto, ON
Year, Model & Trim Level
'92 XLT 4x4 (4 door)
For the Passenger side spark plug that's in the very back, I usually just reach down there, put the socket on first, then attach the rachet and remove it. I usually do this FIRST cause it's the hardest, but it's maybe 5 minutes of fiddling with it to replace it, the rest of them take about 15 minutes between removing them, spacing the new ones, and reinstalling them...

It's about time for new plugs and wires, it was spittin yesterday at times...

The 15 min. is assuming they've been changed at regular intervals. If you have an engine where someone failed to change them...you will have a difficult time doing them in 15 days...let alone mintues!!

The first two on the drivers side broke on mine as they're prolly originals - had a helluva time removing them, but manged to do it with an easy out and not getting any debris in the cylinders.

So there's no way I was going to tackle the passenger side bank. They're stayin in there till they fail!!







kozak

Member
Joined
July 28, 2008
Messages
17
Reaction score
0
City, State
Rosedale, British Columbia, Canada
Year, Model & Trim Level
93 XLT 4 door Explorer
This is a great write up.
On both the X's i have owned i never removed anything just went in
and replaced them (busted knuckles and bleeding fingers later)
big pain though.

I agree, I have never removed anything or jacked up the vehicle to change spark plugs. Good write up though.







Blacksheep Josh

Slinky+Escalator=Fun
Joined
July 31, 2006
Messages
3,668
Reaction score
13
City, State
Statesboro, GA
Year, Model & Trim Level
'01 Ford Ranger, RIP 93 X
The 15 min. is assuming they've been changed at regular intervals. If you have an engine where someone failed to change them...you will have a difficult time doing them in 15 days...let alone mintues!!

The first two on the drivers side broke on mine as they're prolly originals - had a helluva time removing them, but manged to do it with an easy out and not getting any debris in the cylinders.

So there's no way I was going to tackle the passenger side bank. They're stayin in there till they fail!!

The spark plugs on my Explorer had only been changed twice in the last 15 years. I was the third person to change them, so I know what stuck spark plugs are like. I never broke any off, but I went slow with them, using gradual pressure until the broke loose. When I reinstall spark plugs, I make sure they're nice and snug and not going to back out, but I don't go crazy on the torque.







smbracing

Active Member
Joined
November 18, 2008
Messages
54
Reaction score
0
City, State
Jackson, OH
Year, Model & Trim Level
1994 Explorer XLT
one spark plug on he passenger side nearest the firewall was a different plug and wire than all the rest

Same on my '94, that particular plug had at least a .125" gap LOL
I've changed plugs on tons of 4.0 EX's, and the 2.9 on my B2 was just as bad, but the worst was a 4.0 2wd ranger, the extra suspension height makes it much easier to access the back passenger's plug. That made a good 30 minute job though a 45 minute job :thumbsup:
