Cigarette lighter wires


FrankMCJR

New Member
Joined
August 5, 2020
Messages
8
Reaction score
0
City, State
San Diego, CA
Year, Model & Trim Level
2016
Explorer
Police
hello. I am trying to connect a new 12V and usb to my current cigarette lighter and I have mo idea which wires are positive and negative. I have an orange and white and what looks like a purple and white. Please help!!



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




peterk9

Staff member
Moderator
Elite Explorer
Joined
December 28, 2010
Messages
28,404
Reaction score
1,739
City, State
Russell, Ontario (Ottawa area)
Year, Model & Trim Level
2020 Aviator Reserve
Callsign
VE3
Hi Frank. These are referred to as power points in the Owner's Manual. According to the Manual, there are 4 locations. On the console, inside the console, on the back of the console and in the rear cargo area. Are you looking at the one on the console? I'm not sure if the wiring for all 4 is the same or not. I don't know if there are members that have installed a similar setup.

Peter





Ryant35

New Member
Joined
November 15, 2017
Messages
45
Reaction score
23
City, State
Cypress
Year, Model & Trim Level
2013 XLT
hello. I am trying to connect a new 12V and usb to my current cigarette lighter and I have mo idea which wires are positive and negative. I have an orange and white and what looks like a purple and white. Please help!!
Go get a cheap meter and meter voltage to body negative.





Michael Blackburn

New Member
Joined
March 15, 2019
Messages
39
Reaction score
12
City, State
Virginia Beach, VA
Year, Model & Trim Level
2018 Explorer Limited 4WD
In my 2018 wiring diagram, all Power Point negative wires are black with either white or gray stripe.





Mbrooks420

High Voltage.
Elite Explorer
EF Vendor
Joined
February 2, 2002
Messages
9,933
Reaction score
1,383
Year, Model & Trim Level
1998 Mountaineer AWD
Any wiring/electrical work requires a meter.





DHG2496

Active Member
Joined
October 4, 2019
Messages
112
Reaction score
16
City, State
Fruitport, MI
Year, Model & Trim Level
14 Explorer PIU 3.5EB
hello. I am trying to connect a new 12V and usb to my current cigarette lighter and I have mo idea which wires are positive and negative. I have an orange and white and what looks like a purple and white. Please help!!

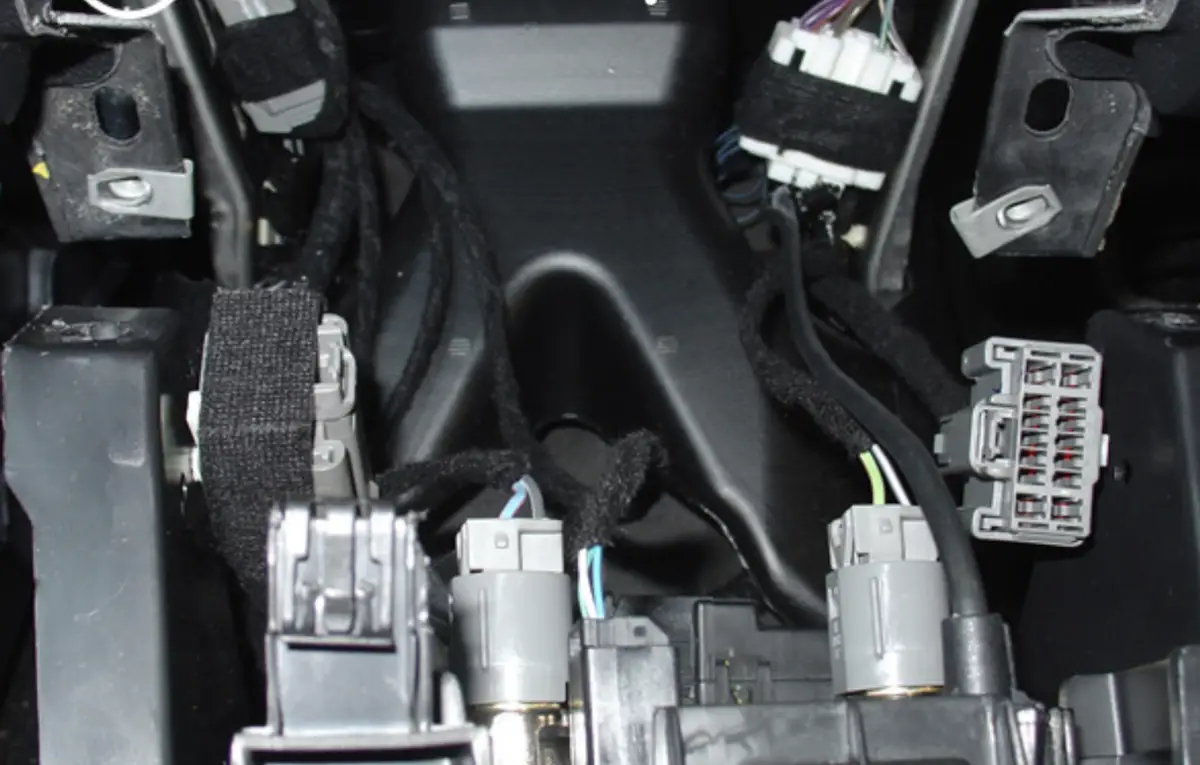

Can you post a picture of what you are working with, most people have a couple plugs in the console/dash area for the 12v plugs. Mine is a 2014 so colors could be different, but here are two of them plugged into my retail console. I'd still recommend confirming which is hot on yours, but in mine the colored wires (Blue w/red stripe on the left plug and Green w/red stripe on the right plug) were the hot wires, maybe the reason for the red stripe. The wires on the right on each plug were the grounds.

You could also steal or extend wires from the 6-way power connector if you need/want always on power for that vs. converting an existing one of those 12v plugs.
