How to: Convert V8 AWD to BW 4406 Manual Shift- A how to thread

CDW6212R

Hauls the mail.
Elite Explorer
Joined
June 17, 2004
Messages
22,237
Reaction score
2,618
City, State
Knoxville, TN
Year, Model & Trim Level
98 Limited AWD
Thanks, yes the cost for controllers and stand alone PCM's is really high. I do wish one of the aftermarket operating systems could control the 6R, I don't think they do though, but it is a rarely swapped trans so far. I'm considering using a 2003-2005 PCM for my 302 based project, with the 6R, those are faster and better to tune with than prior PCM's.



Holiday Special! Join the Elite Explorers $20 for 2 years! Gets rid of the ads!

Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private conversations, and more. Join Today. Your support is greatly appreciated.




410Fortune

Truck Season!!
Staff member
Moderator
Joined
August 3, 2000
Messages
26,981
Reaction score
2,624
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Have you run into any that wouldn't shift properly? I'm wondering if I've got something wrong with the linkage on my '99 Ranger. I can move the shifter at the case and it's very firm but does move properly. But the linkage itself is not smooth at all.
To adjust the linkage put the T case in 4 hi and the shifter in 4hi, the shifter parks right on the little tab on the "gate" and that is where you snug everything down
The linkage arms should move quite easily, it takes barely any motion to go from 2wd to 4hi on the fly
If it is not smooth then you may haver the incorrect "linkage arm" as there were a couple of different lengths.





fastpakr

Elite Explorer
Joined
February 18, 2005
Messages
694
Reaction score
153
City, State
Roanoke, VA
Year, Model & Trim Level
99 4wd - 5.0/4R70W/BW4406
Thanks! I should be able to get a good look at it tomorrow and try that adjustment as well as seeing how long the arm is.





abes.shop

Member
Joined
September 17, 2018
Messages
23
Reaction score
3
City, State
Oceanside, Ca.
Year, Model & Trim Level
1998 Explorer XLT V8 AWD
I just pulled a shifter w/boot out of a 97 f150 that looks like this



My question is where are the bolts located for the bracket that bolts to transmission and linkage that goes to transfer case and what size wrench will I need (Pictures Please of Location)?





abes.shop

Member
Joined
September 17, 2018
Messages
23
Reaction score
3
City, State
Oceanside, Ca.
Year, Model & Trim Level
1998 Explorer XLT V8 AWD

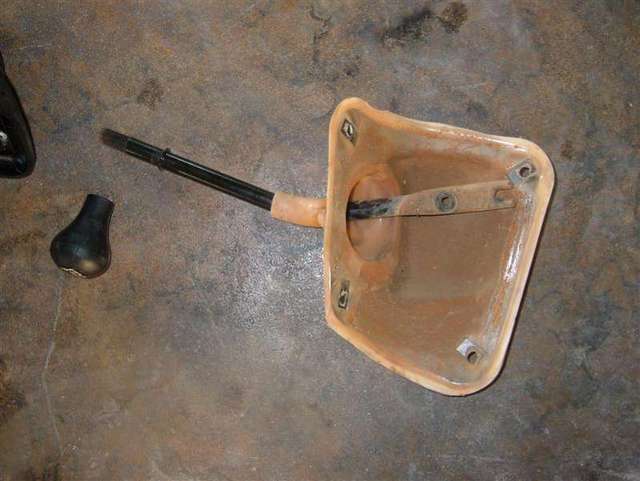

I just pulled a shifter w/boot out of a 97 f150 that looks like this

View attachment 423809

My question is where are the bolts located for the bracket that bolts to transmission and linkage that goes to transfer case and what size wrench will I need (Pictures Please of Location)?

Also, I just got the shifter linkage out, that was an all-day project just for 2 bolts and a bushing



now maybe I will go back tomorrow morning or Friday to get the front drive shaft, possibly check out the transfer case too. Slowly but surely, it will get done. 😎





abes.shop

Member
Joined
September 17, 2018
Messages
23
Reaction score
3
City, State
Oceanside, Ca.
Year, Model & Trim Level
1998 Explorer XLT V8 AWD

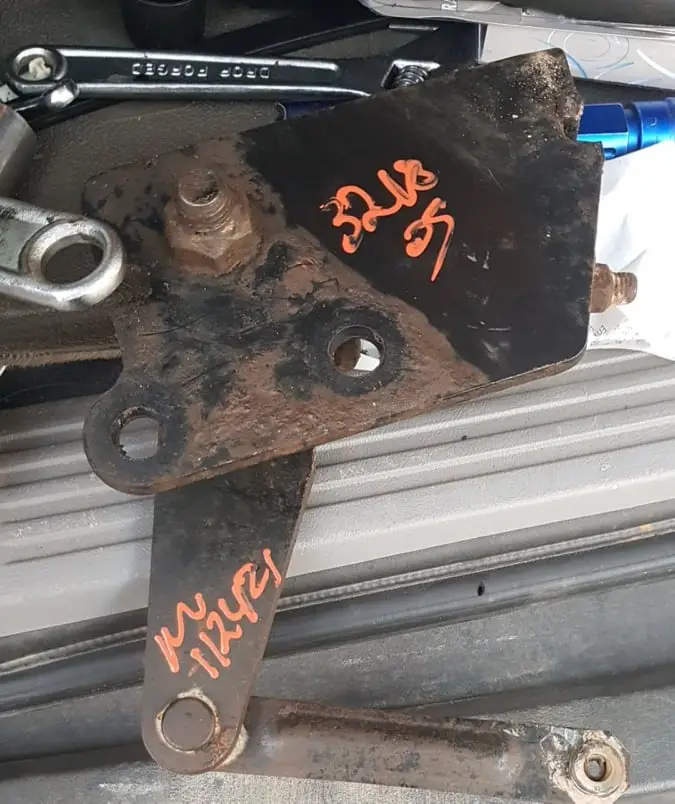

Also, I just got the shifter linkage out, that was an all-day project just for 2 bolts and a bushing

View attachment 423887

now maybe I will go back tomorrow morning or Friday to get the front drive shaft, possibly check out the transfer case too. Slowly but surely, it will get done. 😎

Has anyone ever had any problems with vibrations after doing the swap?





abes.shop

Member
Joined
September 17, 2018
Messages
23
Reaction score
3
City, State
Oceanside, Ca.
Year, Model & Trim Level
1998 Explorer XLT V8 AWD

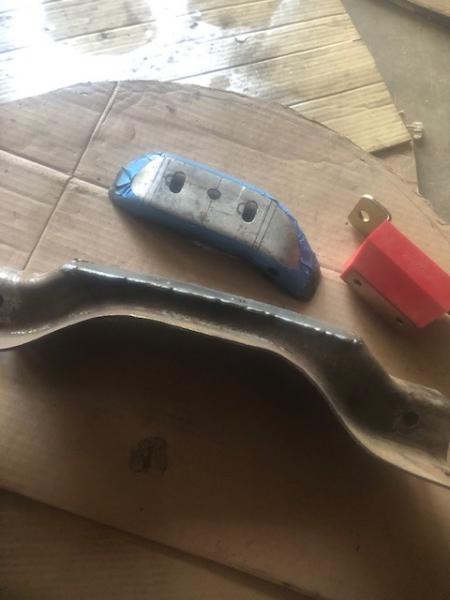

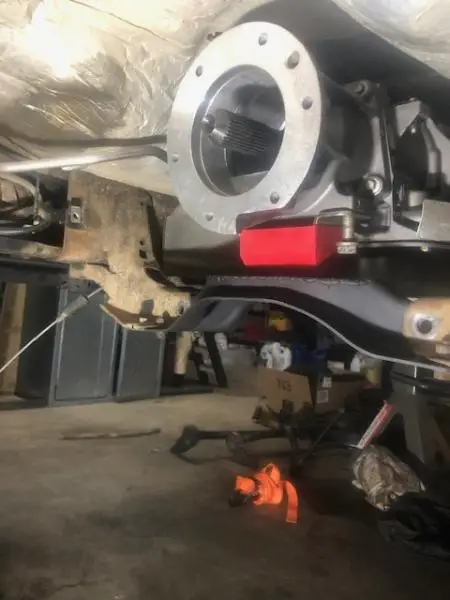

I can fix the vibration with a custom transmission mount that moves the 4406 to the pass side 3/8"

View attachment 340172
View attachment 340171


Some F150 or expedition front shafts may also be about 1" too long, which can be removed from the slip yoke and be made to fit.
Finding good f150 or expedition driveshafts used can be a challenge, most scrappers dent them with the forklift.
Private party is a good source, ebay too.
Buying new the cost has gone WAY up. Summit/Speedway sells a nice wiy driveshaft kit in many styles and lengths I really like those for the price. Always use Spicer lifetime U joints......

I have done about 20ea 4406 conversions to date in Rangers and Explorers

410Fortune, how much do you charge to make this custom transmission mount? And if the transmission is pushed to the passenger side 3/8" to accommodate the front drive shaft won't that affect the alignment of the rear drive shaft also causing a vibration there?






410Fortune

Truck Season!!
Staff member
Moderator
Joined
August 3, 2000
Messages
26,981
Reaction score
2,624
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
No it will not
I cannot tell you how many years and hours of research have gone into this subject.

Over the years every once in a while like 1 out of 5 swaps will have a nasty vibration somewhere around 60 mph
Using a double cardan front d shaft, vibration still there.
Adding the vibration dampers to rear axle and t case, 3rd shock, balancing shafts etc… vibration still there
So an elite group of dudes on this forum and several other ranger forums over the years started
To dissect the issue, some driveshaft experts chimed in, info was found from all around the web. With the 4406 under our trucks the front driveshaft angle is actually too good, there is not enough angle on the shaft and u joints which can actually cause vibrations.
So the fix I suggested was the RE location and heavy duty trans mount

Crap! I typed out a whole explanation of how we got here and it got erased before
Posting dang!! I am on my phone this am I will come back and explain more when I am at my pc
Was
Like 4 paragraphs!! Sob





abes.shop

Member
Joined
September 17, 2018
Messages
23
Reaction score
3
City, State
Oceanside, Ca.
Year, Model & Trim Level
1998 Explorer XLT V8 AWD
No it will not
I cannot tell you how many years and hours of research have gone into this subject.

Over the years every once in a while like 1 out of 5 swaps will have a nasty vibration somewhere around 60 mph
Using a double cardan front d shaft, vibration still there.
Adding the vibration dampers to rear axle and t case, 3rd shock, balancing shafts etc… vibration still there
So an elite group of dudes on this forum and several other ranger forums over the years started
To dissect the issue, some driveshaft experts chimed in, info was found from all around the web. With the 4406 under our trucks the front driveshaft angle is actually too good, there is not enough angle on the shaft and u joints which can actually cause vibrations.
So the fix I suggested was the RE location and heavy duty trans mount

Crap! I typed out a whole explanation of how we got here and it got erased before
Posting dang!! I am on my phone this am I will come back and explain more when I am at my pc
Was
Like 4 paragraphs!! Sob
Ok, you don't have to go through the whole thing you have been doing these swaps for a while now, so how much is one of these heavy duty trans mounts for the relocation?





410Fortune

Truck Season!!
Staff member
Moderator
Joined
August 3, 2000
Messages
26,981
Reaction score
2,624
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
Oh man well I am getting ready to build another one for my own personal sport trac build so I guess I could do two or more

The energy suspension mount I use is like $45 on Amazon unless it’s gone up
Prothane 6-1604

I would be like $150 for me to build you one and paint it, plus shipping. I could do $200 and include the correct f150 urethane mount
I made cardboard templates for this since I have now built about 5 of these for friends and family lol

Pm me if interested!





abes.shop

Member
Joined
September 17, 2018
Messages
23
Reaction score
3
City, State
Oceanside, Ca.
Year, Model & Trim Level
1998 Explorer XLT V8 AWD
Oh man well I am getting ready to build another one for my own personal sport trac build so I guess I could do two or more

The energy suspension mount I use is like $45 on Amazon unless it’s gone up
Prothane 6-1604

I would be like $150 for me to build you one and paint it, plus shipping. I could do $200 and include the correct f150 urethane mount
I made cardboard templates for this since I have now built about 5 of these for friends and family lol

Pm me if interested!

You said "Over the years every once in a while, like 1 out of 5 swaps will have a nasty vibration somewhere around 60 mph" if I have a vibration when I have completer the swap then yes, I will want one, but won't know until then especially since you said every once in a while, 1 out of 5 swaps will vibrate.





410Fortune

Truck Season!!
Staff member
Moderator
Joined
August 3, 2000
Messages
26,981
Reaction score
2,624
City, State
NORTH IDAHO, 7B
Year, Model & Trim Level
B2 "Slightly" Modified
Callsign
FOURTEN
That is about right!
If it is not broken don’t try to fix it
I have been lucky none of the trucks I have converted seem to have the vibrations

Also I believe most of the trucks w the problem have been 4 door explorers, I have not seen a sport, sport trac, or ranger with the vibes





abes.shop

Member
Joined
September 17, 2018
Messages
23
Reaction score
3
City, State
Oceanside, Ca.
Year, Model & Trim Level
1998 Explorer XLT V8 AWD
That is about right!
If it is not broken don’t try to fix it
I have been lucky none of the trucks I have converted seem to have the vibrations

Also I believe most of the trucks w the problem have been 4 door explorers, I have not seen a sport, sport trac, or ranger with the vibes
Well that's reassuring because my v8 xlt is a 4-door ex😬😧😢
