correct parts #'s 4.0sohc guides & tensioners with pics...

project92

Well-Known Member
Joined
February 11, 2003
Messages
390
Reaction score
0
City, State
missouri
Year, Model & Trim Level
00E.B.,93 xlt 92 xlt
okay I did not have the left/right cam problems mine was the main chain and balance shaft trouble was finding the parts numbers I searched on here the internet and the Ford dealers... finally found One out of 5 Ford dealers that knew what I need so here we go


Attachments

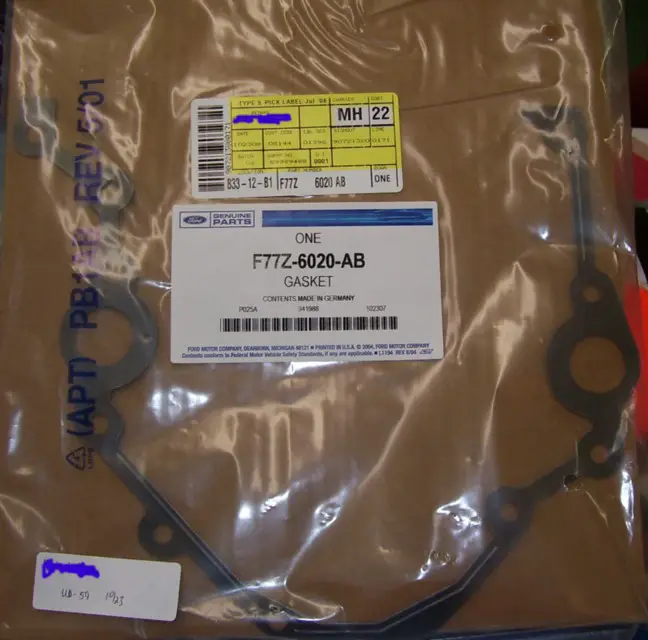

  • tc gasket.jpg
    tc gasket.jpg
    82.5 KB · Views: 12,915

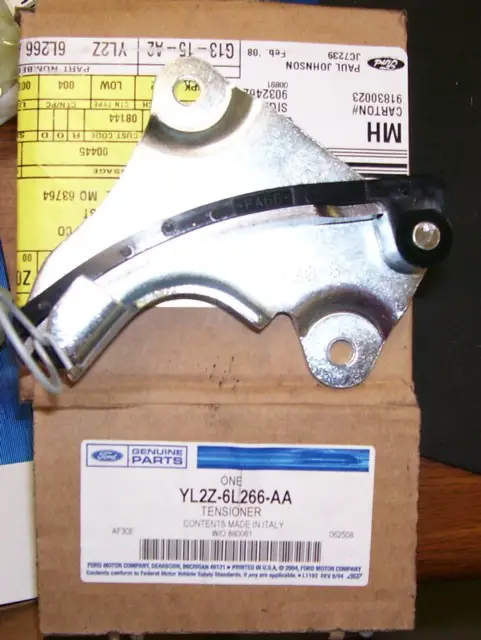

  • main chain ten.jpg
    main chain ten.jpg
    75 KB · Views: 13,259

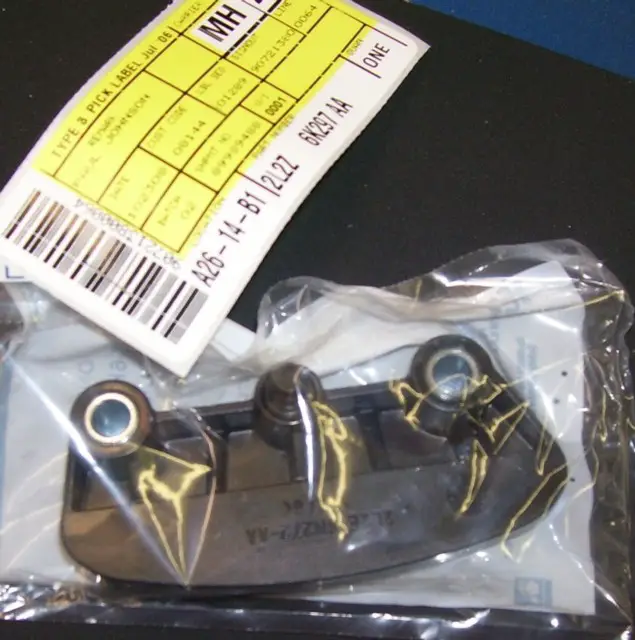

  • main chain guidea.jpg
    main chain guidea.jpg
    95.8 KB · Views: 12,579

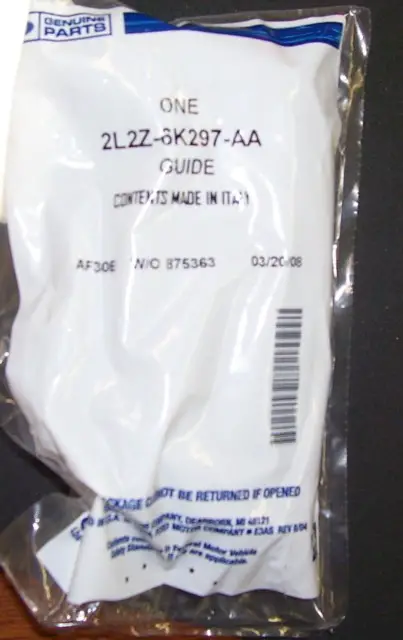

  • main chain guide.jpg
    main chain guide.jpg
    47.7 KB · Views: 12,518


Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




project92

Well-Known Member
Joined
February 11, 2003
Messages
390
Reaction score
0
City, State
missouri
Year, Model & Trim Level
00E.B.,93 xlt 92 xlt
part 2


Attachments

  • bs ten.jpg
    bs ten.jpg
    89.1 KB · Views: 13,111

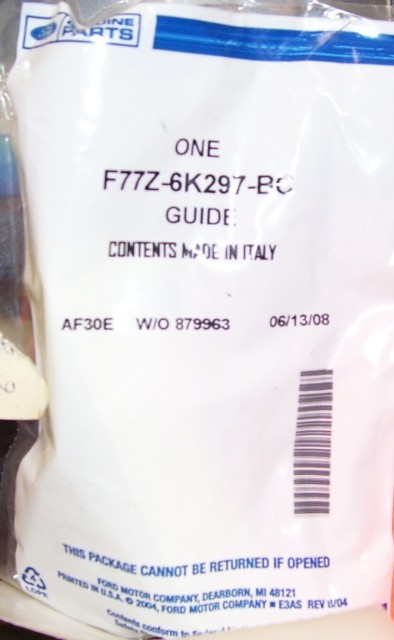

  • bsguide.jpg
    40.4 KB · Views: 12,401

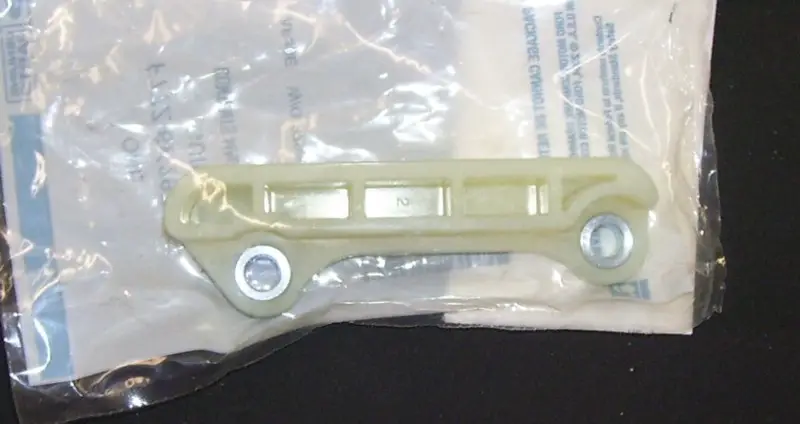

  • bsguidea.jpg
    62.2 KB · Views: 12,664
  • invoce.jpg
    82.2 KB · Views: 12,538




project92

Well-Known Member
Joined
February 11, 2003
Messages
390
Reaction score
0
City, State
missouri
Year, Model & Trim Level
00E.B.,93 xlt 92 xlt
okay you see most has there part numbers but her is a rundown...

F77Z6K297BC. BS GUIDE $11.77
2L2Z6K297AA.MAIN CHAIN GUIDE $10.85
1L2Z6L266AA. BS TENSIONER.$19.30
YL2Z6L266AA. MAIN CHAIN TENSIONER. $42.78
F77Z6020AB. TIMING CHAIN COVER $ 10.83

Other parts of interest...

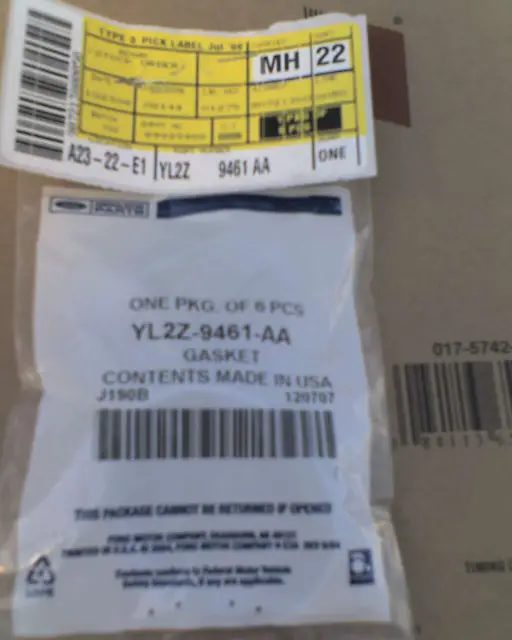

YL2Z9461AA. TOP HALF OF INTAKE $1.85 EACH (6)
YL2Z9E436AA. BOTTOM GASKET OF INTAKE $4.53 EA. (2)

and don't forget the tool kit 6488 also you may need a oil pan gaskets I'll get them number later

most part are cheeper at ford becuase the local auto parts don't sell just the guides or tensioners they have to sell them in sets which includes chains and run over $100 buck a piece... you can get a whole 4 chain kit for $577 from carquest:eek:

okay the internet is good and bad...

don't get the TC gaske from ford it's 10 bucks, you can got to oreilly's and get the TC kit and get all the gaskets you need (SEE PICS BELOW)..
also the kit for the upper is cheeper at oriell's also it's just there web page doesn't show the correct set so I spent a extra 10 bucks at the Ford dealer because of this.. the kit is 14-16 at most auto parts stores (pics below..





project92

Well-Known Member
Joined
February 11, 2003
Messages
390
Reaction score
0
City, State
missouri
Year, Model & Trim Level
00E.B.,93 xlt 92 xlt
pics of parts


Attachments

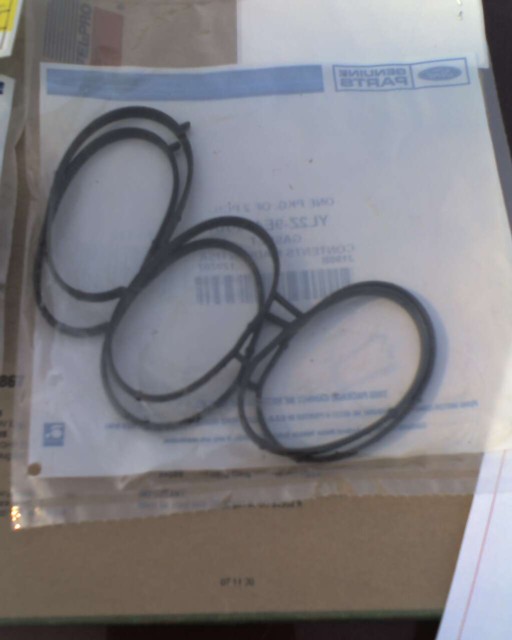

  • bottom1.jpg
    41.9 KB · Views: 15,097

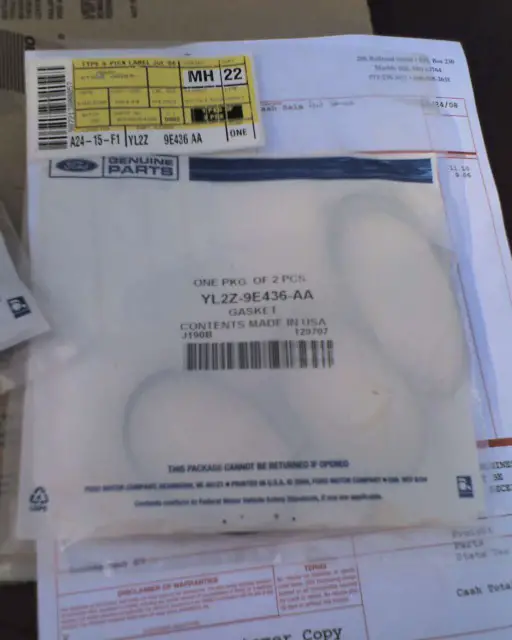

  • bottom1a.jpg
    52.2 KB · Views: 12,442

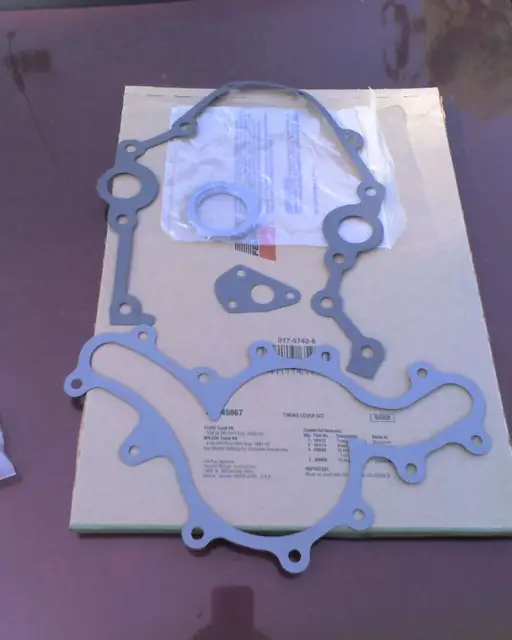

  • kit.jpg
    52.2 KB · Views: 12,215




project92

Well-Known Member
Joined
February 11, 2003
Messages
390
Reaction score
0
City, State
missouri
Year, Model & Trim Level
00E.B.,93 xlt 92 xlt
last set for a while


Attachments

  • top.jpg
    51.7 KB · Views: 12,361

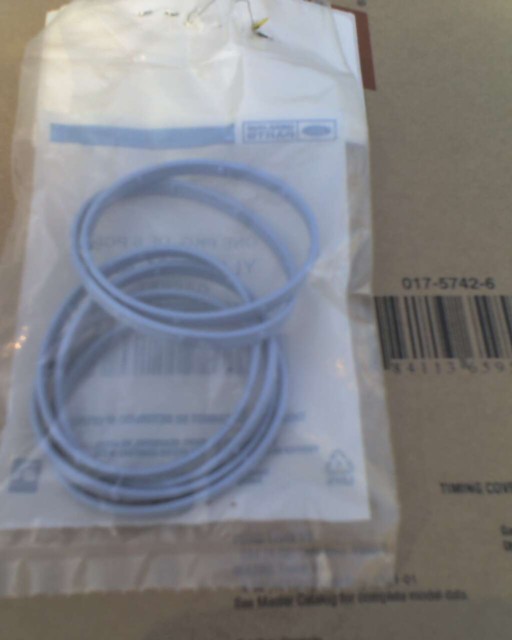

  • top1.jpg
