Ok heres my first how to, I did this back in june and someone on here suggested I do a writeup on how I did it so here it is. Bear with me it's been awhile sice i did it so I forget a couple of thigs.

Well this is the final product, I'll take you through all the steps to make this.

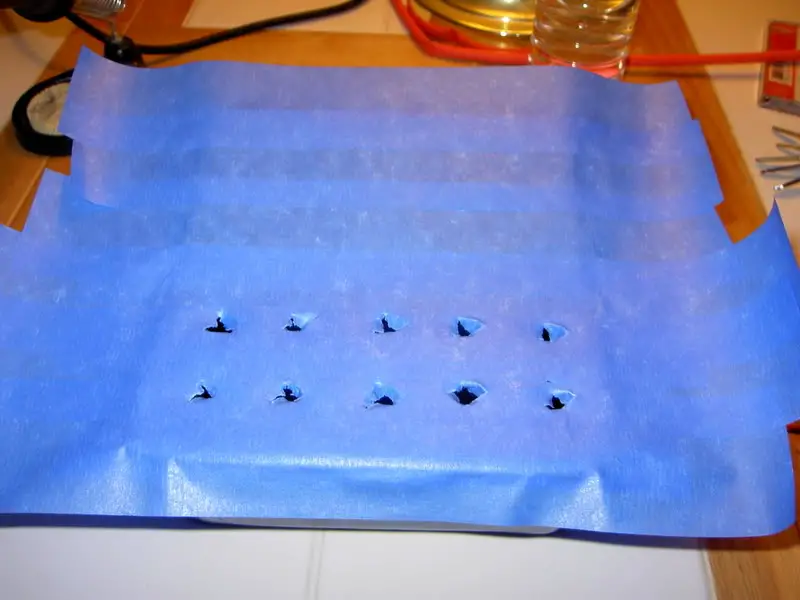

Started out by removing the center console, it's held in by clips and one screw under the black ruber. Then I taped off the area where I want to make the pod with 3m Painters tape. Then rub mold release wax ontop of the tape.

I then drew out some guide lines onto the tape with a Black sharpie that will transfer to the fiberglass. Then laid down 5 layers of glass

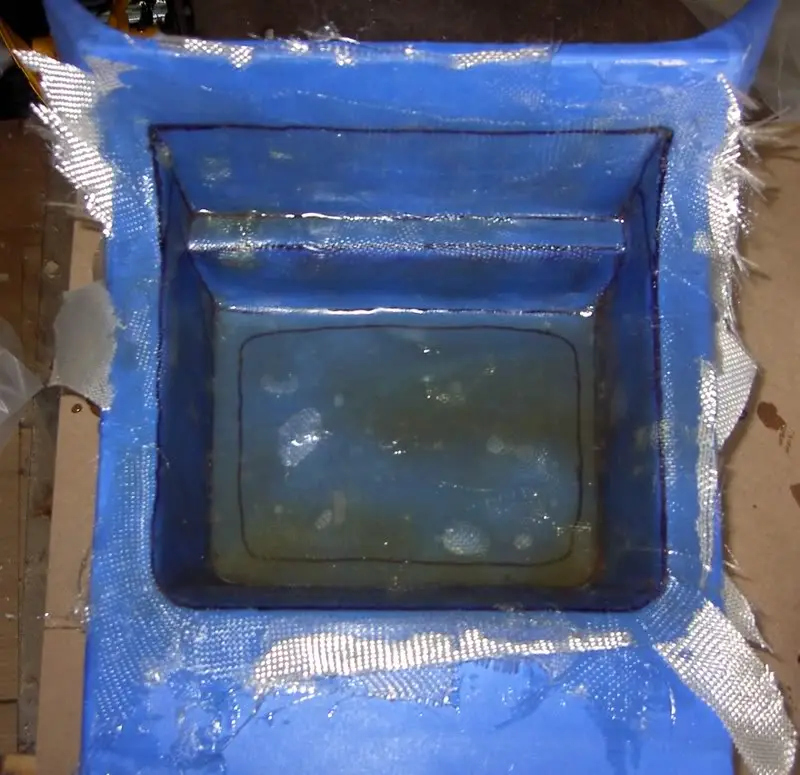

Pulled it out and trimmed off the excess and cut out the bottom

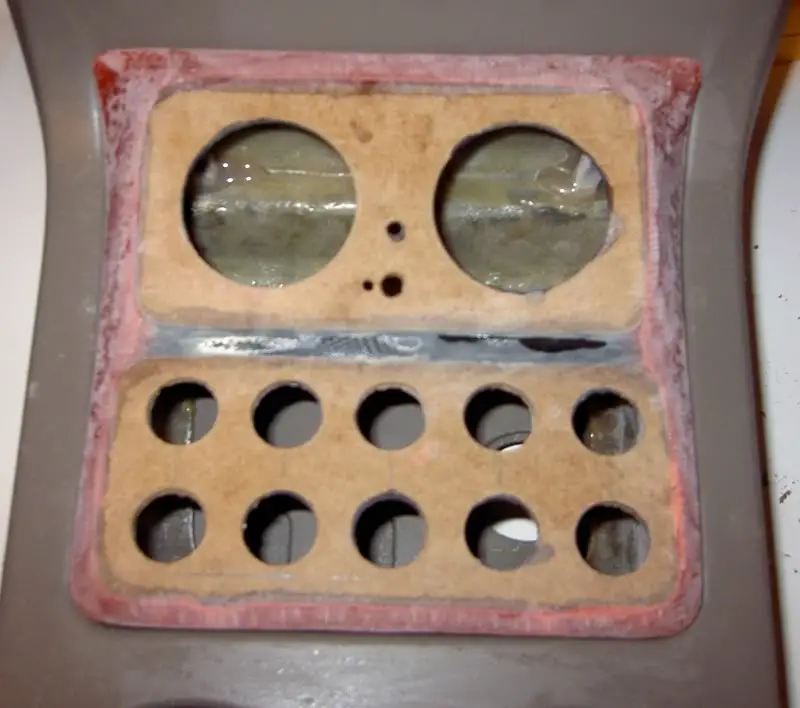

Then out of 1/8 inch wood (similar to mdf or is, not sure) I cut our the openings I wanted for the gagues and switches. Then hot glued them to wooden sticks in place

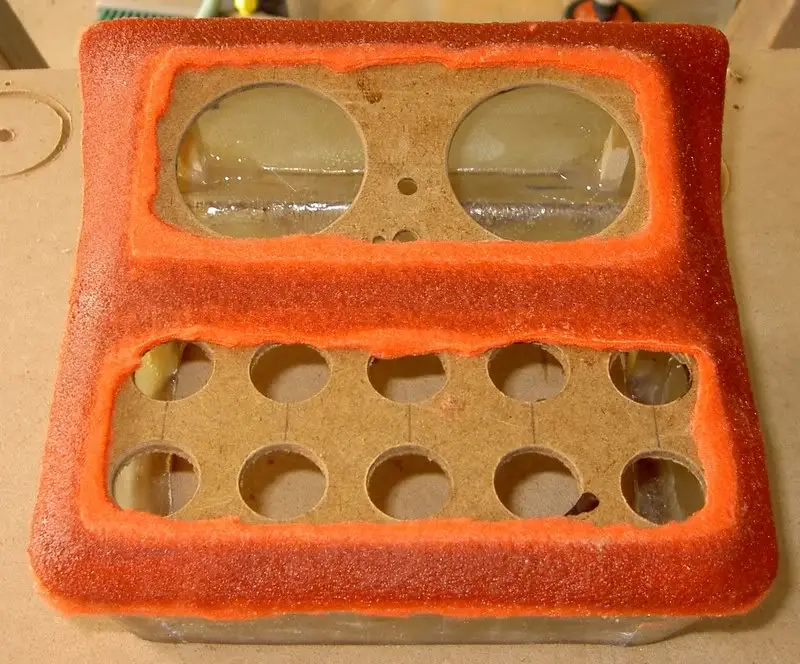

wrapped in cloth and held by adhesive spray glue, then cover the appropriate areas with resin. then once hardened trimmed away unneeded cloth




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





Sanded and added more resin in many areas, test fitted for gaps on sides

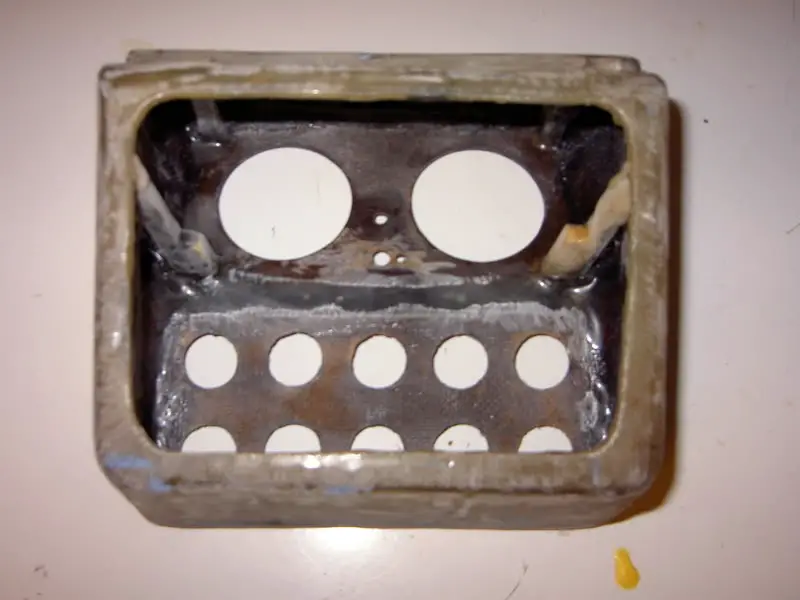

coated inside with fiberglass and resin really good

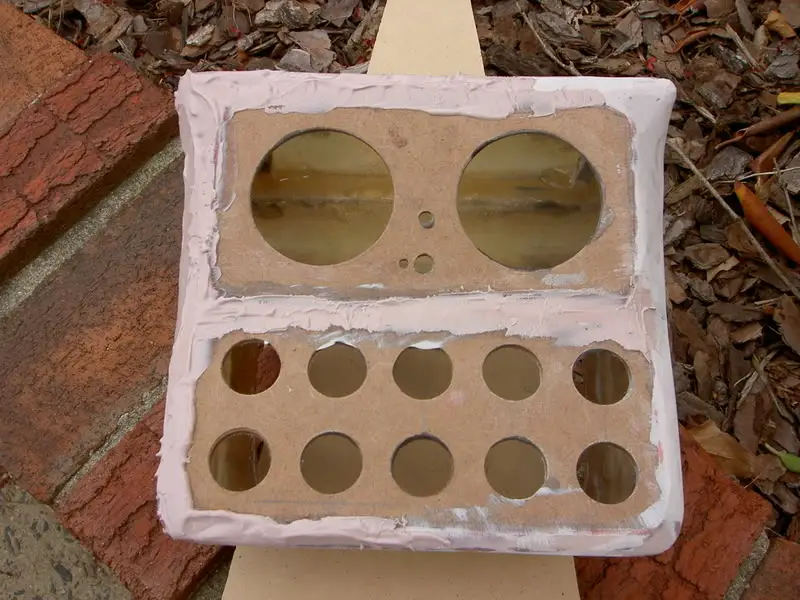

Applies bondo and sanded 3 or 4 times

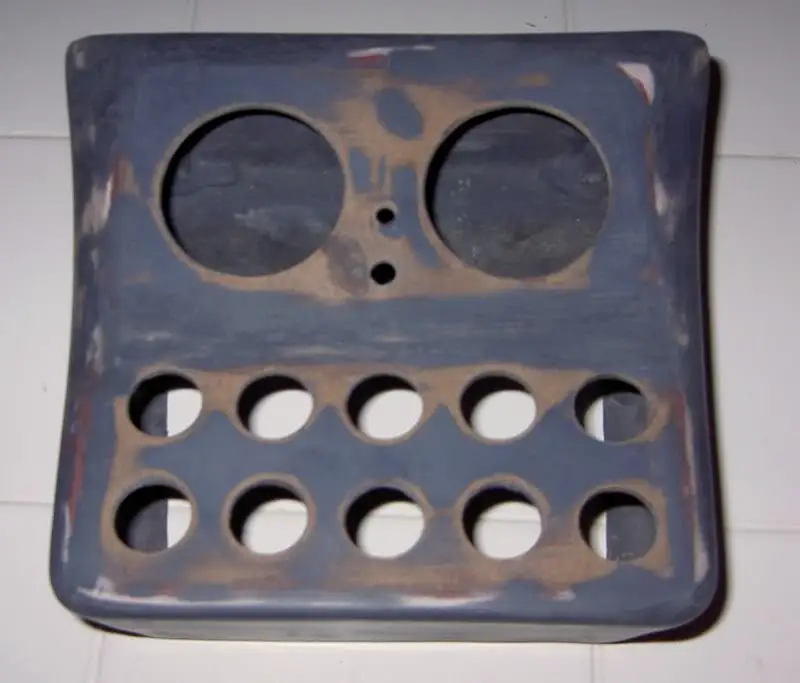

sanded and primered, then ready for paint. I took it to a body shop to get it painted the same color as my car.

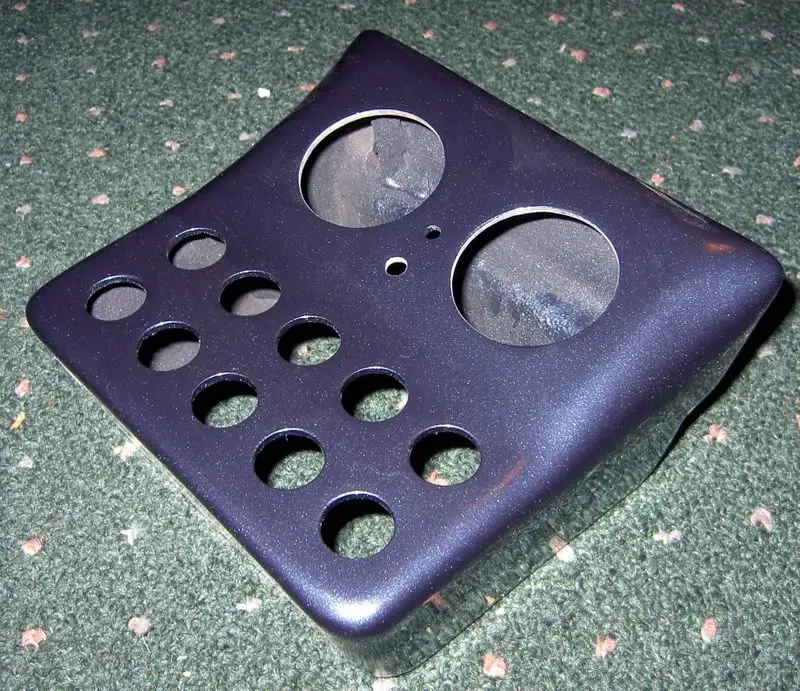

came back like this







taped off the top so I wouldnt scratch the paint

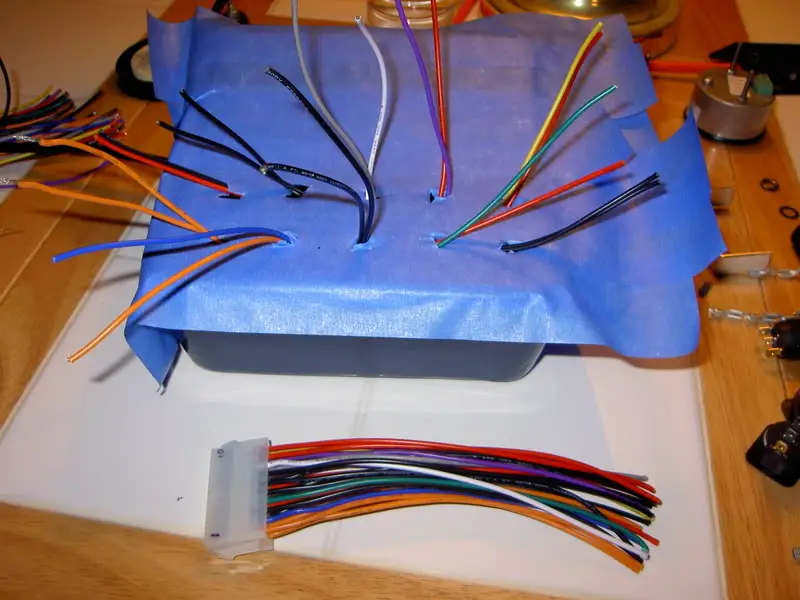

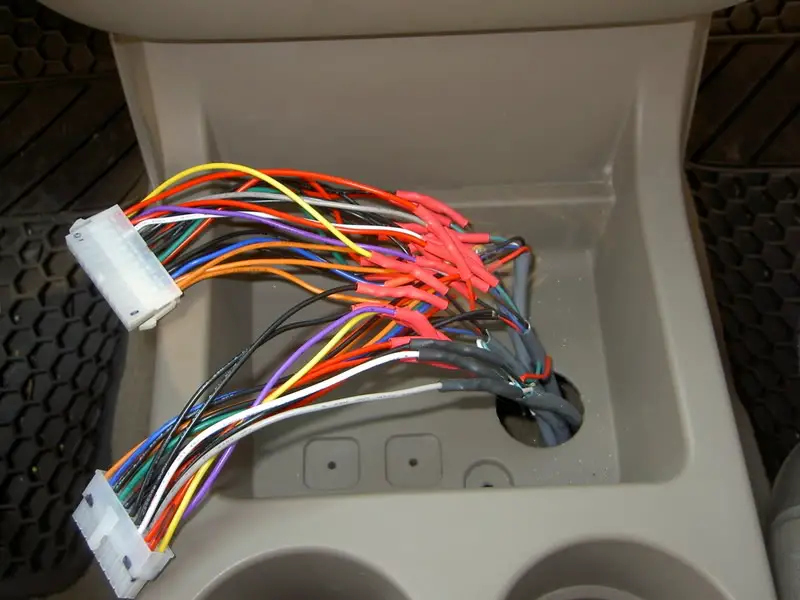

Wired up the switches, I used 2 atx 12" extenders made to extend power supplies in computers for my quick disconnect plugs.

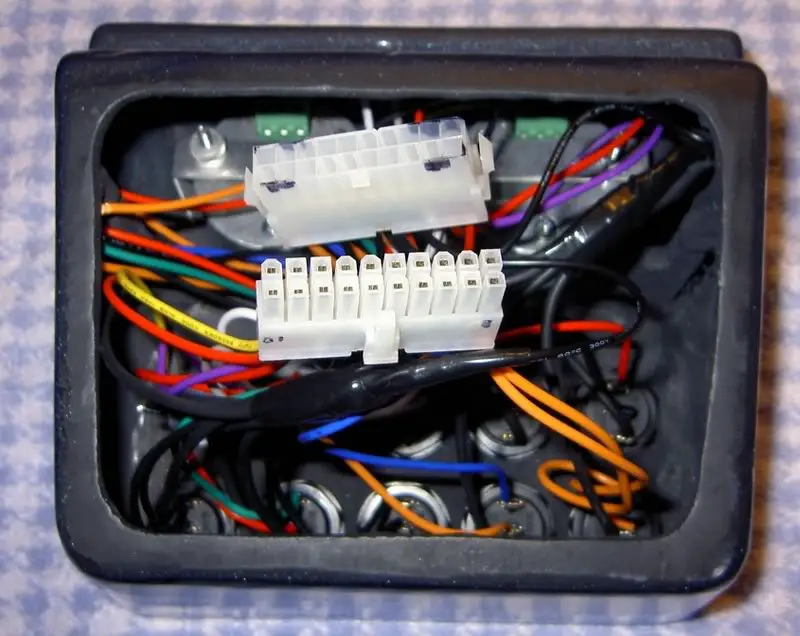

wired up switches

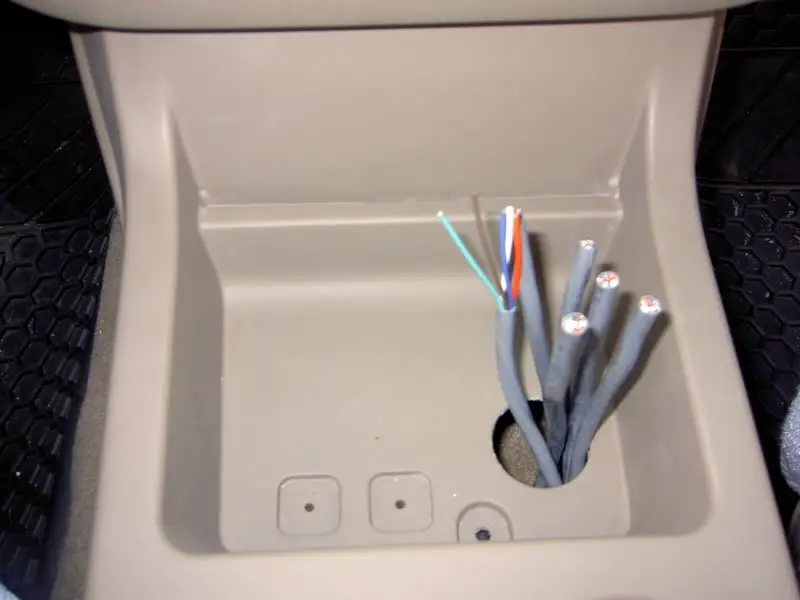

wired up the car

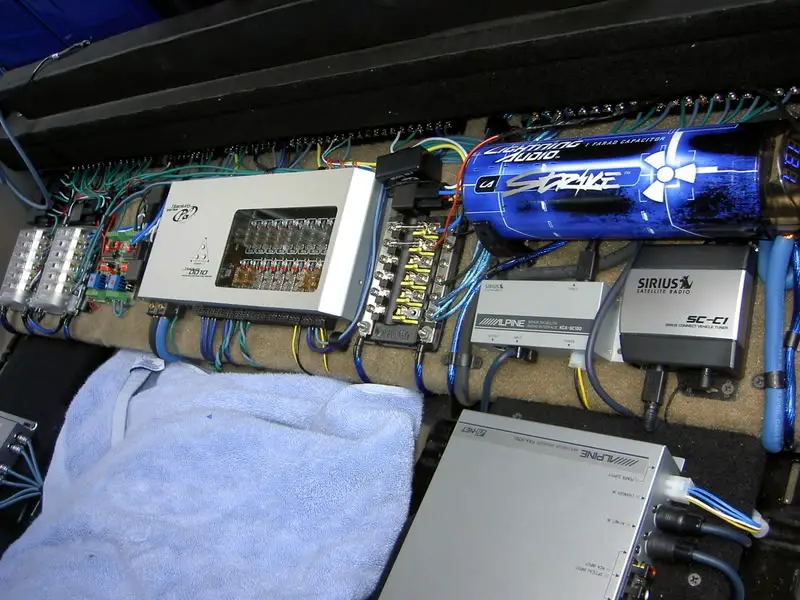

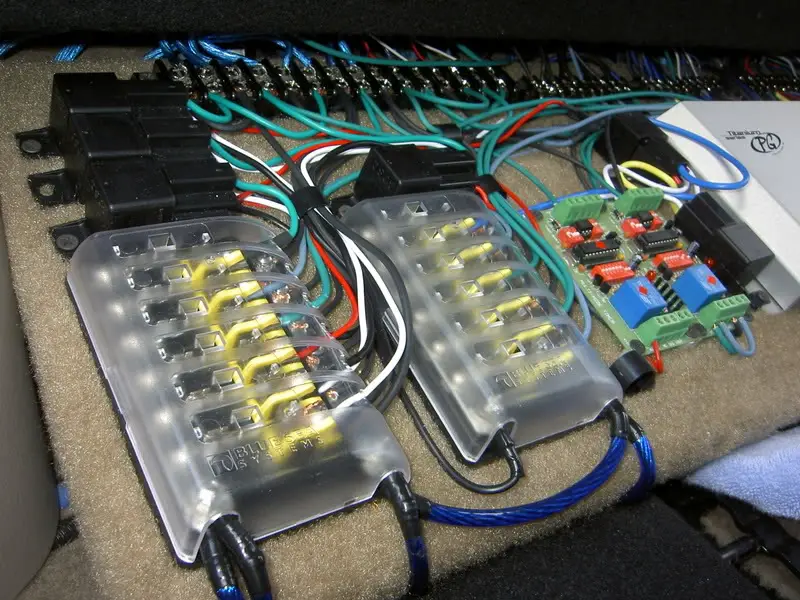

inside shot

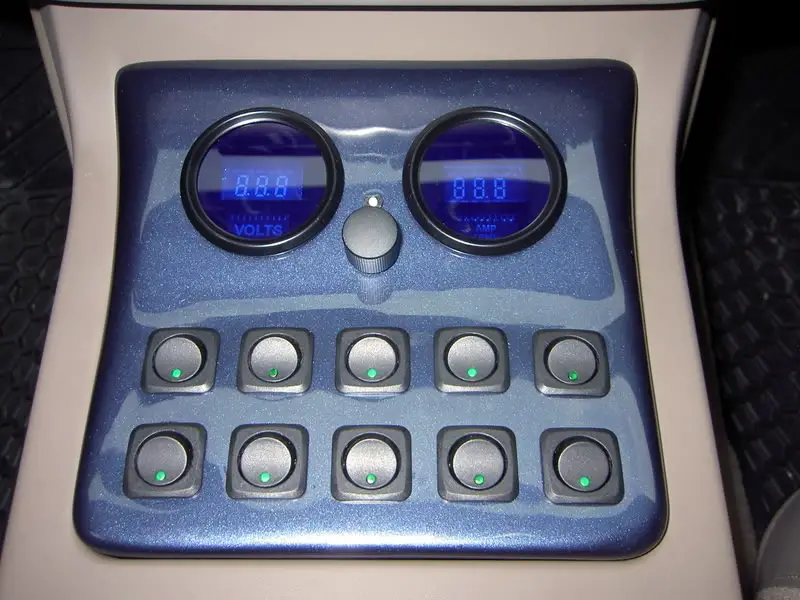

Final product:D;)

Hope you like my How To
