"Custom" Driveshaft for a 4406 and 4" Superlift on the Cheap

MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,501
Reaction score
31
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
I did this some time back now, but it was buried 4 pages deep in another thread here.

I am going to copy most of the information here so others can find it.

Now that AMMO_HOOAH is getting a 4" Superlift and has a 4406, maybe others will get on the ball and do the mod too. :D



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




MountaineerGreen

Towing Moderator
Moderator Emeritus
Joined
February 2, 2006
Messages
7,501
Reaction score
31
City, State
North East Arkansas
Year, Model & Trim Level
2012 F150 4x4
Got the DS for the 96 sport to use the flange for my t case.

Found in the pile o driveshafts a perfect length front driveshaft for a Heep Grand Cherokee. The U joints are the same and it has a stock double cardan, but it uses a different style to connect to the t case

I am going to transplant the flanged double cardan from the Explorer driveshaft to the heep driveshaft. No need to get it shortened and it should work. I got both shafts for $81, so I should have a perfect front d shaft for not much cash. And as a bonus the heep front d shaft diff yoke is the same as my D35, so I don't need a conversion u joint.

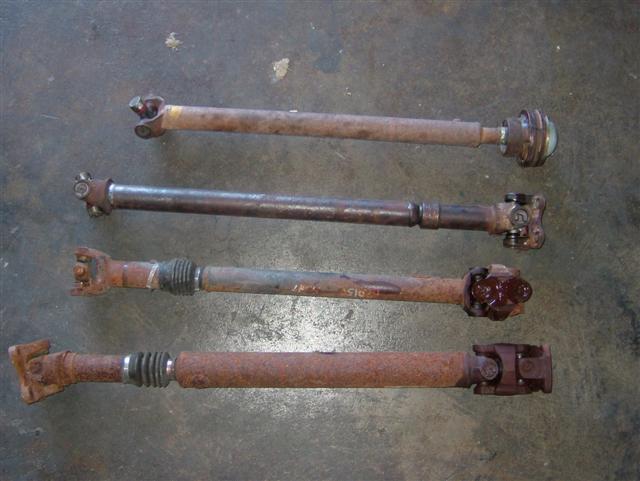

From the top down:
