Dana 44 and 3 link install

Since the AZ wheeling season is finally upon us, I decided it was time to put my new truck in the shop for a little tweaking to better handle the trails around here. A little about what I started with:

Specs: 5 speed, manual tcase, 5.13's, discs and no slip in rear, 37 MTR's(street) and 36 TSL's(rocks).

The goal for this project was to build something that was able to drive to the hardest trails in AZ, run them successfully, and then drive home. It must also be able to be driven everyday as this is my main source of transportation. All decisions were made with a bias towards trail performance, instead of street comfort.

Build Specs:

Dana 44 - Left over from my last project.
- Warn shafts, CTM's, Detroit, 5.13's, Hi-steer setup, etc.
King Coilovers - 14" travel, 2" body
King Airbumps - 4" travel
Custom 3 link w/ panhard rod

All fabrication work is being performed by 4 Wheelers Supply here in Phoenix.

Work started Monday. Progress as of lunch today.

Old front end has been stripped out, frame rail have been ground smooth in preperation for reinforcement plating, axle location has been determined, ride height is set. Items in the engine compartment have been relocated in preperation for the shock hoops and the crossbar that will connect them across the engine bay(next two pics).

I hope to stop in again at the shop Tues or Wed next week (it is a 45 drive away) and have better progress pics of the actual layout of the links, as well as the hoops for the coilovers.

Estimated completion date is sometime the first week of December.



[rookieshooter]

Can't wait to see more pics.



[james t]

Im sure it will be just as sick as your old one.



[SVO]

Awsome, after having driven Red Bull just after it came out of TX Auto Gear, I know for a fact that this rig will also be off the deep end for SICKNESS!

P.S. got to see Red Bull again last monday, it was like a familliar face with different make-up.


P.S.S. damnit you have the tail lights I need





Jeff - :navajo:



[410Fortune]

I am confused, you are starting over with another 4 door explorer? hahaha You remind me of family

Why? I figured the next thing we would see you working on is a tube buggy...
This green Ex has changed hands a few times now has it not?



[Michael]

I am confused, you are starting over with another 4 door explorer? hahaha You remind me of family

Why? I figured the next thing we would see you working on is a tube buggy...
This green Ex has changed hands a few times now has it not?

I started over with another 4 door because I wanted something versatile right now. I got rid of my othe truck, trailer and tow rig because I bought a townhouse with no garage. So, this build needed to be streetable and daily driveable. Tube buggy will come later, I tend to get bored with things pretty quickly so changes happen often.

Yes, this green truck has been owned by several of the TX crew. I bought it from Kris Guilbeaux a few months ago.

Jeff - Send me some regular tailights and you can have these. I'm not highly attached to one kind of light versus another.



[410Fortune]

Sweet man, put that sucker to good use and congrats on the townhome



[FROADER]

Nice, oh and I know you want to trade me those 37" MTRs for my tires...

Can't wait to see this thing.



[SVO]

Jeff - Send me some regular tailights and you can have these. I'm not highly attached to one kind of light versus another.

PM me your address and I'll send you these new Explorer tails I have here on the Nasty Hoe, Thanx!



[Dannyboy]

4 wheelers did some work on my front axle, mainly internals. I was more than satisfied with their work. Sorry I haven't had a chance to hook up and wheel yet. We will definitely have to make it happen when this one gets completed.



[bmxking5]

:drool: Looks good. Can't wait to see some more progress pics.



[james t]

I am confused, you are starting over with another 4 door explorer? hahaha You remind me of family

Why? I figured the next thing we would see you working on is a tube buggy...
This green Ex has changed hands a few times now has it not?

Trkmagik has his old red one now named "red bull". Its the same as it was only now w/ fullwidth 44-9" and 38" TSL's.



[TheFox88]

Good looking project. Congragulations on the new rig.



[034x4]

Looks sweet, can't wait to see more pics of this set-up.



[Kris Guilbeaux]

OMG My Baby is going Solid... YAY.. yeah this Truck was Brians then mine then Micheals. now Brian own the Red one Micheal owned.. So we played Musical Explorers back in August.. LOL



[Trckmagik]

Look great Michael. I am glad to see my old green explorer has had two great owners, since I owned it

Red Bull is in very good hands now and likes its new feet



[Rick]

Looks good Michael. Now that Hammer's rig is about done we'll have a pretty good crew down here again



[Randall]

Posting for updates.



[Michael]

Update time. All the links are mocked into place. The rear crossmember for the lower and upper links is also mocked in place. It will not be removable which will make removal of the trans a challenge, but possible.

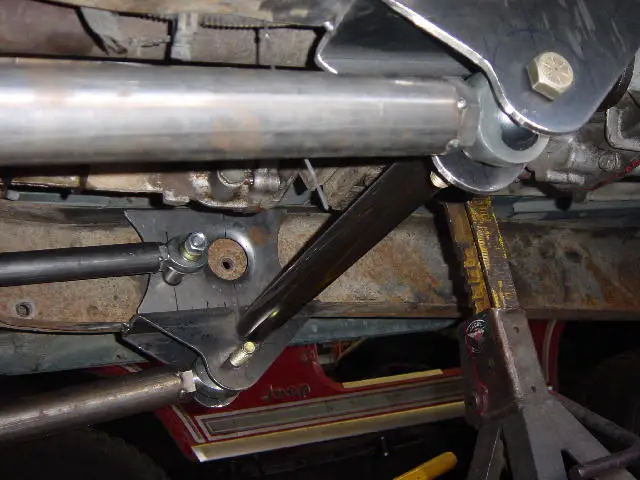

Drivers side lower link mount
