Installing a KKM intake on a 4.0V6. This particular model was a 2006 XLT (mine).
Took me about 30 minutes...including all the pictures.


What it looks like to start:




First:
Remove Mass Air flow Sensor plug. Make sure you pull out the red tab...otherwise you wont get the plug off without breaking it.



Second:
Loosen clamp holding on stock airbox (flathead screwdriver)




Third:
Unclip Airbox lid and remove





Fourth:
Remove Filter




Fifth:
Take lid of airbox to workbench and get a Torx20 screwdriver (star tip).




Sixth:
Remove two screws holding in Mass Air Flow Sensor. For me, the screws were very tight.
Once both screws are out, MAF Sensor should slide easily out.







Seventh:

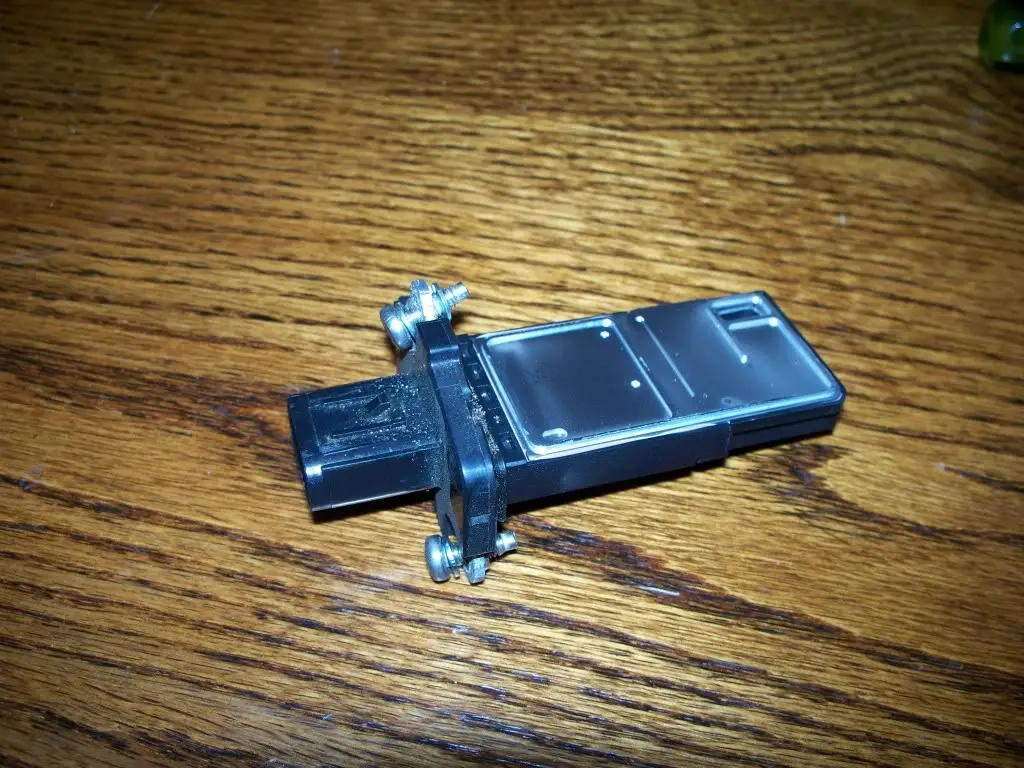

Add washers as stated in the directions and as picture below.




Eighth:
Reinstall MAF sensor into new intake. Do not overtighten.




Nineth:
Remove stock airbox bottom. DONT BE AFRIAD TO PULL...you wont hurt it.
This part can get tricky, since there are 4 rubber plugs holding it on. 2 of the plugs are in the bottom, and 2 of them are stuck in the fender. What I did was pull up first, let the bottom 2 plugs pop out, then pulled towards the alternator to get the 2 side plugs out. Then with some simple manueavering you can get the tube out of the grill(real easy).





Where the two bottom plugs were positioned:




Where the two side plugs were positioned:




Tenth:
Position the bracket (comes with intake) on the bottom of the intake. Use the bolt thats already in the hole to attach the bracket.



Eleventh:
Attach the intake to the clamp and tighten down the clamp. Make sure you position the intake with the bracket down, since you will need this later on to attach to the alternator.




Twelfth:
Attach the bracket to the alternator hole. Getting the nut on the bottom can be trickey, but just be patient with it. Then tighten down the nut. As you tighten the nut, the intake will move fowards...towards the passenger side. This is alright and gets it out of the way of other components.



Thirteenth:
Attach the MAF sensor plug back in. Make sure you slide the red clip back in to secure the plug.





The finished product:





Hope this helps everyone!




Join the Elite Explorers for $20 each year.
Elite Explorer members see no advertisements, no banner ads, no double underlined links,.
Add an avatar, upload photo attachments, and more!
.





nice! i just installed mine two days ago works great the only thing i did differently was on the bracket i installed the bolt the opposide direction on the alternator, this made it easier to tighten im sure it wont affect anything :thumbsup:







Ya. Mine was still hot when I was doin it..so I was just trying to get that bolt on the burning hot alternator as quickly as possible. haha







yeah haha i know exactly what your talking about i wanted it on as soon as it was delivered even though i almost burned my hand off haha

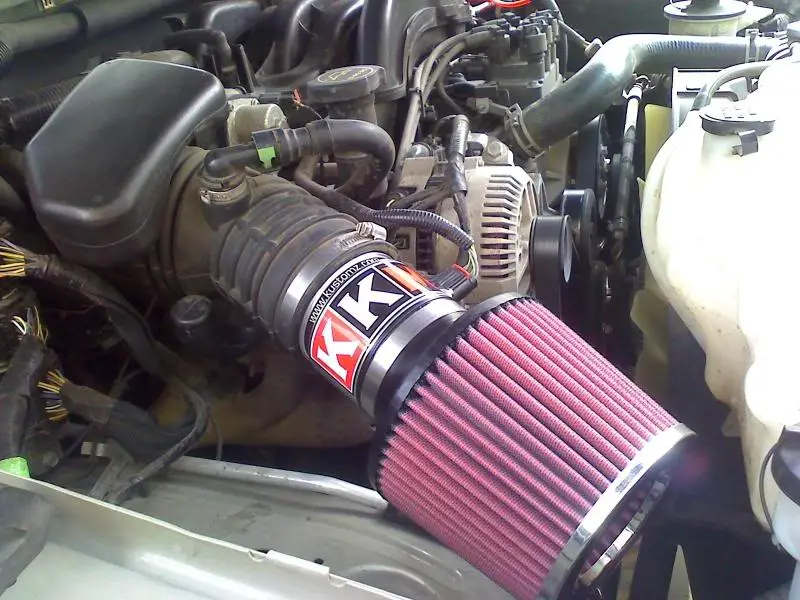

heres a pic of exactly the same but on an 06" mountaineer:







looks good keep up good work







yeah haha i know exactly what your talking about i wanted it on as soon as it was delivered even though i almost burned my hand off haha

heres a pic of exactly the same but on an 06" mountaineer:

has anyone come up with provisions on removing the air block shaped and J-shaped air silencers or the whole air tube?







Nice writeup. Looks like a good product and fits well. Could use a bigger logo sticker though so people would know who makes it..... LoL







haha yeah.

and no...havent found a way to remove the blocks







okay this is probably the dumbest question ever but when i installed my kkm intake on my 08 v6 i left those 2 rubber garments on the bottom in. Does it make any difference in performance or anything. I know dumb question but hey u never know. Thanks







No, shouldnt make a difference...except for the 1 pound of extra weight effecting gas mileage :p







lol thanks will pull out next time i clean the filter is there any trick to removing them or just pull.







lol thanks will pull out next time i clean the filter is there any trick to removing them or just pull.


I left them in on mine... they are nice for holding tools, stick a screw driver, ratchet extension, ect







haha I just pulled on them...well mine came out with teh stock airbox..haha . so i didnt have a choice really.







Did anyone of you notice and increase in performance or mpg with this? It looks like it would get pretty heat soaked being exposed like that.
