First of all hello. I have been searching through pages and pages on this forum for about 3 days and I am still stuck. I have a 2003 with the dual climate control. The passenger side is not working, but the driver side is blowing hot. I have removed the center consol and checked the blend doors. They all are moving, no noise. Air flow is good. The heater core is very hot to the touch. Both lines going into the heater core are hot. Radiator is full. On a recent trip to Florida I noticed the AC was not cooling on either side. I did find that the wire near the oil filter has worn through the AC line ( the 4.6 common problem), I did a temporary fix, but would this affect the heat? I am assuming the freon is low, and I hear the AC cycling. I know this alot to put out there, any help would be appreciated. The wife is cold and has taken my car until I figure it out!

( BTW I did run the diagnostic on the HVAC read out and a code 22 67 came up. I don't know what to do with that.)



Join the Elite Explorers for $20 per year. Gets rid of the ads! New $5 per month "try out" option.

Explorer Forum has probably saved you that much already, and will continue to save you money as you learn how to diagnose fix problems yourself and learn which modifications work without having to experiment on your own. Elite Explorer members see no advertisements, no banner ads, no double underlined links, can add their own profile photo, upload photo attachments in all forums, and Media Gallery, create and save more private Conversations, and more. Join Today. Your support is greatly appreciated.




dpasker01

New Member
Joined
September 11, 2012
Messages
2
Reaction score
0
City, State
Boise Idaho
Year, Model & Trim Level
2003 Ford Explorer 4.6L
Same thing. What is the issue???

I just got the same code today 22 67. What is that??? Any help would be greatly appreciated.





chopperb

Member
Joined
July 19, 2012
Messages
95
Reaction score
0
City, State
Chicago
Year, Model & Trim Level
04 explorer
2267 means RH blend door failure or short.





carpgto

New Member
Joined
February 24, 2013
Messages
3
Reaction score
0
City, State
Indian Trail, NC
Year, Model & Trim Level
2003 Eddie Bauer 4.6
Thanks! Where do I look for that? All of the doors seem to open and close fine as I adjust the air from floor to dash. (sorry to sound so uneducated)









dpasker01

New Member
Joined
September 11, 2012
Messages
2
Reaction score
0
City, State
Boise Idaho
Year, Model & Trim Level
2003 Ford Explorer 4.6L
question

Sorry if this is a stupid question but is there a blend door on both sides of the center console?





chopperb

Member
Joined
July 19, 2012
Messages
95
Reaction score
0
City, State
Chicago
Year, Model & Trim Level
04 explorer
Sorry if this is a stupid question but is there a blend door on both sides of the center console?

On dual climate control system there are 2. One on each side.





carpgto

New Member
Joined
February 24, 2013
Messages
3
Reaction score
0
City, State
Indian Trail, NC
Year, Model & Trim Level
2003 Eddie Bauer 4.6
Is there a picture of the passenger side? I have been in there all evening again and nothing. I dont see one on the driver side either. There isn't even anything white in th area.





SidCharming

New Member
Joined
January 20, 2012
Messages
33
Reaction score
0
Location
Minneapolis, MN
City, State
Minneapolis, MN
Year, Model & Trim Level
2012 Explorer Limted
Is there a picture of the passenger side? I have been in there all evening again and nothing. I dont see one on the driver side either. There isn't even anything white in th area.

Did you ever find anything on the Passenger side Blend Door? I too am in search.









SidCharming

New Member
Joined
January 20, 2012
Messages
33
Reaction score
0
Location
Minneapolis, MN
City, State
Minneapolis, MN
Year, Model & Trim Level
2012 Explorer Limted
Still looking for replacement instructions or how-to for Passenger side. I've seen a few different YouTube and Forum posts, but they seem to show locations either behind glove box, left of (inside) glove box or Left and down (inside) glove box. I don't seem to have the version that is simple to find.

Anyone? 2002 Ford Explorer EB with Dual Climate Control (Digital)





FordFool2

Active Member
Joined
December 11, 2010
Messages
402
Reaction score
1
City, State
Cedar Rapids, IA
Year, Model & Trim Level
04 Eddie Bauer & 13 Ltd
Let me help you Sid. I have provided a link to a thread that has a picture with the instrument panel removed exposing the passenger side ducts and actuators.

The author has circled the Vent/Panel actuator. Below this is the Floor actuator. Just below that you will see a wire and it is attached to the passenger Blend Door actuator. It is black in color. I have replaced mine and I recall it had 3 screws.

http://www.explorerforum.com/forums/showthread.php?t=397841





SidCharming

New Member
Joined
January 20, 2012
Messages
33
Reaction score
0
Location
Minneapolis, MN
City, State
Minneapolis, MN
Year, Model & Trim Level
2012 Explorer Limted
Let me help you Sid. I have provided a link to a thread that has a picture with the instrument panel removed exposing the passenger side ducts and actuators.

The author has circled the Vent/Panel actuator. Below this is the Floor actuator. Just below that you will see a wire and it is attached to the passenger Blend Door actuator. It is black in color. I have replaced mine and I recall it had 3 screws.

http://www.explorerforum.com/forums/showthread.php?t=397841

If you have replaced it, did you need or have to remove the dash?

(I updated the image from that thread... is Orange the Floor Actuator and the green the passenger blend door??)


gifs upload





toy4x4

New Member
Joined
February 27, 2014
Messages
17
Reaction score
0
City, State
VA
Year, Model & Trim Level
2003 Explorer Limited 4x4
If you have replaced it, did you need or have to remove the dash?
I'm not sure on removal of the passenger side but I thought from looking at mine the dash would have to come out some to access the screws...
However here is a video of a guy doing the driverside replacement without pullinig the dash... -He has a single temp system but It looks like it's the same on the driverside except my actuators are black... I'm surprised he had enough room to get it out though.



(I updated the image from that thread... is Orange the Floor Actuator and the green the passenger blend door??)
Yes from looking at mine, I believe the Orange is the floor actuator and the green is the passenger blend door.





toy4x4

New Member
Joined
February 27, 2014
Messages
17
Reaction score
0
City, State
VA
Year, Model & Trim Level
2003 Explorer Limited 4x4
Here is where mine are located:

Passenger Side:



Drivers Side





toy4x4

New Member
Joined
February 27, 2014
Messages
17
Reaction score
0
City, State
VA
Year, Model & Trim Level
2003 Explorer Limited 4x4

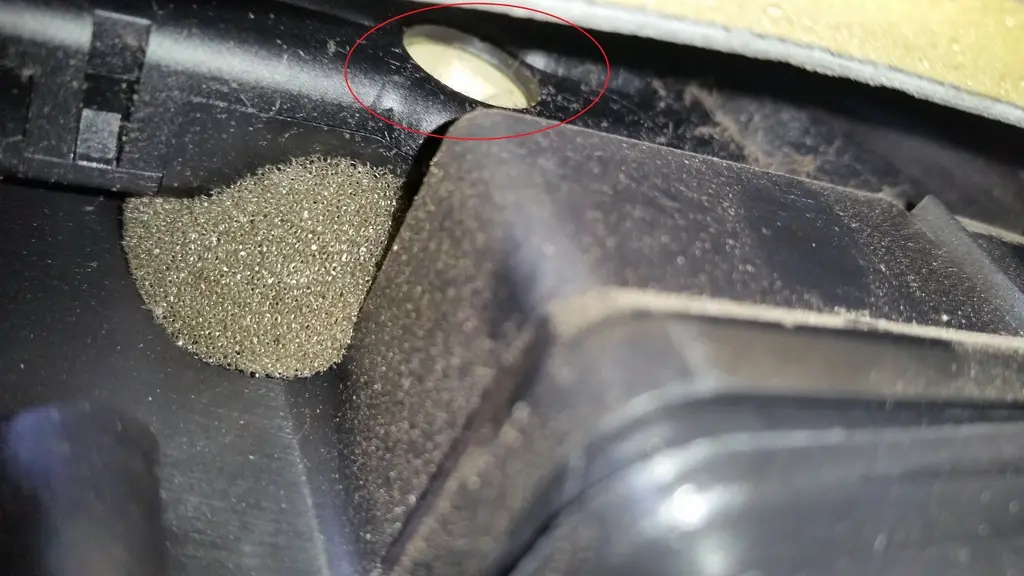

Additionally, if you want to test the functionality of these before removal you can watch the white axle with the square shape in it (the red circle in the image below) this should rotate slowly as you change the temp...
